분해도 정보

마끼다 AC001G 컴프레서 부품

제품이미지

7 베어링 슬리브

266898-7

1,100

총 69개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	HY00001197	TAPPING SCREW ST4.2X16	3	550	품절
2	HY00000996	REGULATOR KNOB	1	1,210	품절
3	HY00001193	BIND HEAD SCREW M4X12	4	550	품절
4	HY00001201	FLAT WASHER 4	4	550	품절
7	HY00001144	COVER F	1	10,010	품절

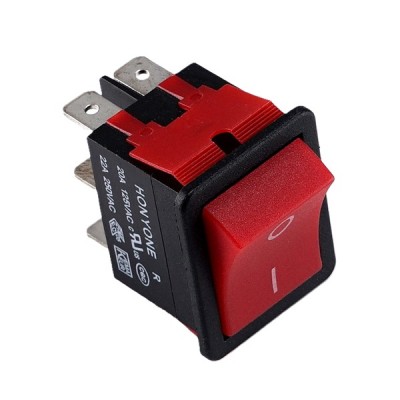

8	HY00001145	스위치	1	8,800
9	HY00001194	BIND HEAD SCREW M5X12	2	550	품절
10	HY00001200	FLAT WASHER 5	2	550	품절
12	HY00000344	PRESSURE GAUGE L	2	6,050	품절
13	HY00001139	ELBOW 6-R1/4	1	2,750	품절
14	HY00001147	PIPE 6 SET (OUT)	1	6,710
15	HY00001139	ELBOW 6-R1/4	1	2,750	품절
16	HY00001148	REGULATOR NPT1/4 COMPLETE	1	18,040	품절
17	HY00000999	SAFETY VALVE COMPLETE NPT1/4	1	3,850	품절
18	HY00000337	QUICK COUPLER L NPT1/4	1	5,500	품절
19	HY00001152	LEAD UNIT YELLOW	1	1,870	품절
20	HY00001153	LEAD UNIT BLACK & WHITE	1	1,870	품절

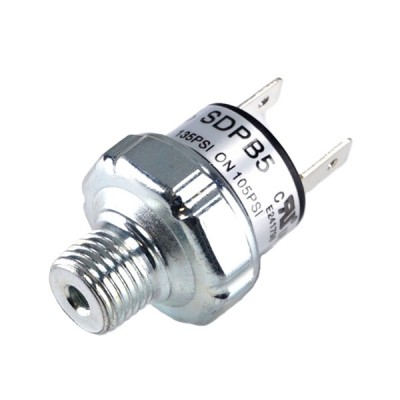

21	HY00001154	압력스위치	1	11,660
22	HY00001197	TAPPING SCREW ST4.2X16	4	550	품절
23	HY00001200	FLAT WASHER 5	2	550	품절
24	HY00001194	BIND HEAD SCREW M5X12	2	550	품절
26	HY00001157	COVER L	1	9,020	품절
27	HY00001158	TANK ASSEMBLY	1	63,250	품절
34	HY00001161	CAP 19	2	550	품절
35	HY00001000	DRAIN VALVE	1	3,080	품절
36	HY00001093	FLAT WASHER 6	4	550	품절
37	HY00001162	RUBBER FOOT	4	1,980	품절
38	HY00001003	SLEEVE 6	4	550	품절
39	HY00001004	FLAT WASHER 6L	4	550	품절
40	HY00001005	HEX.BOLT M6X16	4	550	품절
41	HY00001163	AIR FILTER ASSEMBLY	1	3,300	품절
42	HY00000970	AIR FILTER ELEMENT	1	550	품절
43	HY00001164	O-RING 50	1	550	품절
44	HY00001165	MUFFLER TUBE 8	1	550	품절
45	HY00001192	HEX SOCKET HEAD BOLT M5X60	4	550	품절
46	HY00001198	SPRING WASHER 5	4	550	품절
47	HY00001200	FLAT WASHER 5	4	550	품절
48	HY00001167	CYLINDER HEAD ASSEMBLY	1	3,960	품절
49	HY00001168	HARF UNION 6-R1/8	1	3,190	품절
50	HY00001169	PIPE 6 SET (IN)	1	5,940	품절
51	HY00001170	CHECK VALVE ASSY	1	7,480	품절
52	HY00001171	O-RING 37	1	2,090	품절
53	HY00001172	CYLINDER 36	1	8,800	품절
54	HY00001173	CYLINDER SIM	1	550	품절
55	HY00001174	PISTON ASSEMBLY	1	12,430	품절
56	HY00001195	BIND HEAD SCREW M5X8	1	550	품절
57	HY00001200	FLAT WASHER 5	1	550	품절
58	HY00001175	FAN 60	1	1,100	품절
59	HY00001176	POLY LIBBED BELT 5-265	1	14,960	품절
60	HY00001177	MOTOR ASSEMBLY	1	451,440
61	HY00001191	HEX SOCKET HEAD BOLT M5X20	3	550	품절
62	HY00001199	FLAT WASHER 5L	3	550	품절
63	HY00001178	SLEEVE 5	3	550	품절
64	HY00001179	CUSHION	3	550	품절
65	HY00001189	BOND	1	660	품절
66	HY00001190	TUBE	1	550	품절
67	HY00001196	TAPPING SCREW ST3X13	1	550	품절
68	HY00001180	TERMINAL CASE L	1	1,210	품절
69	HY00001181	TERMINAL UNIT	1	22,660	품절
70	HY00001182	RUBBER PIN 6	2	550	품절
71	HY00001183	TERMINAL CASE R	1	1,210	품절
72	HY00001196	TAPPING SCREW ST3X13	2	550	품절
73	HY00001184	LEAD UNIT BROWN	1	1,540	품절
74	HY00001196	TAPPING SCREW ST3X13	2	550	품절
75	HY00001185	COVER R	1	14,520	품절
76	HY00001200	FLAT WASHER 5	2	550	품절
77	HY00001194	BIND HEAD SCREW M5X12	2	550	품절
78	HY00001200	FLAT WASHER 5	1	550	품절
79	HY00001194	BIND HEAD SCREW M5X12	1	550	품절
