분해도 정보

신다이와 EB802RT 엔진 송풍기(브로워)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 207개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	9392913	P021029350 CYLINDER COMP	1	126,500	품절
1-2	9392921	GASKET	1	3,850	품절
1-3	9392914	90010506025 BOLT	4	550	품절
1-4	9392919	A200000420 INSULATOR	1	13,200	품절
1-5	9392917	BAFFLE PLATE COMP	1	12,100
1-6	9392918	GASKET	2	2,200
1-7	9392920	BOLT-SPW	4	4,400
1-8	9392915	A160001280 CYLINDER COVER	1	11,000	품절
1-9	9392916	V202000180 BOLT-SLPW	2	1,100	품절
2-1	9392922	MUFFLER ASSY	1	60,500
2-2	9392924	A310000150 SCREEN	1	5,500	품절
2-3	9392923	A313001190 TAIL PIPE	1	13,750	품절
2-4	9392925	A313001201 TAIL PLATE	1	3,850	품절
2-5	9392926	9157404012 SCREW,PM-SPW	2	1,100	품절
2-6	9392927	GASKET	1	12,650
2-7	9392928	V104001060 GASKET	2	2,200	품절
2-8	9392788	90010506020 BOLT	4	550	품절
3-1	9392935	P021029360 CRANKCASE,S COMP	1	51,700	품절
3-2	9392937	9400036302 BALL BEARING	1	14,850	품절
3-3	9392936	OIL SEAL	1	9,350
3-4	9394561	P021029372 CRANKCASE,M COMP	1	71,500	품절
3-5	9392939	9400036303 BALL BEARING	1	44,000	품절
3-6	9392936	OIL SEAL	1	9,350
3-7	9361508	90033040080 PIN, DOWEL	2	1,100	품절
3-8	9391649	90010505030 BOLT	4	1,100	품절
3-9	9392940	V204000370 BOLT,ADHESIVE	6	1,650	품절
3-10	9392941	A127000260 COVER	1	2,200	품절
3-11	9392004	V202000190 BOLT-SLPW	1	1,650	품절
3-12	9392929	P021029380 ENGINE COVER COMP	1	61,600	품절
3-13	9392932	A190000940 ENGINE COVER	1	48,400	품절
3-14	9392930	A429000080 GROMMET	1	7,700	품절
3-15	9392931	90034240008 PIN	1	1,100	품절
3-16	9392933	A322000080 PLATE	1	5,500	품절
3-18	9393053	V485001330 LEAD WIRE	1	7,700	품절
3-19	9392942	X505002780 LABEL,CAUTION	1	1,650	품절
4-1	9394571	PISTON	1	44,000
4-2	9392944	A101000270 PISTON RING	2	12,100
4-3	9392728	V610000010 PISTON PIN	1	6,050	품절
4-4	9392729	V580000060 SNAP RING	2	1,100	품절
4-5	9392730	V557000030 NEEDLE BEARING	1	10,450	품절
4-6	9392946	CRANKSHAFT	1	93,500
4-7	9392943	PISTON SET	1	85,800	품절

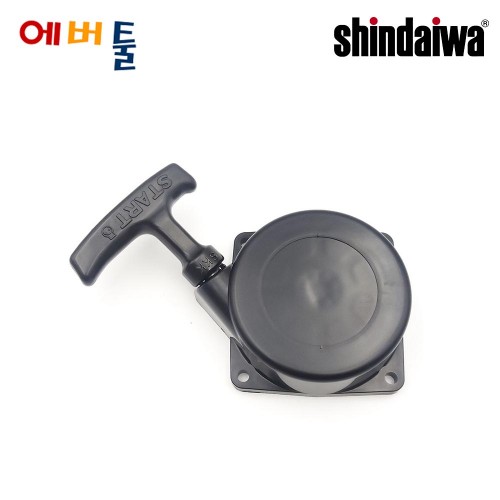

5-1	9394581	리코일스타터	1	34,100
5-2	9392948	A500000670 STARTER CASE	1	9,900	품절
5-3	9392950	RECOIL SPRING	1	8,800
5-4	9392951	A506000170 REEL	1	6,600	품절
5-5	9392954	A518000040 DOG	1	3,850	품절
5-6	9392949	V450000830 BRAKE SPRING	1	3,300	품절
5-7	9392956	V253000280 SCREW	1	3,300	품절
5-8	9392955	RETAINER	1	2,750
5-9	9392952	A509000090 ROPE	1	5,500	품절
5-10	9392953	A511000120 KNOB	1	4,950	품절
5-11	9392958	STARTER PULLEY	1	6,600
5-12	9392957	90050300008 NUT	1	1,100	품절
5-14	9392959	X543001250 LABEL,TRADE	1	2,750	품절
6-1	9393059	E103000860 VOLUTE CASE	1	80,300	품절
6-2	9393060	V402000070 AV-RUBBER	2	13,200	품절
6-3	9393061	V264000090 FLANGE NUT	2	1,100	품절
6-4	9394573	E103000872 CASE,FAN	1	58,300	품절
6-5	9393070	V401000190 AV-RUBBER	1	19,800	품절
6-6	9393068	V203000440 BOLT,TAPPING	1	2,200	품절
6-7	9393069	V303000130 COLLAR	1	1,100	품절
6-8	9394730	9112205016 BOLT SW	2	550	품절
6-9	9392986	V303000140 COLLAR	2	1,100	품절
6-10	9393075	V490000480 CLAMP	1	1,100	품절
6-11	9391965	9144905014 SCREW,TAPPING	1	2,200	품절
6-12	9393065	V203000450 BOLT,PC	14	1,650	품절
6-13	9393073	V203000490 BOLT-SLPW	2	3,300	품절
6-14	9393074	V263000110 NUT	2	1,100	품절
6-15	9393066	E104000171 INTAKE COVER	1	18,700	품절
6-16	9393067	A161000100 FUNNEL	1	6,050	품절
6-18	9393062	E100000170 FAN	1	74,800	품절
6-19	9393063	V204000390 BOLT-SLPW	4	1,650	품절
6-20	9393072	X505002760 LABEL,CAUTION	1	1,100	품절
6-21	9393071	X505002750 LABEL,CAUTION	1	2,200	품절
7-1	9394579	PIPE,MAIN	1	6,600
7-2	9393043	V581000170 O RING	1	1,650	품절
7-3	9393045	FLEXIBLE PIPE	1	14,300
7-4	9393047	JOINT PIPE	1	11,000
7-5	9393048	NOZZLE	1	9,350
7-6	9393044	V495001290 CLAMP	1	3,300	품절
7-7	9393046	CLAMP	1	3,300
7-8	9393049	E165000530 PIPE	1	9,900	품절
7-9	9393050	E165000540 NOZZLE	1	7,700
7-10	9393052	X504001070 LABEL,TRADE	1	6,050	품절
7-11	9393051	X505002770 LABEL,CAUTION	1	4,400	품절
8-1	9392960	ROTOR	1	39,600
8-2	9392961	V381000030 KEY	1	1,650	품절
8-3	9392086	NUT	1	1,100	품절
8-4	9392964	P021029390 COIL ASSY	1	86,900	품절
8-6	9392966	V144000220 GROMMET	1	1,650	품절
8-7	9392967	튜브	1	1,100
8-8	9392968	A427000100 PLUG CAP	1	1,650	품절
8-9	9392091	A426000050 SPRING,PLUG	1	1,100	품절
8-10	9392962	V485001340 LEAD WIRE	1	2,750	품절
8-11	9392963	V485001350 LEAD WIRE	1	2,200	품절
8-12	9392004	V202000190 BOLT-SLPW	2	1,650	품절
8-13	9392969	13000-03506 SPARK PLUG CHAMPIO	1	6,600	품절
9-1	9394585	CARBURETOR, DIAPHRAGM	1	104,500	품절
9-2	9391596	12312610631 SCREEN	1	1,100	품절
9-3	9391851	LEVER	1	3,300	품절
9-4	9391853	PIN	1	1,100	품절
9-5	9392404	12312205560 SPRING	1	2,750	품절
9-6	9391602	NEEDLE VALVE	1	4,400	품절
9-7	9392405	12313905560 SCREW	1	3,300	품절
9-8	9392407	12318005560 PUMP BASE COMP	1	15,400	품절
9-9	9392410	12314205560 PUMP COVER	1	3,300	품절
9-10	9392409	PRIMER PUMP	1	4,400
9-11	9392974	DIAPHRAGM	1	11,000	품절
9-12	9392406	GASKET	1	1,650
9-13	9392107	12311240630 DIAPHRAGM	1	6,600
9-14	9392106	GASKET,PUMP	1	3,850
9-15	9392972	3904681320 JET	1	9,900	품절
9-16	9392104	12318340630 O RING	1	1,100	품절
9-17	9392401	12317307930 E RING	1	1,100	품절
9-18	9392396	12317245130 SWIVEL	1	6,050	품절
9-19	9392397	12311440630 SCREW	2	1,100	품절
9-20	9392399	P003002590 BRACKET	1	19,250	품절
9-21	9392402	12314312110 RING GASKET	1	1,650	품절
9-22	9392411	12311005560 SCREW	4	1,100	품절
9-23	9392398	12314954230 WASHER	1	1,100	품절
9-24	9392400	12316156431 CABLE ADJUSTER	1	3,850	품절
9-25	9392241	12315356430 NUT	1	2,200	품절
9-26	9392975	GASKET	1	2,750	품절
9-27	9392973	P050008560 GASKET SET	1	44,000	품절
9-28	9392971	6824298340 VALVE SET	1	37,400	품절
10-1	9394586	P021039421 CLEANER BODY ASSY	1	27,500	품절
10-2	9392995	20018-81711-B CHOKE PLATE	1	2,200	품절
10-3	9392413	CHOKE LEVER	1	1,650	품절
10-4	9392417	E140000090 CHOKE SHAFT	1	3,850	품절
10-5	9392415	90060500006 SPRING WASHER	1	550	품절
10-6	9392416	V264000110 U NUT	1	1,650	품절
10-7	9392111	CONE WASHER	1	1,100
10-8	9392993	PLATE	1	4,400

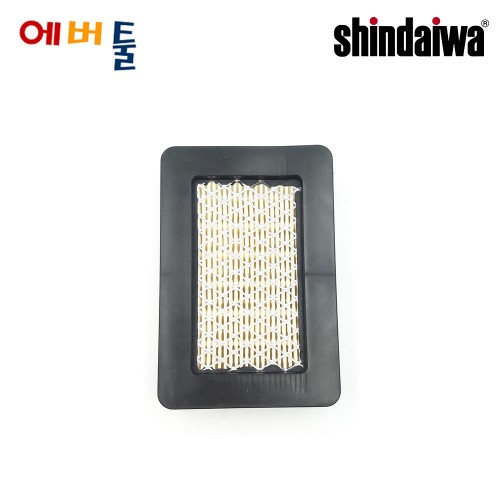

10-9	9392990	에어필터	1	40,700	품절
10-10	9392989	A226000540 PREFILTER	1	5,500	품절

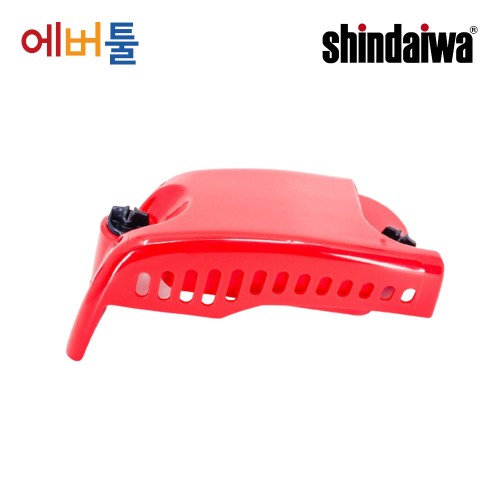

10-11	9394588	에어크리너커버	1	42,900	품절
10-12	9391867	KNOB, CLEANER LID	2	4,400
10-13	9392421	V323000080 COLLAR	2	1,100	품절
10-14	9392991	9110905070 BOLT	2	2,750	품절
10-15	9392992	90060200005 WASHER	2	1,100	품절
10-16	9392910	V203000350 BOLT-SPW	1	1,100	품절
11-1	9392976	A038000060 FUEL TANK ASSY	1	58,300	품절
11-2	9392977	A350001050 FUEL TANK	1	20,900	품절
11-3	9392978	A033000020 FUEL CAP ASSY	1	8,250	품절
11-4	9392116	V107000010 GASKET	1	1,650	품절
11-5	9392980	V470000890 GROMMET	1	3,850
11-6	9392979	PIPE	1	2,750
11-7	9391505	FUEL FILTER SUBASSY	1	5,500
11-8	9391506	22128-85410 FUEL LINE WEIGHT	1	2,750	품절
11-9	9391507	A371000000 FILTER	2	2,750	품절
11-10	9391508	V490000750 CLIP,FILTER	1	1,650	품절
11-11	9391509	22118-85460 FUEL SCREEN	2	1,100	품절
11-12	9391430	22128-85470 FUEL FILTER BODY	1	3,300	품절
11-13	9391510	V583000200 RING	1	1,650	품절
11-14	9391827	CLIP	3	1,100
11-15	9392118	VALVE	1	6,050
11-16	9392983	V471002420 PIPE	1	1,650	품절
11-17	9392982	V471002430 PIPE	1	1,650	품절
11-18	9392336	JOINT	1	1,650
11-19	9392981	V471002440 PIPE	1	1,100	품절
11-20	9391827	CLIP	1	1,100
11-22	9392984	V491000250 CLIP	1	1,100	품절
11-23	9392985	V203000470 BOLT,ADHESIVE	2	1,650	품절
11-24	9392986	V303000140 COLLAR	2	1,100	품절
11-25	9392987	X504001060 LABEL,TRADE	1	6,050	품절
12-1	9393076	C620000351 FRAME	1	63,800	품절
12-2	9393078	PAD	1	19,250
12-3	9393077	V491000260 CLIP	8	1,100	품절
12-4	9393081	C640000032 HARNESS, BACKPACK	1	24,200
12-5	9393082	C640000042 HARNESS, BACKPACK	1	24,200	품절
12-6	9393079	밴드	2	4,400
12-7	9393080	9999999910 CLIP	2	1,650	품절
13-1	9394606	CONTROL, THROTTLE	1	86,900
13-2	9393027	C400000570 BODY,RIGHT	1	11,000	품절
13-3	9393018	C400000580 BODY,LEFT	1	11,000	품절
13-4	9393034	C450000450 THROTTLE LEVER	1	3,300	품절
13-5	9393017	C453000320 LOCK LEVER	1	3,300	품절
13-6	9393016	V204000260 ADJUST BOLT	1	1,100	품절
13-7	9393019	V304000110 WASHER	2	1,100	품절
13-8	9393020	V453000110 ADJUST SPRING	2	1,650	품절
13-9	9393021	V304000120 WASHER	1	1,100	품절
13-10	9393022	C472000070 PLATE	1	1,650	품절
13-11	9393023	V264000080 NYLON NUT	1	1,100	품절
13-12	9393015	V162000330 CAP	1	1,650	품절
13-13	9393036	THROTTLE CABLE ASSY	1	44,000
13-14	9393038	THROTTLE CABLE	1	19,250
13-15	9394213	A440001370 SWITCH	1	20,900	품절
13-16	9393031	V252000070 SCREW	6	1,100	품절
13-17	9393033	BAND,RIGHT	1	9,900
13-18	9393040	BAND,LEFT	1	9,900	품절
13-19	9393041	KNOB BOLT	1	4,400
13-20	9393024	C457000010 ADJUSTER ASSY	1	3,850	품절
13-21	9393028	V162000340 PLUG	1	1,650	품절
13-22	9393030	V252000080 SCREW	1	1,100	품절
13-23	9393029	C453000330 SUBLEVER	1	2,750	품절
13-24	9393026	V345000010 WASHER	1	1,650	품절
13-25	9393025	V453000120 ADJUST SPRING	1	2,200	품절
13-26	9393032	C412000240 GRIP	1	14,850	품절
13-27	9393039	C412000250 GRIP	1	14,850	품절
13-28	9393035	V251000030 SCREW	1	1,100	품절
13-29	9393058	V490000490 CLAMP	1	8,800	품절
14-1	9393083	6824292310 TOOL SET	1	6,600	품절
14-2	9392870	X602000120 PLUG WRENCH	1	4,400	품절
14-3	9392064	X605000100 HEXA-WRENCH	1	1,100	품절
14-4	9392392	X605000070 HEXA-WRENCH	1	1,650	품절
14-5	9391631	X705000130 POLY-BAG	1	2,200	품절
