분해도 정보

에코 CS-260TES 엔진톱 부품

제품이미지

7 베어링 슬리브

266898-7

1,100

총 187개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	9360786	크랭크케이스 아세이	1	73,700
1-2	9394436	90016205022 BOLT,H.S.	1	880	품절
1-3	9360812	CRANKSHAFT ASSY	1	176,000
1-4	9360491	SEAL,OIL	2	5,500
1-5	9360519	BEARING,BALL 6001	2	5,500
1-6	9360612	BEARING,NEEDLE 8	1	8,800	품절

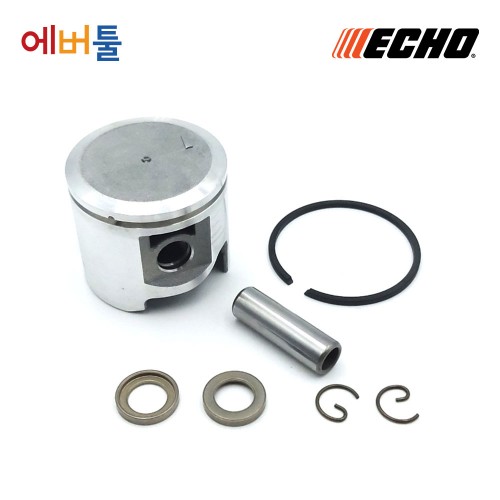

1-7	9360751	피스톤 키트	1	44,000
1-8	9360457	SPACER, PISTON PIN	2	4,400	품절
1-9	9360072	CIRCLIP,PISTON PIN	2	1,100	품절
1-10	9360449	PIN,PISTON	1	4,400	품절
1-11	9360574	RING,PISTON	2	7,700
1-12	9360109	볼트 H.S. 4X12	2	550	품절
1-13	9360189	COLLAR 14	1	1,100

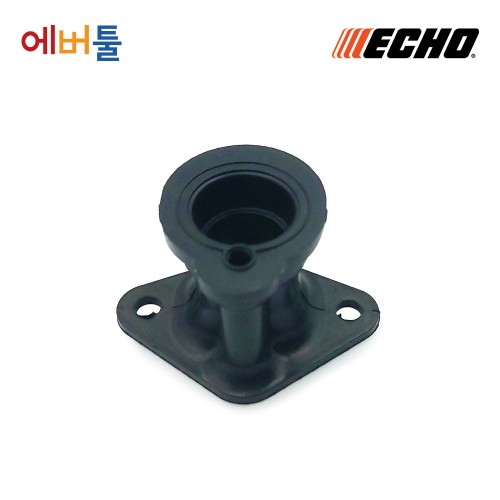

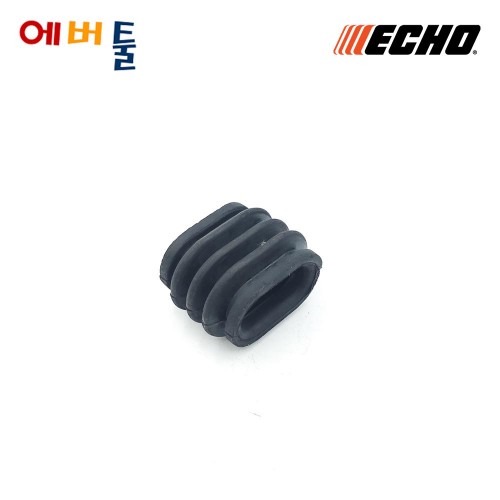

1-14	9360646	흡기 벨로우즈	1	10,450
1-15	9360240	COVER,DUST	1	1,650
1-16	9360029	SCREW	2	1,100
1-17	9360297	LABEL,CAUTION	1	2,200	품절
1-18	9360221	PLUG	1	1,320	품절
1-19	9360143	볼트 H.S. 5X16	2	1,100	품절

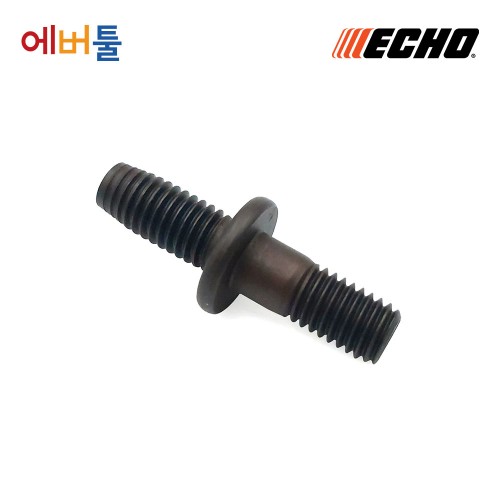

1-20	9360341	스터드볼트8	1	2,750

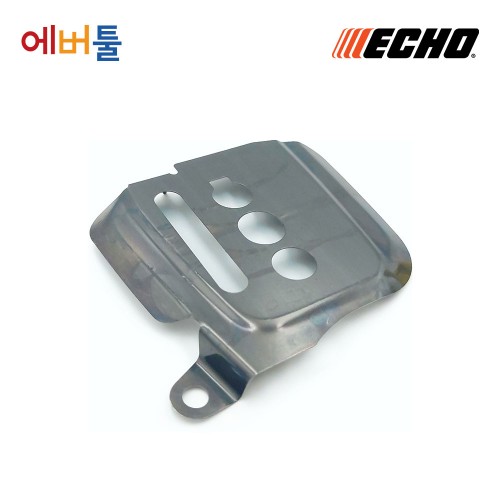

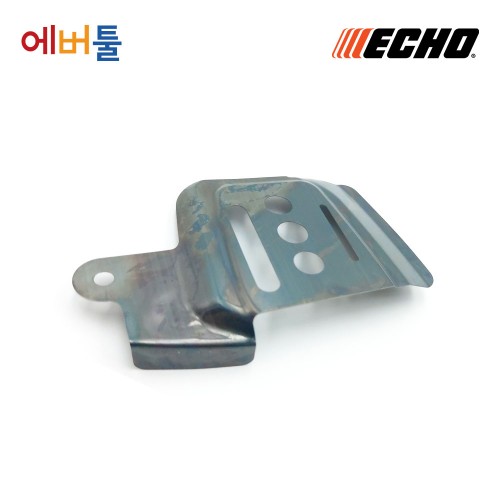

1-21	9360540	스프로켓 플레이트	1	6,050
1-22	9360118	볼트,4	2	1,100	품절

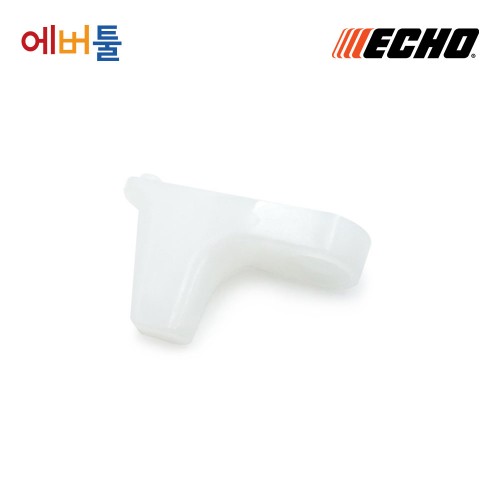

1-23	9360269	체인캐처	1	1,650
1-24	9394445	SCREW	1	550
1-25	9360765	COVER ENGINE	1	52,800
1-26	9360121	O-RING	1	1,100	품절
1-28	9360107	볼트 H.S. 5X25	2	550	품절

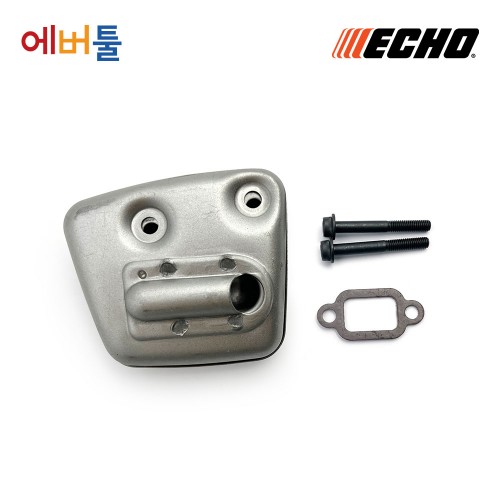

2-1	9360745	머플러 아세이	1	36,300	품절
2-2	9360094	OLT HSH FLANGE	2	550	품절
2-3	9360626	LID,MUFFLER	1	9,900
2-4	9360455	PLATE,MUFFLER	1	4,400	품절
2-5	9360709	MUFFLER,EXHAUST	1	19,800	품절
2-6	9360262	GASKET,MUFFLER	1	1,650	품절

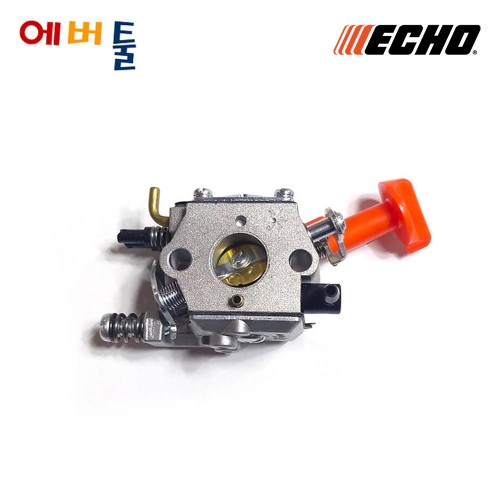

2-7	9360797	카뷰레터 아세이	1	100,100

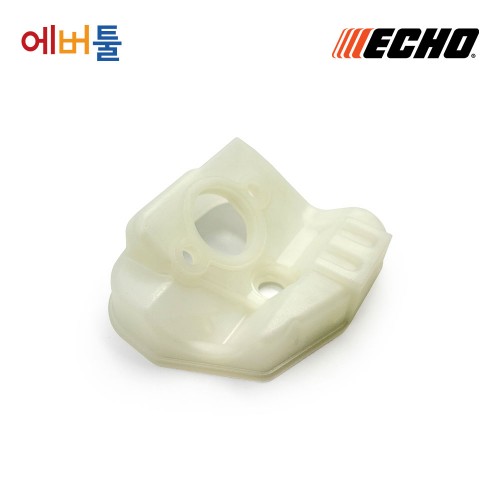

2-8	9360645	크리너케이스	1	10,450
2-9	9360408	PLATE,PREVENT	1	3,300

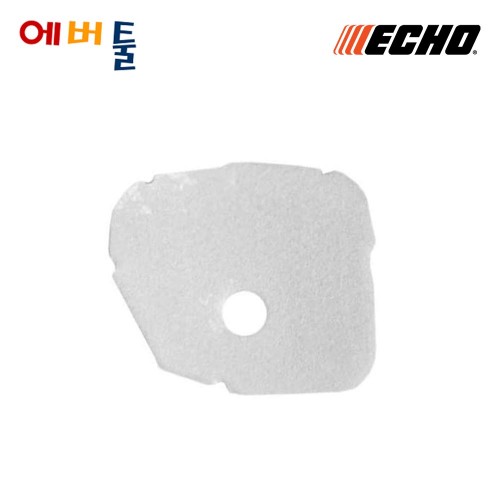

2-11	9361221	에어필터 엘리먼트	1	6,050
2-12	9360667	에어크리너 리드	1	13,200	품절

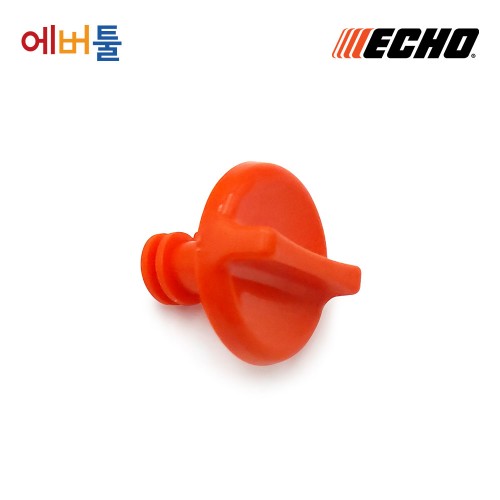

2-13	9360505	에어크리너 노브	1	5,500
2-15	9360254	GROMMET	1	1,650	품절
3-1	9360762	ROTOR,MAGNETO	1	55,000
3-2	9394447	90051500008 NUT,FLANGE	1	1,100	품절
3-3	9360243	SPRING,TORSION	2	1,650	품절
3-4	9360373	PAWL	2	2,750	품절
3-6	9360085	볼트 5	2	550	품절

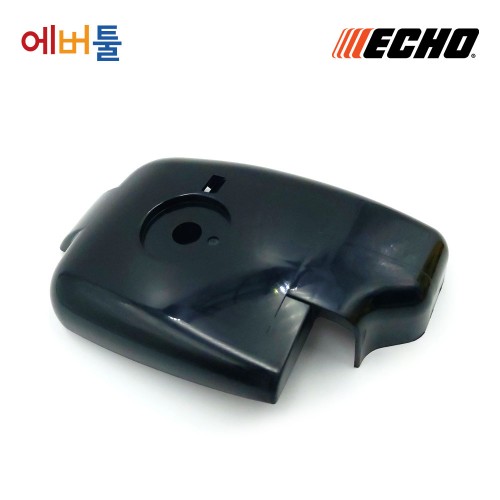

3-7	9360597	팬커버	1	9,350	품절

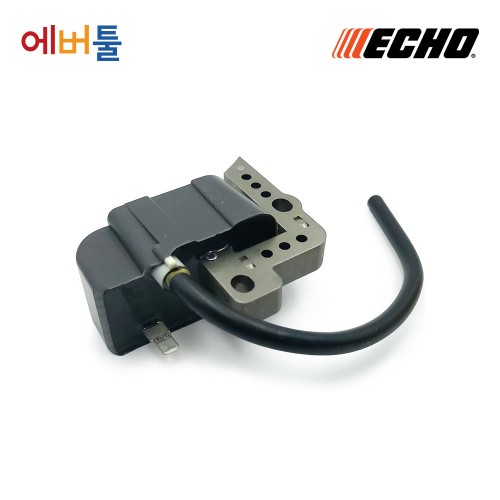

3-8	9360781	점화코일	1	74,800	품절
3-9	9360013	SCREW 5X22	2	550	품절
3-10	9394410	스페이서	2	2,200
3-11	9360139	튜브	1	880	품절
3-12	9360375	LEAD	1	2,750
3-13	9360158	GROMMET	1	880	품절
3-14	9360155	부싱	1	880	품절
3-15	9360169	튜브	1	880	품절

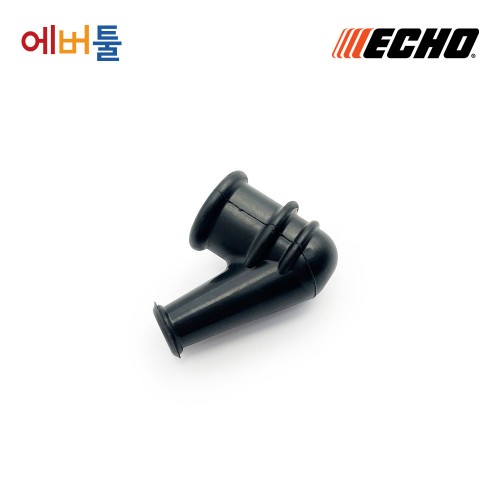

3-16	9394471	A427000013 CAP,SPARK PLUG	1	5,500	품절
3-17	9394470	TERMINAL,SPARKPLUG	1	3,300

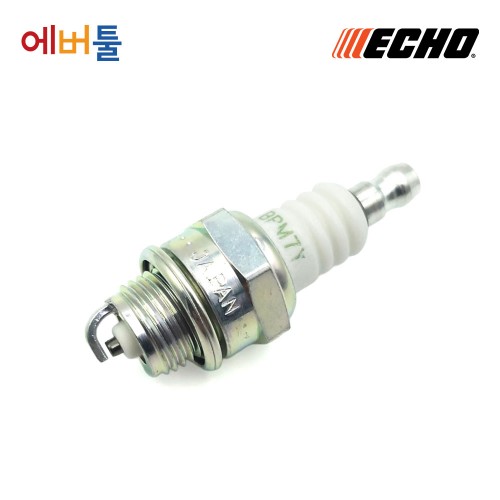

3-18	9360605	점화플러그 NGK BPM7Y	1	13,200

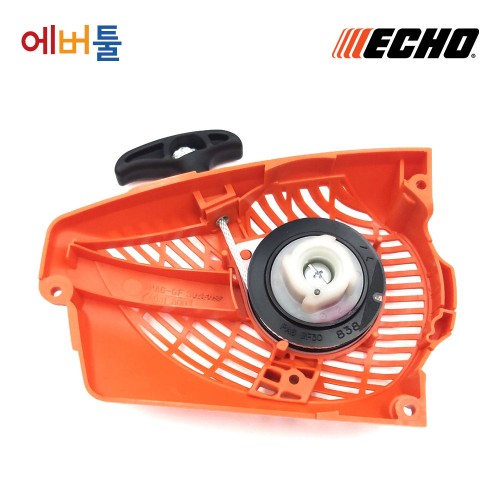

3-19	9360773	리코일스타터	1	68,200
3-20	9394416	SCREW	1	2,200	품절
3-21	9394512	CATCHER,PAWL	1	5,500

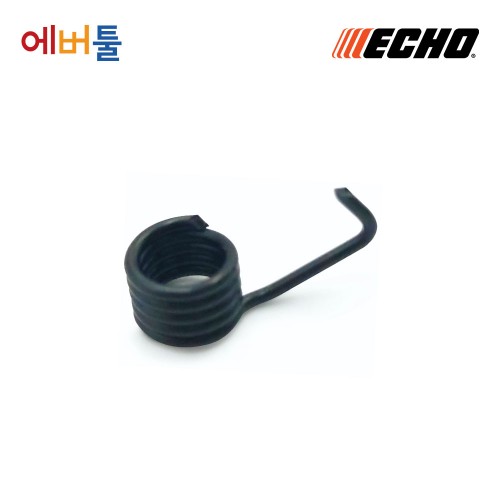

3-22	9360490	토션스프링	1	4,950
3-23	9360443	ROPE	1	3,850
3-24	9394648	REEL,ROPE	1	11,000	품절

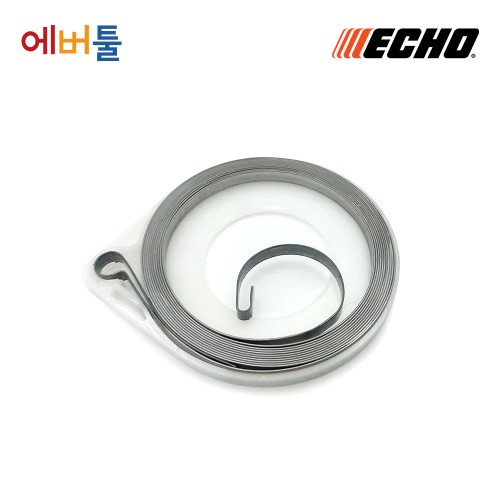

3-25	9360669	스프링 키트	1	13,200
3-26	9360294	GRIP,STARTER	1	2,750
3-27	9360163	CLIP,STARTER ROPE	1	880	품절
3-28	9360050	SCREW 4X16	3	550
3-29	9360306	LABEL,ECHO	1	2,200	품절
3-30	9360394	PLUG	1	3,300	품절

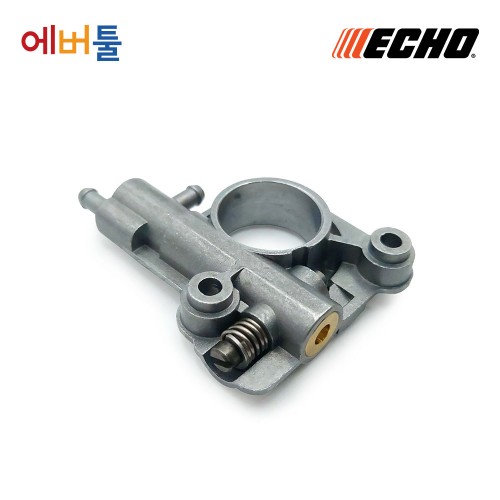

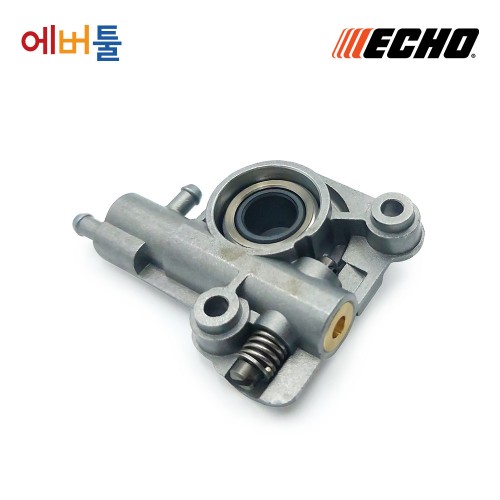

4-1	9360758	오토오일러	1	51,700
4-2	9394478	C022000020 AUTO-OILER ASSY	1	38,500
4-3	9394524	WASHER,CIRCULAR	1	1,650
4-4	9394552	GEAR,WORM	1	7,700
4-5	9360276	COLLAR 10	1	1,650
4-6	9394440	SCREW	2	550
4-7	9360148	NIPPLE	1	880
4-8	9360286	PIPE 3X 6X45	1	2,200	품절
4-9	9394406	13201326630 CLIP	1	550	품절
4-10	9360251	PIPE	1	1,650
4-11	9360134	GROMMET	1	880	품절
4-12	9360570	STRAINER,OIL	1	7,150	품절
4-13	9394408	GROMMET	1	1,650
4-14	9360517	PIPE	1	5,500
4-15	9360147	JOINT,PIPE	1	1,100
4-16	9360336	PIPE	1	2,750	품절
4-17	9394405	13201309820 CLIP	1	1,100	품절
4-18	9360548	STRAINER,FUEL	1	6,600	품절

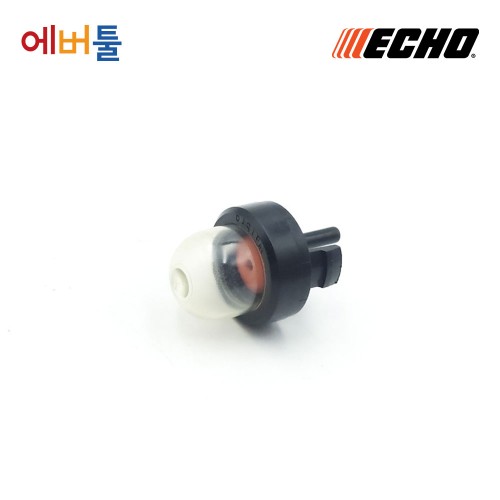

4-19	9392735	PRIMER/PUMP	1	19,800
4-20	9360346	PIPE	1	2,420	품절
4-21	9360410	PIPE	1	3,300
4-22	9360161	GROMMET,FUEL	1	1,100	품절
4-23	9394401	VALVE, CHECK	1	4,950

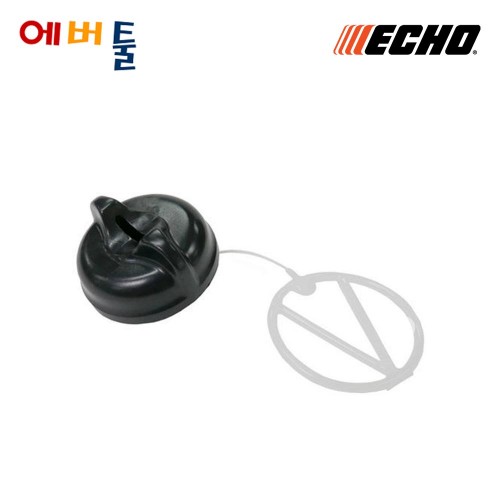

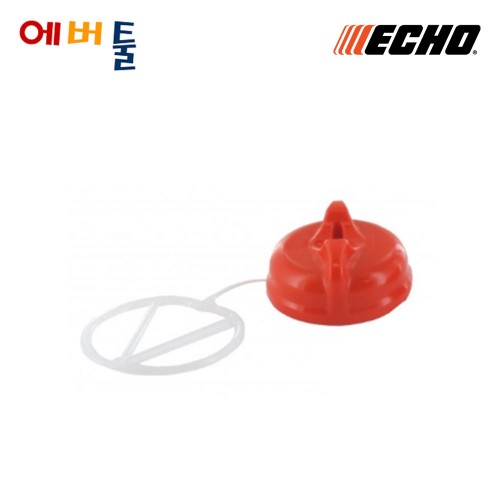

4-24	9360521	연료뚜껑 연료캡	1	5,500	품절
4-25	9360115	O-RING 18	1	1,100
4-26	9394466	CONNECTOR,CAP	1	1,650
4-27	9360520	오일뚜껑 오일캡	1	5,500	품절

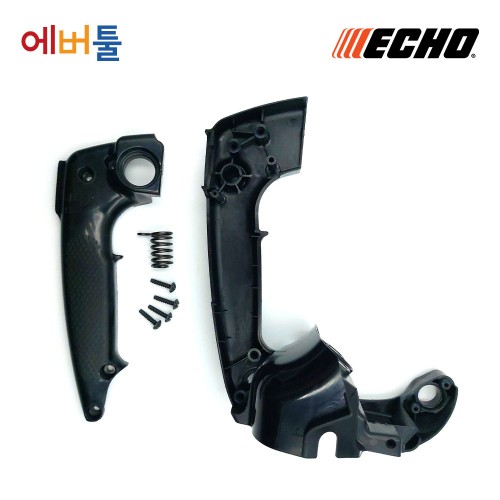

5-1	9360740	핸들세트(뒤)	1	33,000
5-2	9360361	SPRING,COMPRESSION	1	2,750	품절
5-3	9394396	13002033330 NUT	1	1,650	품절
5-4	9360050	SCREW 4X16	2	550
5-5	9360728	프론트핸들	1	26,400	품절
5-6	9360385	볼트,4	3	3,300	품절
5-7	9360610	SWITCH,ON OFF	1	8,800
5-8	9394445	SCREW	1	550
5-9	9360487	TRIGGER,THROTTLE	1	5,500
5-10	9360438	ROD,THROTTLE	1	4,400	품절
5-11	9360242	SPRING,TORSION	1	1,650
5-12	9360439	LOCKOUT,THROTTLE	1	3,850
5-13	9360546	CUSHION	1	6,600
5-14	9394386	CAP	1	2,200
5-15	9360258	인테이크 파이프	1	2,200
5-16	9360352	SPRING,COMPRESSION	1	2,420
5-17	9360146	PLATE,EYE	1	880	품절
5-18	9360029	SCREW	1	1,100
5-19	9360561	TOOL, WRENCH	1	6,600
5-20	9394432	89581203930 DRIVER,SCREW	1	1,650	품절
5-21	9394433	89851039130 BAG,TOOL	1	2,750	품절

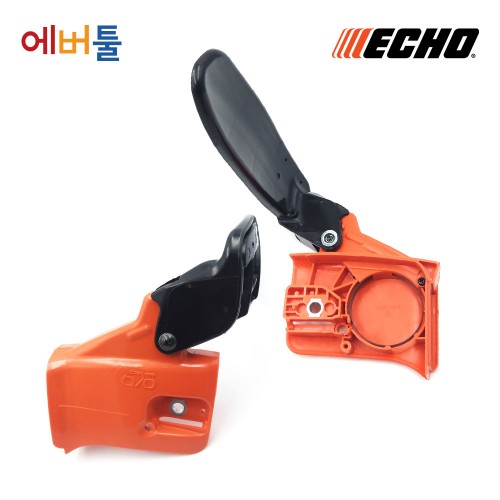

6-1	9360793	체인브레이크	1	85,800
6-2	9360706	LEVER,BRAKE	1	19,800
6-3	9360069	ROLLER 3X26	2	550
6-4	9360126	LOCK NUT 5	1	1,100
6-5	9360495	COLLAR 5	1	4,950
6-6	9360192	SPACER	1	1,100
6-7	9360037	CREW	1	550
6-8	9360183	SPRING,TORSION	1	1,100
6-9	9360507	COVER, BRAKE	1	5,500
6-10	9360029	SCREW	2	1,100
6-11	9360601	CONNECTOR,BRAKE	1	8,250
6-12	9394423	43311635430 SPACER	1	2,200	품절
6-13	9360618	GUARD,SPROCKET	1	9,900	품절
6-14	9360576	브레이크 밴드	1	7,150
6-15	9394378	9305030098 ROLLER	1	550	품절
6-16	9394531	SPACER	1	550
6-17	9394535	SPRING,COMPRESSION	1	1,650

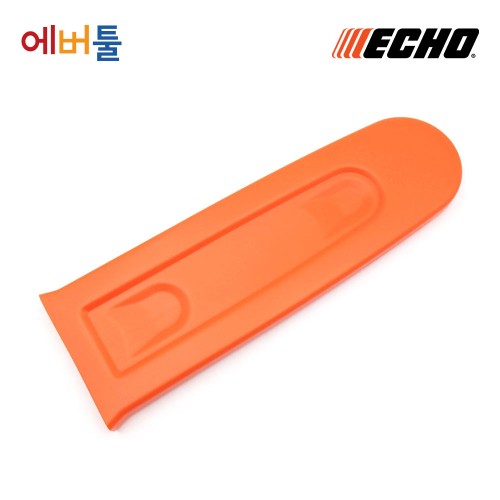

6-18	9360641	SCABBARD, CHAIN	1	10,450
6-19	9360194	ROPE	1	1,100	품절

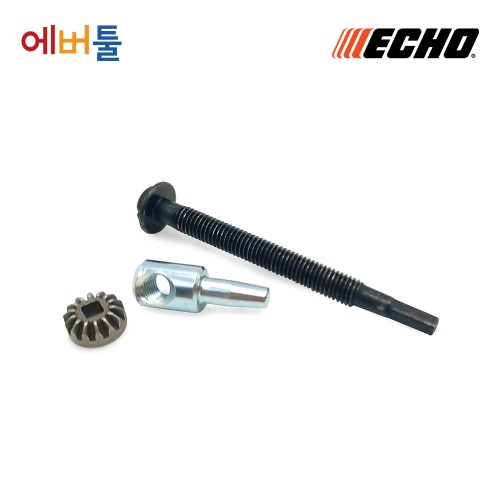

6-20	9360679	체인텐셔너 어셈블리	1	14,300
6-21	9360463	볼트 5	1	4,400
6-22	9394482	체인텐셔너	1	3,850

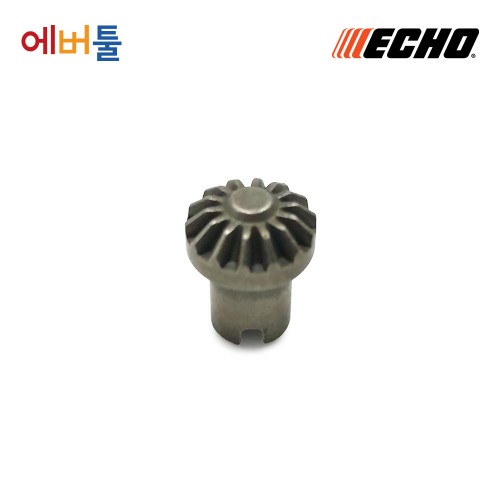

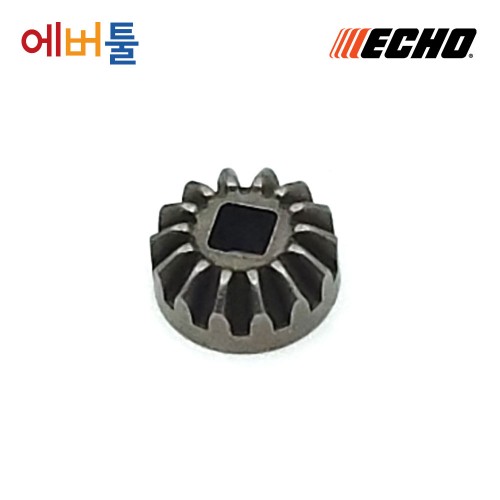

6-23	9394551	GEAR,BEVEL	1	6,600
6-24	9394691	COLLAR,8	1	1,100
6-25	9394550	GEAR,BEVEL	1	7,150

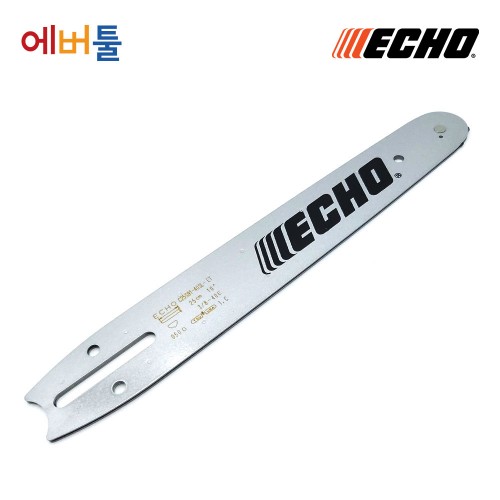

6-27	9377022	가이드바 10인치(25cm,91-20)	1	40,700
6-28	9360535	스프로켓 플레이트	1	6,050
6-29	9360028	SCREW 4X10	1	1,100	품절
6-30	9391830	너트	1	1,650

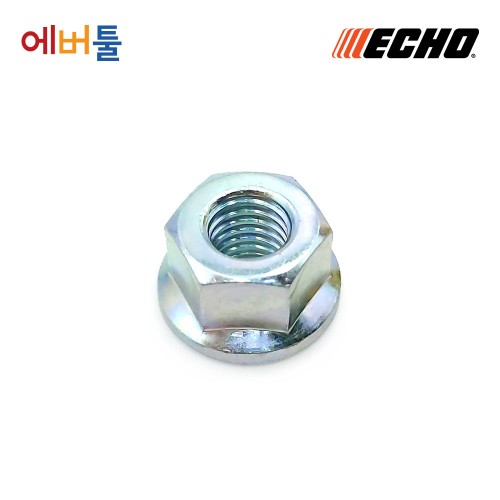

6-30.1	9394422	43301912330 NUT,FLANGE	1	1,650	품절
6-31	9360296	LABEL,ECHO	1	2,200	품절
6-32	9360544	COVER,MUFFLER	1	6,600
6-33	9360030	SCREW 4X16	2	550

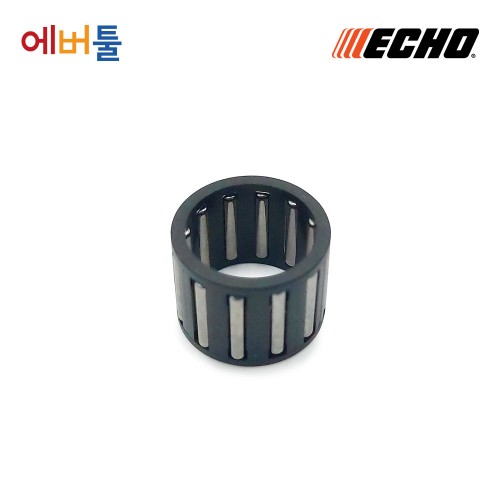

6-34	9360664	니들베어링 (클러치)	1	12,100

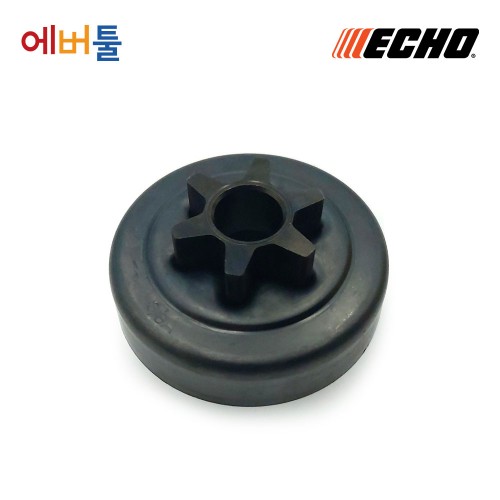

6-35	9360737	클러치드럼	1	33,000
6-36	9360323	클러치플레이트	1	3,850

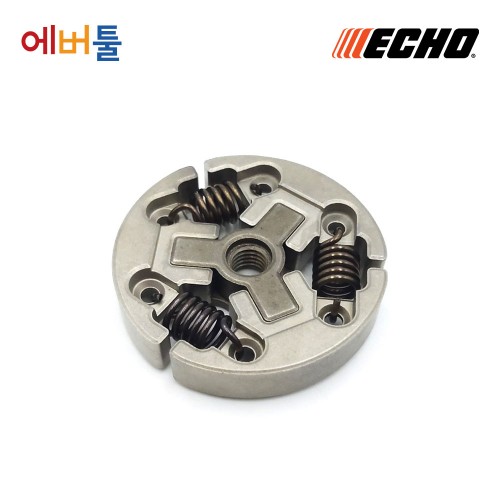

6-37	9360756	클러치	1	60,500

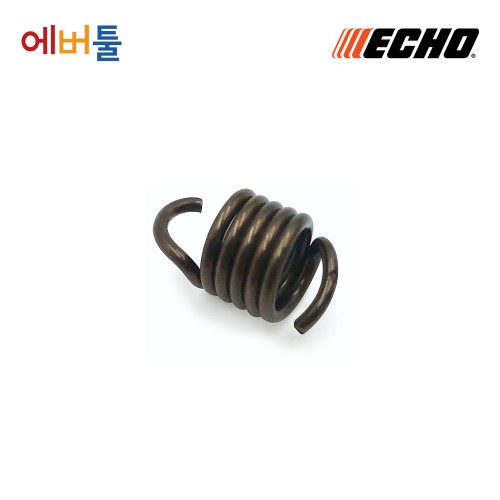

6-38	9360310	텐션스프링	3	2,200
6-39	9360823	SHOE,CLUTCH SET	1	22,000
6-40	9360621	HUB,CLUTCH	1	9,350	품절
7-1	9391612	SCREW	4	2,200	품절
7-2	9391606	12314203930 COVER,DIAPHRAGM	1	6,600	품절
7-3	9391605	DIAPHRAGM ASSY	1	16,500
7-4	9391603	GASKET	1	5,500
7-5	9391853	PIN	1	1,100	품절
7-6	9391851	LEVER	1	3,300	품절
7-7	9391852	SCREW	1	2,750	품절
7-9	9391602	NEEDLE VALVE	1	4,400	품절
7-10	9394393	PLUG,WELCH	1	1,650	품절
7-11	9392031	SCREW	2	2,200	품절
7-12	9360316	VALVE,CHOKE	1	2,200	품절
7-13	9360508	NEEDLE,IDLE	1	5,500	품절
7-14	9360470	NEEDLE,HIGH SPEED	1	4,400	품절
7-16	9392038	STOPPER	2	550	품절
7-17	9360635	SHAFT,THROTTLE	1	9,900	품절
7-18	9391859	RETURN SPRING	1	2,200	품절
7-19	9391596	12312610631 SCREEN	1	1,100	품절
7-20	9360283	VALVE,THROTTLE	1	2,200	품절
7-21	9392026	12311405260 SCREW	1	2,200	품절
7-22	9360423	THROTTLE,LEVER	1	3,630	품절
7-23	9360409	SPRING	1	3,300	품절
7-24	9394494	LEVER-FAST IDLE	1	3,850	품절
7-25	9360671	SHAFT-CHOKE(MOLD)	1	13,200	품절
7-26	9391601	DIAPHRAGM,PUMP	1	8,800
7-27	9391599	GASKET,PUMP	1	5,500
7-28	9360629	COVER,FUEL PUMP	1	9,900
7-29	9394387	SCREW,PUMP COVER	1	1,100	품절
7-30	9391600	SPRING,IDLE	1	4,400
7-31	9394392	SCREW,IDLE ADJUST	1	2,200	품절
7-35	9360797	카뷰레터 아세이	1	100,100
