분해도 정보

계양 KHC-180B 고압세척기 부품

제품이미지

7 베어링 슬리브

266898-7

1,100

총 90개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	9342829	SCREW 1	18	1,100	품절
1-2	9342830	WARNING LABEL	1	1,100	품절
1-3	9342831	ACCESSORIES HOLDER	1	2,200
1-4	9342832	CABLE HOOK	1	2,200
1-5	9342833	DETERGENT BOTTLE	1	6,600	품절
1-6	9342834	DETERGENT BOTTLE CAP	1	2,200	품절
1-7	9342835	SCREW 2	13	1,100	품절
1-8	9342836	BACK HOUSING	1	22,000	품절
1-9	9342837	RATING LABEL	1	1,100	품절
1-10	9342838	GUN HOLDER	1	2,200	품절
1-11	9342839	LOWER FIXED MOUNT	1	1,650	품절
1-12	9342840	MOTOR&PUMP ASSY	1	165,000
1-13	9342841	UPPER FIXED MOUNT	1	1,650	품절
1-14	9342842	MAIN SWITCH BOX 1	1	2,200
1-15	9342843	CABLE OUT JACKET	1	1,100
1-16	9342844	MAIN SWITCH LEVER	1	2,200	품절
1-17	9342845	MAIN SWITCH	1	2,200
1-18	9342846	O-RING(8X2/80HS/ROHS)	3	1,100
1-19	9342847	SCREW(ST3.5X13F)	17	1,100
1-20	9342848	MAIN SWITCH BOX 2	1	2,200
1-21	9342849	SWITCH KNOB LOCATING PLATE	1	2,750
1-22	9342850	SWITCH KNOB	1	2,200
1-39	9342867	FRONT HOUSING	1	27,500	품절
1-40	9342868	HANDLE	1	3,850
1-41	9342869	HANDLE SLEEVE	1	2,200	품절

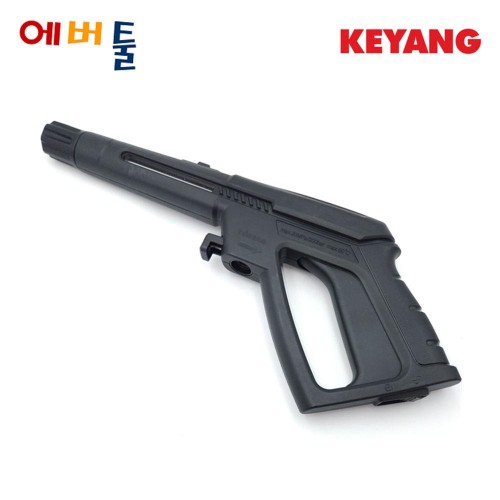

1-42	9342870	스프레이건	1	22,000

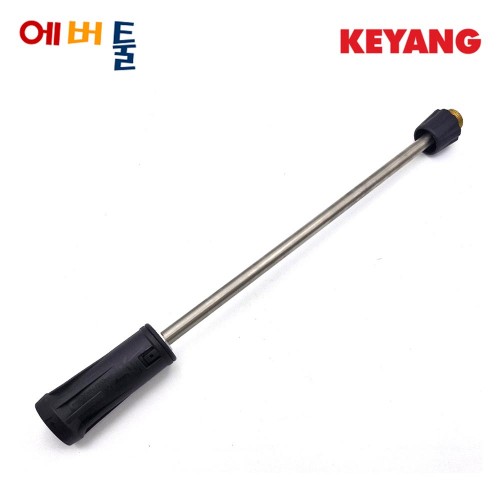

1-43	9342871	노즐(조절형)	1	16,500

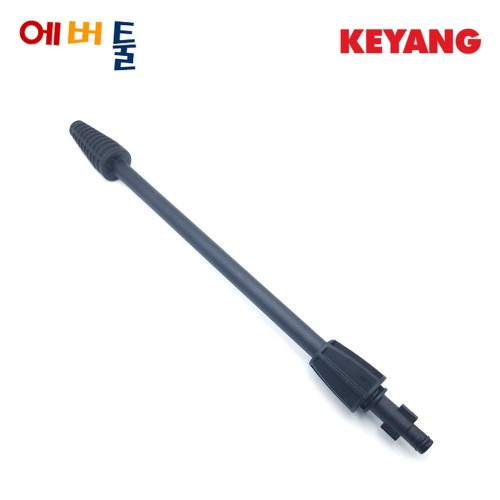

1-44	9342872	노즐(터보)	1	11,000
1-45	9342873	DECORATIVE PLATE(FRONT)	1	12,100	품절
1-46	9342874	DRAINAGE HOLES COVER PLATE	1	3,850	품절
1-47	9342875	HOSE CLIP	1	1,100	품절
1-48	9342876	CLEANING PIN	1	1,100	품절

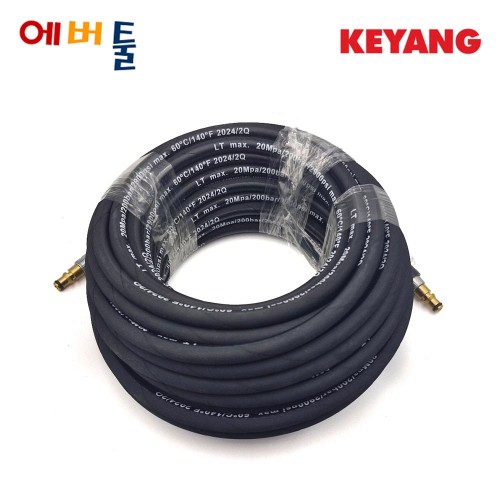

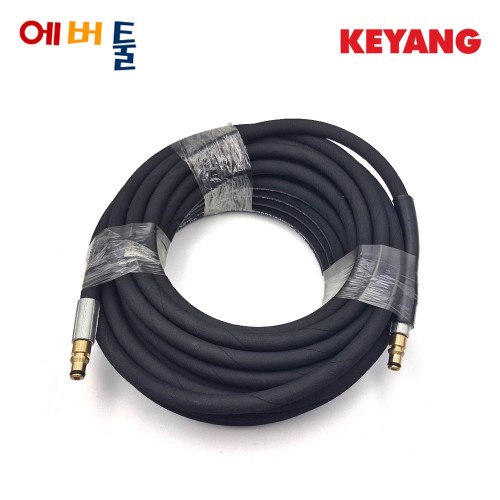

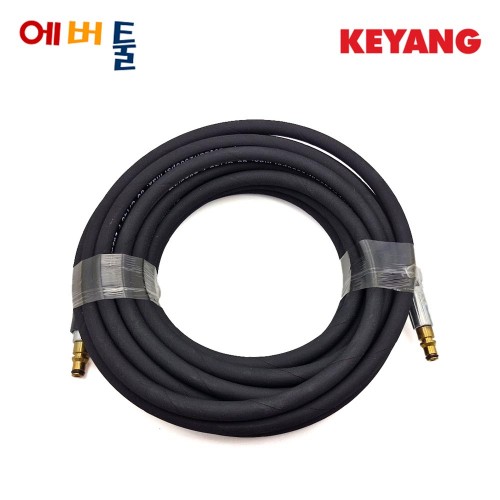

1-49	9342877	고압호스(5M)	1	27,500
1-49.1	9343065	고압호스(10M)	1	66,000
1-49.2	9343066	고압호스(15M)	1	88,000
1-49.3	9343067	고압호스(20M)	1	110,000
1-50	9342878	콘덴서(0.33UF)	1	12,100
1-51	9342879	CAPACITOR CAP	1	3,850	품절
1-52	9342880	BUILT-IN PRESSURE HOSE	1	5,500
1-53	9342881	DETERGENT ADJUSTING KNOB	1	2,200
1-54	9342882	DETERGENT ADJUSTING VALVE DECK	1	1,650
1-55	9342883	DETERGENT ADJUSTING VALVE SPOOL	1	1,100	품절
1-56	9342884	O-RING(25X2/70HS/ROHS)	1	1,100
1-57	9342885	O-RING(5X2/70HS/ROHS)	1	1,100
1-58	9342886	BUILT-IN DETERGENT TUBE	1	2,200
1-59	9342887	DETERGENT ADJUSTING VALVE SEAT	1	1,650	품절
1-60	9342888	SELF-PRIME TUBE	1	2,200	품절
1-61	9342889	CABLE PRESSPLATE	1	1,100	품절
1-62	9342890	CABLE JACKET	1	1,650	품절
1-64	9342892	SCREW 6	2	1,100	품절
1-65	9342893	SCREW 7	2	1,100	품절
1-66	9342894	GUNSTOCK	1	2,200
1-67	9342895	PUMP FIXED SEAT	1	2,200	품절
1-68	9342896	WHEEL COVER	2	3,850
1-69	9342897	WHEEL	2	6,600
1-70	9342898	WHEEL GUARD PLATE(LEFT)	1	2,200	품절
1-71	9342899	ACCESSORIES BRACKET	1	3,300	품절

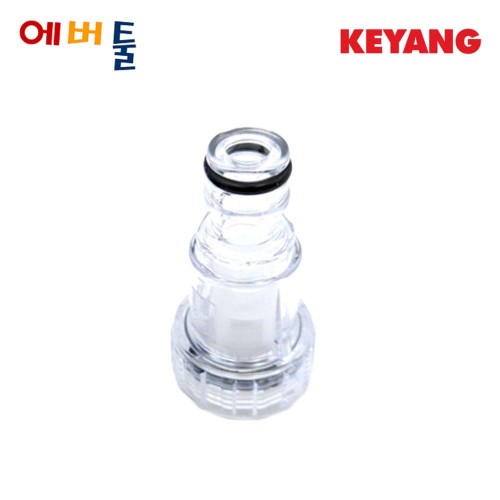

1-72	9342900	호스커넥터(+,투명)	1	1,100
1-73	9342901	WHEEL GUARD PLATE(RIGHT)	1	2,200	품절
1-74	9342902	GASKET 1	1	1,100	품절
1-75	9342903	GASKET 2	1	1,100	품절
1-76	9342904	SCREW 8	1	1,100	품절
1-91	9342851	HOSE REEL ASSY	1	33,000
2-1	9342905	MOTOR(M128)	1	126,500
2-2	9342906	FAN COVER(MP128-1)	1	7,700	품절
2-3	9342907	SWASH PLATE	1	2,200	품절
2-4	9342908	GASKET 3	1	1,100	품절
2-5	9342909	볼트(M8X20)	1	1,100	품절
2-6	9342910	베어링(55107B)	1	7,700
2-7	9342911	PUMP BODY	1	12,100
2-8	9342912	PLUNGER ASSY	3	6,600
2-9	9342913	PLUNGER OIL SEAL(12X20X5)	3	1,650
2-10	9342914	WATER SEAL BRACKET	3	1,100
2-11	9342915	WATER SEAL(12X20X5.2)	3	1,650
2-12	9342916	INLET CHECKING VALVE ASSY	3	1,100
2-13	9342917	PUMP COVER	1	12,100
2-14	9342918	O-RING(5.5X2)	1	1,100	품절
2-15	9342919	볼트(M8X10)	1	1,100	품절
2-21	9342925	SIPHON ASSY	1	3,850	품절
2-22	9342926	RELIEF VALVE ASSY	1	7,700
2-23	9342927	BACK PRESSURE VALVE ASSY	1	2,200
2-24	9342928	OUTLET HOSE ASSY	1	6,600
2-25	9342929	O-RING(66X2)	1	1,100	품절
2-26	9342930	ON-OFF SWITCH ASSY	1	7,700
2-27	9342931	DAMPING RING	4	1,100
2-28	9342932	GASKET 4	4	1,100	품절
2-29	9342933	볼트(M6X75)	4	3,300	품절
2-41	9342920	OUTLET CHECKING VALVE ASSY	3	4,400
2-42	9342923	INLET HOSE	1	3,300

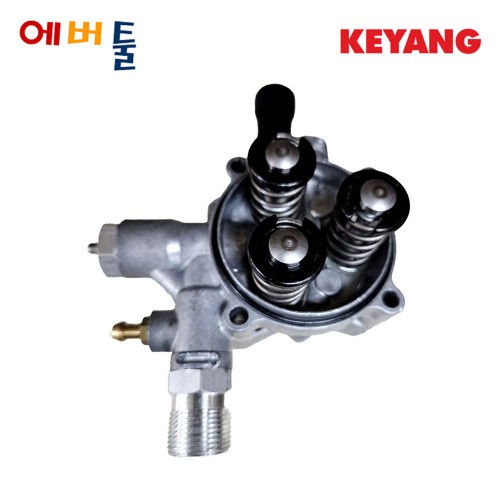

2-43	9343510	펌프 어셈블리	1	77,000
