분해도 정보

계양 KHC-190B 고압세척기 부품

제품이미지

7 베어링 슬리브

266898-7

1,100

총 81개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

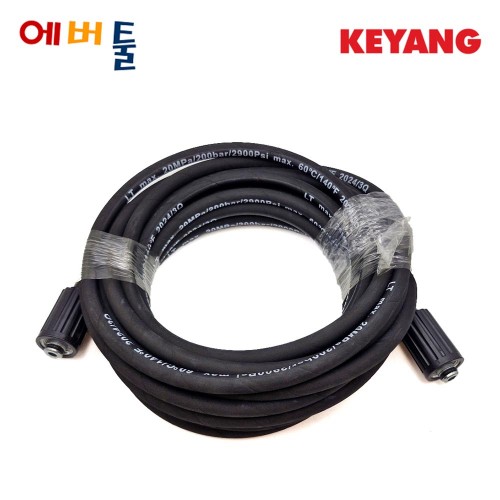

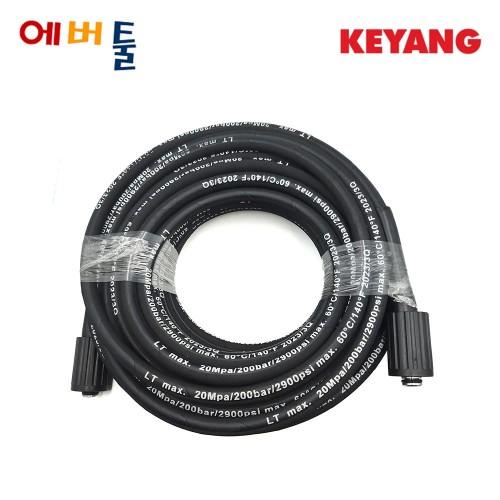

1-1	9342745	고압호스(기본,8M)	1	51,700
1-1.1	9343230	고압호스(10M)	1	77,000
1-1.2	9343231	고압호스(15M)	1	115,500
1-1.3	9343232	고압호스(20M)	1	154,000
1-2	9342746	CLEANING PIN	1	1,100	품절
1-3	9342747	GUN STOCK	1	2,200
1-4	9342748	GASKET 1	2	1,100	품절
1-5	9342749	STEEL GASKET	2	1,100	품절
1-6	9342750	HANDLE SLEEVE LEFT	1	4,400	품절
1-7	9342751	NOZZLE SET	1	12,100
1-8	9342752	WHEEL	2	12,100
1-9	9342753	WHEEL AXIS	1	7,700
1-10	9342754	NOZZLE SHEATH	4	2,200	품절
1-11	9342755	GUN HOLDER	1	3,300	품절
1-12	9342756	볼트(T3.5X13F)	2	1,100	품절
1-13	9342757	볼트(T4.8X16)	16	1,100	품절
1-14	9342758	LEFT COVER	1	26,400	품절
1-15	9342759	GASKET 2	1	1,100	품절
1-16	9342760	볼트(T4X16)	1	1,100	품절
1-17	9342761	GASKET 3	1	1,100	품절
1-18	9342762	STEEL ROD PERMANENT SEAT	2	4,180
1-19	9342763	MOTOR AND PUMP	1	297,000
1-20	9342764	STEEL ROD	1	12,100
1-21	9342765	호스커넥터(+,투명)	1	1,650
1-22	9342766	HEAT SHRINK TUBING	1	2,200	품절
1-23	9342767	PLUG HOLDER	1	4,180	품절
1-24	9342768	콘덴서	1	12,100	품절
1-25	9342769	RIGHT COVER	1	26,400
1-26	9342770	MAIN SWITCH	1	2,200
1-27	9342771	HANDLE SLEEVE RIGHT	1	4,180
1-28	9342772	SWITCH LEVER	1	2,200
1-29	9342801	SWITCH BOX	1	4,180
1-30	9342802	SWITCH COVER	1	2,200
1-31	9342803	O-RING(8X2)	1	1,100
1-32	9342804	CABLE OUT JACKET	1	1,100
1-33	9342805	SWITCH KNOB	1	2,200
1-34	9342806	SWITCH KNOB DECORATIVE SHEET	1	1,650
1-35	9342807	SWITCH KNOB DECORATIVE PLATE	1	2,200
1-36	9342808	볼트(ST2.9X13)	2	1,100
1-39	9342811	CABLE JACKET	1	1,650	품절
1-40	9342812	CABLE PRESS PLATE	1	1,100	품절

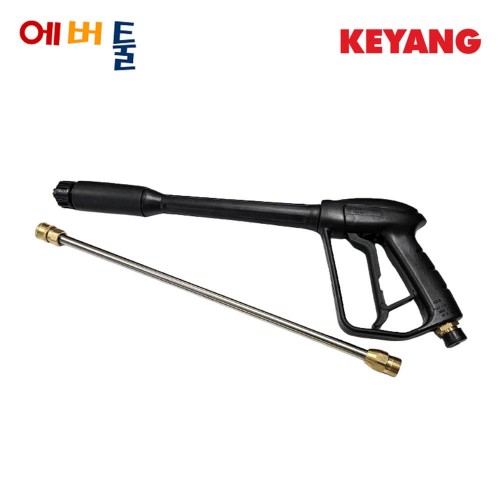

1-42	9342814	스프레이건	1	55,000
2-1	9342815	MOTOR	1	220,000	품절
2-2	9342816	CASE	1	8,800	품절
2-3	9342818	VALVE PLUG	1	4,180	품절
2-4	9342819	O-RING(11X2/80HS/ROHS)	1	1,100	품절
2-5	9342820	SHOCKER	4	1,100	품절
2-6	9342821	SWASH PLATE	1	4,180	품절
2-7	9342822	SPRING GASKET(￠6)	1	1,100	품절
2-8	9342823	SCREW(M6X20)	1	1,100	품절
2-9	9342824	베어링	1	6,600	품절
2-10	9342825	PUMP	1	88,000
2-11	9342827	PUMP BODY	1	12,100	품절
2-12	9342828	O-RING(9X2.4/70HS/ROHS)	2	1,100	품절
2-13	9342773	OIL SEAL(13X21X6)	3	2,750	품절
2-14	9342774	OIL SEAL GASKET	3	1,100	품절
2-15	9342775	PLUNGER	3	7,700	품절
2-16	9342776	PLUNGER CHUCK	3	2,200	품절
2-17	9342777	PLUNGER SPRING	3	1,100	품절
2-18	9342778	SEAL RING	1	1,100	품절
2-19	9342780	PUMP COVER	1	12,100	품절
2-20	9342781	PLUG(G1/8)	2	1,650	품절
2-21	9342782	VALVE ASSY	6	1,100	품절
2-24	9342784	WATER SEAL	1	1,100	품절
2-25	9342785	WATER SEAL GASKET	1	2,200	품절
2-26	9342786	MAIN WATER SEAL(13X20X5-2400PSI)	1	2,750	품절
2-27	9342787	WATER SEAL(13X20X4)	1	2,750	품절
2-28	9342788	O-RING(22X1.5/70HS/ROHS)	1	1,100	품절
2-29	9342789	RELIEF VALVE ASSY	1	10,450

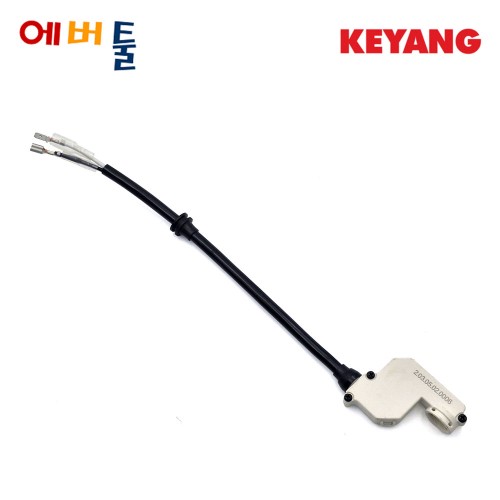

2-30	9342790	마이크로스위치 박스 아세이	1	12,100
2-31	9342791	U-PIN(12.4X20X1.8)	1	1,100	품절
2-32	9342792	NON-RETURN VALVE SEAT	1	1,100	품절
2-33	9343055	NON-RETURN VALVE ASSY	1	3,300	품절
2-34	9342793	WATER OUTLET CONNECTOR	1	8,800	품절
2-35	9342794	O-RING(8X2/80HS/ROHS)	1	1,100	품절
2-36	9342795	O-RING(13.2X2/80HS/ROHS)	1	1,100	품절
2-37	9342797	WATER INLET CONNECTOR	1	3,960	품절
2-38	9342798	O-RING(14X2.65/70HS/ROHS)	1	1,100	품절
2-39	9342799	SCREW(M8X45)	3	1,100	품절
2-41	9342783	WATER SEAL ASSY	3	10,450	품절

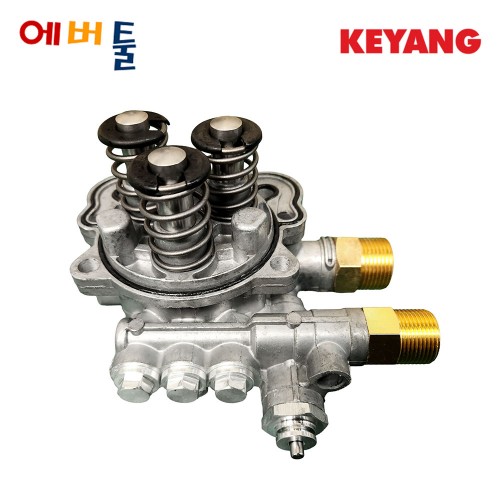

2-42	9342779	PUMP COVER ASSY	1	39,600
