분해도 정보

신다이와 353S 엔진톱 부품

제품이미지

7 베어링 슬리브

266898-7

1,100

총 176개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1-1	9394682	CRANKCASE KIT	1	99,000
1-2	9394718	BOLT,TORX 5	4	1,100	품절
1-3	9394634	흡기 벨로우즈	1	9,900
1-4	9394636	HOLDER,BELLOWS	1	1,100

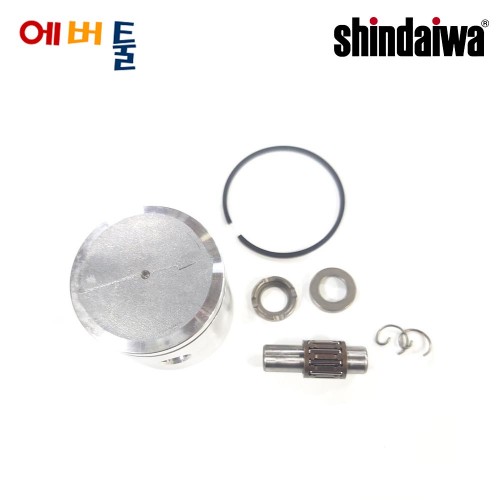

1-5	9394684	피스톤 세트	1	44,000
1-6	9361256	RING,PISTON(G)	1	5,500
1-7	9360448	PIN,PISTON	1	4,400
1-8	9360072	CIRCLIP,PISTON PIN	2	1,100	품절

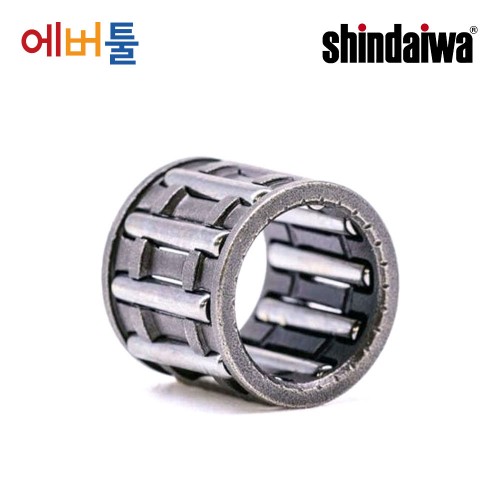

1-9	9360613	니들베어링 8	1	8,800	품절
1-10	9360387	SPACER, PISTON PIN	2	3,300
1-12	9394683	CRANKSHAFT,ASSY	1	121,000	품절
1-13	9360492	SEAL,OIL 12	2	5,500	품절
1-14	9360493	볼베어링	2	4,950
1-16	9394677	COVER,ENGINE	1	57,200
1-17	9360341	스터드볼트8	2	2,750
1-18	9394665	KNOB,LATCH	2	1,100	품절
1-19	9394667	J485000200 HINGE	2	2,200	품절
1-20	9394705	클립	2	550	품절
1-21	9394708	PIN,STRAIGHT 4	4	550	품절
1-22	9394716	BOLT,TORX 5	4	550	품절
1-23	9394666	STOPPER	2	1,100	품절
1-24	9394699	HOLDER,SPRING	1	2,200
1-25	9394715	BOLT,TORX 5	1	1,100	품절
1-26	9394655	오토오일러	1	36,300
2-1	9394448	NUT,FLANGE	2	880
2-2	9394641	LID,MUFFLER	1	9,900	품절
2-3	9394620	PLATE,MUFFLER	1	8,250	품절
2-4	9394619	MUFFLER	1	30,800
2-6	9394613	볼트,5	2	1,100
2-9	9394556	X602000080 TOOL,WRENCH	1	6,600	품절
2-10	9394432	89581203930 DRIVER,SCREW	1	1,650	품절
2-12	9394726	TOOL,L WRENCH	1	3,300	품절
2-13	9394719	가이드바 커버	1	9,900
3-1	9394643	ROTOR,MAGNETO	1	66,000
3-2	9394447	90051500008 NUT,FLANGE	1	1,100	품절
3-3	9394415	17723435430 SPRING,RETURN	2	1,650	품절
3-4	9360373	PAWL	2	2,750	품절
3-5	9394417	17724704630 SPACER,RATCHET	2	1,650	품절
3-7	9360128	볼트 5	2	880	품절
3-8	9394631	COVER,FAN	1	7,700	품절
3-9	9394644	COIL,IGNITION	1	71,500	품절
3-10	9361131	PLUG,SPARK(BPM-8Y)(G)	1	8,800	품절
3-11	9394645	TERMINAL,SPARKPLUG	1	1,100	품절
3-12	9394646	점화플러그캡	1	5,500	품절
3-13	9394410	스페이서	2	2,200
3-14	9394717	BOLT,TORX 5	2	1,100	품절
3-15	9394703	LEAD	1	2,750	품절
3-16	9394647	SWITCH,ON OFF	1	8,800
3-17	9394704	LEAD	1	2,750	품절
3-18	9394626	STARTER,RECOIL	1	60,500
3-19	9360500	GRIP,STARTER	1	4,950
3-20	9360669	스프링 키트	1	13,200
3-21	9394650	ROPE,STARTER	1	3,850	품절
3-22	9394648	REEL,ROPE	1	11,000	품절
3-23	9394698	SPRING,TORSION	1	5,500
3-24	9394649	CATCHER,PAWL	1	5,500
3-25	9394416	SCREW	1	2,200	품절
3-26	9394713	BOLT,TORX 5	4	1,100

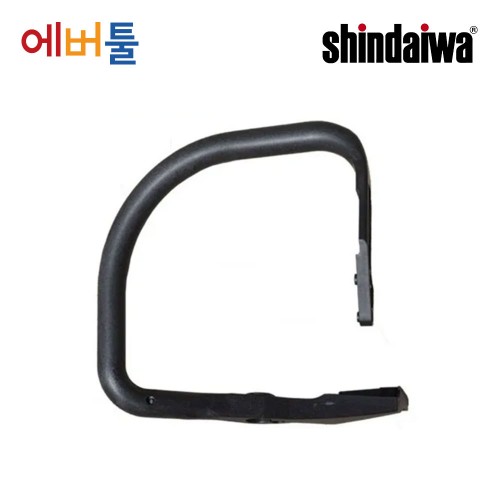

4-1	9394660	프론트핸들	1	49,500
4-2	9394712	BOLT,TORX 5	3	1,100	품절
4-3	9394696	SPRING,COMPRESSION	1	1,650	품절
4-4	9394713	BOLT,TORX 5	3	1,100
4-5	9394695	SPRING,COMPRESSION	1	2,750	품절
4-6	9394712	BOLT,TORX 5	2	1,100	품절
4-7	9394662	LID,HANDLE	1	6,600
4-8	9394492	C460000150 LOCKOUT,THROTTLE	1	3,300	품절
4-9	9394664	ROD,THROTTLE	1	3,300
4-10	9361629	CONTROL,THROTTLE	1	4,950
4-11	9394539	V452000260 SPRING,TORSION	1	1,650	품절
4-12	9360181	PIN,SPRING 4X25SUS	1	1,100	품절
4-13	9394661	HANDLE,REAR	1	41,800
4-14	9394697	SPRING,COMPRESSION	1	2,750
5-1	9394657	LEVER,BRAKE	1	19,800	품절
5-2	9394693	COLLAR,10	1	1,100	품절
5-3	9394710	BOLT,TORX 4	1	1,100
5-4	9394414	17721403930 WASHER	1	880	품절
5-5	9394711	BOLT,TORX 4	1	550	품절
5-7	9394423	43311635430 SPACER	1	2,200	품절
5-8	9394659	COVER,BRAKE	1	4,400
5-9	9394710	BOLT,TORX 4	3	1,100
5-10	9394658	CONNECTOR,BRAKE	1	8,800	품절
5-11	9394423	43311635430 SPACER	1	2,200	품절
5-12	9361170	9305030098 ROLLER(G)	1	550	품절

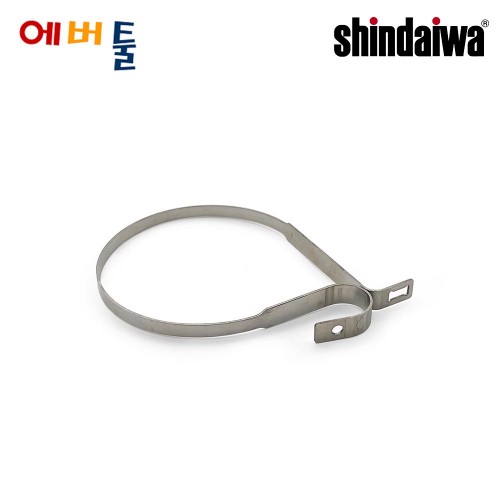

5-13	9360577	브레이크 밴드	1	7,150	품절
5-14	9394531	SPACER	1	550
5-15	9394535	SPRING,COMPRESSION	1	1,650
5-16	9394651	PLATE,CLUTCH	1	2,750	품절
5-17	9394652	PLATE,CLUTCH	1	3,300

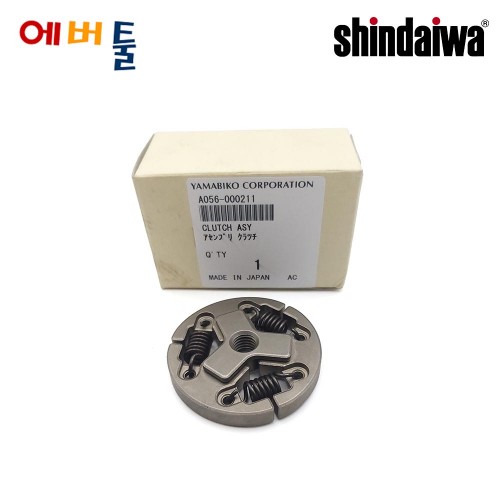

5-18	9394629	클러치 아세이	1	49,500
5-19	9360311	SPRING,TENSION	3	2,200
5-20	9360712	CLUTCH SHOE SET	1	22,000
5-21	9394653	HUB,CLUTCH	1	8,800	품절
5-22	9394621	니들베어링	1	11,000
5-23	9394654	DRUM,CLUTCH	1	44,000
5-24	9394611	와셔(클러치)	1	1,100
5-25	9394707	링	1	550
5-27	9394656	GUARD,SPROCKET	1	33,000
5-28	9361180	볼트,5(G)	1	4,400
5-29	9394482	체인텐셔너	1	3,850
5-30	9394551	GEAR,BEVEL	1	6,600
5-31	9394550	GEAR,BEVEL	1	7,150
5-32	9360168	칼라8	1	1,100
5-34	9391830	너트	2	1,650
5-35	9394709	GEAR,WORM	1	6,600

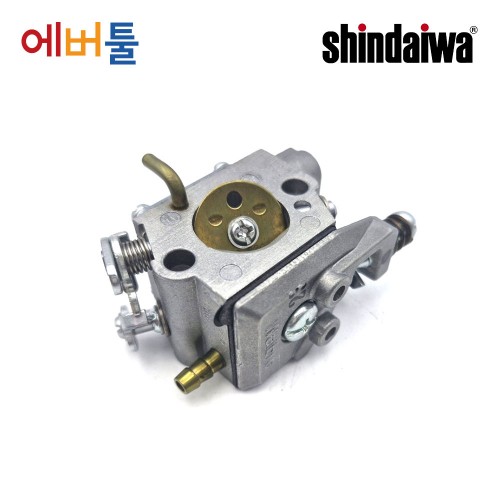

6-1	9394625	카뷰레터 아세이	1	88,000
6-2	9394672	SCREEN,INLET	1	5,500	품절
6-3	9394615	COVER,FUEL PUMP	1	7,700	품절
6-4	9394387	SCREW,PUMP COVER	1	1,100	품절
6-5	9391599	GASKET,PUMP	1	5,500
6-6	9391601	DIAPHRAGM,PUMP	1	8,800
6-7	9391602	NEEDLE VALVE	1	4,400	품절
6-8	9391854	GASKET	1	2,750	품절
6-9	9392974	DIAPHRAGM	1	11,000	품절
6-10	9391606	12314203930 COVER,DIAPHRAGM	1	6,600	품절
6-11	9391604	12312203660 SPRING,LEVER	1	1,650	품절
6-12	9391852	SCREW	1	2,750	품절
6-13	9391853	PIN	1	1,100	품절
6-14	9394331	LEVER, METERING	1	2,750	품절
6-15	9394393	PLUG,WELCH	1	1,650	품절
6-16	9394614	VALVE,THROTTLE	1	1,650	품절
6-17	9394670	SCREW	1	1,650	품절
6-18	9391859	RETURN SPRING	1	2,200	품절
6-19	9394671	SHAFT ASSY,THROTT LE	1	11,000	품절
6-20	9360424	LEVER THROTTLE	1	3,630	품절
6-21	9392031	SCREW	1	2,200	품절
6-22	9394391	12312703930 CLIP,THROTTLE SHAFT	1	1,650	품절
6-23	9361197	12313304260 SPRING,IDLE ADJUST(G)	1	1,650	품절
6-24	9394392	SCREW,IDLE ADJUST	1	2,200	품절
6-25	9394674	NEEDLE	1	14,300	품절
6-26	9393370	12312122130 SPRING,NEEDLE	1	2,750	품절
6-27	9394616	와셔	1	1,100	품절
6-28	9392038	STOPPER	1	550	품절
6-29	9394668	VALVE,CHOKE	1	3,300	품절
6-30	9394669	SPRING	1	3,300	품절
6-31	9392036	12314926030 WASHER	1	1,650	품절
6-32	9394493	P003000150 CHOKE,SHAFT	1	12,100	품절
6-33	9394494	LEVER-FAST IDLE	1	3,850	품절
6-34	9391612	SCREW	1	2,200	품절
6-35	9394673	SCREW	1	550	품절
7-1	9360520	오일뚜껑 오일캡	1	5,500	품절
7-2	9360115	O-RING 18	1	1,100
7-3	9394466	CONNECTOR,CAP	2	1,650
7-5	9360570	STRAINER,OIL	1	7,150	품절
7-6	9360134	GROMMET	1	880	품절
7-7	9394617	PIPE,IMPULSE	1	3,300	품절
7-8	9394689	JOINT,PIPE	1	1,100	품절
7-9	9360147	JOINT,PIPE	1	1,100
7-10	9360161	GROMMET,FUEL	1	1,100	품절
7-11	9394596	VALVE,CHECK	1	4,400
7-12	9394675	연료뚜껑 연료캡	1	6,600
7-13	9361673	V581000610 RING,O	1	550	품절
7-15	9394702	PIPE	1	2,750
7-16	9394405	13201309820 CLIP	1	1,100	품절
7-17	9394701	PIPE	1	1,650
7-19	9394618	STRAINER,FUEL	1	6,600
7-18	9394408	GROMMET	1	1,650
7-20	9394713	BOLT,TORX 5	2	1,100
7-21	9394633	INSULATOR,INTAKE	1	8,800
7-22	9394625	카뷰레터 아세이	1	88,000
7-23	9394714	BOLT,TORX 5	2	1,100	품절
7-24	9394635	ELBOW,CARBURETOR	1	3,300
7-25	9394712	BOLT,TORX 5	1	1,100	품절
7-26	9394637	ELEMENT,AIR FILTER	1	13,200
7-27	9392735	PRIMER/PUMP	1	19,800
7-28	9394540	PIPE	1	2,200
7-29	9360201	GROMMET,CHOKE	1	1,100
7-30	9394639	KNOB,CHOKE	1	6,600
7-32	9394694	CUSHION	2	1,650	품절
7-33	9394630	COVER,CYLINDER	1	13,200
7-36	9394612	PIPE	1	1,650	품절
7-37	9394622	LABEL,SWITCH	1	1,650	품절
7-38	9394725	LABEL	1	1,650	품절
7-39	9394723	LABEL,BRAND	1	2,750	품절
7-40	9394688	GROMMET,NEEDLE	1	1,100	품절
7-43	9394399	13033832430 PLUG,COVER	1	1,100	품절
7-44	9394724	LABEL,CAUTION	1	1,650	품절
