보쉬 GBH2 SE 분해도 (0611226540)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 73개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	1614220172	Field	1	16,830	품절
6	2600703018	Grommet	1	1,980
7	1611035005	Cable Clip	1	1,650	품절
13	1610905025	Groove ball bearing	1	4,070	품절
14	1610905048	Groove ball bearing	1	5,610
16	1614336022	Brush Holder	2	2,310	품절
22	1616317602	Cylindrical Gear	1	8,250
27	1618710057	Striker	1	11,550
28	1613124040	Striker Pin	1	3,190
29	1613105012	Piston Pin	1	2,640
31	1615510003	Protective Grille	1	1,980	품절
34	1610508008	Protective Cap	1	1,650	품절
35	1610206021	Rubber Ring	1	1,430
37	1610390017	Damping Bushing	1	3,190	품절
41	1610101011	Shim washer	2	1,430
42	1610202015	Plain bearing	1	2,310	품절
43	1611098005	Tab Washer	1	2,310	품절
44	1615820092	Switching Element	1	1,980
45	1614651014	Switch Spring	1	1,430
46	1614690002	Driver Pin	1	1,430
48	1611016003	Holding Plate	1	1,650
49	1612026035	Switch Button	1	1,430
60	1610910073	Needle-Roller Bearing	1	7,150
61	1610910098	Needle bearing	1	2,640
62	1610910074	Needle bearing	1	2,640	품절
64	1610913010	Needle-Roller Assembly	1	2,970	품절
65	1610591016	Plain bearing	1	2,310
67	1610905016	Groove ball bearing	1	6,490

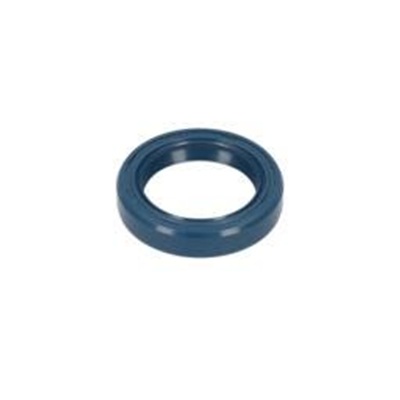

70	1610283019	Shaft Seal	1	4,950
71	1610290029	Scraper	1	2,640	품절
72	1610210068	O-Ring	1	1,430
73	1610210187	O-Ring	1	1,650
74	1610210104	O-Ring	1	1,980	품절
75	1610210105	O-Ring	1	2,970
76	1610210046	O-Ring	1	1,650
77	1610210106	O-Ring	1	1,980	품절
80	1614634005	Compression Spring	1	1,430	품절
81	1614611009	Compression Spring	1	1,430	품절
83	1614611006	Compression Spring	1	2,640
85	1614601011	Retaining ring	2	1,430	품절
86	1614601024	Retaining ring	1	1,430	품절
88	1613200007	Roller	3	1,430	품절
89	1903230013	Ball	1	1,650
90	1603435036	Tapping Screw	4	1,430
91	2603490026	Lens Head Screw	1	1,210
92	2603490023	Torx Oval-Head Screw	4	1,210
93	2910211005	Tapping Screw	4	1,210
94	2603435015	Cross Recessed-Head Screw	2	1,650
95	2603410001	Socket head cap screw	2	1,430
96	2912401018	Tapping Screw	1	1,210	품절
101	1614465008	Suppression Filter	2	4,070
102	2604448005	Cable	2	1,430	품절
700	1617000154	Drill Chuck Shank	1	24,860

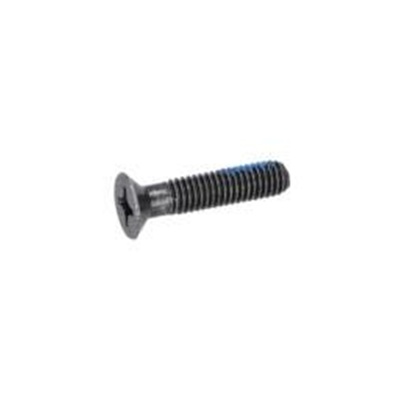

700/20	2603421226	Countersunk-Head Screw	1	1,430
701	1608571088	Chuck	1	22,000
701700	2607950007	Chuck Wrench	1	4,070

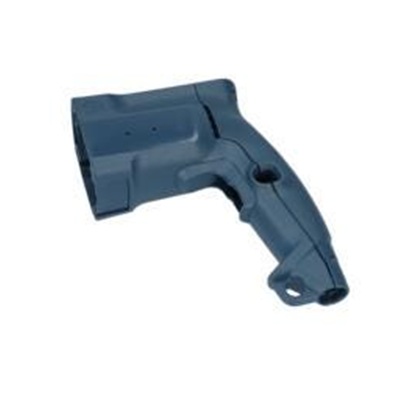

801	1617000477	Motor Housing	1	12,760

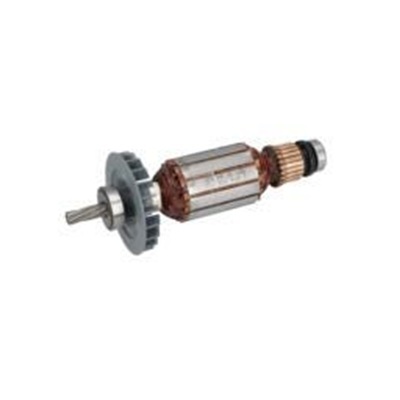

803	1614010732	Armature With Fan	1	75,350
805	1614460026	Power supply cord	1	12,760

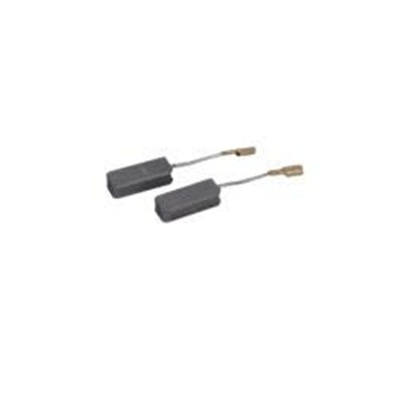

811	1617014134	Carbon-Brush Set	1	5,610
820	1617000981	Intermediate Flange	1	22,000	품절

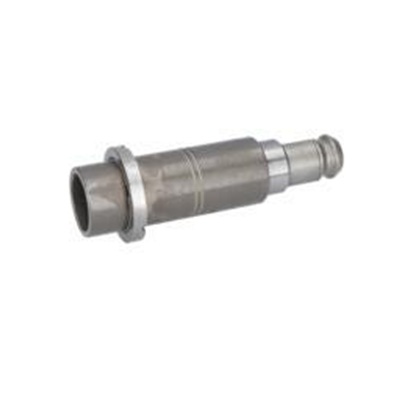

821	1616490061	Ratchet Sleeve	1	51,040

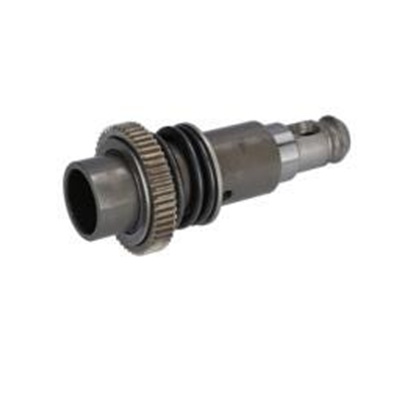

82101	1616490060	Ratchet Sleeve	1	68,420
822	2602025118	Auxiliary Handle	1	10,230
822120	1612025019	Auxiliary Handle	1	4,070	품절
822124	1611316006	Clamping Band	1	1,980	품절
822125	1613490002	T-Head Bolt	1	2,970
822802	2608040176	Support clamp	1	4,070	품절
832	1612026037	Clamp Handle	1	6,490
833	1617000163	Protection Sleeve	1	4,950
847	1617000348	Guide Ring	1	10,230
879	1613001009	Depth-Gauge	1	2,640
888	160111A3H5	Nameplate	1	1,980	품절
