보쉬 GBH180-LI 분해도 (3611J11020)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 72개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	1619P13742	Field	1	14,630
3/15	2610909077	Axial flow fan	1	1,980
4	1600A00F9H	Electronic Module	1	62,150
5	2604690055	Compression Spring	1	1,210	품절
6	1619P13744	Lens	1	1,650
7/17	1610290108	O-Ring	1	1,430	품절
7/19	1610210184	O-Ring	1	1,210	품절
7/20	1612026151	Clamp Handle	1	10,230
7/20/2	1614690009	Driver Pin	1	2,640
7/20/3	1612026035	Switch Button	1	1,430
7/20/4	1610210046	O-Ring	1	1,650
7/20/5	1614611006	Compression Spring	1	2,640
7/22	1619PS1115	Gear Sleeve	1	1,980	품절
7/26	1618700083	Hammer Piston	1	6,490
7/27	1618710085	Striker	1	6,490
7/29	1613100034	Piston Pin	1	2,310
7/33	1615820103	Switching Element	1	1,980
7/34	1619P00829	Retaining ring	1	1,210
7/37	1610100016	Guide Disc	2	1,430
7/45	1611016003	Holding Plate	1	1,650
7/47	1610202031	Plain bearing	1	3,850	품절
7/49	1615820104	Switching Element	1	1,980
7/51	1610021004	Shift Plate	1	1,210
7/52	1610021006	Shift Plate	1	1,210
7/53	1610021005	Shift Plate	1	1,210
7/54	1613023005	Guide Rod	1	1,430	품절
7/55	1610508052	Protective Cap	1	1,430
7/60	1614601077	Spring retaining ring	1	1,430
7/63	1903230013	Ball	1	1,650
7/65	1610210244	O-Ring	1	1,650	품절
7/75	1614643025	Compression Spring	1	1,210	품절
7/76	1614643023	Compression Spring	1	1,210	품절
7/77	1619P09722	Shaft Seal	1	2,310	품절
15	2603100056	Damping rubber	1	1,430
66	1900905029	Ball Bearing 608-2Z/C3	2	14,630	품절
67	1610905047	Groove ball bearing	1	4,950	품절
68	1600100037	Plain Washer	1	1,210	품절
69	1619P13747	Change-Over Switch	1	1,650
71	2603490023	Torx Oval-Head Screw	8	1,210
72	1619P09645	Torx Oval-Head Screw	4	1,210	품절
73	1619P06252	Torx Oval-Head Screw	4	1,430
651	1613001009	Depth-Gauge	1	2,640
653	1617S020T1	Battery Pack	1	62,150
654	2607226251	Fast Charger	1	62,150	품절
691895	1619P14336	Latch	2	3,190	품절

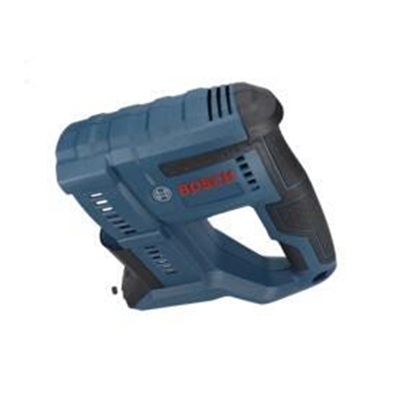

801	1619P14446	Motor Housing	1	16,830

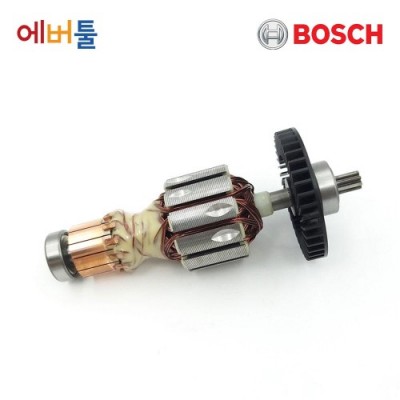

803	1619P14346	Armature	1	30,910

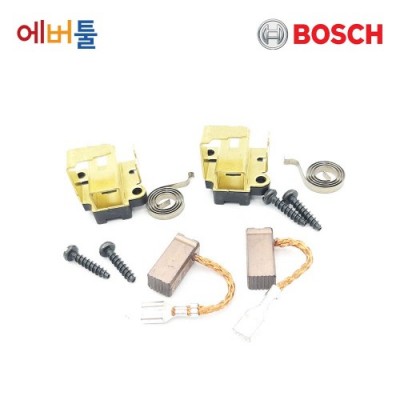

816	1619P14345	Carbon-Brush Set	1	8,250

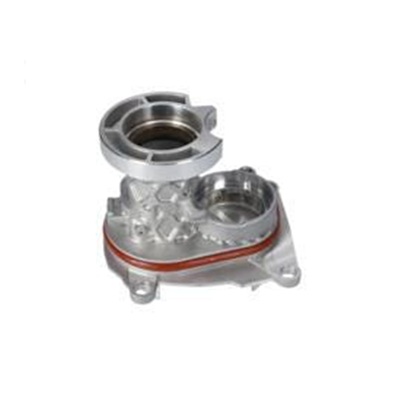

818	1619P09616	Intermediate Flange	1	19,030
821	1619P09617	Hammer Pipe	1	30,910
821/28	1613124084	Striker Pin	1	2,970
821/31	1619P09816	Retaining ring	1	1,210
821/32	1619P07426	Rubber Bushing	1	2,970	품절
821/36	1610551008	Holding Plate	1	1,430	품절
821/38	1616317084	Cylindrical Gear	1	12,760
821/39	1614601055	Retaining ring	2	1,210
821/40	1613100032	Straight Pin	2	1,210	품절
821/41	1610102072	Ratchet Disc	1	3,850
821/44	1610102092	Friction Washer	1	1,210
821/46	1614630003	Compression Spring	1	1,650
821/50	1619P11562	Guide Bushing	1	6,490	품절
821211	1619P09815	Hammer Pipe	1	24,860	품절
822	160202508X	Auxiliary Handle	1	12,430
822120	160202507H	Auxiliary Handle	1	7,150
822124	1611316021	Clamping Band	1	2,310
822125	1613490002	T-Head Bolt	1	2,970
822802	1617000475	Support clamp	1	6,490
824	16170006BC	Jack Shaft	1	24,860

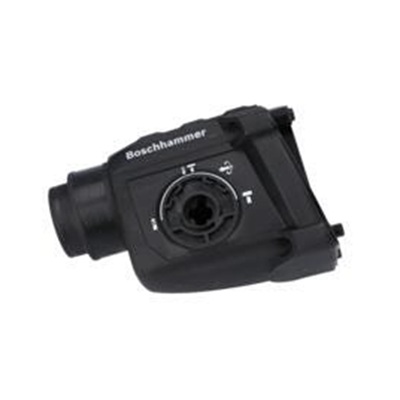

843	1619P09186	Gear Housing	1	24,860	품절
856	16170006D3	Protection Sleeve	1	7,150
892	1615430020	Grease Tube	1	14,630
893	1615430001	Grease Tube	1	14,630
