보쉬 GBH3-28FE 분해도 (0611249760)

제품이미지

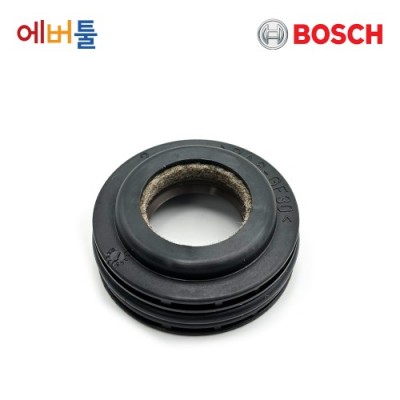

7 베어링 슬리브

266898-7

1,100

총 76개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

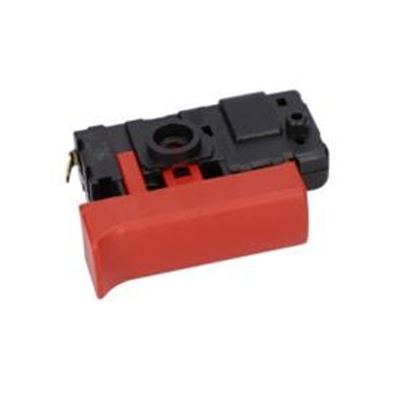

4	2607200576	Switch	1	22,000
6	2600703018	Grommet	1	1,980
7	1611035005	Cable Clip	1	1,650
13	2600905032	Ball Bearing	1	3,190
14	1610905036	Groove ball bearing	1	4,070	품절

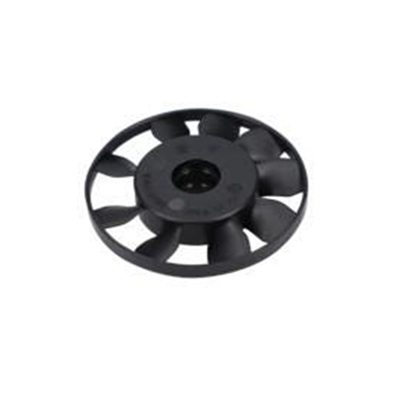

15	1616610088	Fan	1	2,310	품절
17	1615132075	Flap Grip	1	4,950	품절

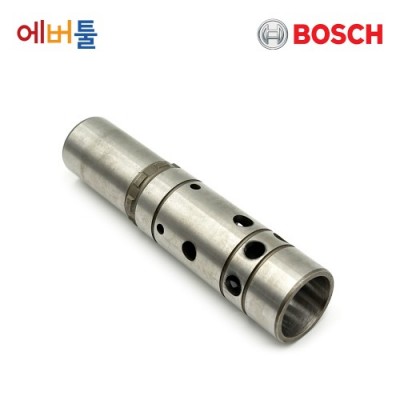

21	1615806047	Pipe	1	33,990

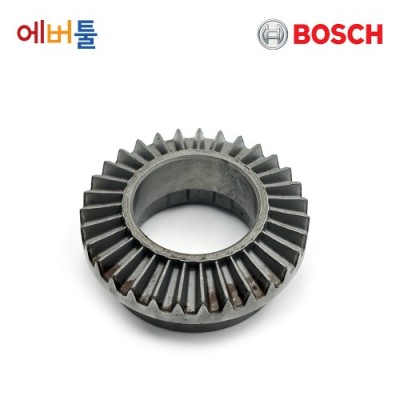

22	1616333038	Crown Gear	1	24,860
23	1616333039	Pinion	1	11,550	품절
24	1616312005	Cylindrical Gear	1	8,250
27	1610311016	Striker	1	9,020	품절
33	1615808082	Gear Cover	1	9,020
34	2916080910	Locking washer	1	1,650
35	1600502023	Intermediate Ring	1	1,650
37	1613123004	Eccentric Shaft	1	8,250
38	1610202018	Supporting Disc	2	4,950	품절
39	1610390039	Backup ring	1	5,610	품절
40	1903230013	Ball	6	1,650
41	3604618008	Compression Spring	1	1,650	품절
43	1610390043	Screw Bushing	1	1,430	품절
44	1611329019	Control Fork	1	2,310
45	1614611016	Compression Spring	2	1,210
47	1610250010	Inner Ring	1	3,850	품절
50	1610290059	Friction Washer	1	1,430
54	1610190021	Supporting Disc	1	1,650	품절

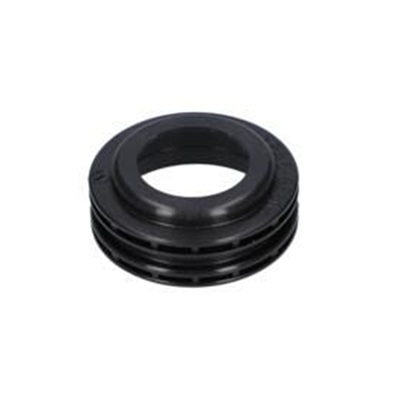

59	1610314003	Sealing Sleeve	1	1,980
60	1615190087	Plain bearing	1	2,310
61	1610210156	O-Ring	1	1,430
66	1610100612	Support Disc	1	1,430	품절
68	1610205008	Felt Washer	1	1,430	품절
69	1610283031	Rotary shaft lip seal	1	2,970
70	1610283032	Rotary shaft lip seal	1	4,070
73	1610210121	O-Ring	2	1,980
74	1611014002	Sealing Frame	1	2,640
75	1610210155	O-Ring	1	1,430

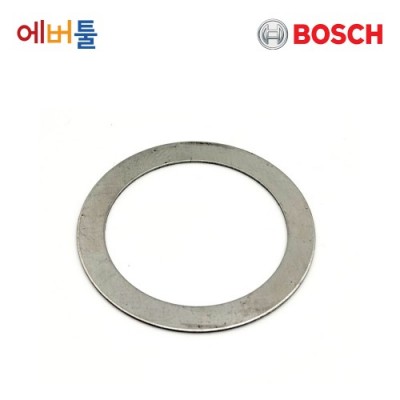

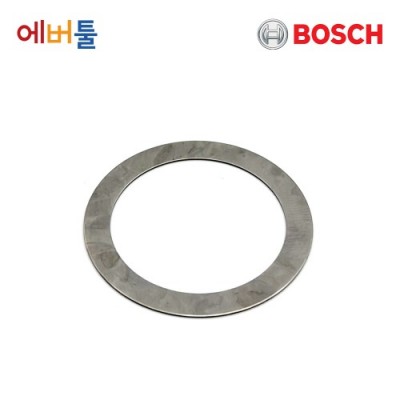

78	1610102051	Shim	1	1,430	품절
78	1610102052	Washer	1	1,430
78	1610102053	Shim	1	1,430	품절
80	1614615003	Compression Spring	1	2,640	품절
81	1614601033	Retaining ring	3	1,430	품절
83	1614601036	Spring retaining ring	1	1,430	품절
85	1610913015	Needle-Roller Assembly	1	2,310
86	1603435050	Tapping Screw	13	1,980	품절
89	1613414017	Hex Socket Head Cap Screw	2	1,210	품절
90	2910131154	Hex Socket Head Cap Screw M5x12-8.8	4	1,210	품절
92	2910211005	Tapping Screw	4	1,210
101	1614449012	Connecting Cable	1	2,640	품절
102	1614431028	Connecting Cable	1	1,980	품절
103	1614437017	Connecting Cable	1	1,980
105	1614431029	Suppression Filter	2	3,190
108	1611091006	Connecting terminal	1	1,430
120	160202507H	Auxiliary Handle	1	7,150
123	1611316018	Clamping Band	1	2,310	품절
125	1613001008	Depth-Gauge	1	5,610	품절
454	1610508039	Protective Cap	1	3,850
456	1610499042	Protection Sleeve	1	2,640
516	2603421229	Countersunk-Head Screw	1	1,430
661	1615430010	Grease Tube	1	3,850

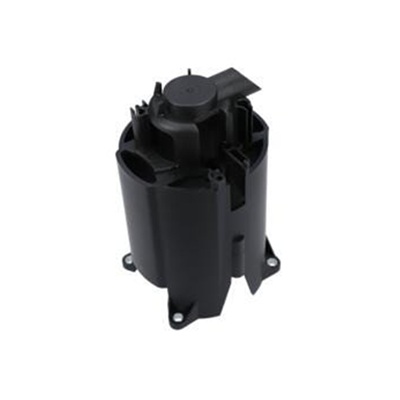

801	1615108103	Insulating Housing	1	8,250

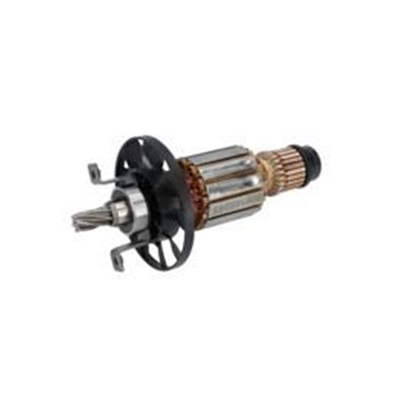

803	1614010705	Armature With Fan	1	75,350
805	1614460026	Power supply cord	1	12,760
808	160111A3H5	Nameplate	1	1,980	품절

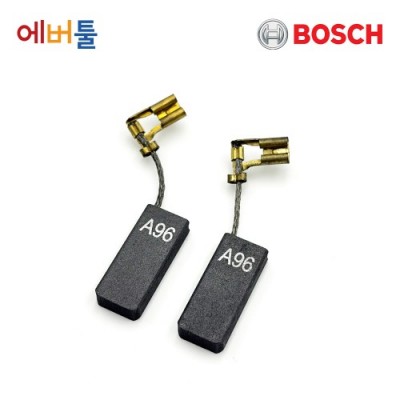

810	1617014137	Carbon-Brush Set	1	10,230
815	1614652003	Spiral Spring	2	1,430	품절
816	1617000392	Brush Holder	1	12,760
818	2603410001	Socket head cap screw	2	1,430

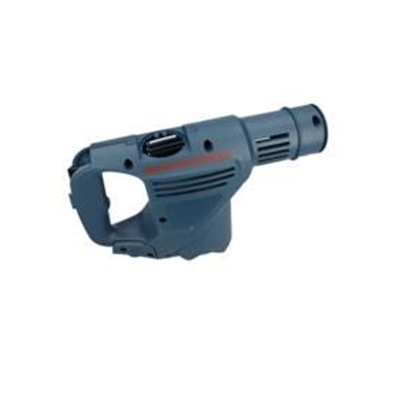

820	1615104016	Housing Section	1	22,000	품절
823	1617016009	Pinion	1	24,860	품절

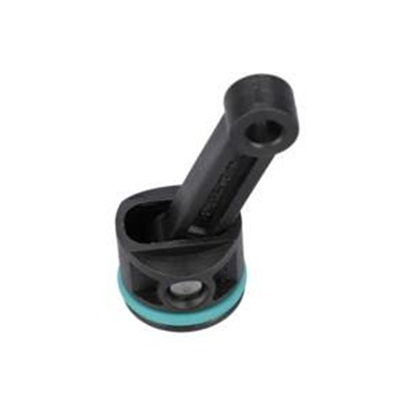

826	1618700085	Hammer Piston	1	10,230	품절
852	1615500310	Brush-Cover	1	5,610
859	1610314004	Sealing Sleeve	1	6,490
894	2603435015	Cross Recessed-Head Screw	2	1,650

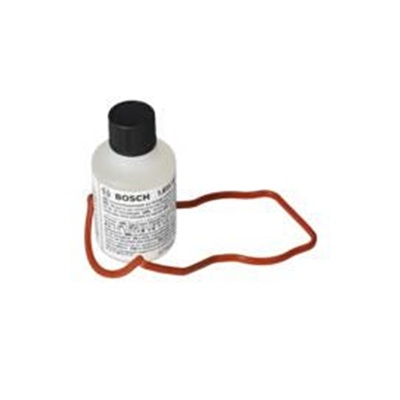

895	1615430019	Oil Reservoir	1	51,040

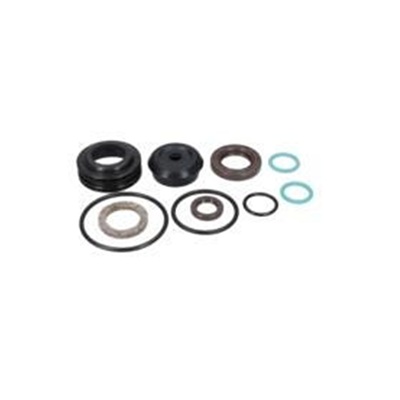

897	1617000383	Wear and Tear Part Set	1	12,760
898	1615437509	Oil Reservoir	1	7,150
