계양 LM-150GS 잔디깎이 분해도

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 175개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9366493 KIT REWIND BLOWER HOUSING 1 154,000
2-1 9366497 590582 GUARD FLYWHEEL 1 77,000

품절
2-2 9366498 FLYWHEEL 1 77,000

품절
2-6 9366502 19619 PULLER FLYWHEEL 1 385,000

품절
2-8 9340865 CUP FLYWHEEL(신형) 1 13,200
3-1 9366514 590572 DIPSTICK TUBE ASSEMBLY 1 22,000

품절
4-1 9366518 GUARD MUFFLER 1 33,000
4-2 9366519 MUFFLER 1 77,000
4-5 9366522 799187 DEFLECTOR MUFFLER 1 11,000

품절
4-6 9366523 690813 ARRESTOR SPARK 1 33,000

품절
5-1 9366524 590568 TANK FUEL 1 110,000

품절
5-1.1 9340871 TANK FUEL(신형) 1 93,500
5-2 9366525 CAP FUEL TANK 1 22,000
5-2.1 9340870 CAP FUEL TANK(신형) 1 11,000

품절
6-1 9366532 592359 CYLINDER ASSEMBLY 1 198,000

품절
7-1 9366535 222698S KEY FLYWHEEL 1 2,200

품절
7-2 9366536 CRANKSHAFT 1 121,000
7-2.1 9340808 CRANK SHAFT(신형) 1 181,500

품절
7-3 9366537 796210 GEAR TIMING 1 8,800

품절
7-3.1 9340869 GEAR-TIMING(신형) 1 7,700
7-4 9366538 592571 CAMSHAFT 1 33,000

품절
7-5 9366539 SLINGER GOVERNOR OIL 1 22,000
8-1 9366550 BASE AIR CLEANER 1 15,400
8-1.1 9340809 BASE AIR CLEANER(신형) 1 11,000

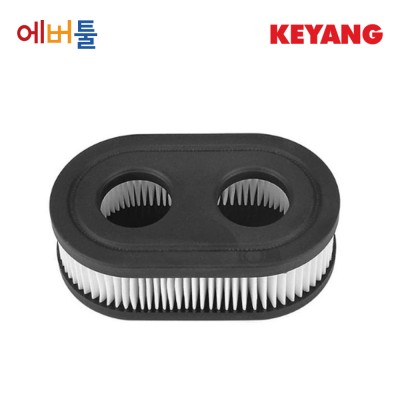

8-2 9366551 FILTER AIR CLEANER CARTRIDGE 1 30,800
8-3 9366552 590548 COVER AIR CLEANER 1 16,500

품절
8-4 9366503 793480 SCREW 1 7,700

품절
8-5 9366554 590622 TUBE BREATHER 1 33,000

품절
8-6 9366507 GASKET AIR CLEANER 1 6,600
9-1 9366556 카뷰레터 1 99,000
9-1.1 9366262 카뷰레터 1 121,000
10-1 9366529 SPRING GOVERNOR 1 7,700
10-2 9366530 590560 BRACKET CONTROL 1 19,800

품절

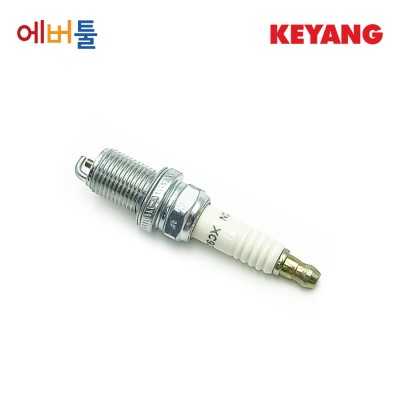

10-3 9366531 PLUG SPARK 1 6,600
11-1 9366504 GASKET CRANKCASE 1 27,500
11-2 9366505 GASKET CYLINDER HEAD 1 30,800

품절
11-3 9366506 591255 GASKET ROCKER COVER 1 11,000

품절
11-4 9366507 GASKET AIR CLEANER 1 6,600
11-5 9366508 SEAL O RING 1 3,300
11-6 9366509 691031 SEAL O RING 1 3,300

품절
11-7 9366510 SEAL DIPSTICK TUBE 1 6,600
11-8 9366511 SEAL OIL 1 11,000
11-9 9366512 SEAL OIL 1 5,500
11-9.1 9340866 SEAL OIL(신형) 1 7,700

품절
11-10 9366513 590534 SEAL VALVE 1 11,000

품절
12-1 9366526 691487 BRAKE 1 27,500

품절
12-2 9366527 692310 SWITCH STOP 1 1,100

품절
12-3 9366528 692135 SPRING BRAKE 1 5,500

품절
13-1 9366540 SUMP ENGINE 1 165,000
13-2 9366534 PIN LOCATING CRANKCASE COVER SUMP 1 3,300

품절
13-3 9366504 GASKET CRANKCASE 1 27,500
13-4 9366512 SEAL OIL 1 5,500
13-5 9366581 593872 ARMATURE MAGNETO 1 33,000

품절
13-5.1 9340810 ARMATURE-MAGNETO(신형) 1 88,000
13-6 9366582 691061 SCREW 1 7,700

품절
13-7 9366583 692390 WIRE STOP 1 11,000

품절
13-8 9366584 BOOT SPARK PLUG 1 11,000
14-1 9366544 592360 PISTON ASSEMBLY 1 187,000

품절
14-1.1 9340867 PISTON ASSEMBLY(신형) 1 93,500
14-2 9366545 592660 RING SET 1 27,500

품절
14-3 9366546 691588 LOCK PISTON PIN 1 550

품절
14-4 9366547 699659 PIN PISTON 1 11,000

품절
14-4.1 9340868 PIN-PISTON(신형) 1 9,900
14-5 9366548 ROD CONNECTING 1 19,800
14-5.1 9340807 CONNECTING ROD(신형) 1 22,000
14-6 9366549 691664 SCREW 1 7,700

품절
15-1 9366566 592641 HEAD CYLINDER 1 159,500

품절
15-2 9366567 590531 VALVE EXHAUST 1 27,500

품절
15-3 9366568 590530 VALVE INTAKE 1 22,000

품절
15-4 9366569 590532 SPRING VALVE 1 7,700

품절
15-5 9366569 590532 SPRING VALVE 1 7,700

품절
15-6 9366571 590533 CAP VALVE 1 11,000

품절
15-7 9366572 590526 ARM ROCKER 1 11,000

품절
15-8 9366573 590535 ADJUSTER ROCKER ARM 1 11,000

품절
15-10 9366506 591255 GASKET ROCKER COVER 1 11,000

품절
15-11 9366508 SEAL O RING 1 3,300
15-12 9366507 GASKET AIR CLEANER 1 6,600
15-13 9366505 GASKET CYLINDER HEAD 1 30,800

품절
15-14 9366579 COVER ROCKER 1 110,000
15-15 9366580 591103 SCREW 1 7,700

품절
16-1 9366282 SOFT CASING PIPE 1 2,200

품절
16-2 9366283 CLUTCH CONTROL LEVER 1 7,700
16-3 9366284 BLADE CONTROL LEVER 1 7,700
16-4 9366285 UPPER HANDLE 1 16,500

품절
16-5 9366286 볼트 2 550
16-6 9366287 SPRING WASHER 6 2 550
16-7 9366288 PLAIN WASHER 6 2 550
16-8 9366289 TC LEFT HOUSING 1 3,300
16-9 9366290 TC CABLE 1 4,400
16-10 9366291 TC LEVER 1 1,100
16-11 9366292 TC RIGHT HOUSING 2 550
16-12 9366293 CABLE ASSY 1 27,500
16-13 9366294 ACORN NUT M6 2 550
16-21 9366296 SPLIT DAMPING RING 6 2 550

품절
16-22 9366297 LEFT SPRING 1 1,100
16-23 9366298 REAR FLAP 1 7,700

품절
16-24 9366299 REAR FLAP SHAFT 1 2,200

품절
16-25 9366300 RIGHT SPRING 1 1,100
16-26 9366301 SELF TAPPING SCREW 2 550

품절
16-27 9366302 LOWER HANDLE ADAPTOR 1 2,200
16-28 9366303 SELF LOCK NUT M6 2 550

품절
16-29 9366304 ROPE GUIDER 2 550
16-30 9366305 QUICK LOCK LEVER 1 2,200
16-31 9366306 NUT M8 1 2,200
16-32 9366307 UPPER HANDLE ADAPTOR 1 2,200
16-33 9366308 LOWER HANDLE 1 22,000

품절
16-34 9366309 CUP HEAD SQUARE NECK BOLTS 1 1,100
16-35 9366310 CABLE CLIP 1 1,100

품절
16-36 9366311 ROPE GUIDER 1 1,100

품절
16-37 9366312 LOWER HANDLE PLUG 2 550
16-38 9366313 300MM WHEEL COVER 1 6,600
16-39 9366314 NUTS M8 1 1,100

품절
16-40 9366315 PLAIN WASHERS 8 2 550

품절
16-41 9366316 베어링 1 1,100
16-42 9366317 300MM WHEEL 1 38,500
16-43 9366318 GEAR 1 7,700
16-44 9366319 WAVE WASHER 12 2 550

품절
16-45 9366320 WHEEL INNER COVER 1 7,700

품절
16-46 9366321 AUXILIARY SPRING 1 1,100

품절
16-47 9366322 REAR SHAFT ASSY 1 22,000

품절
16-48 9366323 SELF LOCK NUT M6 2 550

품절
16-49 9366324 CONNECTING ROD ASSY 1 7,700

품절
16-50 9366325 SPLIT DAMPING RING 8 2 550

품절
16-51 9366326 SPRING FOR HEIGHT ADJUSTING LEVER 1 1,100
16-52 9366327 HI DJUSTING LEVER 1 3,300

품절
16-53 9366328 SPRING PIN 2 550

품절
16-54 9366329 HI ADJUSTING KNOB 1 4,400

품절
16-55 9366330 SQUARE NECK BOLT 1 2,200

품절
16-56 9366331 FLANGE BOLTS HEAVY SERIES 1 1,100

품절
16-57 9366332 LEFT HANDLE BASE 1 11,000

품절
16-58 9366333 KNOB 1 2,200

품절
16-59 9366334 NUT M8 2 550
16-60 9366335 CABLE PROTECTING GASKET 1 11,000

품절
16-62 9366336 RIGHT HANDLE BASE 1 13,200

품절
16-63 9366337 SIDE DISCHARGE COVER 1 3,300
16-64 9366338 SIDE DISCHARGE SPRING 1 1,100
16-65 9366339 SIDE DISCHARGE SPRING SLEEVE 2 550

품절
16-66 9366340 SIDE DISCHARGE SHAFT 2 550
16-67 9366341 SIDE DISCHARGE BRACKET 1 1,100
16-68 9366342 볼트 2 550
16-69 9366343 사이드슈트 1 4,400

품절
16-70 9366344 DECK 1 110,000
16-71 9366345 ENGINE MOUNTING SCREW 1 2,200

품절
16-72 9366346 RETAINING WASHERS FOR SHAFTS 1 1,100

품절
16-73 9366355 RIGHT DRIVE GEAR 1 3,300

품절
16-74 9366348 볼베어링 1 4,400

품절
16-75 9366349 SHAFT BUSH 1 13,200
16-76 9366350 PIN 1 1,100

품절
16-77 9366351 REAR SHAFT FIXING PLATE 1 9,900

품절
16-78 9366352 CROSS RECESSED PAN HEAD SCREW 2 550

품절
16-79 9366353 GEAR BOX ASSY 1 77,000
16-80 9366354 TENSIONAL SPRING 1 1,650
16-81 9366347 LEFT DRIVE GEAR 1 3,300
16-82 9366356 53CM REAR WALL 1 6,600
16-83 9366357 SCREW AND PLAIN WASHER 1 4,400
16-84 9366358 MULCHING PLUG 1 7,700
16-85 9366359 200MM WHEEL 1 8,800
16-86 9366360 200MM WHEEL INNER COVER 1 2,200
16-87 9366361 200MM WHEEL 1 22,000
16-88 9366362 SPRING HOOK 1 1,100
16-89 9366363 FRONT SHAFT ASSY 1 16,500
16-90 9366364 SHAFT BUSH 1 2,200
16-91 9366365 53CM SMALL FRONT COVER 1 1,100
16-92 9366366 53CM BIG FRONT COVER 1 5,500
16-93 9366367 벨트풀리 1 4,400

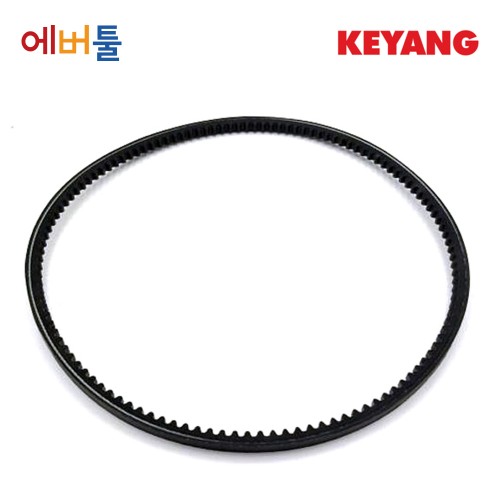

16-94 9366368 V벨트 1 5,500
16-95 9366369 SETTING SCREW 2 550
16-96 9366370 SQUARE KEY 2 550
16-97 9366371 53CM BELT COVER 1 4,400

품절
16-98 9366372 BLADE ADAPTER 1 33,000
16-100 9366373 HEAVY CONE WASHER 1 4,400
16-101 9366374 BLADE TENSION BOLT 1 1,100
16-102 9366375 FLANGE BOLTS HEAVY SERIES 2 550
16-103 9366376 OPEN END BLIND RIVET 2 550
16-104 9366295 GRASS BAG ASSY 1 44,000

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
