보쉬 GNF65A 분해도 (0601368740)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 67개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1605108145	Motor Housing	1	18,480

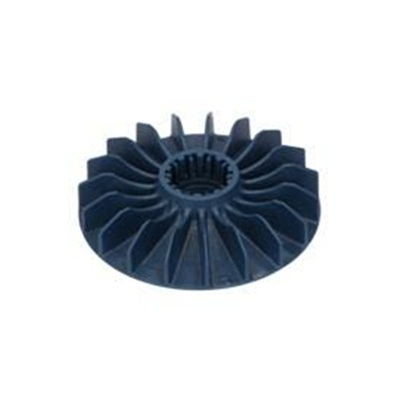

3/50	1606610127	Fan	1	2,200	품절
4	3607200064	Switch	1	24,200

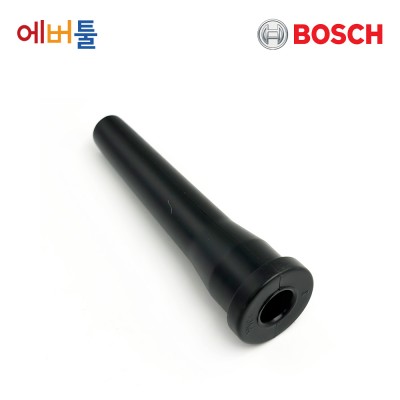

6	1600703023	Grommet	1	1,980
7	1601302018	Fastening Clamp	1	1,430
12	1607328035	Suppression Filter	1	2,860

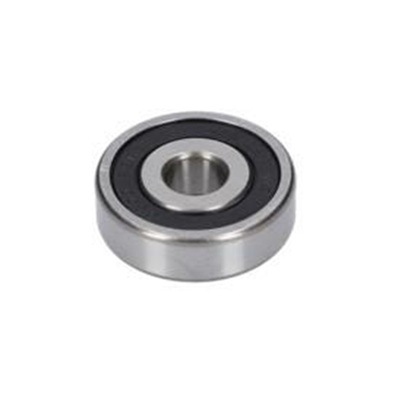

13	1600905011	Groove ball bearing	1	3,740
14	1600905023	Groove ball bearing	1	8,030
16	1604336021	Brush Holder	2	2,200
23	1605500150	Sealing cap	2	2,530
24	1605132122	Handle	1	9,900
25	1603523100	Grinding Spindle	1	9,900

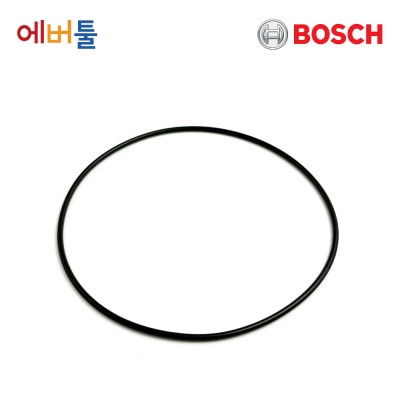

28	1600210033	O-Ring	1	1,430
29	1600210034	O-Ring	1	1,430	품절
30	1600591010	Air-Deflector Ring	1	1,650
31	1600591011	Air-Deflector Ring	1	1,430
32	1600290019	Retaining snap ring	1	1,430
33	1600290064	Rotary shaft lip seal	1	1,650	품절

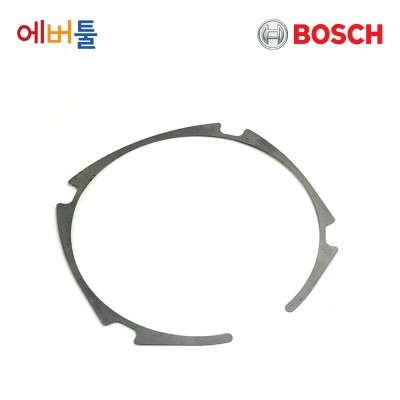

34	1600190020	Shim	1	1,430
34	1600190021	Shim	1	1,980
34	1600190022	Shim	1	1,430	품절
34	1600190037	Shim	1	1,210
35	1600205034	Felt Washer	1	1,430
36	1604652015	Spiral Spring	2	2,200
37	1600290020	Seal Ring	1	1,430
38	1600206020	Rubber Ring	1	1,430
39	1600206030	Rubber Ring	1	1,430
44	1601334008	Holding Bracket	2	1,430

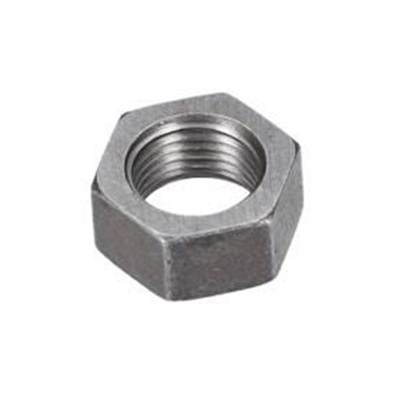

45	1603300019	Hex Nut	1	1,430
48	1600119010	Spring retaining ring	1	1,430	품절
50	3600905134	Groove ball bearing	1	6,930
51	1600200031	Plain bearing	1	2,200
52	1602388027	Cable routing	1	1,980
53	1605190038	Socket Housing	1	1,430
55	1602388029	Storage Ledge	1	1,430
60	1603435076	Thread-forming tap. Screw	4	1,980

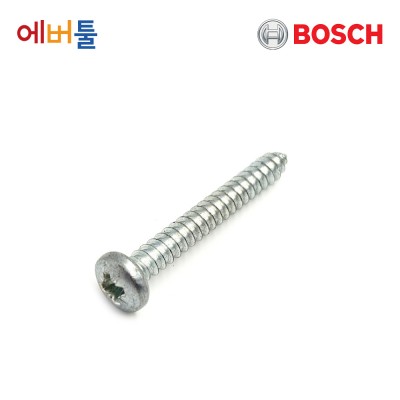

61	2912401038	Tapping Screw	4	1,210
62	1603435024	Tapping Screw	2	1,430
64	2914201503	Oval-Head Screw	4	1,650
65	2912401020	Tapping Screw	3	1,210
66	2910211019	Tapping Screw	1	1,210
67	3603435040	Lens Head Screw	2	1,430
100	1607233040	Speed governor	1	60,610	품절
119	3609202040	Round Nut	1	33,110
120	3609202041	Plain Washer	3	3,740
200	3605500127	Protective Cover	1	350,130	품절
203	3609202033	Swivel Arm	1	30,140
204	3609202034	Compression Spring	1	1,980	품절
207	1907904721	Clamping Lever	1	9,900	품절
208	1905621105	Star Knob	1	11,220
210	3609202035	Mounting Rail	1	40,480	품절
211	3609202036	Axle	2	21,450	품절
212	3609202037	Roller	2	18,480
213	3609202038	Roller	2	14,190	품절
214	2916650003	Spring retaining ring	8	1,430
215	3603435021	Shim ring	10	1,980
216	3603435022	Shim ring	3	2,200
217	3601010045	Seal	1	3,080
803	1604011156	Armature	1	102,190
805	1607000228	Power supply cord	1	18,480

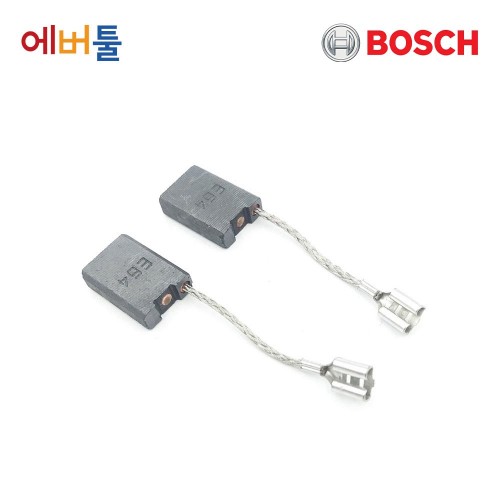

810	1607014171	Carbon-Brush Set	1	9,900
821	1605805592	Gear Housing	1	66,660
822	1607000922	Bearing Flange	1	21,450
826	1600A005BH	Assembly Of Service Parts	1	36,630
833	1600290013	Rotary shaft lip seal	1	1,980
840	1607000206	Push-Button	1	2,200

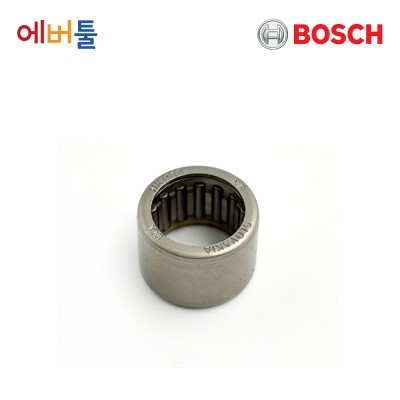

851	2600910001	Needle-Roller Bearing	1	2,860
