보쉬 GNB18V-38 분해도 (3601JL7000)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 107개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

20	1600A02HL3	Safety Lever	1	36,630
21	160111A9ZM	Nameplate	1	1,980	품절
22	1600A02LK8	Warning Label	1	1,980
25	1600A02HD9	Washer	4	1,210
26	16055002L0	Cover	1	3,740
27	1600A02HE0	Supporting Foam	1	6,930
28	1600A02HE1	Hex Socket Head Cap Screw	4	1,210
29	1600A02HE2	Cylinder Cover	1	18,480
30	1600A02HE3	Charge Valve	1	1,430
31	16002100AW	O-Ring	1	1,210
32	1600A02HE4	Screw Plug	1	2,530
34	1600A02HE8	Isolating Valve	1	2,860
37	1600A02HG5	Bumper	1	6,380
38	160343509T	Hex Screw	1	1,210
39	1600A02HG6	Pivot Pin	1	1,210
40	1600A02HG7	Support	1	1,210
45	16058066GY	Housing	1	82,610
46	1600A02HH0	Pivot Pin	1	1,210
47	1600A02HH1	Slotted Spring Pin	1	1,210
48	1600150045	Spring retaining ring	1	1,650
49	1600A02HH2	Gear Cover	1	9,900
50	1600A02HH3	Retaining Pin	4	1,650
51	16002100B0	O-Ring	4	1,210
52	16009000AJ	Ball Bearing	1	6,930
57	1600A02HH8	Bumper	5	1,210
58	1600A02HH4	Spindle With Gear	1	33,110
59	1600A02HH9	Needle bearing	1	18,480
60	1600A02HJ0	Guide Bushing	1	3,740
61	16002100B1	O-Ring	2	1,210
62	1600A02HJ1	Nose	1	102,190
63	1600A02HJ2	Spring Pin	1	1,210
64	160343509U	Hex Screw	1	1,210
65	1600A02HJ3	Stop Latch	1	3,960
66	1600A02HJ4	Torsion Spring	1	1,210
67	1600A02HJ5	Torsion Spring	1	1,210
68	1600A02HJ6	Stop Latch	1	8,800
69	1600A02HJ7	Retention knob	1	2,530
70	1600A02HJ8	Spring	1	1,210
71	1600A02HJ9	Actuator spring retainer	1	2,860
72	1600A02HK0	End cap	1	1,210
73	1600A02HK1	Rubber Buffer	1	1,210
74	160343509V	Hex Screw	3	1,430
75	1600A02HK2	Adjusting Slide	1	1,430
76	1600A02HK3	Detent plate (Depth Adjustment)	1	8,800
77	1600A02HK4	Adjusting Slide	1	26,840
78	1600A02HK5	Spring	1	1,210
79	1600A02HK6	Ball	1	1,210
80	16002100B2	O-Ring	1	1,210
81	1600A02HK7	Magnet Assembly	1	3,080
82	1600A02HK8	Safety Lever	1	14,190
83	1600A02HL0	Spring	1	1,210
84	1600A02HL1	Hex Socket Head Cap Screw	2	1,210
85	1600A02HL2	Hex Socket Button Screw	1	1,210
86	1600A02HK9	Safety Device	1	3,740

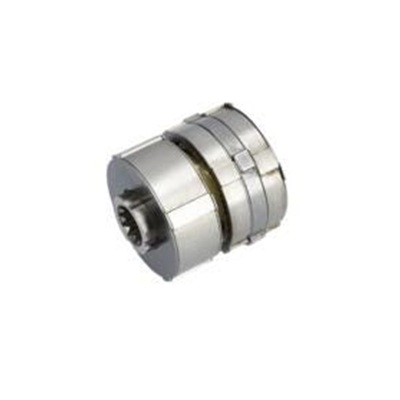

87	1600A02HL5	Planetary Gear Train	1	66,660
88	1600A02HL6	Adapter Plate	1	9,900
89	16009000AK	Ball Bearing	1	8,030
90	1600A02HL7	Torx Screw	4	1,210
91	1600A02J1W	Hex Socket Button Screw	1	1,210
92	1600A02J1X	Cable Bracket	1	1,650
93	1600A02HL8	Hall Sensor	1	12,430
94	1600A02HL9	Hall Sensor	1	12,430
95	1600A02HM0	Trigger	1	1,210
96	1600A02HM1	Spring	1	1,210
97	16002100B3	O-Ring	1	1,210
98	1600A02HM3	Self-tapping screw	1	1,210
99	2607202769	Switch	1	6,930
100	1600A02HM4	Locking Lever	1	1,430
101	1600A02HM5	Detent plate	1	1,650
102	1600A02HM6	LED lighting	1	1,430
103	1600A02HM7	Lens	1	1,430
104	1600A02G8F	Electronics Module	1	169,070
105	1600A02HP2	Spring	1	1,210
108	1600A02HP5	Hex Socket Head Cap Screw	4	1,210
109	1603123085	Detent Pin	1	2,860
110	1600A02J1Y	Hex Socket Head Cap Screw (PCBA)	3	1,210
112	1600A02HP7	Rubber Buffer	2	1,210
113	1600A02HP8	Rubber Buffer	2	1,210
114	1600A02HP9	Rubber Buffer	2	1,210
115	1600A02HR0	Rubber Buffer	1	1,210
116	1600A02HR1	Rubber Buffer	1	1,210
117	1600A02HR2	Rubber Buffer	1	1,210
118	1600A02HR3	Rubber Buffer	1	1,210
119	1600A02HR4	Rubber Buffer	2	1,210
120	1600A02HR5	Torsion Spring	1	1,210
121	1600A02HR6	Pivot Shaft	1	8,800
122	1600A02HR7	Release Lever	1	1,430
123	1600A02HR8	Hex Socket Head Cap Screw (Release LVR)	1	1,210
124	1600A02HS0	Self-tapping screw	8	1,210
125	16034300BF	Tapping Screw	11	1,210
126	1600A02J1Z	Dust-Protection Cover	1	1,210
127	1600A02HS2	Air Filter	4	1,430
128	1600A02HS3	Supporting Foam	1	8,030
129	1600A02HS4	Supporting Foam	1	6,930
130	1600A02HS5	Mounting Plate	1	1,650
131	2610005257	Grease	1	4,840	품절
132	1600A02JD6	Warning Label	1	1,980
159	1600A02HT9	Supporting foot	1	6,380
330	1600A02U8T	Air Filter	1	1,650
333	1600A02U8S	Stopping Pin	1	1,430
750	1600A02K00	Nail cartridge	1	66,660	품절
770	16058066HX	Housing	1	73,480
806	1605A002BP	Motor assembly	1	133,870
808	1600A0303R	Type Label	1	1,980
878	1607000F3C	Piston assembly	1	188,650

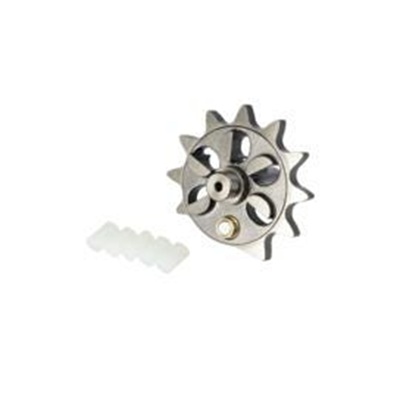

879	1607000F3D	Toothed Gear Drive Gear	1	36,630
879/5	1600A02W49	Cylinder	1	54,670
