보쉬 GSC75-16 분해도 (3601E005E0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 44개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

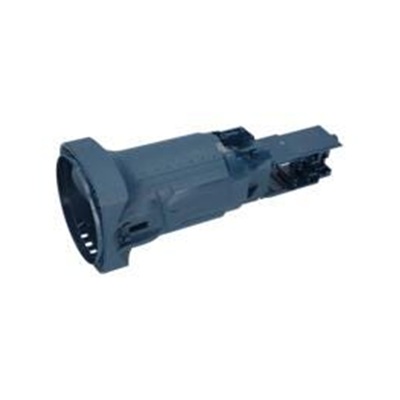

1	1619P10958	Motor Housing	1	3,080
2	160422059E	Field	1	12,430
4	1607200238	Switch	1	6,380	품절
6	2600703011	Grommet	1	2,200
7	1601302017	Fastening Clamp	1	1,210	품절
12	1619P02827	Suppression Filter	1	3,740
13	1619P00456	Ball Bearing	1	2,200
14	1610900026	Groove ball bearing	1	8,030
16	1619P01811	Brush Holder	2	2,200
17	1604652013	Spiral Spring	2	1,430
18	1619P11487	Compression Spring	1	1,210
21	3605106105	Transmission Case	1	49,720
22	1619P10967	Adjusting Slide	1	1,210
23	1619P10969	Switch Button	1	1,210
25	1619P10963	Housing Cover	1	2,530
26	1600206036	Rubber Ring	1	1,430	품절
27	3600206015	Rubber Ring	1	1,650
29	1619P10970	Air-Deflector Ring	1	1,210
31	3600300079	Bushing	1	5,500
32	3600283046	Spring retaining ring	1	1,980	품절
33	2603490023	Torx Oval-Head Screw	1	1,210
34	2603490021	Torx Oval-Head Screw	1	1,210	품절
36	1613435034	Lens Head Screw	2	1,210
37	1619P09645	Torx Oval-Head Screw	4	1,210	품절
41	3600109016	Eccentric Shaft	1	14,190	품절
42	3602311052	U-Sheet	1	2,860
43	3606316096	Cylindrical Gear	1	6,380
45	3600905158	Track-Supporting Roller	1	16,390
46	3600102049	Shim ring	2	1,980
47	3600102050	Shim ring	1	1,430
48	2600905052	Groove ball bearing	1	4,840
49	3602317041	Tappet	1	21,450
50	3606455042	Cutting Table	1	60,610
51	3607031834	Set of knives	1	54,670
52	3602311047	Plain Washer	1	1,980
52	3602311048	Plain Washer	1	1,430	품절
52	3602311049	Plain Washer	1	1,430	품절
53	3607233025	Chip Deflector	1	16,390
54	3603391007	Thread-forming tap. Screw	1	1,980	품절
55	2910401289	Hex Socket Head Cap Screw M10x20-12.9	1	1,430
56	2910401118	Hex Socket Head Cap Screw M4x8-12.9	2	1,980
655	1907950004	Offset Screwdriver	1	3,740	품절

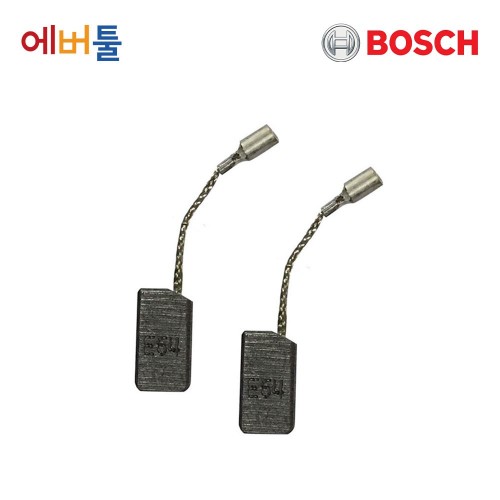

810	1619P11715	Carbon-Brush Set	1	3,740
858	2910641081	Oval-Head Screw	1	1,210	품절
