보쉬 GOF13-8 분해도 (3601FB7001)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 75개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

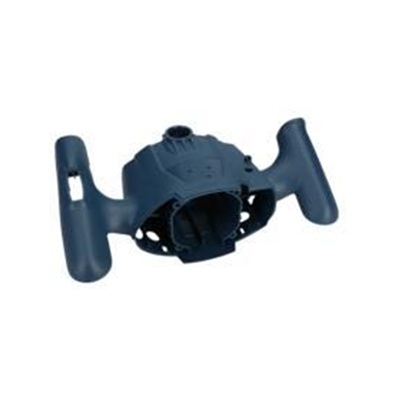

1	1619PB5155	Motor Housing	1	21,450
2	1619PB5441	Field assembly	1	16,390	품절
3	1619PB5443	Armature	1	26,840	품절
4	1619PB5247	Switch	1	5,500
6	1619PB5453	Grommet	1	1,210
7	1619PB5454	Clip	1	1,210	품절
13	1619PB5456	Groove ball bearing	1	2,200
14	1619PB5457	Groove ball bearing	1	2,530
19	1619PB5459	Screw	2	1,210
23	1619PB5154	Cover	1	3,740
24	1619PB5460	Extension Spring	2	2,530
25	1619PB5461	Insulating Cap	2	1,210
26	1619PB5179	Printed Circuit Board	1	16,390	품절
27	1619PB5462	Printed-Board Assembly	1	4,840
28	1619PB5156	Handle Cover	1	3,960
29	1619PB5463	Screw	2	1,210
30	1619PB5464	Screw	6	1,210
31	1619PB5157	Handle Cover	1	5,500
32	1619PB5465	Adjusting Screw	1	2,860
33	1619PB5466	Torsion Spring	1	1,210
34	1619PB5467	Locating bolt	1	2,530
35	1619PB5468	Locking Lever	1	1,430
36	1619PB5469	Screw	1	1,210
37	1619PB5470	Screw	2	1,210
39	1619PB5472	Air-Deflector Ring	1	1,430
40	1619PB5473	Bearing Sleeve	1	1,210
41	1619PB5474	Screw	2	1,210
42	1619PB5475	Pressure Plate	1	1,210
43	1619PB5476	Plain Washer	1	1,210
44	1619PB5477	Wing Screw	1	1,430
45	1619PB5478	Screw	4	1,210
46	1619PB5158	Indicator	1	1,210
47	1619PB5479	Seal Ring	2	1,210
48	1619PB5480	Retaining snap ring	1	1,210
49	1619PB5481	Plain Washer	1	1,210
50	1619PB5482	Guide Bracket	1	9,900
51	1619PB5483	Special Nut	1	1,650
52	1619PB5484	Lock-Screw	4	1,210
53	1619PB5485	Stop Lever	1	1,210
54	1619PB5486	Cover	1	2,860
55	1619PB5487	Spiral Spring	1	1,210
56	1619PB5488	Stop Block	1	1,650
57	1619PB5489	Screw	4	1,210
59	1619PB5493	Corrugated Pipe	2	1,210
60	1619PB5494	Spiral Spring	2	1,210
62	1619PB5496	Screw	1	1,210
63	1619PB5497	Spring Lock Washer	1	1,210
64	1619PB5152	Gauge Block	1	2,200
65	1619PB5498	Capsule	1	1,210
66	1619PB5499	Spiral Spring	1	1,210
67	1619PB5500	Chip Deflector	1	1,430	품절
68	1619PB5151	Base	1	14,190
69	1619PB5501	Spiral Spring	1	1,210
70	1619PB5502	Holding Plate	1	2,200
71	1619PB5503	Base Plate	1	3,960
72	1619PB5504	Screw	3	1,210
74	1619PB5506	Wing Screw	2	1,430
75	1619PB5507	Spiral Spring	2	1,210
76	1619PB5508	Block	1	1,210
77	1619PB5509	Terminal Block	1	1,430
78	1619PB5510	Screw	2	1,430
79	1619PB5415	Label	1	1,980	품절
80	1619PB7042	Spiral Spring	1	1,210	품절
653	1619PB5511	Parallel-Guide	1	6,380
654	1619PB5515	Guide	1	3,080
655	1619PB5521	Suction Piece	1	1,980
656	1619PB5522	Guide	1	2,200
657	1600A0228G	Assembly Wrench	1	2,200
658	1619PB5523	Center Pin	1	1,650
661	1619PB5492	Union Nut	1	5,500
662	1619PB5491	Union Nut	1	5,500	품절
663	1619PB5490	Union Nut	1	5,500
808	1619PS1041	Label	1	1,650	품절
810	1619PB5455	Carbon-Brush Set	1	2,860	품절
816	1619PB5458	Brush Holder	1	1,430	품절
