보쉬 GTS635-216 분해도 (3601M420B1)

제품이미지

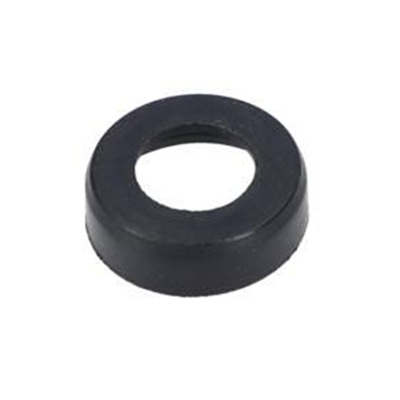

7 베어링 슬리브

266898-7

1,100

총 170개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1609B04181	Motor Housing	1	14,190
2	1619P04474	Field	1	21,450

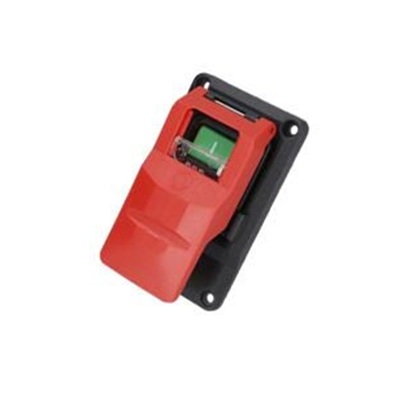

4	1609B03941	Switch	1	14,190
6	1609B01027	Cable Clip	3	1,210
7	1609BP7074	Clamp	1	1,210
8	1609B06837	Nameplate	1	1,980	품절

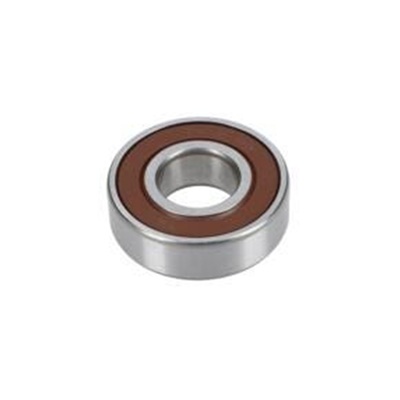

13	1609B04083	Ball Bearing	1	1,980
14	1619P06374	Bearing Cover Plate	1	5,500
16	1619P06212	Brush Holder	2	4,840
18	1609B04911	Screw	4	2,530
19	1609B05722	Screw	3	1,210
22	1609B04130	End cap	1	4,840	품절
23	1609B00921	Special Screw	2	1,210
24	1600A01CV2	Soft Start-Up Module	1	18,480
25	1609B05717	Cover	1	1,210
26	1609B05718	Cover	1	1,210
27	1609B01281	Screw	11	1,210
28	1609B04072	Rubber Ring	1	1,210
32	1619P06213	Right Angle Plug	2	1,430
33	1609B04208	Screw	2	1,210
34	1609B04075	Baffle	1	1,430
38	1609B03947	Output Shaft	1	5,500

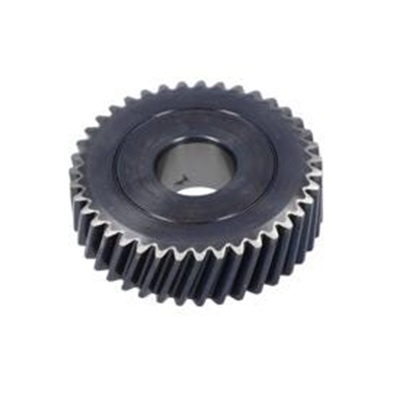

39	1609B06362	Helical Gear	1	8,800
41	1609B01050	Screw	4	1,210
42	1609B06547	Bearing	1	2,860
43	1609B03948	Bearing cover	1	1,430
44	1609B06785	Locking Lever	1	3,080
45	1609B03937	Torsion Spring	1	1,210
47	1609B03929	Adjusting Screw	1	1,210
48	1609BT4033	Nut	1	1,210
49	1609B03913	Inner Disc	1	3,080	품절
51	1609B03915	Flange	1	2,860
52	1609B03916	Nut	1	1,210
53	1609B05720	Guard Plate	1	1,210
54	1609B05721	Connection Cable	1	1,650
55	1609B05319	Suppression Capacitor	1	1,210
57	1609BP7059	Connection Block	2	1,430
58	1609B06506	Connecting Wire	1	1,210
59	1609B06507	Connecting Wire	1	1,210
61	1609B04525	Drive Shaft	1	1,980
62	1609B00675	Washer	2	1,210
63	1609B05390	Hex Socket Head Cap Screw	1	1,210	품절
64	1609B06704	Screw Bar	1	3,960
65	1609B04522	Support Plate	1	2,200
66	1609B06220	Pointer	1	1,210
68	1609B00650	Screw	1	1,210
69	1609B04523	Bushing	1	1,210
70	1609B01287	Retaining clip	2	1,210
71	1609B04524	Bushing	1	1,650
72	1609B04520	Gear	2	1,210
73	1609B00624	Screw	2	1,210
74	1609B04519	Guide Bar	1	2,200
78	1609B06808	Washer	2	1,210

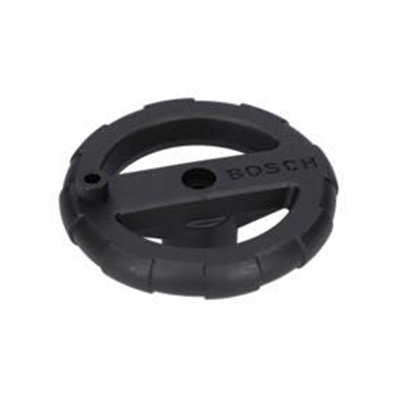

79	1609B04528	Hand Wheel	1	2,530
80	1619P03825	Screw and washer assembly	1	1,210
81	1609B00757	Plain Washer	2	1,210
82	1609B04529	Crank	1	1,210
83	1609B00689	Screw	1	1,430
84	1609B06368	Screw	3	1,210
85	1609BP7039	Self-locking nut	11	1,210
86	1609B03863	Dust Cleaner	1	1,430
87	1609B06718	Lower guard	1	5,500
88	1609B04530	Supporting Sleeve	1	1,210
91	1609B04531	Compression Spring	1	1,210
92	1609B04517	Carriage	1	36,630
93	1609B04560	Screw	2	1,210
94	1609B03829	Special Washer	2	1,210
95	1609B04551	Stopper	2	1,430
96	1609B06561	Screw	2	1,210
97	1609B06705	Mounting Bracket	2	6,930
98	1609B04541	Screw	4	1,210
99	1609B01186	Bushing	2	5,500
100	1609B01196	Socket head cap screw	4	1,210
101	1609B06363	Dust Extraction	1	1,210
105	1609B01046	Plastic-Cutting Screw	2	1,210
106	1609B04228	O-Ring	1	2,860	품절
109	1609B06689	Mounting Plate	1	2,200
112	1609B06809	Washer	1	1,210
113	1609B06690	Mounting Plate	1	1,650
114	1609B06691	Dust-Cover Holder	1	3,080
128	1609B04562	Set screw	1	1,210
158	1609B01282	Screw	3	1,210
163	1609B03874	Body	1	11,220
167	1609B06339	Table top	1	117,370	품절
169	1609B06422	Spring Plate	2	1,210	품절
171	1609B06218	Pointer	1	1,210
172	1609B03959	Extension unit	1	14,190
173	1609B03960	Rail	1	14,190
174	1609B03961	Rail	1	6,380
175	1609B03963	Plate	2	1,430
176	1609B06801	Rail	2	1,650
177	1609B06802	Rail	4	1,210
178	1609B02751	Screw	1	1,210
179	1609B06382	Cover	2	1,210
180	1609B00627	Screw	9	1,650
181	1609B02181	Washer	1	1,210
182	1609B06400	Cover	2	1,210
183	1609B03990	Shoulder Screw	4	1,210
184	1609B01322	Flange Bolt	1	1,210
185	1609B03886	Scale	1	1,980
186	1609B06589	Shoulder Screw	1	1,210
187	1609B03964	Mounting Bracket	1	1,980
188	1609B03965	Handle Bar	1	1,650
189	1609B03966	Cam	2	2,530
190	1609B03967	Link Piece	1	1,430
191	1609B03968	Link Piece	1	1,650
192	1609B03969	Nut	1	1,650
193	1609B03970	Pin	2	1,210
194	1609B03971	Bar	1	2,860
195	1609B03972	Spring Plate	2	1,430
196	1609B03973	Clamping Lever	1	1,650
197	1609B03974	Rivet	2	1,210
199	1609B01992	End Clip	2	1,210
200	1609B00647	Screw	6	1,430
201	1609B03976	Compression Spring	2	1,210
202	1609B03975	Flange nut	1	1,210
203	1609B06406	Flange nut	1	1,210
204	1609B03993	Bracket	1	1,210
205	1609B00670	Washer	1	1,430
206	1609B03983	Base	1	54,670
207	1609B03979	Front Plate	1	9,900
208	1609B03984	Tube	1	24,200
209	1609B03985	Bottom Plate	1	9,900
210	1609B03986	Foot Cover	6	1,210
211	1609B03988	Cover	1	3,080
212	1609B03995	Spring Plate	1	1,210
213	1609B03989	Handle	1	3,960
214	1609B01243	Screw	4	1,210
215	1609B03981	Bracket	1	1,430
216	1609BP7098	Rubber Ring	1	1,210
217	1609B06378	Plate	4	1,210
218	1609B06405	Screw	2	1,210
219	1609B03890	Cable Sleeve	1	1,210
220	1609B03994	Bracket	1	1,650
221	1609B06413	Bracket	1	1,210
222	1609B00969	Screw and washer assembly	4	1,210
223	1609B04082	Rivet	6	1,210
224	1609B01253	Plain Washer	11	1,210
225	1609BP7138	Tapping Screw	9	1,210
229	1609B00636	Tapping Screw	4	1,430
230	1609B06380	Screw	8	1,210
231	1609B06383	Bushing	1	1,210
232	1609B06385	Screw	1	1,210
233	1609B06381	Switch Box	1	1,650
234	1609B06410	Workpiece Pusher	1	2,530	품절
235	1609B06384	Wrench Attachment	1	1,430
236	1609B03891	Wrench Attachment	1	2,860	품절
237	1609B06421	Knob	2	1,210
238	1609B05286	Clip	2	1,210
241	1609B06355	Label	1	2,860
242	1609B04626	Retaining ring	1	1,210
243	1609B00644	Retaining ring	1	1,650
244	1609B06358	Connecting Wire	1	1,430
245	1609B06359	Connecting Wire	1	1,430
246	1609B06560	Screw	2	1,210
247	1609B00631	Screw	2	1,430
261	1609B06807	Screw	1	2,200

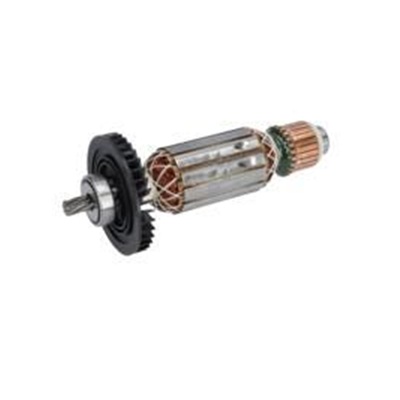

803	1609B06558	Armature assembly	1	49,720
810	1609B06559	Carbon-Brush Set	1	6,930
822	1609B04590	Guide	1	40,480
823	1609B06781	Upper guard	1	18,480
825	1609B06423	Mitre Fence	1	8,030
828	1609B06804	Riving Knife	1	18,480	품절
835	1609B06214	Gear Box	1	26,840
840	1609B06952	Gear cover	1	9,900	품절
864	1609B06424	Fastening parts kit	2	1,210
868	1609B06415	Fixing Plate	1	12,430
876	1609B05713	Locking Lever	1	2,860
887	1609B05715	Pad	1	1,650	품절
888	1609B05657	Clamping Unit	1	3,080
