보쉬 GTS10J 분해도 (3601M305B2)

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 179개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1 1619PB2487 Motor Housing 1 14,190

품절
2 1609B07856 Field 1 49,720

품절

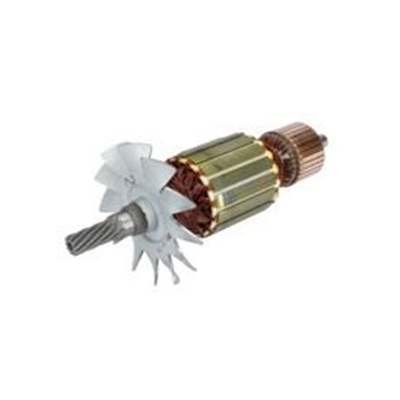

3 1619P03278 Armature 1 91,850

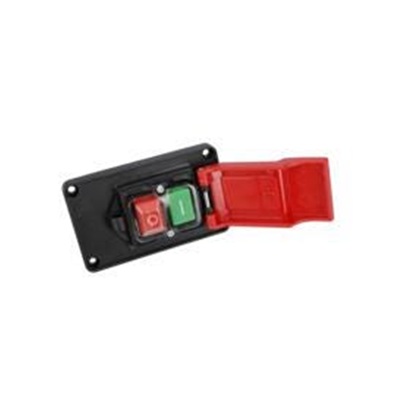

4 2610016997 Switch 1 30,140
7 2610014693 Cable Clip 1 1,210

품절

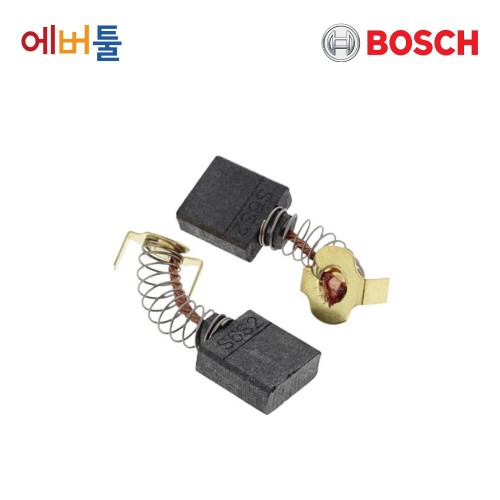

10 2610018332 Carbon-Brush Set 1 16,390
13 2610004595 Ball Bearing 1 8,030

품절
14 2610911927 Ball Bearing 1 18,480

품절
18 2610015078 Screw 4 1,210

품절
19 2610017002 Screw 2 1,210

품절
22 2610014697 Screw 6 1,210

품절
25 2610014698 Nut 1 1,210

품절
26 2610996920 Connecting Nut 1 3,740

품절
27 2610014699 Handle 1 3,960

품절
28 2610015000 Cam 1 6,930

품절
29 2610015001 Washer 3 1,210
30 2610015002 Spring retaining ring 2 1,210

품절
32 2610017003 Pin 1 1,210

품절
36 2610910015 Collar bolt 4 2,200
37 2610355325 Spring Washer 4 1,210

품절
38 2610910013 Washer 4 1,650
39 2610015008 Nut 4 1,210
41 2610015010 Pointer 1 1,430

품절
42 2610950077 Screw 1 1,210

품절
44 2610023173 Pad 2 1,650
72 2610950069 Screw 6 1,210

품절
73 2610015011 Washer 2 1,210

품절
74 2610015012 Bolt 2 1,210

품절
75 2610925438 Washer 2 1,210

품절
76 2610015014 Supporting foot 4 3,080
77 2610015015 Screw 8 1,210

품절
78 2610015016 Handle 1 8,030

품절
79 2610015017 Holding Plate 1 8,800

품절
81 2610015019 Key 1 5,500

품절
82 2610911566 Bearing cover 1 2,200

품절
83 2610015021 Nut 1 1,430

품절
84 2610015022 Workpiece Pusher 1 3,960
86 2610017007 Support bracket 1 1,980

품절
102 1609902670 Screw 2 1,210
103 2610327868 Nut 2 1,210

품절
109 2610998587 Screw 4 1,210

품절
112 2610017013 End cap 1 5,500

품절
113 2610911933 Connector 2 1,210

품절
118 2610950042 Spring Washer 1 1,210

품절
120 2610950044 Screw 3 1,210

품절
121 2610996949 Ball Bearing 1 9,900

품절
122 2610017015 Filter 1 8,030

품절
123 2610997281 Spring retaining ring 1 1,210

품절
124 2610998572 Screw 5 1,210
125 2610996875 Torsion Spring 1 1,430

품절
126 2610996874 Locking Lever 1 6,930

품절
127 2610996876 Shoulder Screw 1 1,430
128 2610998588 Screw 1 1,430

품절
129 1600A01D8R Insert 1 18,480
130 2610017017 Gear Housing 1 49,720

품절
131 2610937293 Retaining ring 1 1,210

품절
133 2610950108 Screw 4 1,210
138 1600A00724 Mounting Rail 1 1,650
140 1609902054 Set screw 2 1,210

품절
141 2610911929 Screw 2 1,210

품절
142 2610911901 Self-locking nut 4 1,430

품절
143 2610911569 Insert 2 1,980

품절
144 2610996948 Rubber Ring 1 1,430

품절
145 2610950071 Screw 2 1,210

품절
146 2610015030 End cap 2 1,430
149 2610015031 Spring retaining ring 2 1,210

품절
150 2610996932 Bearing Sleeve 1 1,980

품절
151 2610017001 Vacuum Connection 1 3,740

품절
152 2610997210 Ball Bearing 1 9,900

품절
153 2610997282 Spring retaining ring 2 1,210

품절
154 2610017021 Spindle 1 24,200

품절
155 2610012984 Woodruff Key 1 1,210

품절

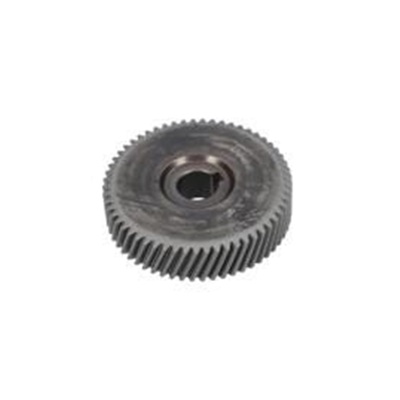

156 2610997208 Toothed Gear 1 30,140

품절
157 2610017018 Bushing 1 2,530

품절
158 2610998573 Spring retaining ring 1 1,210

품절
159 2610950427 Set screw 1 1,210

품절
160 2610017022 Chain 1 1,210

품절
161 2610950126 Mounting Bracket 1 5,500
162 2610950070 Bushing 2 1,210

품절
163 2610015035 Support bracket 1 5,500

품절
164 2610017023 Fastening parts kit 1 9,900

품절
165 2610017024 Holding Plate 1 60,610

품절
166 2610017025 Rod 2 8,800

품절
167 2610015038 Bolt 4 1,430

품절
168 2610015039 Washer 4 1,210

품절
169 2610015040 Support Plate 1 2,860
171 2610017026 Rod 1 5,500
172 2610015042 Bevel Gear 2 1,980
174 2610015043 Bushing 1 1,210
175 2610015044 Washer 2 1,210

품절
177 2610015045 Screw 2 1,210
178 2610017027 Shaft 1 5,500
179 2610015047 Support Plate 1 3,080
180 2610015048 Bushing 1 1,210

품절
181 2610016557 Washer 2 1,210

품절
182 2610016558 Nut 1 1,210

품절
183 2610015049 Bushing 1 4,840
184 2610013053 Set screw 4 1,210

품절
185 2610016559 Screw 4 1,210

품절
186 2610015050 Cover 1 8,800

품절
187 2610950049 Screw 5 1,210

품절
188 2610017037 Electronics Module 1 49,720
189 2610015051 Dust-Cover Holder 1 6,380

품절
190 2610015052 Screw 1 1,210

품절
191 2610015053 Spring retaining ring 1 1,210

품절
192 2610017028 Retaining clip 2 1,210

품절
193 2610016560 Stud bolt 2 1,210
196 2610015055 Guard Plate 1 1,430

품절
197 2610950132 Screw 4 1,210

품절
200 2610017029 Screw 1 1,210

품절
201 2610017030 Spring Clip 1 1,210

품절
202 2610017033 Safety Guard 1 2,530

품절
203 2610950439 Screw 2 1,210

품절
204 2610015054 Guard Plate 1 5,500

품절
205 2610016562 Rod 1 1,210

품절
206 2610016563 Contact strap 1 1,210

품절
207 2610923830 Plate 2 1,210

품절
208 2610010404 Screw 2 1,210

품절
209 2610017031 Screw 3 1,210

품절
210 2610015058 Washer 3 1,210
211 2610911920 Rubber Bushing 1 1,210
212 2610015059 Wrench Socket 1 1,430

품절
213 2610017032 Holding Plate 1 33,110

품절
214 2610017110 Washer 1 1,650

품절
215 2610347092 Plain Washer 4 1,210

품절
216 2610017046 Insulator 1 2,530
217 2610015061 Bushing 1 1,980

품절
218 2610015062 Handle 1 4,840
219 2610924961 Nut 1 1,210
220 2610015359 Screw 1 1,210
225 2610015064 Pointer 1 1,650

품절
226 2610015065 Screw 1 1,210
227 2610013054 Contact strap 1 1,210
230 2610996912 Fixing Plate 2 3,740
231 1600A01D8V Rail 1 21,450
234 2610951945 Screw 8 1,210
235 1609203L56 Clamping Flange 1 8,030
237 2610950046 Clamping Flange 1 8,030
238 2610358858 Nut 1 1,980

품절

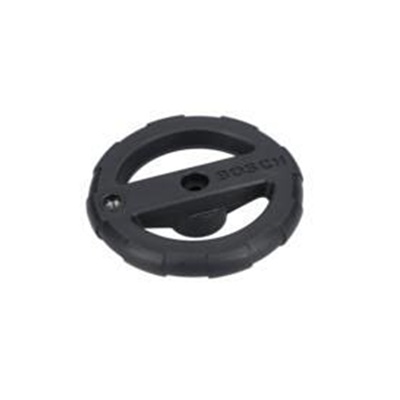

239 2610015069 Handwheel 1 6,380

품절
242 2610950059 Handle 1 1,210
243 2610950060 Screw 1 1,650
244 2610950389 Washer 1 1,210
248 2610017034 Safety Cover 1 2,530

품절
252 2610017035 Mitre Fence 1 18,480
253 2610017036 Rod 1 1,430

품절
254 2610017052 Screw 1 1,210

품절
256 2610998580 Screw 2 1,210

품절
257 2610017038 Nut 1 1,210

품절
259 2610016565 Contact strap 1 1,210

품절
261 2610015071 Switch Housing 1 1,980

품절
262 2610017040 Connecting Cable 1 3,960

품절
263 2610017041 Mitre Fence 1 21,450
264 1600A01D8U Rail 1 18,480
265 2610015075 Washer 2 1,210

품절
266 2610015076 Device cap 2 1,210

품절
267 2610950134 Bolt 2 1,210
270 2610950117 Screw 4 1,210

품절
271 2610013365 Spring Washer 4 1,210
273 2610015080 Screw 2 1,210

품절
274 2610950135 Washer 2 1,210
275 2610016566 Washer 1 1,210
279 1600A01R18 Protective Cover 1 21,450
280 2610017047 Mitre Fence 1 91,850
281 2610015507 Mitre Gauge 1 21,450
283 2610016567 Hexagon Socket Wrench 1 1,430

품절
285 2610023174 Serrated Lock-Washer 5 1,210

품절
286 2610015093 Lock 1 26,840
288 1600A01D8L Riving Knife 1 24,200
291 2610017051 Washer 1 1,210

품절
292 2610950109 Washer 2 1,210
294 2610017053 Holder 1 6,380

품절
295 2610017054 Holder 1 6,380

품절
298 2610017056 Rod 1 1,430

품절
299 2610017057 Screw 2 1,210

품절
300 2610017058 Torsion Spring 1 1,210

품절
302 2610017060 Safety Guard 1 1,980

품절
303 1609203K96 Cable Clip 1 1,210
816 1609B07133 Brush holder assembly 2 6,380

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
