보쉬 GSA1300PCE 분해도 (3601F4E2B1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 72개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

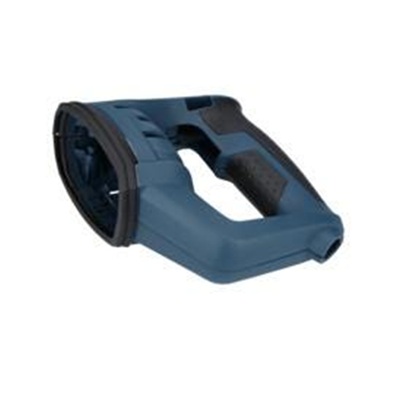

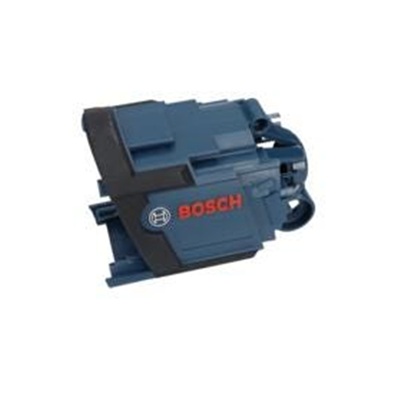

1	2610013221	Motor Housing	1	12,760

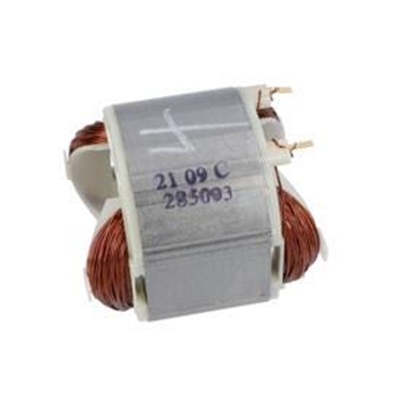

2	2610015551	Stator	1	37,620

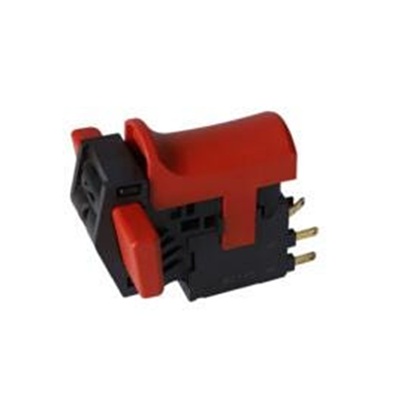

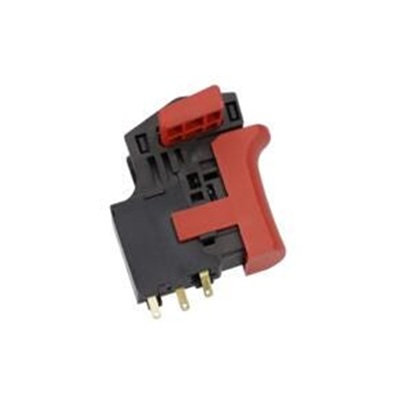

4	2610013493	Switch	1	19,030
4	2610013496	Switch	1	24,860
5	2610957162	Power supply cord	1	12,760	품절
6	2610956866	Cord guard	1	1,650
7	2610010008	Clamp Bracket	1	1,210	품절
13	2610010004	Ball Bearing	1	4,950	품절
14	2610956889	Groove ball bearing	1	4,950	품절
16	2610956874	Brush Holder	2	1,980
18	2610010013	Thread-forming tap. Screw	4	1,210	품절
19	2610956867	Tapping Screw	2	1,210

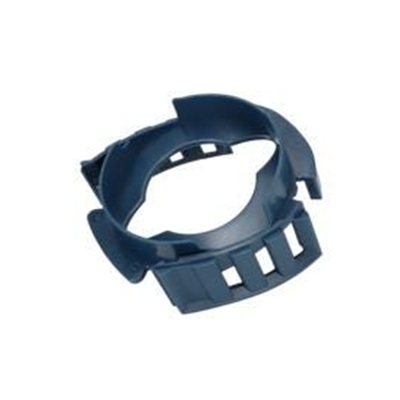

22	2610956870	Terminal Block	1	1,980	품절
23	2610013223	Baffle	1	5,610	품절
24	2610010000	Washer	1	1,210	품절
26	2610013249	Bearing Sleeve	1	1,210	품절
27	2610010001	Retaining clip	1	1,210	품절
28	2610009997	Needle-Roller Bearing	1	3,190	품절
29	2610009995	Retaining clip	1	1,210
34	2610009986	Ball Bearing	1	5,610	품절
35	2610009987	Retaining Plate	1	1,980	품절
36	2610009988	Thread-forming tap. Screw	4	1,210	품절
37	1619P04820	Spring Washer	6	1,210
39	2610009994	Conversion Gear	1	10,230
43	2610013237	Dowel pin	1	1,650	품절
46	2610013240	Steel ball	2	1,210	품절
48	2610009983	Retaining clip	1	1,650	품절
49	2610009982	Sealing cap	1	1,430	품절
50	2610009981	O-Ring	1	1,210	품절
51	2610009980	Bushing	1	6,490	품절
52	2610009979	Seal Ring	1	7,150	품절
53	2610009978	Sintered-Metal Bushing	1	2,640	품절
54	2610009976	Spring Washer	1	1,650	품절
55	2610009975	Retaining clip	1	1,210	품절
56	2610009974	Felt Washer	1	1,210	품절
57	2610009973	Washer	1	1,210	품절

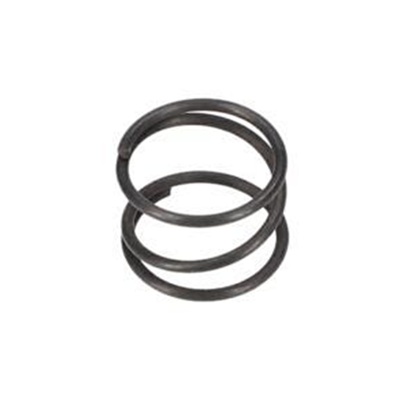

58	2610010016	Compression Spring	1	1,210

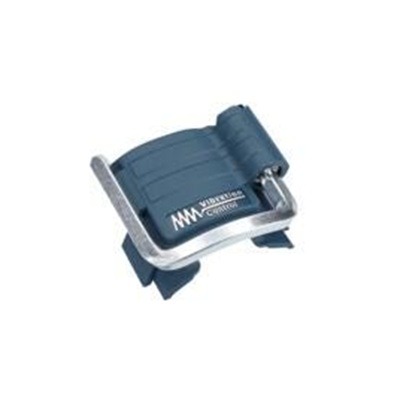

59	2610009989	Clamp	1	2,310	품절
60	2610009962	Support Plate	1	2,310	품절
61	2610013232	Shaft	1	1,430	품절
62	2610013233	Push Button	1	1,210
63	2610013234	Housing Cover	1	1,650	품절
64	2610010032	Insulating Sleeve	1	12,760
65	2610013498	Thread-forming tap. Screw	4	1,980
66	2610015554	Cover Plate	1	2,640	품절

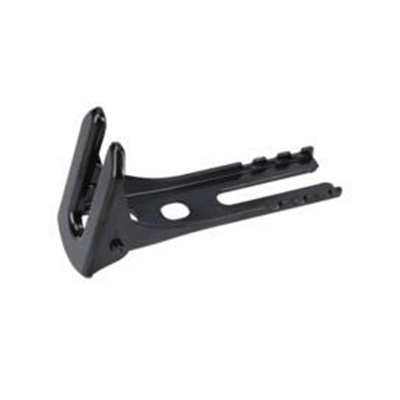

74	2610010015	Supporting foot	1	12,760
75	2610010036	Screw	8	1,210	품절
76	2610010025	Locking washer	2	1,210	품절
77	2610010006	Thread-forming tap. Screw	2	1,210	품절
78	2610956878	Connecting terminal	8	1,650
79	2610015555	Assembly Hook	1	7,150	품절
80	2610013242	Grommet	2	1,430
86	1619P04831	Receptacle	1	1,430
87	1619PB7121	Printed Circuit Board	1	24,860	품절
88	2610015628	Connector	1	1,210	품절
89	1619PA2367	Electronics Module	1	30,910
90	2610956864	Tapping Screw	2	1,650
91	2610956865	Tapping Screw	4	1,650	품절
93	2610014645	Connecting Cable	1	1,210
94	2610014646	Connecting Cable	1	1,210
95	2610015549	Lead Wire	3	2,640	품절
96	2610015548	Spring Washer	8	1,210

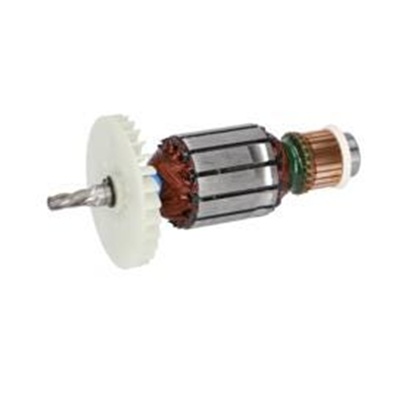

803	2610015637	Armature set	1	51,040
808	1619PB7183	Nameplate	1	1,980	품절

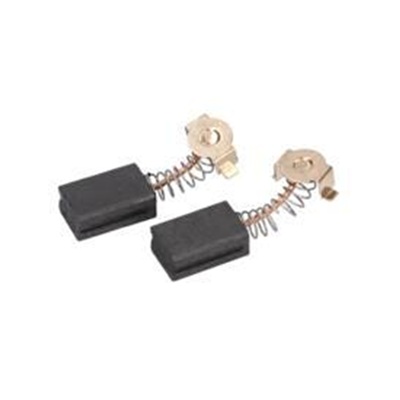

810	2610013260	Carbon-Brush Set	1	9,020
830	2610013244	Bearing Bracket	1	16,830	품절
831	2610013248	Front Housing	1	30,910	품절
842	2610013227	Spindle Assembly	1	56,100
847	2610013246	Counterweight	1	46,090	품절
867	2610010029	Blade Holder	1	12,760

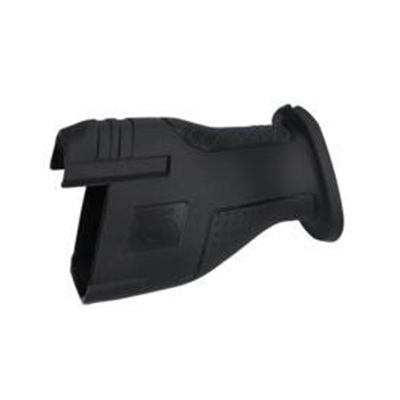

881	1619PB7124	Set Of Handles	1	14,630
883	1619PB7123	Electronic Assembly	1	7,150	품절
