에코 CS-2511TES 엔진톱 부품

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 200개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기
1-1 9350538 CRANKSHAFT,ASM 1 82,500

품절

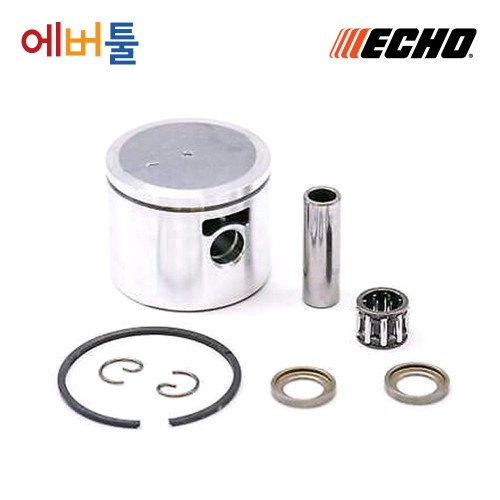

1-2 9350539 PISTON KIT 1 44,000
1-4 9360612 BEARING,NEEDLE 8 1 8,800

품절
1-5 9360457 SPACER, PISTON PIN 2 4,400

품절
1-6 9350540 PIN,ENG 8 1 3,300

품절
1-7 9360072 CIRCLIP,PISTON PIN 2 1,100

품절
1-8 9350541 CRANKCASE SET 1 60,500
1-9 9360519 BEARING,BALL 6001 2 5,500
1-10 9350562 OIL SEAL 2 2,750
1-11 9350563 GASKET,CRANKCASE 1 1,100

품절
1-12 9350564 BOLT, TORX 4 3 1,100
1-13 9350565 CYLINDER 1 99,000

품절
1-14 9350566 GASKET,CYL 1 1,650
1-15 9350564 BOLT, TORX 4 4 1,100
1-16 9350504 AUTO-OILER ASSEMBLY 1 44,000
1-17 9350568 PIPE 1 1,100
1-18 9394524 WASHER,CIRCULAR 1 1,650
1-19 9350569 GEAR,WORM 1 6,600
1-20 9350570 PIPE 1 3,850

품절
1-21 9350571 STRAINER, OIL ASSY 1 6,600

품절
1-22 9350424 BOLT, TORX 4 2 1,100

품절
1-23 9350425 COVER,OILER 1 3,300
2-1 9350426 COVER,CAP 1 2,200
2-2 9350427 HOOK 1 1,650

품절
2-3 9350428 COVER ENGINE ASSY 1 60,500
2-4 9350429 WASHER,SQUARE 1 1,100

품절
2-5 9350430 BOLT,STUD 8 1 2,200
2-6 9350431 SHUTTER, AIR 1 1,100

품절
2-8 9350523 GROMMET,FUEL 1 3,300
2-9 9350524 PUMP, FUEL 1 12,100
2-10 9350525 PIPE 1 2,750

품절
2-11 9350526 PIPE 1 1,100

품절
2-12 9394689 JOINT,PIPE 1 1,100

품절
2-13 9350533 PIPE 1 1,100

품절
2-14 9350534 PIPE 1 1,100

품절
2-15 9350535 PIPE 1 1,650

품절
2-16 9394689 JOINT,PIPE 1 1,100

품절
2-17 9350536 PIPE 1 1,100

품절
2-18 9350432 JOINT,PIPE 1 1,100
2-19 9361686 STRAINER,FUEL 1 7,700

품절
2-20 9391827 CLIP 1 1,100
2-21 9350433 VENT ASSEMBLY, FUEL 1 4,950

품절
2-22 9350564 BOLT, TORX 4 3 1,100
2-23 9350454 PIPE, INTAKE 1 1,100

품절
2-24 9350542 SPRING,COMPRESSION 2 1,650
2-25 9350543 SPRING,COMPRESSION 1 2,750
2-26 9350544 SPRING,COMPRESSION 1 1,650
2-27 9394710 BOLT,TORX 4 1 1,100
2-28 9394710 BOLT,TORX 4 1 1,100
2-29 9394710 BOLT,TORX 4 2 1,100
2-30 9361832 BOLT,TORX 4 1 1,100

품절
2-31 9350545 PLATE,SPROCKET GUARD 1 2,200
2-32 9350546 BOLT,5 1 1,100
2-33 9350547 CATCHER, CHAIN 1 1,650
2-34 9350548 BOLT,5 1 1,100
2-35 9350549 OIL,CAP 1 7,150
2-36 9350550 GASKET,FUEL CAP 1 1,100

품절
2-37 9394466 CONNECTOR,CAP 1 1,650
2-38 9350551 COVER,DUST 1 1,650
2-39 9350434 CAP,FUEL 1 7,150
2-40 9350550 GASKET,FUEL CAP 1 1,100

품절
2-41 9394466 CONNECTOR,CAP 1 1,650
2-42 9350435 LABEL,CAUTION 1 2,200

품절
3-1 9350436 SPARKPLUG 1 12,100

품절
3-2 9350437 ROTOR, MAGNETO 1 55,000
3-3 9350438 COIL, IGNITION 1 49,500

품절
3-4 9350439 PAWL 2 1,650

품절
3-5 9350440 BOLT,5 2 1,100

품절
3-6 9360243 SPRING,TORSION 2 1,650

품절
3-8 9392086 NUT 1 1,100

품절
3-9 9350441 CAP,SPARK PLUG 1 3,850

품절
3-10 9394470 TERMINAL,SPARKPLUG 1 3,300
3-11 9350442 COLLAR,4 2 1,100

품절
3-12 9361835 OLT,TORX 4 2 1,100
4-1 9350443 BELLOWS, INTAKE 1 8,250
4-2 9361834 BOLT,TORX 4 2 1,100

품절
4-3 9350527 COLLAR,14 1 1,100
4-4 9350552 COLLAR,3 1 1,100
4-5 9350553 PLUG 2 1,100

품절
4.6 9350554 CARBURETOR,DIAPHRAGM 1 77,000

품절
4-7 9350555 ELBOW, CARBURETOR 1 2,200

품절
4-8 9350556 BOLT, TORX 5 2 1,100

품절
4-10 9350558 ELEMENT, AIR FILTER 1 5,500
4-11 9350559 ELEMENT, AIR FILTER 1 5,500
4-12 9350560 LID,CLEANER 1 6,600
4-13 9350561 KNOB,CLEANER LID 1 2,200
4-14 9350444 LABEL,MODEL 1 1,100

품절
5-1 9350554 CARBURETOR,DIAPHRAGM 1 77,000

품절
5-2 9391596 12312610631 SCREEN 1 1,100

품절
5-3 9350445 COVER, FUEL PUMP 1 5,500

품절
5-4 9394387 SCREW,PUMP COVER 1 1,100

품절
5-5 9391599 GASKET,PUMP 1 5,500
5-6 9391601 DIAPHRAGM,PUMP 1 8,800
5-7 9391602 NEEDLE VALVE 1 4,400

품절
5-8 9391603 GASKET 1 5,500
5-9 9392974 DIAPHRAGM 1 11,000

품절
5-11 9392020 SPRING,LEVER 1 3,300

품절
5-12 9391852 SCREW 1 2,750

품절
5-13 9391853 PIN 1 1,100

품절
5-14 9394331 LEVER, METERING 1 2,750

품절
5-15 9394393 PLUG,WELCH 1 1,650

품절
5-16 9350446 VALVE, THROTTLE 1 2,750

품절
5-17 9394670 SCREW 1 1,650

품절
5-18 9391859 RETURN SPRING 1 2,200

품절
5-19 9350447 SHAFT, THROTTLE 1 7,150

품절
5-20 9392038 STOPPER 2 550

품절
5-21 9360423 THROTTLE,LEVER 1 3,630

품절
5-22 9392031 SCREW 2 2,200

품절
5-23 9391600 SPRING,IDLE 1 4,400
5-24 9394392 SCREW,IDLE ADJUST 1 2,200

품절
5-25 9350448 VALVE CHOKE 1 2,200

품절
5-26 9350449 SPRING 1 2,750

품절
5-27 9394494 LEVER-FAST IDLE 1 3,850

품절
5-28 9350450 SHAFT-CHOKE 1 8,250

품절
5-29 9391612 SCREW 4 2,200

품절
5-30 9394223 CAP,LIMITER 2 2,200

품절
5-31 9350451 NEEDLE 1 5,500

품절
5-32 9350452 NEEDLE, IDLE 1 5,500

품절
6-1 9350453 MUFFLER ASSY 1 27,500
6-2 9350464 WASHER 4 1 1,100

품절
6-3 9350455 SCREW 1 1,100

품절
6-4 9350456 PLATE, EXHUST 1 2,750

품절
6-5 9350457 GASKET,EXHAUST 1 1,100

품절
6-6 9361842 BOLT,TORX 5 3 1,100

품절
6-7 9350458 COVER,MUFFLER 1 3,850
6-8 9361832 BOLT,TORX 4 2 1,100

품절
6-9 9350074 X505007710 LABEL,CAUTION 1 1,100

품절
7-1 9350459 STARTER,RECOIL ASSY 1 46,200
7-2 9350460 CASE,STARTER ASSY 1 13,200

품절
7-3 9350461 DRUM 1 4,400
7-4 9350462 SPRING KIT, REWIND 1 9,350
7-5 9350463 SPRING CASE 1 3,300
7-6 9350474 SPRING,DAMPER 1 2,750
7-7 9350528 PLATE, CAM 1 3,850
7-8 9394416 SCREW 1 2,200

품절
7-9 9350529 ROPE, STARTER 1 2,750
7-10 9350530 GRIP, STARTER 1 3,850

품절
7-11 9350531 COVER,FAN 1 8,800

품절
7-12 9361835 OLT,TORX 4 3 1,100
7-13 9350532 LABEL,ECHO 1 1,650

품절
8-1 9350465 SWITCH,ON OFF 1 7,150

품절
8-2 9350466 HANDLE SET, REAR 1 27,500
8-3 9350467 GROMMET,NEEDLE 1 1,100

품절
8-4 9361832 BOLT,TORX 4 1 1,100

품절
8-5 9350468 HANDLE, FRONT 1 17,600
8-6 9394712 BOLT,TORX 5 1 1,100

품절
8-7 9350469 CONTROL, THROTTLE 1 1,650
8-8 9350470 LOCKOUT, THROTTLE 1 2,200
8-9 9350471 ROD, THROTTLE 1 2,750
8-10 9350472 SPRING,TORSION 1 1,100

품절
8-11 9350473 PLUG 1 1,100

품절
8-12 9350475 RING,HARNESS 1 1,650

품절
9-1 9350476 DRUM, CLUTCH 1 28,600

품절
9-2 9350477 BEARING,NEEDLE 10 1 6,600
9-3 9350478 PLATE, CLUTCH 1 1,650
9-4 9350479 CLUTCH ASSY 1 39,600
9-5 9350480 CLUTCH SHOE SET 1 16,500
9-6 9350481 SPRING, CLUTCH 3 1,100
9-7 9350482 HUB, CLUTCH 1 8,250

품절
9-8 9350483 GUARD, SPROCKET ASSY 1 55,000
9-9 9350484 GUARD, SPROCKET 1 24,200
9-10 9350485 BAND, BRAKE 1 6,600
9-11 9350486 ROLLER 1 1,100

품절
9-12 9394531 SPACER 1 550
9-13 9350487 SPRING,COMPRESSION 1 1,650

품절
9-14 9350488 COLLAR,8 1 1,100

품절
9-15 9350489 CONNECTOR, BRAKE 1 5,500

품절
9-16 9350490 COVER,BRAKE 1 3,850
9-17 9350491 GEAR,BEVEL 1 1,650
9-18 9394551 GEAR,BEVEL 1 6,600
9-19 9360467 BOLT 5 1 4,400
9-20 9391534 SLIDE PIECE 1 2,200
9-21 9350492 COLLAR,8 1 1,650
9-22 9350493 PLATE,SPROCKET GUARD 1 2,200
9-23 9394710 BOLT,TORX 4 3 1,100
9-24 9350494 NUT,8 1 1,650
9-25 9350495 HOOK 1 2,200
9-26 9350496 LEVER, BRAKE 1 17,600
9-27 9350497 SPRING,TORSION 1 1,650
9-28 9350498 COLLAR,10 1 1,100
9-29 9350499 BOLT,5 1 1,100
9-30 9360296 LABEL,ECHO 1 2,200

품절
10-1 9377022 가이드바 10인치(25cm,91-20) 1 40,700
10-3 9360641 SCABBARD, CHAIN 1 10,450
10-4 9392697 PLUG WRENCH 1 6,050

품절
11-1 9350504 AUTO-OILER ASSEMBLY 1 44,000
11-2 9350505 PIN, SPRING 1 1,100

품절
11-3 9350506 CAP, OIL PUMP 1 1,650

품절
11-4 9350512 SPRING 1 1,100

품절
11-5 9392038 STOPPER 1 550

품절
11-6 9350513 NEEDLE-ADJ 1 6,050

품절
11-7 9350514 SHAFT ASSY-PLUNGER 1 14,300

품절
11-8 9350515 SPRING 1 1,100

품절
11-9 9350516 WASHER 1 1,100

품절
11-10 9350517 WASHER 1 1,100

품절
12-1 9350518 ELEMENT, AIR FILTER 1 17,600
12-4 9350520 SHIELD, SNOW 1 2,750

품절
12-5 9360462 SPIKE 1 4,400
12-6 9350521 BOLT, TORX 5 2 1,100

품절
12-7 9350522 COVER,DUST 1 1,650

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
