보쉬 GKS18V-68GC 분해도 (3601FB51B1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 65개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	16058065TR	Housing	1	24,200
4	160440001S	Cable	1	11,220
5	16072335G6	Electronic Module	1	66,660	품절
7	1600A025GR	Cover	1	1,430	품절
26	1619P06237	Flange Bushing	1	1,210
31	1600A01286	Protection cover	1	9,900
32	2610386516	Torx Oval-Head Screw	10	1,430
33	1600210041	O-Ring	1	1,980	품절
37	2605730067	Suction Socket	1	2,530
45	1600A019H0	Cover	1	1,430
51	1600A01D0W	Locking washer	1	3,740
52	1619P06232	Screw	1	1,650
54	1619P06238	Locking washer	1	1,210
58	1600A0152P	Lower guard	1	16,390
59	2914201504	Torx Oval-Head Screw	2	1,210
60	1600A00XC9	Extension Spring	1	1,430
61	1619P06236	Bumper	1	1,650
62	160461202N	Compression Spring	1	1,210
63	2603410048	Thread-forming tap. Screw	1	1,430
64	1600A0192G	Lever	1	1,980	품절
67	1619P11929	Screw	1	1,650
68	2609003491	Hex Nut	1	1,210
69	1600A015PA	Base Plate	1	26,840
70	1600A0150K	Steel Cable	1	3,080
71/71	1600A0174J	Bridge	1	24,200
71/73	2600590006	Ratchet Cap	1	1,430
71/76	2610387875	Hex Nut	1	1,980
71/86	2609007156	Washer	1	1,210
71/98	16034300A3	Screw	1	1,210
71/99	1600A019B3	Hex Nut	1	1,430	품절
71/889	1607000DL4	Carrier	1	14,190	품절
71/890	1607000DL3	Carrier	1	14,190	품절
72	1609280477	Compression Spring	1	1,430
74	2603400016	Set screw	1	1,430
75	2914201529	Torx Oval-Head Screw	2	1,210
79	1600A014VC	Safety Switch	1	1,430	품절
85	1603480018	Wing Screw	2	1,650	품절
87	2916080014	Locking washer	1	1,210
88	1600A01DD4	Corrugated Washer	1	1,210
91	2603490022	Screw	7	1,210
92	2914491413	Screw	1	1,210
94	1619P06246	Screw	1	1,650
97	1600A01B11	Locking Lever	1	1,650
101	160343003T	Screw	1	1,210
106	1600A014R6	Contact Plate	1	6,930
107	1600A01243	Locking element	1	1,430
108	1600A012CF	Holder	1	1,430
109	1600A013BF	Spring	1	1,210
110	1603435092	Thread-forming tap. Screw	2	1,210
111	1600A00Y2H	Locking Slide	1	1,650
115	2603490020	Torx Oval-Head Screw	1	1,210	품절
120	1600A016MW	Cable	1	2,530
121	16072335GD	Electronic Module	1	24,200
130	160440001A	Cable	1	2,530
131	1600A016CZ	Electronics Module	1	6,380	품절
132	1600A013WF	Electronics Module	1	26,840
135	16055002F9	Cover	1	1,430
138	1600100632	Shim	3	1,210
140	1600A025F2	Scale	1	1,210
620	2610364015	Hexagon Socket Screw Key	1	2,530
660	1619P06343	Washer	1	3,740
680	1619X01612	Mitre Fence	1	6,930

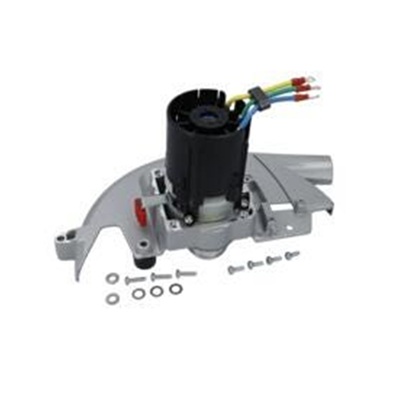

803	1607000DL2	Drive Unit	1	133,870
808	160111A7JK	Nameplate	1	1,980	품절
822	1607000DL5	Auxiliary Handle	1	16,390
