보쉬 GKS18V-57-2GX 분해도 (3601FC10B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 67개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619PS0862	Motor Housing	1	3,080
2	1619P16618	Stator	1	40,480
3	1619P16617	Rotor	1	30,140

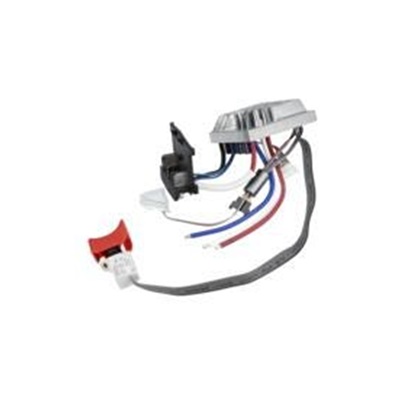

4	1619PS0623	Electronic Module	1	44,880
5	1619PS0624	Electronic Module	1	14,190
22	1619PS0626	Handle	1	8,030
23	1619P17004	Cover	1	1,210
24	1619P16881	Baffle	1	1,430
25	1619P16931	Set ring	1	1,210
33	1619PS0627	Connecting Rod	1	6,380
34	1619P06225	Cap	1	1,210
35	1619P01678	Screw	4	1,210
36	2603414048	Torx SH cap screw	2	1,210
37	1619PS0628	Suction Socket	1	3,960
38	1619P16906	Guide Bracket	1	1,980
39	1619P01642	Compression Spring	1	1,210
49	1619X06538	Socket head cap screw	4	1,430
50	1619P16909	Inner Disc	1	2,200
51	1619P17074	Locking washer	1	3,080
52	1619P06232	Screw	1	1,650
54	1619P06238	Locking washer	1	1,210
55	1619PS0629	Cap	1	1,650
57	1600210050	O-Ring	1	1,210
58	1619PS0630	Lower guard	1	8,800
59	F000640007	O-Ring	1	1,210
60	1619PS0631	Extension Spring	1	1,430
61	1619P06236	Bumper	1	1,650
62	2610935251	Compression Spring	1	1,430
63	1619PS0632	Lever	1	1,650	품절
64	1619PS0633	Torsion Spring	1	1,430
65	1619PS0634	Locking Slide	1	1,650
66	1619PS0635	Upper guard	1	16,390
67	1619P09219	Shoulder Screw	1	1,210
68	2610924684	Jam Nut	1	1,430
69	1619PS0636	Base Plate	1	18,480
70	2610924685	Adjusting Screw	1	1,210
71	1619PS0637	Bridge	1	11,220
72	2604690055	Compression Spring	1	1,210	품절
73	1619PS0638	Scale	1	1,980
74	1619P02796	Retaining ring	1	1,210
75	1619PS0639	Adjusting Nut	1	1,980
76	1619P17173	Lever	1	1,210
77	1619P11626	Plain Washer	1	1,210
77/1	2916011014	Plain Washer	1	1,210
78	1619P09218	Round-Head Bolt	1	1,430
79	1619P16910	Switch Button	1	1,210
80	1619PS0640	Cable Clip	1	1,430
81	1619PS0641	Indicator	1	1,650
83	1619P06244	Wing Nut	1	1,430
84	2603480003	Wing Screw	2	1,980
85	1619PS0642	Screw	1	2,860	품절
87	2603490022	Screw	10	1,210
88	1619PS0643	Label	1	1,430
89	1619PS0644	Hinge Bracket	1	2,530
90	1619PS0645	Hinge Bracket	1	1,980
91	1619PS0646	Connection Plate	2	1,650	품절
92	1619PS0647	Bushing	1	1,650	품절
94	1619P06246	Screw	1	1,650
95	2610925864	Screw	3	1,210
96	2610924687	Countersunk-Head Screw	2	1,210
97	1619P11431	Thread-forming tap. Screw	1	1,210
98	1619X08636	Ratchet Cap	1	1,650
102	1604611025	Compression Spring	2	1,430	품절
103	1619PS0648	Compression Spring	1	1,430	품절
107	1619PS0649	Locking Element	1	5,500	품절

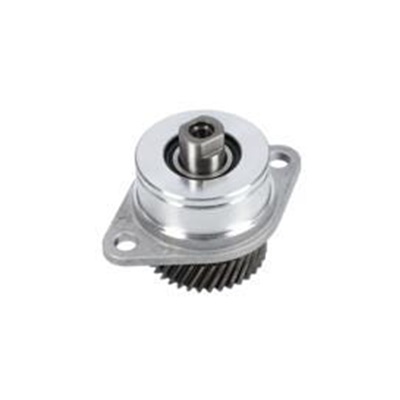

853	1619PS0622	Bearing Flange	1	14,190	품절
863	1619PS0863	Parallel-Guide	1	14,190	품절
