보쉬 GKS66X 분해도 (3601F761B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 66개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	1619P08314	Field	1	26,840
4	1619P10149	Switch	1	2,530
6	2600703017	Grommet	1	1,980
7	1619P06313	Cable Clip	1	1,210	품절
11	1619P06286	Insulating Cap	2	1,650
12	2610917620	Suppression Filter	1	2,530

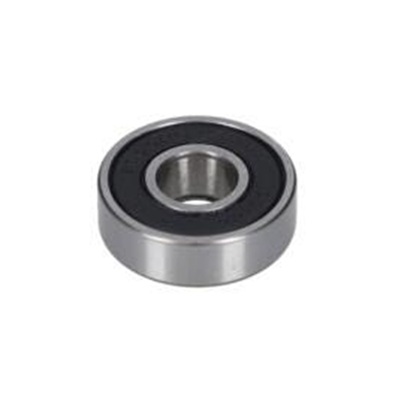

13	1619P00456	Ball Bearing	1	2,200
14	1619P10481	Ball Bearing	1	2,530
19	2603490021	Torx Oval-Head Screw	2	1,210	품절
22	2610935251	Compression Spring	1	1,430
24	1619P09797	Baffle	1	2,200
25	1619P10789	Cap	1	1,430
27	1619P06227	Rubber Ring	1	1,210
28	1619P10806	Connecting Cable	1	1,650
29	1619P10807	Connecting Cable	1	1,650
31	1619P10795	Shim plate	1	1,210
33	1619P06225	Cap	1	1,210
35	1619P00291	Ball	2	1,210
36	1619P10145	Cap	1	1,430
37	2603201020	Bearing bolt	1	1,210
38	1619P10138	Guide Bracket	1	1,980
39	1619P10139	Contact strap	1	1,430
40	1619P06319	Lock Nut	1	1,650
47	1619P06310	Needle bearing	1	1,980	품절
48	1619P10132	Ball Bearing	1	2,530
50	1619P10784	Washer	1	3,080
51	1619P10785	Locking washer	1	1,980
52	1619P10786	Clamp Screw	1	1,430
54	2916650014	Spring retaining ring	1	1,430
56	1619P10141	Rod	1	2,860
57	F000640007	O-Ring	1	1,210
59	1619P10142	Connection Lever	1	1,430
60	1619P10133	Extension Spring	1	1,650
61	1619P06236	Bumper	1	1,650
62	1604611031	Compression Spring	1	1,980
63	1619P10140	Rubber Pad	2	1,980
64	1619P10144	Support bracket	1	2,200
65	1619P06325	Knurled Bolt	1	1,650	품절
66	1619P10116	Protective Guard	1	6,930	품절
67	1619P10608	Slotted Spring Pin	1	1,430
68	1619P10117	Protective Cover	1	5,500
70	2610924685	Adjusting Screw	1	1,210
72	2604610028	Compression Spring	1	1,430	품절
75	1619P10801	Guide Cover	1	1,980
76	1619P06244	Wing Nut	1	1,430
77	2916011014	Plain Washer	1	1,210
78	1619P06211	Round-Head Bolt	1	1,210
79	1619P10788	Switch Button	1	1,650
80	1619P10037	Lever	1	1,650
82	1619P09798	Nut	1	1,980
83	1619X01792	Spring	1	1,210
84	1619P17212	Cover	1	1,980
85	1619P01618	Wing Screw	1	1,210
86	1619P10787	Trigger	1	1,980
87	2603490022	Screw	6	1,210
88	2610925864	Screw	3	1,210
93	1619P06246	Screw	1	1,650
94	1619P01678	Screw	3	1,210
95	1603435068	Thread-forming tap. Screw	3	1,430
651	2610364015	Hexagon Socket Screw Key	1	2,530
653	1619X01612	Mitre Fence	1	6,930
801	1619P10061	Motor Housing	1	14,190	품절
803	1619P11497	Armature set	1	40,480	품절
810	1619P10063	Carbon-Brush Set	1	3,960

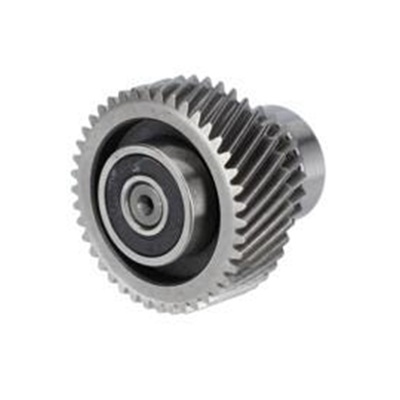

843	1619P11494	Gear Shaft	1	21,450

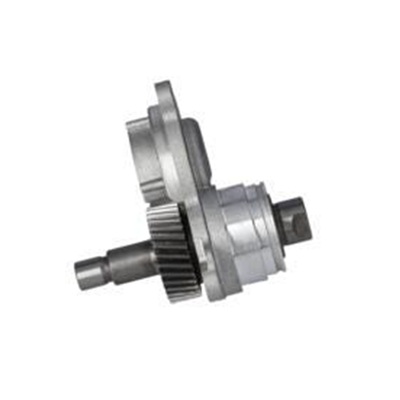

853	1619P11495	Bearing Flange	1	24,200
