보쉬 GCO230 분해도 (3601M560B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 62개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	1619PC1802	Field	1	33,110
4	1619PC1806	Switch	1	3,960
5	1619PS0688	Power supply cord	1	6,380	품절
6	1619PC1817	Grommet	1	1,210
7	1619PB9038	Cable Clip	1	1,210
8	1619PS0689	Nameplate	1	1,980	품절
12	1619PB9041	Capacitor	1	1,430
13	1619PC1834	Ball Bearing	1	1,650
19	1619PC1840	Screw	2	1,210
20	1619PC1841	Warning Label	1	1,980	품절
22	1619PC1844	Bushing	2	1,210
23	1619PS1008	Torsion Spring	1	2,200
24	1619PC1846	Connection Pin	1	2,200
25	1619PC1847	Retaining ring	1	1,210	품절
26	1619PC1848	Base	1	21,450	품절
27	1619PC1849	Rubber Cap	3	1,210	품절
28	1619PC1850	Screw	2	1,210
29	1619PC1851	Threaded Spindle	1	3,740
36	1619PC1858	Washer	2	1,210
37	1619PC1859	Split Pin	2	1,210	품절
38	1619PC1860	Stop Bracket	1	3,960	품절
39	1619PC1861	Screw	2	1,210	품절
40	1619PC1862	Screw	1	1,210
41	1619PC1863	Sheet Metal Guard	1	1,650
42	1619PC1864	Nut	1	1,210
44	1619PC1866	O-Ring	2	1,210
45	1619PC1867	Retaining ring	1	1,210
46	1619PC1868	Spring	1	1,210
48	1619PC1870	Screw	2	1,210
49	1619PC1871	Housing Cover	1	1,430
51	1619PC1873	Screw	4	1,430
52	1619PC1874	Cap	2	1,430
53	1619PC1875	Rubber Bushing	1	1,430	품절
54	1619PC1876	Air Distributor	1	1,650
55	1619PC1877	Screw	2	1,210
58	1619PC1880	Arm	1	21,450	품절
59	1619PC1881	Ball Bearing	1	1,650
62	1619PC1884	O-Ring	1	1,210
69	1619PS0690	Upper guard	1	12,430	품절
70	1619PC1892	Screw	4	1,210
71	1619PC1893	Clamping Flange	1	2,530
73	1619PC1895	Clamping Flange	1	2,200
74	1619PC1896	Washer	1	1,210
75	1619PC1897	Screw	1	1,210	품절
76	1619PC1898	Nut	1	1,210	품절
77	1619PS0691	Lower guard	1	6,930	품절
78	1619PC1900	Bolt	1	1,210	품절
79	1619PC1901	Rubber Backing Pad	2	1,210
80	1619PC1843	Switch Button	1	1,210	품절
84	1619PC1908	Clamping wrench	2	1,210
86	1619PB9165	Induction Coil	1	2,530
92	16034300DH	Screw	7	1,210	품절
101	1619PS0681	Shaft	1	1,210
102	1619PS0682	Cap	1	1,210
103	1619PS0683	Shaft	1	1,210
801	1619PC1928	Housing Assembly	1	8,800	품절
803	1619PC1591	Armature assembly	1	44,880

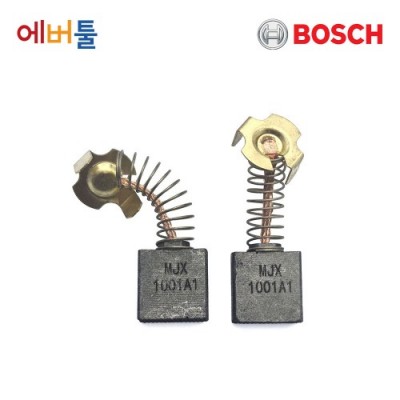

810	1619PC1589	Carbon-Brush Set	1	4,840
814	1619PC1929	Ball Bearing	1	2,200
831	1619PC1924	Clamping Support	1	3,080
835	1619PS1790	Connecting Rod	1	2,200
866	1619PC1594	Gear Shaft	1	18,480
