보쉬 GCO200 분해도 (3601M370B2)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 60개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1609B03601	Motor Housing	1	11,220
2	1609B00135	Field Field	1	44,880

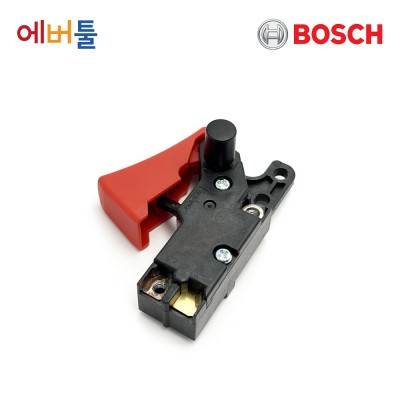

4	1609B03606	Switch	1	8,800
5	1609B03688	Power supply cord	1	12,430
13	1619P03850	Bearing	1	3,080	품절
14	1609B00057	Bearing	1	6,380
18	1609B03644	Screw	2	1,210
19	1609B02357	Screw	6	1,210
21	1604652019	Spiral Spring	2	1,430
25	1619P03831	Hex Nut	2	1,210
30	1609B02362	Base	1	60,610	품절
31	1609B03594	Supporting foot	4	1,210
32	1609B02474	Stop Bracket	1	6,930	품절
33	1609BP7045	Plain Washer	4	1,210
34	1609B03630	Screw	3	1,210
35	1609B03609	Clamp Bracket	1	3,080
36	1609B03597	Connecting Rod	1	2,860
37	1609B03598	Threaded Spindle Clamp Screw	1	6,930
38	1609B03616	Clip	1	1,210
39	1609B03628	Clip	2	1,210

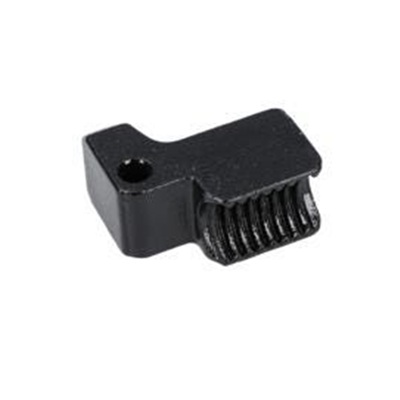

41	1609B03576	Clamping Block	1	4,840
42	1619P03762	Spring Pin	1	1,210
44	1609B03629	Screw and washer assembly	2	1,210
45	1609B03686	Screw	1	1,210
46	1609B01654	Nut	1	1,210	품절
47	1609B03634	Protective Guard	1	2,200	품절
49	1609B03622	Hexagon Socket Wrench	1	2,200
50	1609B03617	Key Holder	1	1,210	품절
51	1609B03623	Shaft	1	1,430
52	1619P03810	O-Ring	1	1,210
53	1609B03624	Cap	1	1,210
54	1609B03618	Pivot Shaft	1	1,980	품절
55	1609B03619	Contact strap	1	6,930
56	1609B03591	Arm	1	44,880
57	1609B03610	Locking Pin	1	1,650
58	1619P03864	Compression Spring	1	1,210
59	1619P03835	Thread-forming tap. Screw	4	1,210
60	1619P03823	Pickup Clip	2	1,650
61	1600206030	Rubber Ring	1	1,430
62	1609B03627	Brush-Cover	2	1,210
63	1609B00068	O-Ring	1	1,210	품절
64	1609B03604	Air-Deflector Ring	1	1,650
70	1609B03612	Gear Cover	1	3,080
72	1609B00489	Safety Guard	1	24,200
73	1609B01483	Screw	4	1,210
74	1609B03592	Flange	2	3,960
75	1609B03625	Plain Washer	1	1,430
77	1609B00494	Flap Guard	1	12,430
78	1609B03631	Cover	1	1,430
79	1609B00495	Supporting Plate	1	1,210
80	1609B03641	Shoulder Screw	2	1,430
81	1609B03513	Washer	2	1,210
82	1609B06545	Nut	2	1,210
83	1619P03871	Rubber Gasket	2	1,210

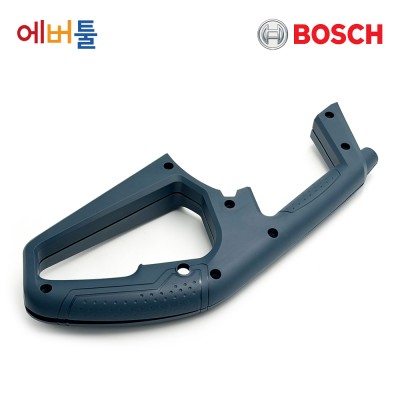

84	1609B01785	Handle	1	8,030

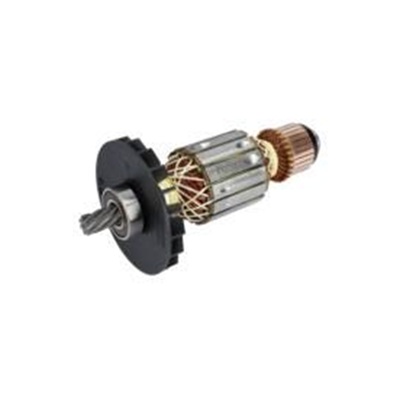

803	1609B03639	Armature assembly	1	60,610
810	1607014171	Carbon-Brush Set	1	9,900
816	1604336053	Brush Holder	2	3,740
840	1609B03626	Clamping Holder	1	8,800
865	1609B03640	Set Of Gears	1	21,450
