보쉬 GCM18V-305GDC 분해도 (3601M430B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 235개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	160702267D	Brushless DC motor	1	133,870
4	2607202510	Switch	1	9,900

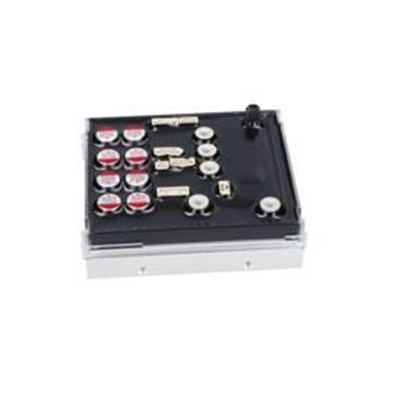

17	16072335FM	Electronic Module	1	152,240
18	1609B06759	Insulating Foil	1	1,210	품절
19	1609B06449	Support bracket	1	1,210	품절
20	1609B06748	Warning Label	1	1,980	품절
21	16072335GD	Electronic Module	1	24,200
22	1600A016CZ	Electronics Module	1	6,380	품절
23	1600A013WF	Electronics Module	1	26,840
24	1609B06287	Rubber Sponge	1	1,210	품절
25	1609B06433	Box Cover	1	2,200	품절
26	1609B06434	Box Cover	1	2,200	품절
27	1609B06435	Box Cover	1	2,200	품절
28	1609B06440	Battery Holder	1	2,530	품절
29	1609B06444	Housing	1	1,210	품절
30	1609B06445	Cover	1	1,210	품절
31	1609B00201	Wear Plate	1	3,740
32	1609B06456	Pivot Pin	1	1,980	품절
33	1609B06457	Torsion Spring	1	1,650	품절
34	1609B06487	Bushing	2	1,210	품절
35	1609B00206	Wear Plate	2	1,430
36	1609B05166	Chain	1	11,220
37	1609B00208	Flange	1	6,930	품절
39	1609B00210	Flange	1	2,530
41	1609B00211	Flange Bolt	1	2,860
42	1609B00212	Washer	1	1,210	품절
45	1609B04487	Detent plate	1	5,500
46	1609B00223	Screw	2	1,430
47	1609B00225	Nut	4	2,530	품절
48	1609B04471	Sliding Plate	4	1,430
49	1609B01431	Supporting foot	4	1,650
55	1609B00232	Locking Lever	1	1,430	품절
56	1609B00233	Locking Lever	1	1,210	품절
57	1609B00234	Screw	1	2,860
58	1609B00235	Screw	1	2,860	품절
59	1609B00236	Shoulder Screw	1	1,430	품절
61	1609B00237	Compression Spring	2	1,210	품절
62	1609B00238	Shoulder Screw	1	1,430	품절
63	1609B04462	Mitre Fence	1	16,390
64	1609B04463	Mitre Fence	1	18,480
65	1609B04493	Mitre Fence	1	18,480
66	1609B04494	Mitre Fence	1	18,480
67	1609B06468	Support bracket	1	1,210	품절
68	1609B06831	Cable Set	1	11,220
69	1609B06471	LED lamp	1	2,200	품절
70	1609B06472	Ribbon cable	1	3,080	품절
71	1609B06473	Ribbon cable	1	3,080	품절
72	1609B06474	Ribbon cable	1	2,200	품절
74	1609B06478	Protective Glass	1	1,650	품절
75	1609B06486	Plate	1	1,210	품절
76	1609280477	Compression Spring	1	1,430
78	1609B00254	Scale	1	18,480	품절
80	1609B06758	Ferrite	3	4,840	품절
81	1609B00256	Wrench Socket	1	1,650	품절
83	1609B04470	Support Plate	2	2,200
84	1609B00273	Shaft	1	2,860	품절
85	1609B04725	Knob	1	3,080
96	1609B00284	Knob	1	1,980	품절
97	1609B00285	Support bracket	1	2,200	품절
98	1609B00286	Cam	1	3,960
99	1609B04488	Linkage	1	4,840
101	1609B00289	Guide Bracket	1	1,210
103	1609B00291	Compression Spring	1	1,210	품절
104	1609B00292	Locking Lever	1	8,030	품절
105	1609B00293	Lever Shaft	1	3,740	품절
106	1609B00294	Cam	1	1,430
107	1609B00295	Support bracket	1	5,500
108	1609B00296	Support bracket	1	3,740
109	1609B00297	Tension Rod	1	8,030
111	1609B00298	Tube	1	9,900
112	1609B00299	Guide Bracket	1	1,210	품절
114	1609B04380	Cover	1	1,210	품절
115	1609B00302	Detent Pin	1	2,530
116	1609B00303	Compression Spring	1	1,210	품절
118	1609B00305	Bolt	1	1,980
119	1609B00306	Compression Spring	1	1,210	품절
124	1609B04480	Pointer	1	1,430
125	1609B02988	Scale	1	2,200
126	1609B00312	Plate	1	1,980	품절
129	1609B06734	Hinge	1	44,880	품절
134	1609B00335	Hinge	1	36,630
136	1609B00337	Shaft	3	8,030	품절
137	1609B00338	Shaft	2	6,930	품절
142	1609B00342	Bolt	1	1,980	품절
143	1609B00343	Bushing	5	3,080
144	1609B00345	Locking Lever	1	6,930	품절
145	1609B00346	Clamp Spring	1	1,430	품절
146	1609B00347	Adjusting bolt	1	1,210	품절
147	1609B06447	Plate	1	1,430	품절
149	1609B06448	Locking Pin	1	1,430	품절
151	1609B00351	Shoulder Screw	1	1,210	품절
152	1609B02371	Detent	1	12,430	품절
153	1609B00353	Retaining Plate	1	1,430	품절
154	1609B00354	Retaining Plate	1	1,430	품절
155	1609B00355	Brake Plate	1	1,430	품절
156	1609B00356	Spacer	3	1,210	품절
157	1609B00357	Pointer	1	1,650	품절
158	1609B00358	Pointer	1	1,650
159	1609B00359	Adjusting bolt	1	1,650	품절
161	1609B06480	Support	1	1,650	품절
162	1609B00362	Bumper	1	1,650	품절
164	1609B00364	Shaft	1	4,840
168	1609B00368	Rubber Plug	1	1,430	품절
169	1609B00369	Rubber Plug	1	1,430
171	1609B06464	Arm	1	40,480	품절
172	1609B00382	Knob	1	3,080
174	1609B04810	Plate	1	1,430
175	1609B04809	Output Shaft	1	6,380
179	1609B06459	Gasket	1	1,980	품절
182	1609B04811	Spindle	1	1,430	품절
183	1609B04838	Compression Spring	1	1,650	품절
184	1609B06431	Switch Handle	1	5,500	품절
185	1609B00390	Button	1	1,430	품절
186	1609B06482	Filler	1	1,210	품절
191	1609B06747	Label	2	1,210	품절
194	1609B00417	Compression Spring	1	1,210
203	1609B06462	Safety Cover	1	1,980	품절
204	1609B06446	Linkage	1	1,980	품절
205	1609B00448	Shoulder Screw	1	2,200	품절
206	1609B00449	Bushing	1	1,210
211	1609B04876	Shoulder Screw	1	1,210
212	1609B00454	Screw	10	1,210
214	1609B02467	Bumper	1	1,210	품절
215	1609B00457	Washer	1	1,210	품절
216	1609B00458	Quick-Lock	2	1,210	품절
219	1609B03361	Screw	5	1,210
220	1609B04117	Screw	4	1,210
235	1609B00523	Rubber Pad	1	1,980	품절
239	1609B00533	Rubber Bushing	1	1,210	품절
240	1609B01483	Screw	5	1,210
243	1609B00543	Warning Plate	2	1,980	품절
244	1609B02120	Sticker	1	1,650
245	1609B06749	Label	1	1,980	품절
247	1609B00549	Warning Plate	3	1,980
248	1609B06483	Bolt	1	1,210	품절
253	1609B02122	Sticker	2	1,980
258	1609B00592	Key	2	1,430	품절
262	1609B00597	Bearing	2	6,380
263	1609B00596	Bearing	1	8,800
265	1609B02941	O-Ring	1	1,210
266	1609B00602	Bolt	1	1,430	품절

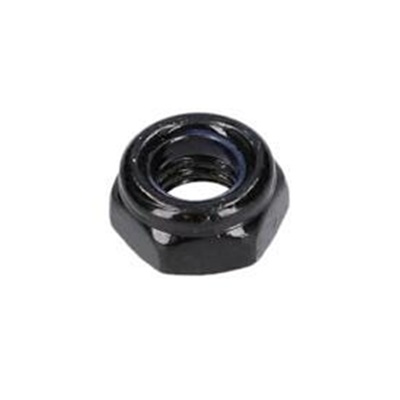

267	1609B00603	Lock Nut	1	1,210	품절
268	1609B00604	Lock Nut	1	1,430	품절
269	1609B00605	Lock Nut	1	1,210	품절
272	1609B00609	Bolt	2	1,210	품절
273	1609B00610	Screw	4	1,430
274	1609B00612	Screw	5	1,210
275	1609B00614	Set screw	1	1,210
277	1609B00616	Set screw	1	1,210	품절
279	1609B00618	Set screw	2	1,430	품절
281	1609B00620	Set screw	2	1,210	품절
282	1609B00621	Set screw	1	1,430	품절
285	1609B00624	Screw	2	1,210
288	1609B00627	Screw	6	1,650
289	1609B00630	Screw	3	1,210
294	1609B03179	Screw	1	1,210
297	1609B00637	Tapping Screw	6	1,210
298	1609B00638	Spring Pin	1	1,210
301	1609B00641	Retaining ring	1	1,430
303	1609B00643	Retaining ring	1	1,210	품절
304	1609B00644	Retaining ring	1	1,650
306	1609B00647	Screw	11	1,430
311	1609B06469	Screw	4	1,210
315	1609B00658	Spring Washer	1	1,210	품절
316	1609BP7042	Washer	1	1,210
320	1609B00664	Washer	3	1,210	품절
321	1609B00665	Washer	1	1,210	품절
322	1609B00667	Washer	5	1,210	품절
323	1609B00669	Washer	5	1,210
325	1609B00672	Lock Nut	1	1,210
326	1609B00673	Lock Nut	2	1,210	품절
327	1609B00674	Washer	1	1,210	품절
328	1609B00675	Washer	1	1,210
330	1609B00680	Screw	1	1,210	품절
331	1609B00681	Thrust Bearing	1	3,740	품절
332	1609B00682	Screw	2	1,210	품절
333	1609B04227	Adjusting Nut	1	1,210
334	1609B02145	Hexagon Bolt	1	1,210
336	1609B00688	Washer	1	1,210
337	1609B00689	Screw	2	1,430
338	2610919073	Brake Plate	1	5,500	품절
339	2610919281	Washer	4	2,530	품절
340	1609BP7124	Roller	2	1,430
341	1609B00370	Shaft	1	1,430	품절
342	1609B00690	Retaining ring	1	1,210	품절
345	1609B00288	Washer	1	1,210
347	1609B01607	Bushing	2	1,650	품절
348	1609B02178	Screw	4	1,210	품절
349	1609B05179	Screw	4	1,980
350	1609B06479	Screw	2	1,210	품절
351	1609BP7137	Tapping Screw	3	1,210	품절
352	1609B00623	Screw	9	1,210
354	1609B00676	Washer	1	1,430	품절
358	1609B04872	Lower guard	1	9,900
362	1609B01693	Screw	2	1,210
368	1609B02991	Knob	3	1,210
385	1609B06455	Screw	2	1,210	품절
388	1609B06458	Cover	1	1,430	품절
398	1609B06460	Cover	1	1,210	품절
411	1609B02468	T-Nut	4	1,210	품절
412	1609B04477	Leaf Spring	1	1,210
414	1609B04479	Rod	1	2,200	품절
415	1609B04481	Plate	1	1,210
418	1609B06443	Support bracket	1	1,210	품절
419	1609B03777	Set screw	2	1,210	품절
420	1609B06441	Button	1	1,210	품절
422	1609B00780	Screw	4	1,210
427	1609B05115	Cable	2	1,650
428	1609B03776	Stop bolt	1	1,210
429	1609B01041	Hex Nut	2	1,210	품절
433	1609B06743	Warning Label	1	1,210	품절
434	1609B06744	Warning Label	1	1,980	품절
435	1609B01530	Compression Spring	1	1,210
474	1609B00678	Screw	2	1,210
475	1609B02365	Stop Plate	1	1,430
476	1609B00263	Screw	1	1,650
802	1609B02310	Detent Pin	1	2,860	품절
808	1609BN0391	Nameplate	1	1,980	품절
813	1609B02966	Detent	1	2,860
828	1609B06772	Chute	1	9,900
831	1609B02303	Hinge	1	66,660	품절
832	1609B02304	Hinge	1	54,670	품절
833	1609B02305	Hinge	1	44,880
834	1609B06203	Adjustable screw clamp	1	8,800	품절
835	1609B06755	Hinge	1	36,630	품절

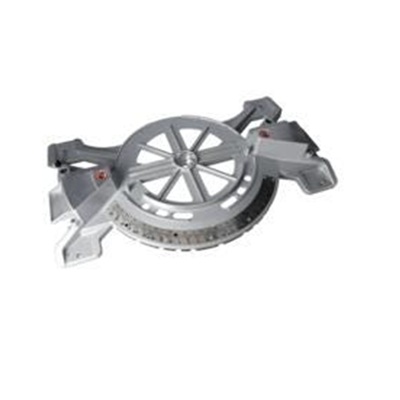

844	1609B02968	Base	1	152,240
851	1609B02964	Extension Stand	1	18,480
852	1609B02965	Extension Stand	1	16,390
853	1609B05025	Lower guard	1	40,480
869	1609B05017	Bolt	1	12,430
873	1609B06754	Chain Cover	1	30,140	품절
876	1609B06756	Gear	1	24,200
882	1609B02967	Table	1	133,870	품절
887	1609B06753	Laser module	1	33,110	품절
888	1609B05010	Dust Bag	1	3,960
