보쉬 GCM350-254 분해도 (3601M226B0)

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

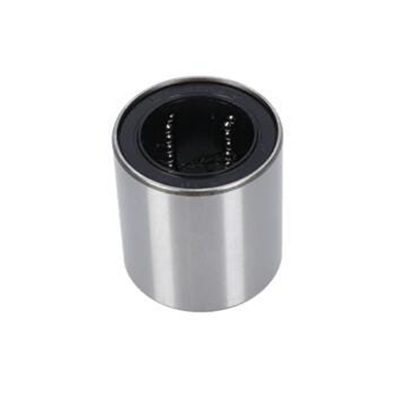

7 베어링 슬리브

266898-7

1,100

총 222개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기

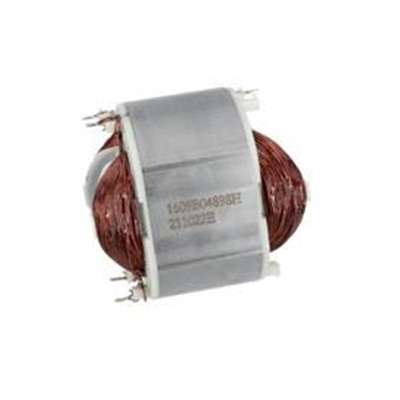

2 1609B04898 Field 1 54,670
4 2610950336 Switch 1 12,430
5 1609B02555 Power supply cord 1 14,190

품절
7 1619P03808 Cable Clip 1 1,210

품절
9 1609B05071 Manufacturer's nameplate 1 4,840

품절
13 1609B00597 Bearing 1 6,380
32 1609B05102 Sliding Plate 3 1,650
33 1609B05103 Detent plate 1 3,740
34 1609B05104 Scale 1 3,080
38 1609B05109 Mitre Fence 1 14,190
39 1609B05110 Mitre Fence 1 14,190
41 1609B05113 Mitre Fence 1 14,190
42 1609B05114 Mitre Fence 1 14,190

품절
43 1609B05382 Knurled Screw 2 1,210
44 1609B05121 Table 1 117,370
45 1609B04722 Shaft 1 2,860
47 1609B04725 Knob 1 3,080
48 1609B05125 Rod 1 1,430
49 1609B04727 Cover 2 2,200
51 1609B04728 Supporting foot 1 2,200

품절
53 1609B04878 Shoulder Screw 2 3,080
54 1609B04745 Contact strap 2 1,210
55 1609B04746 Ball 2 1,210
56 1609B05124 Detent 1 1,650
58 1609B04749 Contact strap 1 1,210
59 1609B05127 Leaf Spring 1 1,210
63 1609B05131 Trap door 2 1,650
65 1609B04756 Contact strap 1 1,210
67 1609B05141 Post 1 44,880
68 1609B04773 Pointer 1 1,210
69 1609B04774 Pointer 1 1,210
71 1609B04775 Bearing 4 33,110
72 1609B04776 Wear Plate 2 1,650

품절
73 1609B04778 Plate 4 2,530
74 1609B04780 Felt 4 1,650
75 1609B04781 Knob 1 2,860
76 1609BP7343 Contact strap 1 1,210
77 1609B05142 Locking Lever 1 8,800
78 1609B05143 Lever Shaft 1 9,900
79 1609B04798 Cover 1 1,650
81 1609B05161 Arm 1 66,660
83 1609B05163 Belt Cover 1 3,740
84 1609B04804 Transmission Shaft 1 6,380

품절
85 1609B05165 Pulley 1 6,380
86 1609B04806 Sprocket 2 8,800
87 1609B04807 Washer 1 1,430
88 1609B05166 Chain 1 11,220
89 1609B04809 Output Shaft 1 6,380
91 1609B04810 Plate 1 1,430
92 1609B04811 Spindle 1 1,430

품절
93 1609B05169 Cover 1 1,210
94 1609B05170 Channel 1 2,200
95 1609B05167 Chip Deflector 1 1,650
96 1609B05168 Chip Deflector 1 1,650
97 1609B04816 Pivot Pin 1 2,530
98 1609B05172 Locking Lever 1 3,960
99 1609B04818 Bracket 1 1,430
101 1609B04819 Torsion Spring 1 1,210
102 1609B05164 Gasket 1 2,200
103 1609B05177 Clip 3 1,650
104 1609B00206 Wear Plate 2 1,430
106 1609B05171 Carrying Handle 1 2,530
107 1609B04829 Screw 1 1,210
111 1609B04832 Screw 4 8,800
115 1609B04836 Screw 2 1,210
116 1609B04837 Torsion Spring 1 2,530
117 1609B04838 Compression Spring 1 1,650

품절
118 1609B04839 Wire 1 2,530
122 1609B04843 End cap 1 6,380
127 1609B04848 Support bracket 2 1,650
128 1609B04849 Clip 1 1,980
132 1609B04881 Wire 1 1,430
133 1609B04882 Wire 1 1,430
134 1609B05144 Power Supply Board 1 12,430
141 1609B05195 Linkage 1 5,500
142 1609B04876 Shoulder Screw 1 1,210
143 1609B04892 Intermediate Flange 1 9,900
144 1609B04902 End cap 1 2,860
145 1609B04904 Baffle 1 2,200
146 1609B04911 Screw 2 2,530
147 1609B05176 Speed governor 1 21,450
148 1609B04915 Wire 1 2,200
149 1609B04916 Wire 1 1,430
151 1609B04917 Wire 1 1,650
152 1609B04918 Wire 1 1,980
153 1609B04919 Wire 1 1,430
154 1609B04921 Sleeve 1 1,210
156 1609B04923 Clip 2 1,210
158 1609B04949 Label 1 1,980

품절
159 1609B04950 Label 1 1,980

품절
161 1609B05073 Label 1 2,860
174 1609B04783 Shoulder Screw 2 1,210
184 1609B00780 Screw 4 1,210
186 1609B04762 Leaf Spring 1 1,210
187 1609B04959 Label 1 1,980
188 1609B00583 Shrinkable Tube 1 1,210

품절
189 1609B04960 Label 2 1,980
192 1609B04225 Plain Washer 4 1,210
193 1609B05115 Cable 2 1,650
198 1609B05158 Washer 2 2,860
199 1609BP7139 Screw 2 1,210
201 1609B04253 Belt 1 14,190
202 1609B00211 Flange Bolt 1 2,860
203 1609B00213 Flange Bolt 8 1,210

품절
204 1609B00223 Screw 2 1,430
205 1609B00225 Nut 4 2,530

품절
206 1609B01431 Supporting foot 4 1,650
207 1609B00256 Wrench Socket 1 1,650

품절
208 1609B00305 Bolt 1 1,980
209 1609B00350 Knob 1 1,430

품절
212 1609B00370 Shaft 1 1,430

품절
213 1609B00382 Knob 1 3,080
214 1609B00390 Button 1 1,430

품절
215 1609B00417 Compression Spring 1 1,210
216 1609B00418 Sleeve 2 1,210

품절
217 1609B00430 Connector 1 1,210
218 1609B00449 Bushing 1 1,210
222 1609B00454 Screw 8 1,210
224 1609B00457 Washer 1 1,210

품절
225 1609B00458 Quick-Lock 2 1,210

품절
227 1609B00478 Brush-Cover 2 1,210

품절
228 1609B01670 Rubber Bushing 1 1,430
235 1609B00533 Rubber Bushing 1 1,210

품절
237 1609B00592 Key 2 1,430

품절
238 1609B00593 Key 1 1,430
239 1609B00596 Bearing 2 8,800
241 1609B00601 O-Ring 1 1,430
242 1609B00602 Bolt 1 1,430

품절
243 1609B00603 Lock Nut 1 1,210

품절
244 1609B00605 Lock Nut 1 1,210

품절
245 1609B00617 Set screw 3 1,430

품절
246 1609B00627 Screw 6 1,650
247 1609B00630 Screw 4 1,210
248 1609B00633 Screw 8 1,210
249 1609B00636 Tapping Screw 8 1,430
251 1609B00637 Tapping Screw 8 1,210
252 1609B00641 Retaining ring 2 1,430
253 1609B00643 Retaining ring 1 1,210

품절
254 1609B00644 Retaining ring 5 1,650
255 1609B00649 Screw 2 1,210

품절
256 1609B00650 Screw 7 1,210
257 1609B00652 Screw 6 1,210

품절
258 1609B00654 Screw 9 1,210

품절
259 1609B00658 Spring Washer 1 1,210

품절
262 1609B00662 Washer 1 1,430
264 1609B00665 Washer 1 1,210

품절
265 1609B00667 Washer 6 1,210

품절
266 1609B00669 Washer 4 1,210
267 1609B00673 Lock Nut 2 1,210

품절
268 1609B00674 Washer 1 1,210

품절
269 1609B00675 Washer 1 1,210
271 1609B00678 Screw 2 1,210
273 1609B00690 Retaining ring 1 1,210

품절
274 1609B00813 Ring 1 1,210

품절
275 1609B02991 Knob 3 1,210
278 1609B04799 Screw 1 1,210
279 1609B01194 Tapping Screw 3 1,210

품절
281 1609B01356 Cyl Head tapping screw 1 1,210

품절
282 1609B01388 Screw 1 1,210
283 1609B01396 Cable Holder 1 1,210

품절
285 1609B01512 Cable Clip 1 1,210
287 1609B01531 Trigger 1 1,650

품절
288 1609B05533 Fixed caliper 1 1,430
289 1609B01538 Cable Tape 1 1,210

품절
292 1609B01599 Control Screw 1 1,430
293 1609B00766 Sleeve 2 1,210

품절
295 1609B01660 Screw 5 1,210

품절
296 1609B01664 Screw 14 1,430
297 1609B01668 Washer 3 1,210

품절
298 1609B01665 Screw 1 1,210

품절
299 1609B01693 Screw 2 1,210
300 1609B01992 End Clip 1 1,210
302 1609B02177 Screw 1 1,210
305 1609BP7042 Washer 2 1,210
307 1609B02191 Washer 1 1,980

품절
308 1609B05179 Screw 3 1,980
309 1609B05180 Flange 1 2,860
310 1609B05175 Flange 1 2,860

품절
314 1609B00414 Screw 1 3,080
315 1609B02438 Grooved Washer 2 1,210

품절
317 1609B02467 Bumper 1 1,210

품절
319 1609B00415 Wrench Socket 1 1,980
320 1609B02502 Bushing 1 1,210
325 1609B03179 Screw 2 1,210
326 1609B03722 Screw 4 1,210
327 1609B03733 Control Lever 1 2,860

품절
329 1609B03741 Lock Plate 1 1,980

품절
330 1609B03742 Adjusting bolt 2 1,210

품절
331 1609B03753 Slide Stop 2 1,430
332 1609B03770 Friction Plate 2 4,840

품절
333 1609B03776 Stop bolt 3 1,210
334 1609B04086 Screw 1 1,650

품절
335 1609B04227 Adjusting Nut 4 1,210
336 1609BP7059 Connection Block 1 1,430
338 1609BP7124 Roller 2 1,430
339 1609B00622 Rivet 7 1,210

품절
340 1609B05392 Switch 1 2,530
342 1609B05130 Warning Label 1 1,980

품절
344 1609B01381 Hex Screw 2 1,210
345 1609B01397 Connecting terminal 2 1,210

품절

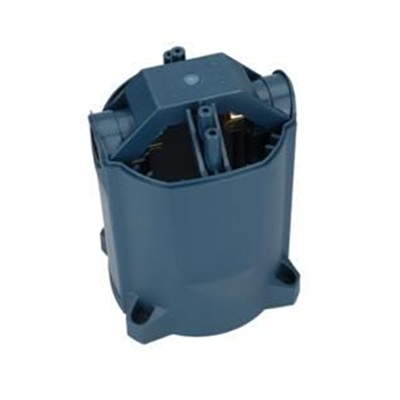

801 1609B05013 Housing Assembly 1 14,190

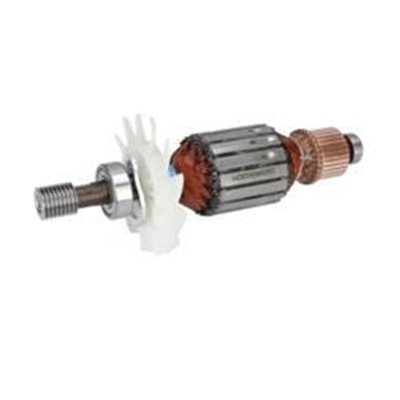

803 1609B04912 Armature assembly 1 102,190
810 2610021311 Carbon-Brush Set 1 9,900
812 1609B05189 Mounting Plate 1 2,200
813 1609B02434 Support Plate 1 11,220
814 1609B02316 Bearing 1 11,220
815 1609B05030 Condenser 1 1,430
816 1609B05188 Laser 1 54,670
818 1609B05020 Sprocket 1 8,800
819 1609B05156 Yoke 1 60,610
824 1609B06203 Adjustable screw clamp 1 8,800

품절
824232 1609B00523 Rubber Pad 1 1,980

품절
825 1609B05159 Dust Extraction 1 6,380

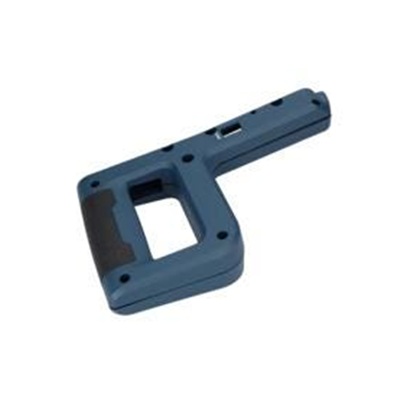

829 1609B05012 Switch Handle 1 14,190
831 1609B05119 Base 1 133,870
835 1609B05117 Extension Stand 1 33,110
836 1609B05118 Extension Stand 1 33,110
837 1609B05187 Lower guard 1 21,450
846 1609B05139 Plate 1 3,080

품절
856 1609B05010 Dust Bag 1 3,960
882 1609B05181 Chain Cover 1 30,140
885 1609B05017 Bolt 1 12,430

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
