보쉬 GCD12JL 분해도 (3601M280B1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 118개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1609B00054	Motor Housing	1	21,450

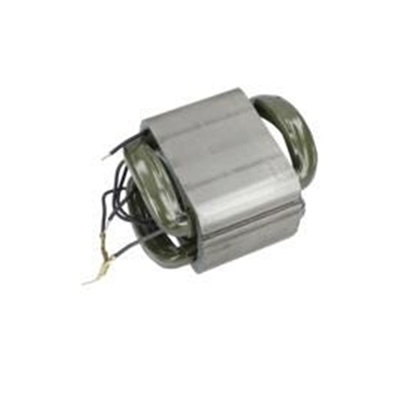

2	1609B00115	Field	1	49,720
4	1609B05400	On-Off Switch	1	14,190
5	1609B04686	Power supply cord	1	12,430
6	1609B04628	Grommet	1	1,430
7	1619P03808	Cable Clip	1	1,210	품절
18	1619P03837	Raised ctsunk head tap sc	1	1,210	품절
19	1619P03833	Screw	4	1,210
22	1609B04610	End cap	1	3,740
23	1619P03832	Screw	2	1,210	품절
24	1619P03834	Screw	2	1,210	품절
25	1619P03835	Thread-forming tap. Screw	4	1,210
26	1609B00055	Pickup Clip	2	1,210	품절
27	1600206030	Rubber Ring	1	1,430
29	1619P03822	Air-Deflector Ring	1	2,860
31	1609B04603	Upper guard	1	82,610

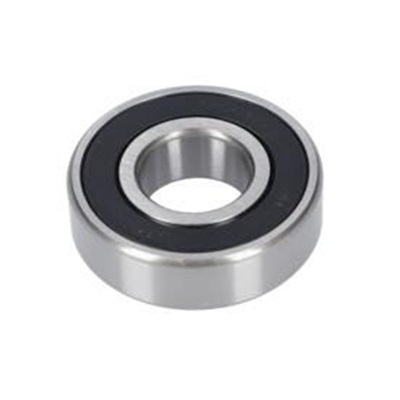

35	1609B01267	Ball Bearing	3	5,500	품절
37	1609B04619	Bearing	1	6,930
38	1609B04620	Locking Pin	1	1,980	품절
39	1609B04621	Compression Spring	1	1,210	품절
40	1609B04678	Spring Pin	1	1,210
41	1609B04622	Bearing cover	1	1,430	품절
42	1609B00780	Screw	4	1,210
43	1609B04623	Flange	1	6,930
44	1609B04624	Flange	1	6,380
45	1609B04625	Flange Bolt	1	2,530
46	1609B04664	Chip Deflector	1	3,740
47	1609B00068	O-Ring	1	1,210	품절
48	1609B00978	Screw	4	1,210
49	1609B04649	Screw	4	1,210
50	1609B04650	Mat seal	1	1,430
52	1609B04605	Switch Handle	1	24,200	품절
54	1609BP7059	Connection Block	2	1,430
55	1609B04668	Switch-Pawl	1	1,980
56	1609B04608	Carrying Handle	1	6,380	품절
57	1609B04652	Screw	2	1,210
58	1609B00655	Screw	4	1,210	품절
59	1609B01356	Cyl Head tapping screw	1	1,210	품절
61	1609B00637	Tapping Screw	4	1,210
81	1609B01561	Screw	3	1,210
83	1619P03802	Shoulder Screw	1	1,210
84	1619P03841	Spring Washer	1	1,210
85	1609B05417	Special Screw	1	1,430	품절
86	1609B00931	O-Ring	1	1,210	품절
87	1609B04611	Locking Lever	1	3,080	품절
88	1609B04612	Locking Lever	1	6,930
89	1609B04647	Bushing	1	1,210	품절
90	1609B04657	Torsion Spring	1	1,430
91	1609B03779	Shoulder Screw	1	1,430	품절
92	1609B00730	Lock Nut	1	1,430
93	1609B04658	Torsion Spring	1	1,430
94	1609B03570	Self-locking nut	1	1,210
95	1609B04659	Screw	1	1,210	품절
96	1609B04660	Pivot Shaft	1	4,840	품절
97	1619P03839	Stop Screw	1	1,210
98	1609B04648	Bushing	2	1,430
99	1609B00024	Torsion Spring	1	5,500	품절
100	1609B04602	Base	1	117,370
103	1609B04637	Clamp Screw	1	8,030
104	1619P03760	Clamping Block	1	4,840
105	1609B03523	Clamp Handle	1	3,080
106	1609B04638	Connecting Rod	1	3,960
107	1609B04639	Clamp Bracket	1	21,450
108	1619P03762	Spring Pin	1	1,210
109	1619P03752	Spring Pin	1	1,210
110	1619P03755	Spring retaining ring	1	1,210
111	1619P03756	Rivet Pin	1	1,210
112	1619P03757	Plain Washer	1	1,210
113	1609B05442	Mitre Fence	1	24,200
114	1609B04661	Hexagon Bolt	1	1,210	품절
115	1609B00753	Lever	1	3,080
116	1609B00757	Plain Washer	1	1,210
118	1609B00234	Screw	1	2,860
119	1609B00236	Shoulder Screw	1	1,430	품절
120	1609B00232	Locking Lever	1	1,430	품절
121	1609B00237	Compression Spring	1	1,210	품절
122	1609B00644	Retaining ring	2	1,650
124	1609B04641	Guide Plate	1	5,500	품절
125	1609B01600	Locking Pin	1	1,980
126	1609B00601	O-Ring	1	1,430
128	1609B01599	Control Screw	1	1,430
129	1609B04633	Leaf Spring	1	1,210	품절
130	1609B04634	Chip box	1	9,900	품절
131	1609B04635	Protective Cover	1	2,860	품절
132	1609B04663	Pivot Pin	1	1,210	품절
133	1619P03827	Socket head cap screw	2	1,210	품절
134	1619P03829	Spring Washer	2	1,210
135	1619P03828	Plain Washer	2	1,980
136	1609B00634	Screw	4	1,210
137	1609B04642	Pointer	1	1,210	품절
138	1609B05416	Offset Screwdriver	1	3,740	품절
139	1609B05419	Rubber Bushing	1	1,210	품절
140	1609B04636	Linkage	1	4,840
141	1609B00703	Plain Washer	2	1,210
142	1609B04667	Bushing	1	1,210
143	1609B01956	Retaining clip	1	1,210
144	1609B00971	Screw	1	1,210
146	1609B05392	Switch	1	2,530
157	1609B04644	Cover	1	1,210
158	1609B04643	Protecting Cover	1	1,430
159	1609B01667	Screw	2	1,210	품절
160	1609B01663	Screw	2	1,210	품절
161	1609B01549	Connecting Cable	1	1,650	품절
163	1609B05401	Screw	1	1,210	품절
165	1609B05421	Mounting Plate	1	1,650	품절
803	1609B04679	Armature assembly	1	117,370
810	1607014171	Carbon-Brush Set	1	9,900
816	1604336048	Brush Holder	2	3,960

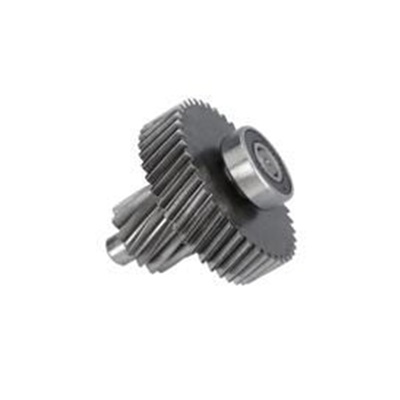

822	1609B04681	Spindle With Gear	1	60,610
823	1609B04682	Spindle With Gear	1	30,140
824	1609B04683	Extension Stand	1	24,200	품절
825	1609B03533	Bearing Block	1	4,840
826	1609B04692	Arm	1	102,190
827	1609B04693	Lower guard	1	66,660
828	1609B04694	Soft Start-Up Module	1	36,630
829	1609B04695	Electronic Module	1	16,390
830	1609B04696	Wire	1	1,430	품절
831	1609B01726	Laser	1	14,190
