보쉬 GTR55-225 분해도 (3601GD40B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 123개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

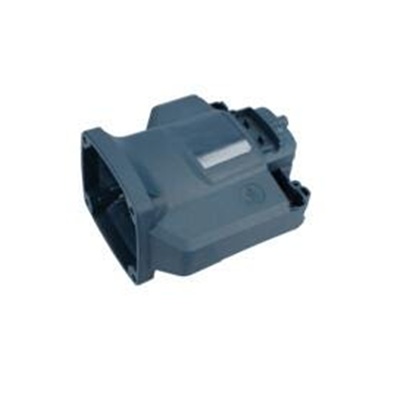

1	1619PB5941	Motor Housing	1	3,080

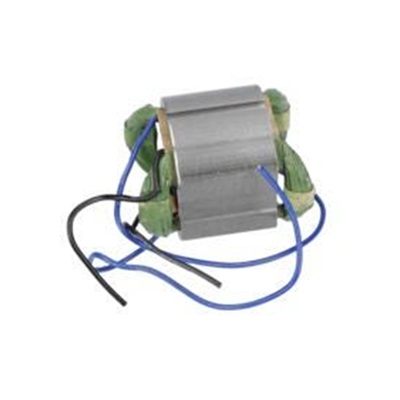

2	1619PB5942	Field	1	12,430
3	1619PB5943	Armature	1	21,450
4	1619PB5944	Switch	1	3,080
5	1619PB8625	Power supply cord	1	9,900	품절
6	1619PB5946	Grommet	1	1,430
7	1619PB6021	Fastening Clamp	2	1,210
8	1619PB8631	Nameplate	1	1,980	품절
9	1619PB5948	Manufacturer's nameplate	1	1,980	품절

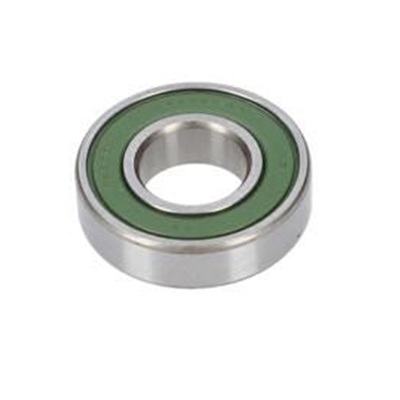

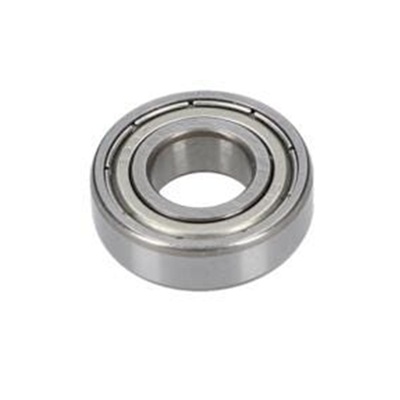

13	1619PB5950	Groove ball bearing	1	4,840
19	1619PB5952	Fastening Clamp	1	1,430
21	1619PB6082	Tapping Screw	2	1,210
22	1619PB5953	Bearing Flange	1	8,800
23	1619PB5954	Magnet	1	6,380
24	1619PB5955	Mounting Sleeve	1	1,210	품절
25	1619PB5956	Air-Deflector Ring	1	1,210
26	1619PB5957	Grommet	2	1,210
27	1619PB5958	Tapping Screw	42	1,210
28	1619PB5959	Housing Cover	1	1,980
29	1619PB5960	Electronic Assembly	1	18,480
31	1619PB5962	Workpiece support	1	1,210
32	1619PB5963	Housing Cover	1	1,430
33	1619PB5964	Housing Cover	1	1,430
34	1619PB5965	Needle bearing	1	6,380

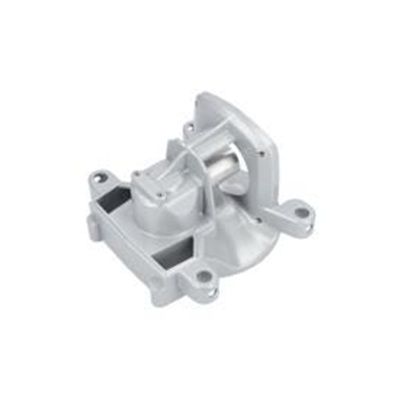

35	1619PB5966	Gear Housing	1	8,030
36	1619PB5967	Groove ball bearing	2	2,530
37	1619PB5968	Retaining ring	1	1,210
38	1619PB5969	Crown Gear	1	5,500
39	1619PB5970	Transmission Shaft	1	3,740
40	1619PB5971	Retaining ring	1	1,210
41	1619PB5972	Groove ball bearing	1	5,500
42	1619PB5973	Bearing Flange	1	2,200
43	1619PB5974	Cross Recessed-Head Screw	6	1,210
44	1619PB5975	Woodruff Key	1	1,210
45	1619PB5976	Retaining ring	1	1,210

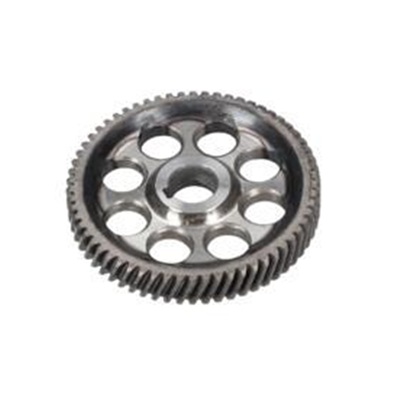

46	1619PB5977	Cylindrical Gear	1	6,930
47	1619PB5978	Sealing Disc	1	1,210
48	1619PB5979	Bearing Flange	1	3,080
49	1619PB5980	Sealing Plate	1	1,430
50	1619PB5981	Output Shaft	1	2,860
51	1619PB5982	Groove ball bearing	1	6,380
52	1619PB5983	Retaining ring	1	1,210
53	1619PB5984	Dust seal	1	1,430
54	1619PB5985	Flat Key	1	1,210	품절
55	1619PB6017	Countersunk-Head Screw	10	1,210
56	1619PB6018	Cross Recessed-Head Screw	4	1,210
57	1619PB6084	Inductor	2	1,650
58	1607000E8V	Spring	1	1,210
61	1619PB5986	Corrugated Pipe	1	6,930	품절
62	1619PB5987	Locking ring	1	1,430
63	1619PB5988	Control Housing	1	1,980
64	1619PB5989	Valve Insert	1	1,430
65	1619PB5990	Housing Cover	1	1,210
69	1619PB5994	Corrugated Pipe	1	1,430
70	1619PB5995	Cross Recessed-Head Screw	4	1,210
71	1619PB5996	Spring	4	1,210
72	1619PB5997	Covering hood	1	6,380
73	1619PB5998	Pressure Plate	1	1,210
74	1619PB5999	Strip brush	1	5,500
75	1619PB6000	Strip brush	1	8,030
77	1619PB6087	Tapping Screw	6	1,210
81	1619PB6001	Support Frame	1	14,190
82	1619PB6002	Connection Cable	1	1,980
83	1619PB6003	Aluminum Tubing	1	4,840
84	1619PB6004	Plastic covering	2	2,860
88	1619PB6008	Plug-in connector	2	2,530
89	1619PB6009	Cam	4	2,530
90	1619PB6010	Hand lever	2	1,650
91	1619PB6011	Cross Recessed-Head Screw	28	1,210
92	1619PB6012	Mounting Bracket	2	2,530
94	1619PB6083	Screw	4	1,210
95	1619PB6014	Hook	4	1,430
96	1619PB6015	Connecting piece	2	2,860	품절
97	1619PB6016	Countersunk-Head Screw	4	1,210
101	1619PB6019	Switch Button	1	1,210
102	1619PB6020	Adjusting Slide	1	1,430
104	1619PB6022	Cantilever	1	1,430
105	1619PB6023	Handle	1	6,380
106	1619PB6024	Connection Cable	1	1,980
107	1619PB6025	Speed governor	1	40,480
109	1619PB6027	Flow Governor	1	1,430
110	1619PB6028	Intermediate housing	1	1,430
111	1619PB6029	Socket housing	2	1,210
112	1619PB6030	Plastic covering	2	1,210
113	1619PB6031	Aluminum Tubing	1	8,030
114	1619PB6032	Hose Coupling	1	1,980
116	1619PB6034	Mounting Bracket	2	3,080
117	1619PB6035	Cam Shaft	2	3,960
118	1619PB6036	Cam	4	3,080
120	1619PB6037	Plastic covering	2	2,860
121	1619PB6038	Shim ring	4	1,210
122	1619PB6039	Felt Pad	4	1,210
123	1619PB6006	Aluminum Tubing	1	18,480
124	1619PB6007	Connection Cable	1	2,200
131	1619PB6040	Rubber Buffer	2	1,210
132	1619PB6041	Bushing	2	1,210
133	1619PB6042	Knob sleeve	1	2,860
134	1619PB6043	Straight Pin	2	1,430	품절
135	1619PB6086	Spring	1	1,210
141	1619PB6044	Protective Suit	1	3,740
142	1619PB6045	Threaded Bushing	1	2,530
143	1619PB6046	Seal Ring	1	1,210
144	1619PB6047	Spring	1	1,430
145	1619PB6048	Glide Bushing	1	1,430
146	1619PB6049	Hose Coupling	1	1,430	품절
147	1619PB6050	Corrugated Pipe	1	6,930
148	1619PB6051	Hose Coupling	1	1,430	품절
151	1619PB6052	Backing Pad	1	18,480
152	1619PB6053	Intermediate Layer	1	18,480
154	1619PB6055	Socket head cap screw	1	1,210	품절
161	1619PB8637	Nameplate	1	1,980	품절
162	1619PB8639	Manufacturer's nameplate	1	1,980	품절
651	1619PB6075	Hexagon Socket Screw Key	1	1,650	품절
655	1607000E5X	Rubber Backing Pad	1	26,840	품절
656	1619PB6056	Backing Pad	1	14,190
657	1619PB6088	Clip	3	1,430	품절
658	1607000F2K	Vacuum Adapter	1	3,960
691/1	1619PB6089	Latch	2	1,980
691/2	1619PB6090	Handle	1	2,200
810	1607000E7H	Carbon-Brush Set	1	8,800
817	1619PB6081	Pressure Plate	1	1,210
866	1619PB6085	Operation button	1	1,430
888	1607000E8U	Connector	1	9,900
