보쉬 GBH5-40D 분해도 (3611B690B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 91개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P07704	Motor Housing	1	14,630	품절

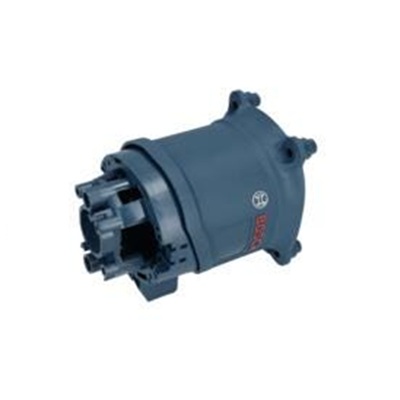

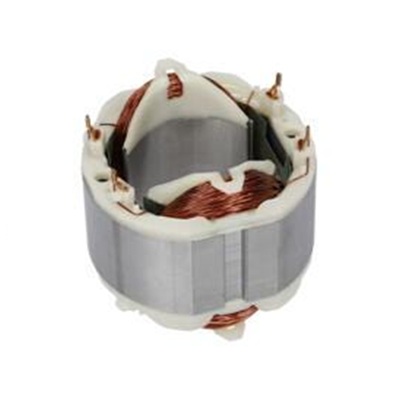

2	1619P08323	Field	1	27,610
4	1619P10396	Switch	1	19,030
5	1607000227	Power supply cord	1	19,030
6	1619P07722	Grommet	1	1,650
7	1601302019	Fastening Clamp	1	1,430
20	1619P10164	Toolholder	1	41,580	품절
21	1619P07829	Protective Cap	1	2,970	품절
22	1619P10160	Protection Sleeve	1	22,000	품절
25	1619P07742	Stopping Device	2	5,610
27	1619P07739	Air-Deflector Ring	1	1,980	품절
28	1614621000	Compression Spring	1	2,310
29	1619P10163	Bushing	1	6,490	품절
30	1619P10162	Supporting Disc	1	3,190	품절
31	1619P07743	Supporting Disc	1	4,950	품절
34	1619P10165	Flange	1	2,640	품절
35	1619P10167	Hammer Pipe	1	104,830	품절
37	1619P10377	Cylindrical Roller	6	1,980	품절
38	1619P10168	Covering hood	1	11,550	품절

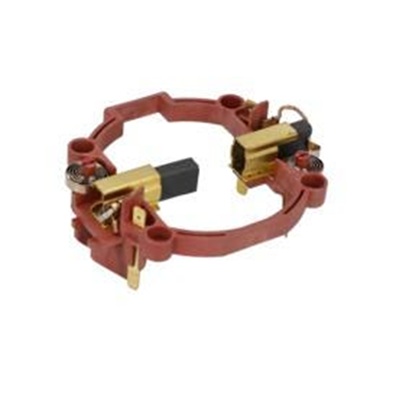

42	1619P07754	Brush Holder	1	16,830

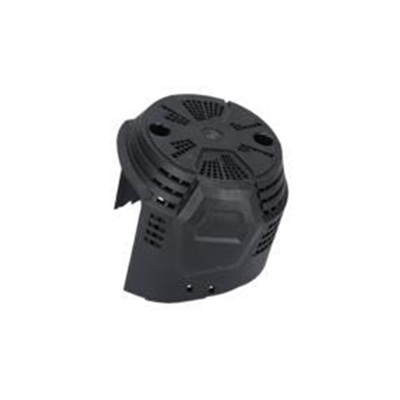

43	1619P10171	Fan Cover	1	9,020
44	1619P10381	Compression Spring	1	1,980	품절
45	1610499070	Control Bushing	1	12,760	품절
47	1610300064	Gear Sleeve	1	4,070	품절
48	1616334012	Clutch Sleeve	1	3,190	품절
53	1610290068	Support Disc	1	2,640
57	1618710091	Striker	1	22,000
69	1610099004	Retaining Bracket	1	1,980	품절

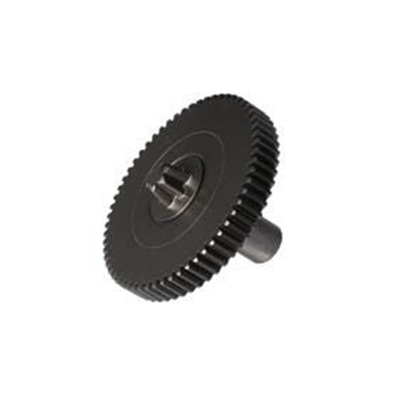

72	1600A014S9	Eccentric Cog Wheel	1	16,830
74	1611921001	Guide Plate	1	1,980	품절
75	1619P10176	Handle	1	30,910	품절
76	1619P11754	Terminal Block	1	1,650	품절
79	1613435015	Torx Oval-Head Screw	2	1,430

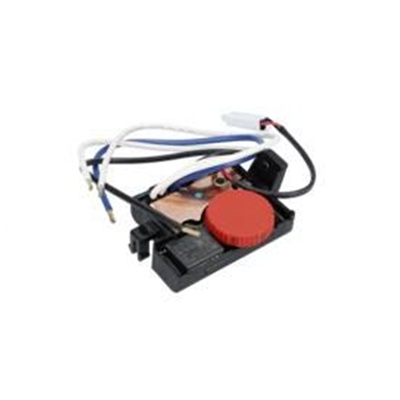

80	1619P09589	Speed governor	1	51,040
81	1619P10177	Handle Cover	1	22,000	품절
85	1619P07774	Support clamp	1	5,610
86	1613490002	T-Head Bolt	1	2,970
87	1619P07776	Clamping Band	1	2,640
94	1610102056	Friction Washer	1	2,310
95	1610210173	O-Ring	1	1,650
97	1610031005	Locking washer	1	2,640	품절
99	1610102059	Support Disc	1	1,980	품절
101	1610499073	Retaining snap ring	1	4,070	품절
102	1610102057	Shim	1	1,430
102	1610102058	Shim	1	1,430
104	1610210160	O-Ring	1	2,640
111	1610290064	Bushing	1	1,430	품절
112	1619P10179	Ring Magnet	1	3,850	품절
113	1613435009	Tapping Screw	2	1,430	품절
120	1610590019	Stop Sleeve	1	12,760
125	1613435014	Torx Oval-Head Screw	2	1,650
126	2910211019	Tapping Screw	1	1,210
129	1619P10181	Holding Sleeve	1	7,150	품절
130	1619P10182	Cover	1	4,070	품절
138	1611015053	Sealing Frame	1	8,250	품절
141	1610290066	Rotary shaft lip seal	1	6,490
143	1614601021	Retaining ring	1	4,950
145	1610119012	Spring retaining ring	1	1,980
150	2917790174	Slotted Spring Pin	1	1,210	품절
154	2916660023	Spring retaining ring	1	3,190	품절
160	1610290095	Damping Ring	1	7,150	품절
161	1610290094	Damping Ring	1	2,970	품절
162	1610210204	O-Ring	1	3,850
163	1610290065	Seal Ring	1	5,610
165	1610210079	O-Ring	1	3,850
167	1610283033	Rotary shaft lip seal	1	4,070
168	1610210144	O-Ring	1	3,190
171	1619P07816	Torx Oval-Head Screw	4	1,210	품절
172	1613435013	Torx Oval-Head Screw	4	1,650	품절
173	2910611019	Tapping Screw	1	2,310	품절
175	1619P00228	Screw	4	2,640
176	1613435012	Torx Oval-Head Screw	2	1,650	품절
177	2603490024	Torx Oval-Head Screw	2	1,430
178	1619P10286	Connecting Cable	1	4,070	품절
179	1619P07815	Screw	2	1,210	품절
661	1615430010	Grease Tube	1	3,850

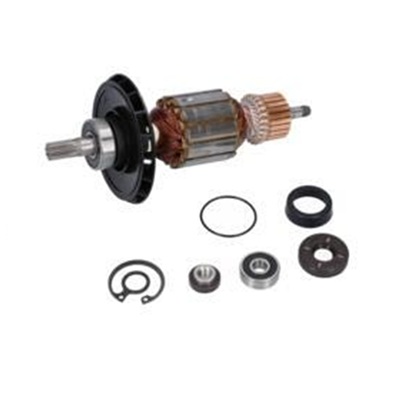

803	1619P10769	Armature	1	46,090
803/13	1610900026	Groove ball bearing	1	8,250
803/14	1610905041	Groove ball bearing	1	7,150	품절
811	1617014138	Carbon-Brush Set	1	10,230
817	1614652004	Spiral Spring	2	4,950
821	1619P10749	Bushing	1	16,830	품절
840	1619P10770	Impact Mechanism Housing	1	84,700	품절
841	1619P10752	Striker Pin	1	33,990
849	1617000839	Control Fork Control Fork	1	19,030	품절
854	1619P10847	Guide Bushing	1	46,090
856	1619P10765	Hammer Piston	1	24,860

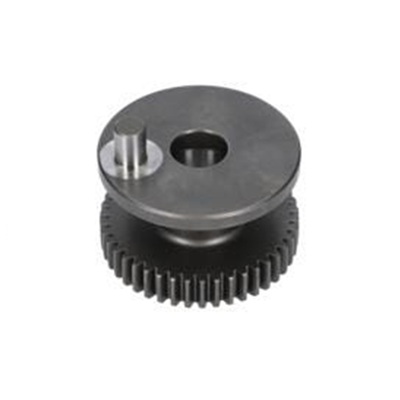

860	1619P10766	Spur Wheel Clutch	1	68,420	품절
873	1619P10767	Housing Cover	1	30,910	품절

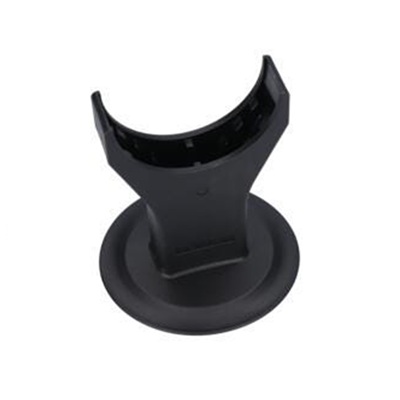

884	1619P07778	Auxiliary Handle	1	11,550

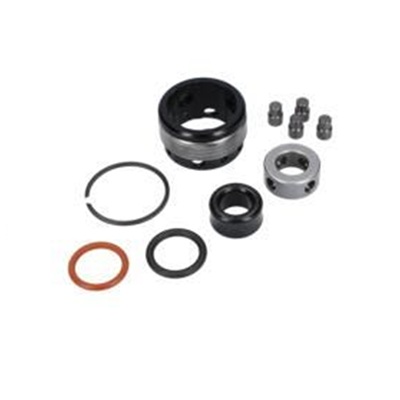

897	1619P10768	Wear and Tear Part Set	1	41,580	품절
