보쉬 GBH12-52DV 분해도 (3611B66000)

제품이미지

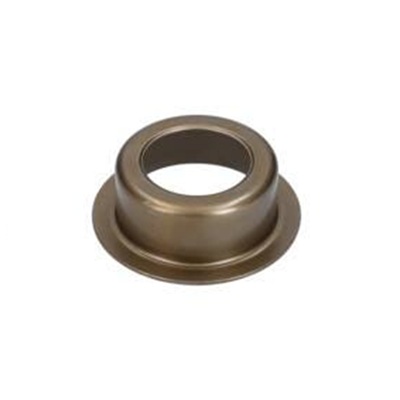

7 베어링 슬리브

266898-7

1,100

총 118개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

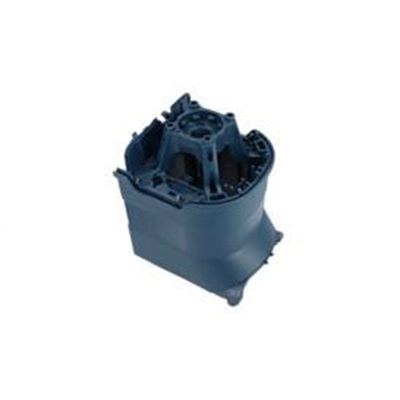

1	1615108172	Motor Housing	1	30,910

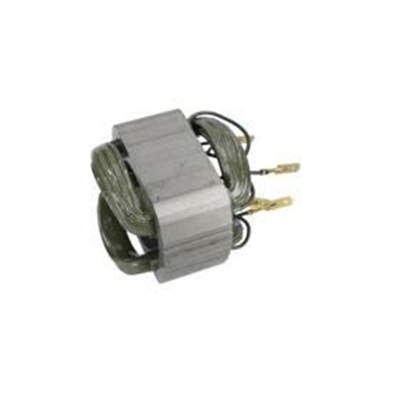

2	160422023P	Field	1	68,420

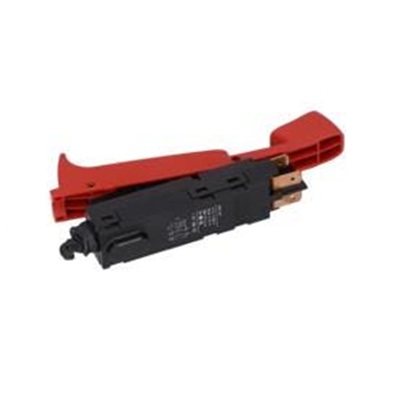

4	1617200130	Switch	1	33,990
6	1610703053	Grommet	1	1,980	품절
7	1601302018	Fastening Clamp	1	1,430
15	1616610114	Fan	1	8,250
16	1600A0015D	Clamp ring	1	1,980
21	1600A001XC	Protective Cap	1	3,190	품절
22	1610591054	Protection Sleeve	1	5,610
23	1610520007	Stop Sleeve	1	8,250	품절
24	1610500026	Headed Bush	1	3,850
25	1612300025	Stopping Device	2	5,610
26	1610290027	Indexing Disk	1	2,640	품절
27	1600591056	Air-Deflector Ring	1	2,310
28	1614621017	Compression Spring	1	2,640
31	1610290123	Damping Ring	1	2,640
37	1610322019	Control Bushing	1	4,070
38	1615190186	Covering hood	1	22,000	품절
43	1615500447	Brush-Cover	1	7,150
44	1614621016	Compression Spring	1	2,640
45	1610591053	Holding-Down-Appliance	1	1,650	품절
47	1610300082	Gear Sleeve	1	4,950
48	1619990179	Clutch Sleeve	1	6,490

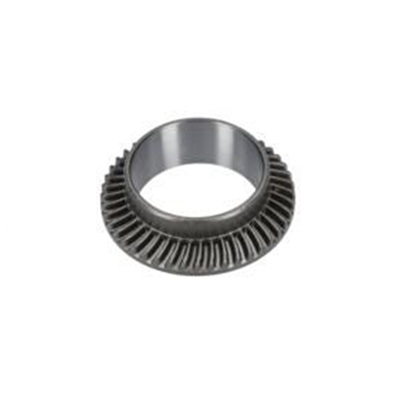

51	1616333053	Crown Gear	1	75,350
54	1600A00218	Spacer Tube	1	2,970	품절
59	1615805079	Bearing Pedestal	1	8,250
61	1600A0015E	Grease distributor	1	2,970
66	1600210246	Rubber Ring	1	1,650
67	1600A000XS	Eccentric Shaft	1	11,550
68	1600A0015F	Pickup Clip	1	1,210
69	1613100040	Piston Pin	1	1,650
70	1600A001Y6	Connecting Rod	1	16,830

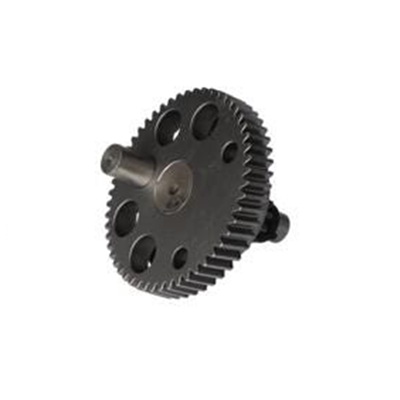

72	1616317622	Eccentric Cog Wheel	1	22,000	품절
74	1600A000XT	Eccentric Bolt	1	3,190
80	1607233461	Speed governor	1	75,350
84	160202507H	Auxiliary Handle	1	7,150
85	1618040097	Support clamp	1	5,610
87	1611316038	Clamping Band	1	5,610
95	1613120025	Driving Pin	4	3,190
99	1600A005BD	Supporting Disc	1	4,950
111	1615801027	Bushing	1	3,190
112	1613300009	Hex Nut	1	1,650
113	160343507A	Torx Oval-Head Screw	2	1,210
116	1600905035	Groove ball bearing	1	6,490
119	1600900041	Groove ball bearing	2	3,190
120	1610190078	Spacer bushing	1	3,850
121	1615805080	Plain bearing	1	10,230
122	1610290122	Spacer Ring	1	2,310
125	1613435040	Torx Oval-Head Screw	15	1,650	품절
126	2603490023	Torx Oval-Head Screw	1	1,210
132	160550044M	Cover	1	1,430
133	1610205016	Felt	1	1,650
138	1611015065	Sealing Frame	1	3,190
141	1610290119	Shaft Seal	1	2,970
143	1614601071	Retaining ring	1	1,650
144	1610101023	Supporting Disc	1	2,640
151	1610210236	O-Ring	1	1,210
152	1614601022	Retaining ring	1	1,980
153	2916540018	Retaining ring	1	2,640
154	2916660040	Spring retaining ring	1	1,650	품절
155	1614601080	Spring retaining ring	1	1,430
156	160015001V	Spring retaining ring	1	2,310
157	1610210238	O-Ring	1	1,210
158	1610210239	Rubber Ring	1	1,430
160	1610210240	Damping Ring	1	2,310	품절
161	1610210241	Damping Ring	1	9,020	품절
162	1610210237	O-Ring	2	2,310
163	1610210242	Seal Ring	2	9,020
165	1600A000XU	Seal Fastener	1	1,980	품절
166	1613200022	Cylindrical Roller	8	1,430
167	1610290124	Rotary shaft lip seal	1	6,490
168	1600A001XD	Seal Ring	1	2,310
170	1600A0015H	Torx socket button screw	3	1,210
171	1613414026	Torx socket button screw	2	1,210
172	1613435041	Torx Oval-Head Screw	4	1,430	품절
173	1613490024	Torx Oval-Head Screw	1	1,430	품절
175	160343507D	Torx Oval-Head Screw	2	1,210
189	1615133038	Handle	1	10,230
190	1615500438	Handle Cover	1	11,550
192	1614611028	Rocker Foot	1	3,850
194	1600A001XE	Screw Plate	1	2,640
195	1600A001XF	Screw Plate	1	1,980
196	1600A002PC	Damping rubber	1	1,430
197	1616232000	Leaf Spring	1	7,150	품절
199	1610284012	Bellows	1	3,850
200	1610284013	Bellows	1	3,850
201	1610209015	Clamping element	1	1,210	품절
202	1610209016	Clamping element	1	1,210
204	1615102164	Rear Housing Section	1	10,230
206	1612386007	Retaining Part	1	1,430
212	1614621012	Compression Spring	2	1,210
240	1600A000XV	Counterweight	1	5,610
242	1615190187	Guide Piece	2	1,650
243	1614621018	Compression Spring	4	1,430
244	1600A0013J	Plug Housing	1	1,210

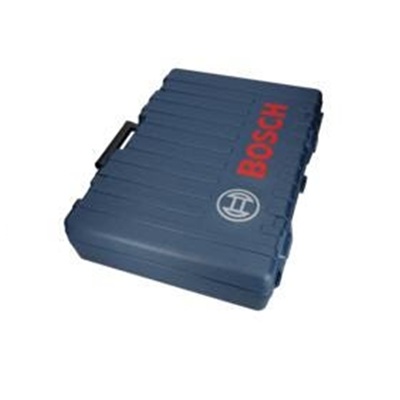

691	1615438705	Carrying Case	1	41,580

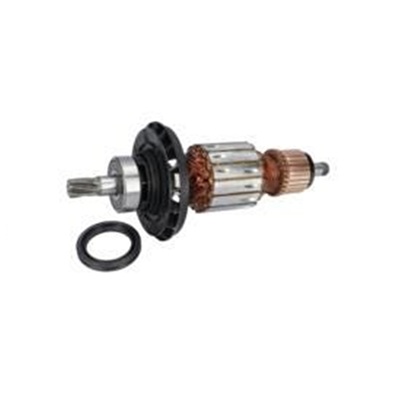

803	1607000C3Y	Armature assembly	1	137,280

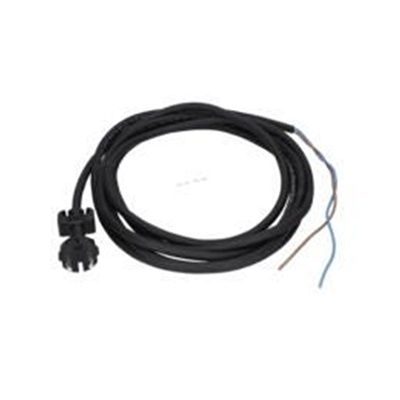

805	1617000723	Power supply cord	1	22,000
808	160111A3H5	Nameplate	1	1,980	품절
810	1607000C3Z	Carbon-Brush Set	1	19,030
813	1607000C40	Groove ball bearing	1	19,030
814	1607000C41	Groove ball bearing	1	24,860

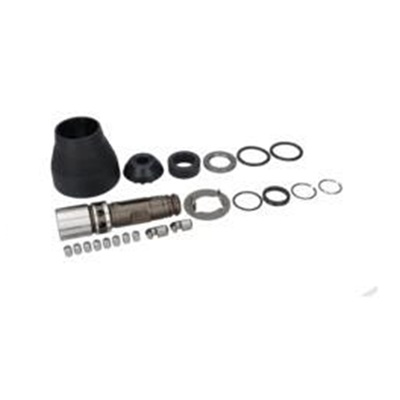

820	1607000C42	Tool Holder Set	1	193,380
821	1607000C5H	Brush Holder	1	14,630	품절
835	1607000C43	Hammer Pipe	1	137,280	품절
840	1607000C44	Impact Mechanism Housing	1	216,040
841	1607000C45	Striker Pin	1	46,090	품절
849	1607000C46	Control Fork	1	9,020
853	1607000C47	Guide Bushing	1	41,580
856	1607000C48	Hammer Piston	1	24,860	품절
857	1607000C49	Striker	1	33,990	품절
859	1607000C4A	Bearing Pedestal	1	27,610
872	1607000C4C	Eccentric	1	84,700
873	1607000C4D	Housing Cover	1	46,090
884	1607000C4E	Auxiliary Handle	1	27,610
891	1612099005	Rocker Arm	1	7,150	품절
895	1607000C4F	Diaphragm	1	14,630
899	1607000C4G	Service package	1	62,150	품절
