보쉬 GBH5-38X 분해도 (0611240940)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 85개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P10299	Motor Housing	1	16,390
2	1619P01908	Field	1	26,840
5	1607000227	Power supply cord	1	18,480
6	1610703053	Grommet	1	1,980
7	1601302019	Fastening Clamp	1	1,430
9	1611110F31	Manufacturer's nameplate	2	2,530
12	1607328052	Suppression Filter	1	2,860
13	1610900026	Groove ball bearing	1	8,030
14	1610905041	Groove ball bearing	1	6,930	품절
15	1616610085	Fan	1	2,200	품절
21	1610508045	Protective Cap	1	3,740
22	1610591035	Protection Sleeve	1	18,480
25	1903230016	Ball	3	2,530
27	1600591032	Air-Deflector Ring	1	2,200	품절
28	1614621000	Compression Spring	1	2,200
30	1610505004	Supporting Disc	1	2,200
31	1610251009	Supporting Disc	1	5,500
34	1610516013	Flange	1	1,430	품절
42	1614336041	Brush Holder	1	21,450
43	1615500303	Fan Cover	1	6,380
44	1614617003	Compression Spring	1	1,650
47	1610300064	Gear Sleeve	1	3,960	품절
48	1616334012	Clutch Sleeve	1	3,080	품절
53	1610290068	Support Disc	1	2,530
69	1610099004	Retaining Bracket	1	1,980	품절

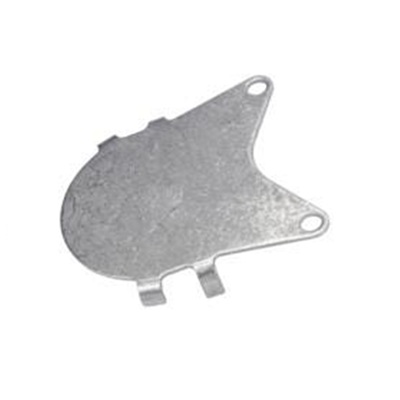

74	1611921001	Guide Plate	1	1,980	품절
75	1619P10300	Handle	1	16,390
79	1613435015	Torx Oval-Head Screw	2	1,430
81	1615132079	Handle Cover	1	6,930
84	160202507H	Auxiliary Handle	1	6,930
86	1613490002	T-Head Bolt	1	2,860
87	1611316019	Clamping Band	1	2,860
94	1610102056	Friction Washer	2	2,200
95	1610210173	O-Ring	1	1,650
97	1610031005	Locking washer	1	2,530	품절
99	1610102059	Support Disc	1	1,980	품절
102	1610102057	Shim	1	1,430
102	1610102058	Shim	1	1,430
104	1610210160	O-Ring	1	2,530
111	1610290064	Bushing	1	1,430	품절
112	1613300008	Hex Nut	1	1,980
113	1613435009	Tapping Screw	2	1,430	품절
116	1610311017	Inner Ring	1	3,960
117	1610913029	Needle-Roller Assembly	2	2,860
121	1610328019	Bushing	1	11,220	품절
126	2603490022	Screw	1	1,210
141	1610290066	Rotary shaft lip seal	1	6,380
142	1610290069	Rotary shaft lip seal	1	3,740
143	2916540018	Retaining ring	2	2,530
145	1610119012	Spring retaining ring	1	1,980
154	2916660023	Spring retaining ring	1	3,080	품절
160	1610210161	Damping Ring	1	2,200
162	1610210163	O-Ring	1	3,740
163	1610290065	Seal Ring	1	5,500
165	1610210079	O-Ring	1	3,740
166	1613200015	Cylindrical Roller	6	1,980
167	1610283033	Rotary shaft lip seal	1	3,960
171	1613435016	Torx Oval-Head Screw	6	1,650
172	1613435013	Torx Oval-Head Screw	4	1,650	품절
174	1613435012	Torx Oval-Head Screw	2	1,650	품절
175	1619P00228	Screw	2	2,530
177	1603435051	Tapping Screw	2	1,650	품절
178	1604412069	Connecting Cable	1	4,840	품절
661	1615430010	Grease Tube	1	3,740
803	1619P06002	Armature	1	91,850
804	1617200109	Switch	1	24,200
811	1617014138	Carbon-Brush Set	1	9,900
817	1614652004	Spiral Spring	2	4,840
818	2910011088	Socket head cap screw	2	1,210	품절
820	1618597090	Tool Holder Set	1	91,850
821	1617000842	Bushing Bushing	1	16,390
835	1617000862	Hammer Pipe	1	117,370
837	1611015053	Sealing Frame	1	8,030	품절
840	1617000840	Impact Mechanism Housing	1	60,610
841	1617000460	Striker Pin	1	18,480
849	1617000839	Control Fork Control Fork	1	18,480	품절
854	1617000461	Stop Disc	1	12,430
856	1617000843	Hammer Piston	1	16,390
860	1607000F00	Spur Wheel Clutch	1	36,630

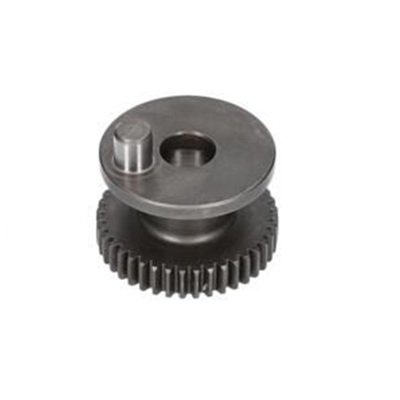

872	1600A014S8	Eccentric Cog Wheel	1	33,110	품절
873	1617000860	Housing Cover	1	40,480
884	1607000F30	Auxiliary Handle	1	21,450
886	1617000459	Auxiliary Handle	1	8,800
895	1615430019	Oil Reservoir	1	49,720
898	1615437511	Oil Reservoir	1	9,900
