보쉬 GSH5HX 분해도 (3611C388B0)

제품이미지

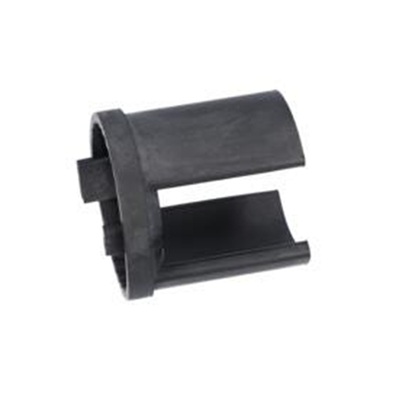

7 베어링 슬리브

266898-7

1,100

총 65개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	1619PS1845	Field	1	14,190
5	1619PS1861	Power supply cord	1	6,930	품절
6	1619PS1863	Grommet	1	3,740
7	1619PS1856	Fastening Clamp	1	1,980
8	1619PS1886	Nameplate	1	1,980
9	1613435013	Torx Oval-Head Screw	4	1,650	품절
16	1619PS1847	Carbon Brush Holder	1	2,530
21	1619P14480	Dust Cap	1	3,080
22	1619P08758	Protection Sleeve	1	8,030
25	1903230016	Ball	3	2,530
27	1619PS1844	Air-Deflector Ring	1	2,200
28	1619P08759	Compression Spring	1	1,430	품절
30	1619P08760	Supporting Disc	2	1,430
32	1619P08761	Damping Ring	1	1,210
53	1619PS1880	Washer	1	2,530
54	1619P08769	Stop Disc	1	1,430	품절
57	1619PS1881	Striker	1	6,930
73	1619PS1841	Housing Cover	1	2,530
75	1619PS1853	Handle	1	3,740
76	1619PS1852	Handle Cover	1	3,740
84	160202509C	Auxiliary Handle	1	3,080
86	1613490002	T-Head Bolt	1	2,860
87	1611316019	Clamping Band	1	2,860
96	1619PS1870	O-Ring	1	1,980
104	1619P08783	Seal Ring	2	1,430	품절
129	1619PS1867	Cover Sleeve	1	3,960
143	1619P08752	Retainer	1	1,430
151	1619PS1883	Stop Disc	1	2,530
152	1619P14463	Retaining ring	1	1,650
153	1614601030	Retaining ring	1	1,980
154	2916660019	Spring retaining ring 42x1,75	1	2,860
160	1619P08787	Damping Ring	1	1,430
161	1619P14753	Damping Ring	1	1,430
162	1610210163	O-Ring	1	3,740
163	1610290125	Seal Ring	1	6,380
165	1610210079	O-Ring	1	3,740
166	1619P14462	Sealing Ring	1	1,430
167	1619P08792	O-Ring	2	1,210
169	1619PS1851	Fan Cover	1	2,860
170	1619P14472	O-Ring	1	1,430
173	1619P01380	Screw	2	1,210
174	1619P00228	Screw	1	2,530
182	1619P00831	Felt Seal	1	1,210
183	1619PS1866	Felt Seal	1	2,200
186	1619PS1864	Pin	1	1,980
187	1619PS1865	Stop Disc	1	1,980
191	1619PS1848	Spiral Spring	1	1,980
193	1619PS1840	Stop Disc	1	1,980
197	1619PS1868	Cover	1	1,980
198	1619PS1869	Cap	1	2,530
801	1619PS1877	Motor Housing	1	8,030
803	1619PS1875	Armature	1	24,200
810	1619PS1878	Carbon-Brush Set	1	2,860
823	1619P14923	Toolholder	1	36,630
839	1619PS1872	Gear Housing	1	24,200
840	1619P14926	Impact Mechanism Housing	1	36,630
841	1619PS1879	Striker Pin	1	2,200
854	1619P14929	Stop Disc	1	5,500
856	1619PS1892	Hammer Piston	1	2,200	품절
884	1619PS0507	Auxiliary Handle	1	8,030
885	1619PS1873	Connecting Housing	1	8,030
893	1615430002	Grease Tube	1	36,630	품절
895	1615430015	Grease Tube	1	30,140
898	1619PS1890	Wear and Tear Part Set	1	12,430
899	1619PS1891	Wear and Tear Part Set	1	8,030
