보쉬 GSH5 분해도 (3611C380B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 67개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P10301	Motor Housing	1	12,430
2	1619P14877	Field	1	24,200
4	1607200365	Switch	1	11,220
6	1610703053	Grommet	1	1,980
7	1601302019	Fastening Clamp	1	1,430
13	1610900026	Groove ball bearing	1	8,030
14	1610905041	Groove ball bearing	1	6,930	품절
15	1616610085	Fan	1	2,200	품절

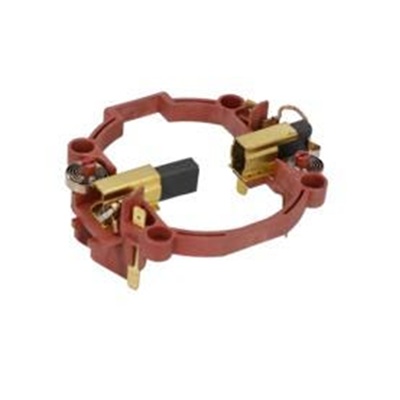

16	1619P07754	Brush Holder	1	16,390
19	2910211019	Tapping Screw	1	1,210
22	1619P08758	Protection Sleeve	1	8,030
24	1610508043	Protective Cap	1	5,500
25	1903230016	Ball	3	2,530
27	1619P09017	Air-Deflector Ring	1	1,980	품절
28	1619P08759	Compression Spring	1	1,430	품절
30	1619P08760	Supporting Disc	1	1,430
32	1619P08761	Damping Ring	1	1,210
34	1610516013	Flange	1	1,430	품절
43	1619P08767	Fan Cover	1	4,840	품절
53	1619P08768	Washer	1	4,840
57	1619P08772	Striker	1	3,960
69	1610099004	Retaining Bracket	1	1,980	품절
72	1619P13629	Eccentric Cog Wheel	1	33,110
74	1619P08777	Holding-Down-Appliance	1	1,650	품절
75	1619P08778	Handle	1	8,030
76	1613435015	Torx Oval-Head Screw	1	1,430
81	1619P08780	Handle Cover	1	3,740
84	160202507H	Auxiliary Handle	1	6,930
86	1613490002	T-Head Bolt	1	2,860
87	1611316019	Clamping Band	1	2,860
95	1610210173	O-Ring	1	1,650
104	1619P08783	Seal Ring	2	1,430	품절
111	1610290064	Bushing	1	1,430	품절
112	1613300008	Hex Nut	1	1,980
113	1613435009	Tapping Screw	2	1,430	품절
129	1619P08784	Cover Sleeve	1	6,380	품절
138	1619P08785	Sealing Frame	1	1,430
141	1610290066	Rotary shaft lip seal	1	6,380
143	1619P08752	Retainer	1	1,430
145	1610119012	Spring retaining ring	1	1,980
154	2916660019	Spring retaining ring 42x1,75	1	2,860
160	1619P08787	Damping Ring	1	1,430
161	1619P08788	Damping Ring	1	1,430
162	1619P08789	O-Ring	1	1,430
163	1610290065	Seal Ring	1	5,500
165	1619P08791	O-Ring	1	1,430
168	1619P08792	O-Ring	2	1,210
171	1613435014	Torx Oval-Head Screw	4	1,650
172	1613435013	Torx Oval-Head Screw	8	1,650	품절
173	1619P01380	Screw	2	1,210
174	1613435012	Torx Oval-Head Screw	4	1,650	품절
175	2912401018	Tapping Screw	4	1,210	품절
177	1603435051	Tapping Screw	2	1,650	품절
178	1604412069	Connecting Cable	1	4,840	품절
179	1619P07815	Screw	2	1,210	품절
183	1619P09862	Felt Seal	1	1,650	품절
803	1619P09697	Armature	1	54,670
805	1607000227	Power supply cord	1	18,480
811	1617014138	Carbon-Brush Set	1	9,900
817	1614652004	Spiral Spring	2	4,840
823	1619P09699	Toolholder	1	36,630
839	1619P09700	Gear Housing	1	30,140	품절
841	1619P09707	Striker Pin	1	16,390
854	1619P09702	Stop Disc	1	3,960	품절
856	1619P09703	Hammer Piston	1	8,800	품절
884	1607000F30	Auxiliary Handle	1	21,450
886	1617000459	Auxiliary Handle	1	8,800
