보쉬 GSH16-30 분해도 (3611C351B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 94개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

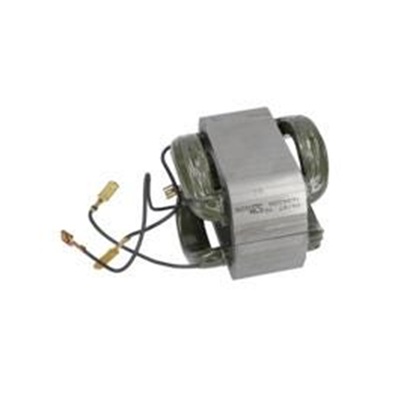

2	160422052M	Field	1	62,150
3	1614011117	Armature	1	104,830

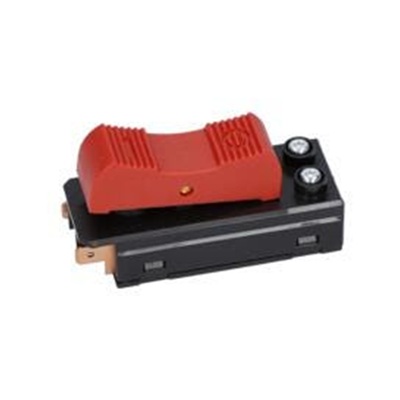

4	1607200244	Switch	1	24,860
6	1610703053	Grommet	1	1,980	품절
7	1601302018	Fastening Clamp	1	1,430
15	1616610102	Fan	1	12,760
25	1610300070	Guide Ring	1	19,030

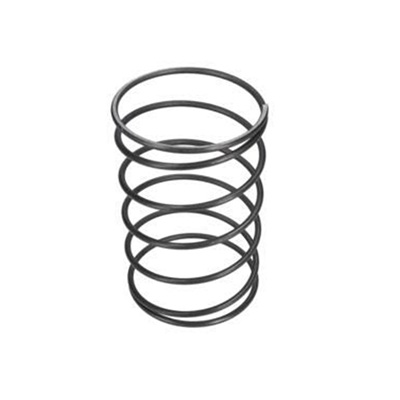

28	1614614006	Compression Spring	4	4,070
29	1614614007	Compression Spring	1	4,070
33	1611006008	Holding Plate	1	6,490
34	1610102635	Supporting Disc	1	10,230

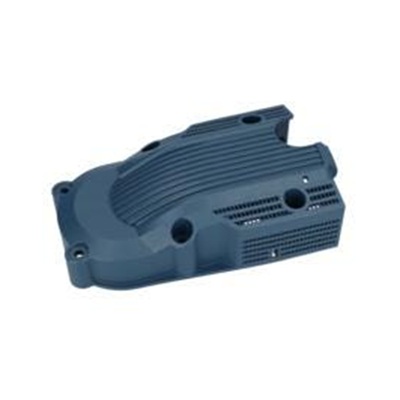

37	1615500380	Fan Cover	1	33,990

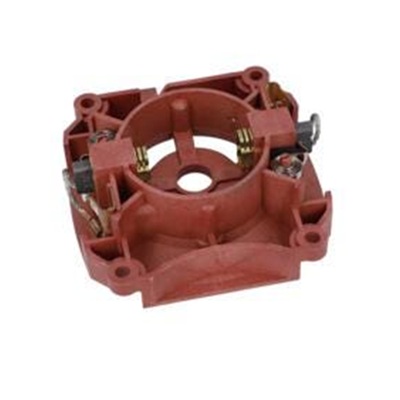

42	1614336078	Brush Holder	1	33,990
42/2	1614336017	Brush Guide	2	8,250
42/3	1614652007	Spiral Spring	2	2,640	품절
42/6	1611390005	Connector	2	3,190
43	1610508054	Spacer	1	2,310	품절

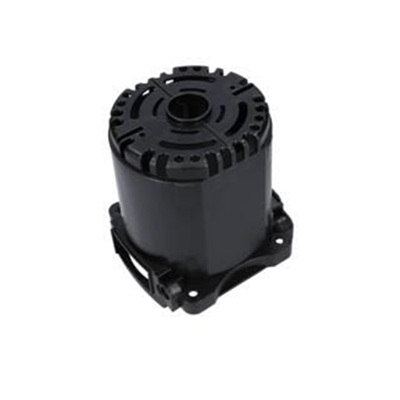

46	1615106053	Motor Housing	1	19,030
47	1618000028	Base Plate	1	11,550
48	1615500383	Housing Cover	1	24,860
53	1610190058	Stop Disc	1	8,250
55	1610506019	Control Bushing	1	30,910
56/58	1610500023	Retaining snap ring	1	4,070	품절
56/71	1613101012	Piston Pin	1	3,190

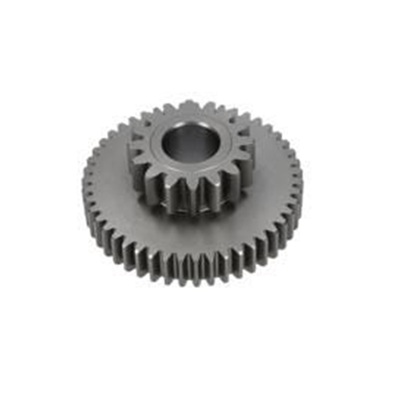

60	1616317086	Cylindrical Gear	1	62,150

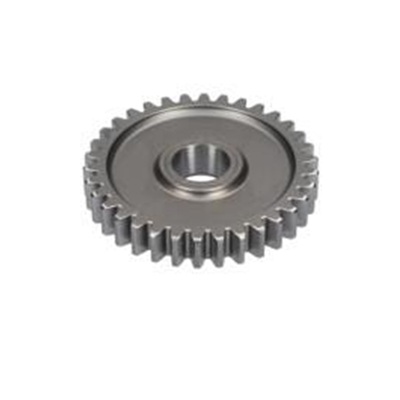

61	1616317093	Cylindrical Gear	1	84,700	품절

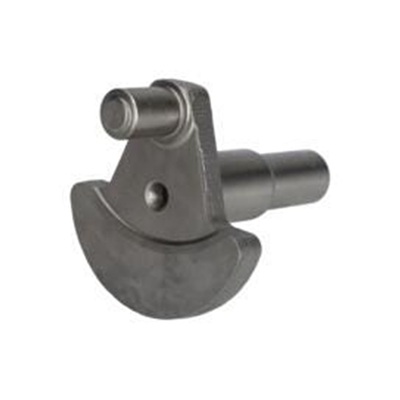

72	1600A014TW	Eccentric Shaft	1	68,420
73	1600A0014G	Needle bearing	1	2,970
75/74	1613060049	Splined coupling	2	7,150

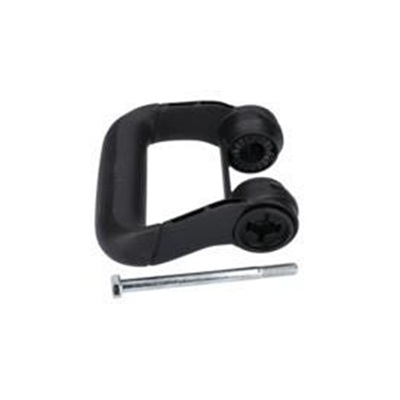

75/76	1618045022	Strap-Shaped Handle	1	51,040
75/77	1615805069	Bearing Pedestal	1	22,000
75/79	1613060050	Toothed Shaft	2	8,250
75/80	1615500376	Bearing cover	1	5,610	품절
75/81	1615500377	Bearing cover	1	6,490	품절
75/173	1613490008	Torx Oval-Head Screw	4	1,210
75/174	1613490009	Torx Oval-Head Screw	2	1,430
75/183	2916280013	Supporting Disc	2	1,430
75/184	1613349021	Hex Nut	2	1,650
86	2911021267	Hex Screw	1	2,640
87	1600A00AR5	Clamping Band	1	12,760
88	1619P16922	Star Knob	1	2,640
95	1614448038	Connecting Cable	1	5,610
118	1610520003	Spacer Tube	1	2,310
119	1610913020	Needle-Roller Assembly	2	1,980
120	1610910092	Needle-Roller Bearing	1	24,860
123	1610900030	Groove ball bearing	1	14,630
126	2603490023	Torx Oval-Head Screw	4	1,210
128	2916660021	Spring retaining ring 47x1,75	1	2,970
138	1611015059	Sealing Frame	1	2,640	품절
139	1610508050	Plug	1	1,980	품절
157	1610210192	O-Ring	1	2,310
158	1610210191	O-Ring	1	2,310	품절
159	1600210005	O-Ring	1	2,310
161	1610290118	Damping Ring	1	2,640
164	1610210194	O-Ring	2	2,310
165	1610210195	O-Ring	2	7,150	품절
169	1613414022	Hex Socket Head Cap Screw	4	2,640
170	1613414023	Hex Socket Head Cap Screw	4	1,430
171	1613490010	Torx Oval-Head Screw	18	1,980	품절
172	1613490011	Torx Oval-Head Screw	2	1,650	품절
176	1603435036	Tapping Screw	2	1,430
180	1613490007	Clamp Screw	2	2,310	품절
181	2603490022	Screw	2	1,210
183	1613349020	Hex Nut	1	1,650
190	1614503007	Suppression Filter	1	30,910
661	1615430010	Grease Tube	1	3,850
805	1617000723	Power supply cord	1	22,000
810	1617014143	Carbon-Brush Set	1	16,830
813	1617000480	Bearing	1	11,550
814	1617000481	Bearing	1	24,860
818	1617000482	Brush-Cover	1	2,970
819	1617000483	Brush-Cover	1	2,970
820	1617000722	Toolholder	1	316,140
821	1617000721	Locking Bolt Set	1	62,150
831	1617000A4Z	Plain Washer	1	10,230

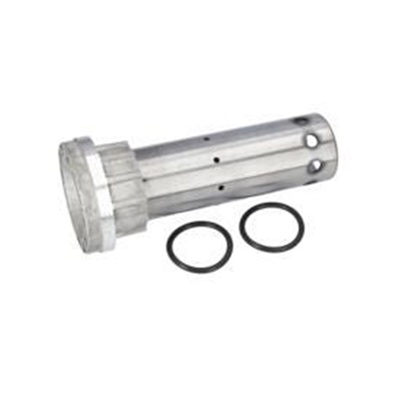

835	1617000709	Guide Tube	1	173,360
839	1617000489	Gear Cover	1	56,100
840	1617000490	Gear Housing	1	316,140
841	1617000491	Striker Pin	1	75,350
844	1617000492	Hammer Pipe	1	193,380
845	1617000710	Sealing cap	1	12,760	품절
854	1617000740	Spacer Tube	1	19,030
856	1607000C3N	Hammer Piston	1	14,630	품절
857	1617000495	Striker	1	56,100	품절
870	1607000C3P	Connecting Rod	1	16,830
875	1617000496	Rubber Torsion-Bar	1	41,580

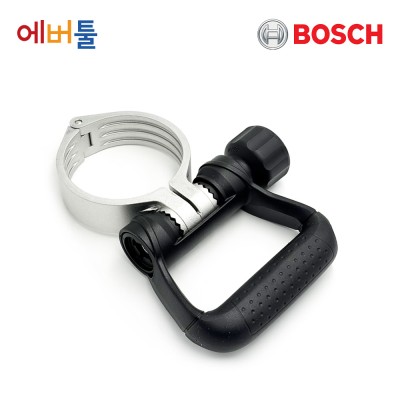

884	160202508K	Auxiliary Handle	1	46,090
885	1605132163	Handle	1	10,230
886	2911011270	Hex Screw	1	2,970
890	1617000716	Wheel Set	1	27,610
892	1607000C3M	Hammer Piston	1	33,990

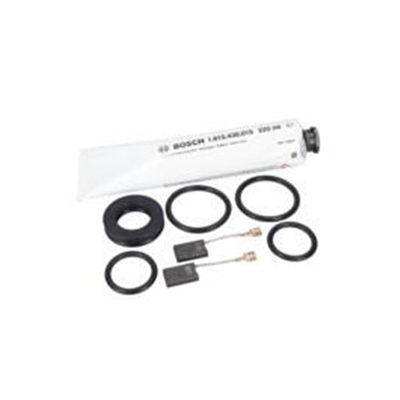

895	1617000702	Wear and Tear Part Set	1	56,100

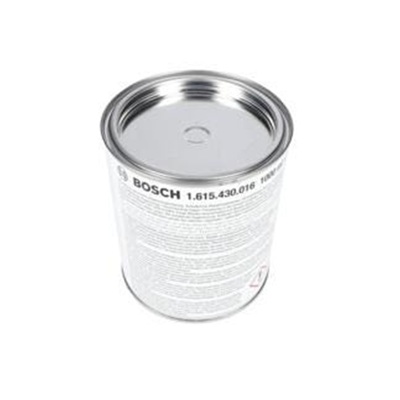

897	1615430016	Lubricating Grease	1	75,350
898	1615430015	Grease Tube	1	30,910
