보쉬 GSH11VC 분해도 (3611C360B0)

제품이미지

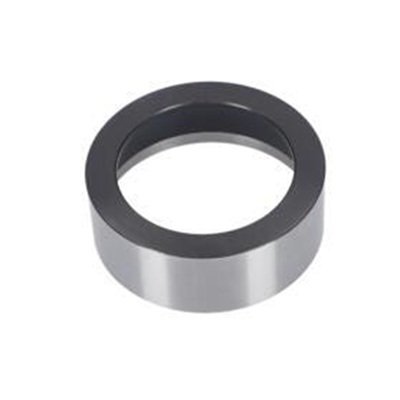

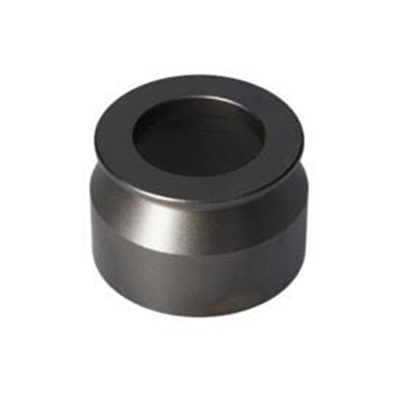

7 베어링 슬리브

266898-7

1,100

총 94개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

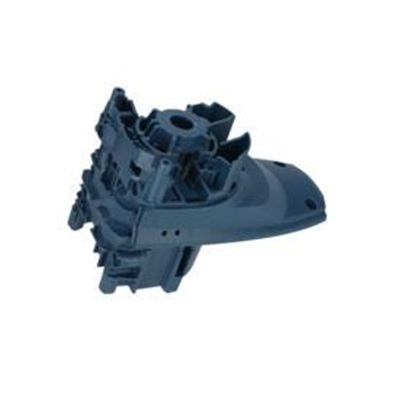

1	1615108157	Motor Housing	1	19,030

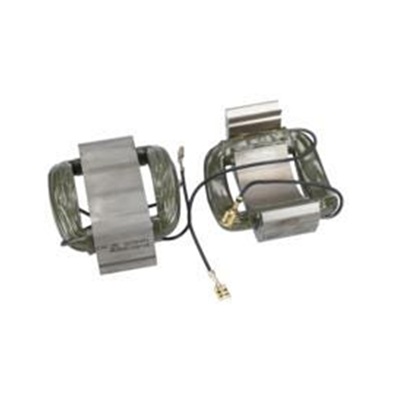

2	160422052F	Field	1	68,420
3	1614011120	Armature	1	120,340

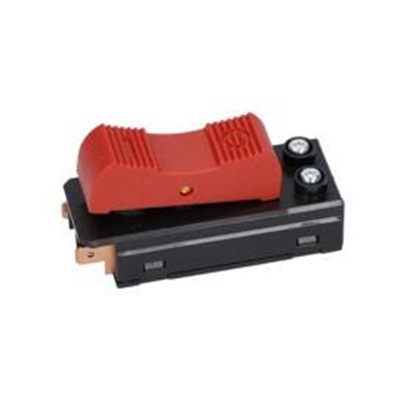

4	1607200244	Switch	1	24,860

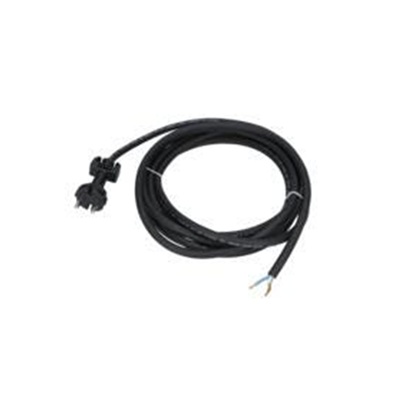

5	1614460098	Power supply cord	1	16,830
6	1610703053	Grommet	1	1,980	품절
7	1601302018	Fastening Clamp	1	1,430
14	1600905028	Groove ball bearing	1	7,150

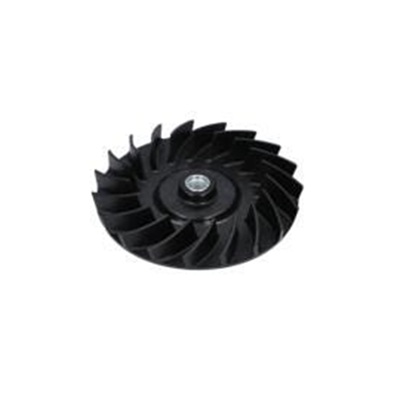

15	1616610106	Fan	1	9,020
16	1610499076	Guide Sleeve	1	7,150
17	1613103012	Locking Bolt	5	1,980
18	1610224011	Spring retaining ring	2	1,980	품절
19	1616490071	Carrier	1	2,970
21	1610508025	Protective Cap	1	2,970
22	1610499078	Protection Sleeve	1	3,190
23	1610520005	Stop Sleeve	1	8,250	품절
24	1614601020	Retaining ring	1	1,430
25	1612300025	Stopping Device	2	5,610
26	1610290105	Indexing Disk	1	2,640
27	1610101024	Stop Disc	2	1,650	품절
28	1614621014	Conical helical spring	1	1,980	품절
29	1614621015	Compression Spring	1	3,190	품절
30	1611015063	Sealing Frame	1	4,070	품절
31	1610290106	Damping Ring	1	2,640	품절
32	1610210214	Sealing Frame	1	1,430	품절

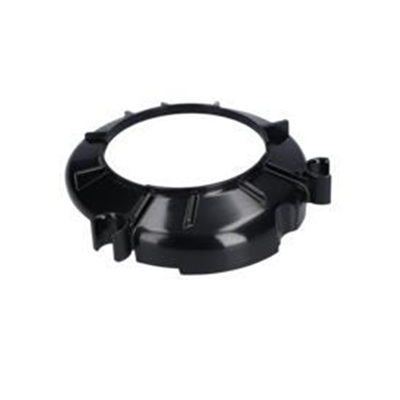

33	1610591047	Air-Deflector Ring	1	2,640
34	1610591048	Air Path	1	2,310	품절
35	1615806243	Hammer Pipe	1	120,340	품절
36	1610190066	Perforated Ring	1	3,190

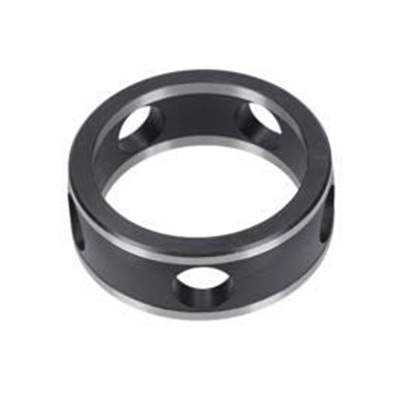

37	1610420006	Control Bushing	1	22,000
38	1615190173	Covering hood	1	14,630	품절
39	1610283052	Rotary shaft lip seal	1	3,850
43	1615500426	Brush-Cover	1	5,610
44	1610322017	Guide Sleeve	1	24,860	품절
46	1615500427	Holding-Down-Appliance	1	2,970
49	1604477020	Plug Holder	1	2,310	품절
50	1610206028	Stop Ring	1	3,190
51	1615500424	Housing Cover	1	3,190	품절
52	1615500425	Housing Cover	1	3,190	품절
54	1610190069	Control Disc	1	19,030	품절
55	1610500024	Retaining snap ring	1	1,430	품절
71	1613101014	Straight Pin	1	1,650
73	1610320015	Eccentric Bolt	1	10,230
75	1615132132	Handle	1	41,580

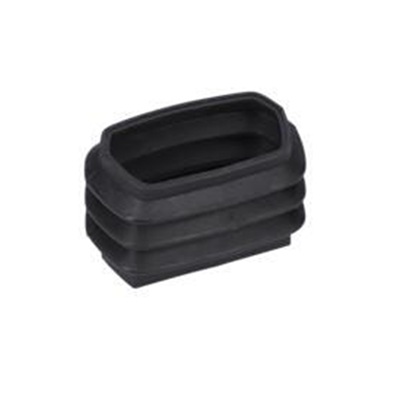

75/82	1610415003	Bellows	2	10,230	품절
75/83	1614621009	Compression Spring	2	5,610
80	1617233052	Speed governor	1	51,040
81	1611038018	Inserted Part	1	4,070

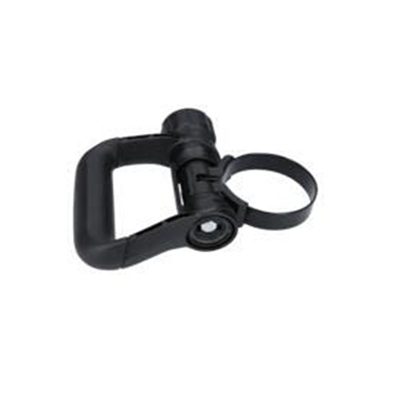

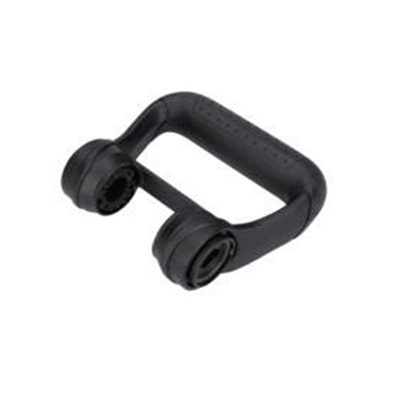

85	1602025081	Auxiliary Handle	1	14,630
86	2911021267	Hex Screw	1	2,640
87	1600A01BH0	Clamping Band	1	7,150
88	1619P16922	Star Knob	1	2,640
89	1600A008BL	Clamping Piece	2	1,980	품절
104	1610210219	Damper	1	37,620
121	1610200032	Retaining snap ring	1	27,610	품절
123	1610900033	Groove ball bearing	1	6,490
124	1610900034	Groove ball bearing	1	7,150
126	2603490023	Torx Oval-Head Screw	1	1,210
127	1613490022	Torx Oval-Head Screw	4	1,210	품절
128	1613414026	Torx socket button screw	6	1,210
129	1613490024	Torx Oval-Head Screw	6	1,430	품절
132	1613490025	Torx Oval-Head Screw	6	1,210
133	1613490026	Torx Oval-Head Screw	3	1,210
134	1613490027	Torx Oval-Head Screw	4	1,210
139	1610209017	Felt Washer	1	1,650
143	1614601071	Retaining ring	1	1,650
144	1610101023	Supporting Disc	1	2,640
163	1610224012	Spring retaining ring	1	1,210	품절
164	1610224013	Spring retaining ring	1	1,210
166	1610209011	Solenoid Ring	1	3,850
167	2915050107	Hex Nut	1	1,210
172	1610210216	O-Ring	1	1,650	품절
173	1610100021	Disc	2	1,210
184	1610210218	Damping Ring	1	4,950	품절

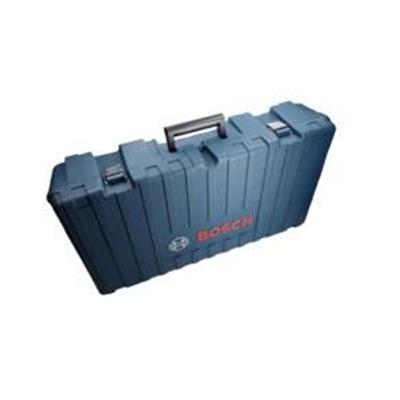

650	1615438492	Carrying Case	1	51,040	품절
810	1617000750	Carbon Brush	1	12,760
813	1617000744	Groove ball bearing	1	9,020
820	1617000745	Toolholder	1	104,830

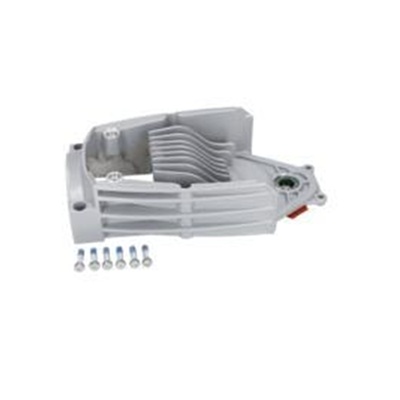

840	1617000746	Impact Mechanism Housing	1	250,800	품절
841	1617000747	Striker Pin	1	51,040	품절
845	1617000748	Gear Cover	1	56,100
847	1617000749	Brush Holder	1	22,000
856	1617000751	Hammer Piston	1	11,550
857	1617000752	Striker	1	27,610	품절
870	1617000753	Connecting Rod	1	27,610

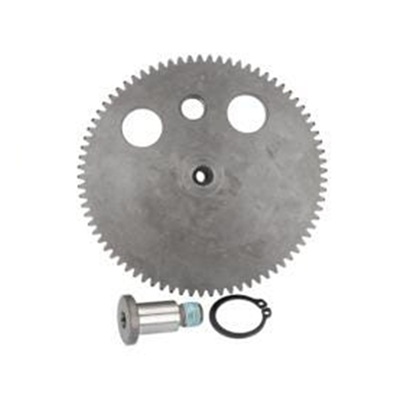

872	1600A005A4	Eccentric Cog Wheel	1	68,420
878	1610210215	O-Ring	1	1,210
883	1613490019	Hex Screw	1	1,980	품절

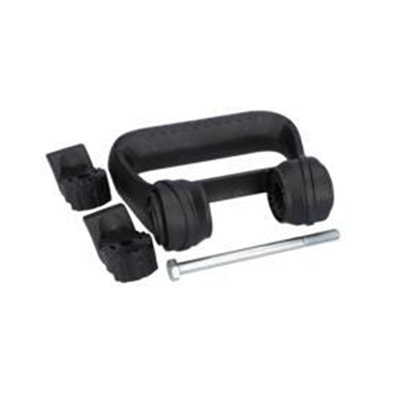

884	160202508T	Auxiliary Handle	1	30,910
885	160202508J	Auxiliary Handle	1	46,090
886	1617000755	O-Ring	1	12,760
887	1617000756	O-Ring	1	6,490
888	1617000757	Parts Set	1	5,610

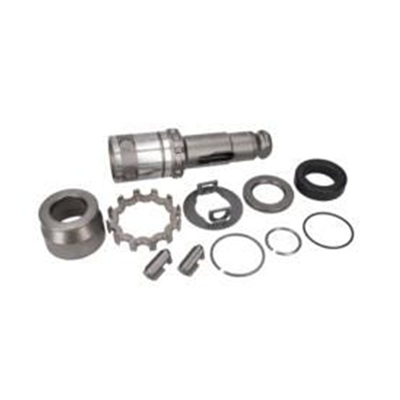

897	1617000758	Wear and Tear Part Set	1	51,040
