보쉬 GSH18V-5 분해도 (3611J18200)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 58개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

9	1617S021SU	Manufacturer's nameplate	1	1,980	품절
10	1617S021SV	Manufacturer's nameplate	1	1,980	품절
11	1617S021SW	Manufacturer's nameplate	1	1,980	품절
12	1617S021SX	Manufacturer's nameplate	1	1,980	품절
16/17	1619P15392	Ratchet Sleeve	1	6,930
16/21	1610508038	Protective Cap	1	5,500
16/22	1619P15321	Protection Sleeve	1	6,930
16/25	1612300034	Stopping Device	2	2,530

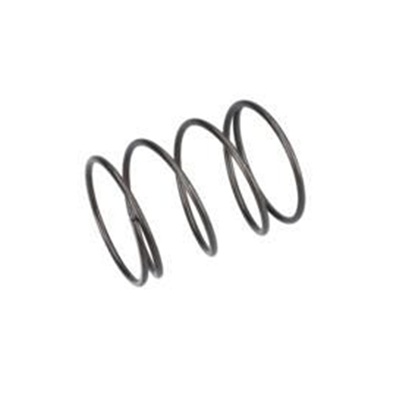

16/28	1619P15323	Compression Spring	1	1,430
16/31	1610251006	Supporting Disc	1	3,740
16/57	1619PS1793	Striker	1	4,840	품절
16/72	1619PS1795	Eccentric	1	11,220	품절
16/95	1610210173	O-Ring	2	1,650
16/104	1619P08783	Seal Ring	2	1,430	품절
16/117	1619P07713	Needle-Roller Assembly	2	2,530
16/129	1619PS1794	Cover Sleeve	1	4,840	품절
16/138	1619P08785	Sealing Frame	1	1,430
16/141	1610290066	Rotary shaft lip seal	1	6,380
16/143	1614601021	Retaining ring	1	4,840
16/145	1610119012	Spring retaining ring	1	1,980
16/151	1619P14464	Stop Disc	1	1,980
16/153	1614601030	Retaining ring	1	1,980
16/154	2916660019	Spring retaining ring 42x1,75	1	2,860
16/155	1619P15397	Retaining ring	1	1,210
16/160	1619P08787	Damping Ring	1	1,430
16/161	1619P14753	Damping Ring	1	1,430
16/162	1610210163	O-Ring	1	3,740
16/163	1610290065	Seal Ring	1	5,500
16/165	1610210079	O-Ring	1	3,740
16/166	1619P14462	Sealing Ring	1	1,430
16/168	1619P08792	O-Ring	1	1,210
16/170	1610210144	O-Ring	1	3,080
16/171	1613435014	Torx Oval-Head Screw	5	1,650
16/172	1613435013	Torx Oval-Head Screw	8	1,650	품절
16/183	1619PS1792	Felt	1	2,530	품절
16/301	1619PS1791	Brushless DC motor	1	60,610	품절
86	2911021267	Hex Screw	1	2,530
88	1619P16922	Star Knob	1	2,530
304	1617S021HL	Switch	1	16,390
381	1617S021HM	Electronics Module	1	18,480	품절
388	16072335FP	Electronics Module	1	3,080
405	2603490023	Torx Oval-Head Screw	15	1,210
406	160343003T	Screw	5	1,210
800	1607000FP5	Handle	1	12,430	품절
802	1607000FP8	Protection	1	14,190	품절
805	1607000FP4	Contact retainer	1	16,390
807	1607000FP6	Housing Section	1	24,200	품절
823	1619P15816	Toolholder	1	36,630
839	1607000FP3	Gear Housing	1	16,390	품절
840	1607000FP9	Impact Mechanism Housing	1	24,200	품절
841	1619P15818	Striker Pin	1	33,110
854	1619P14929	Stop Disc	1	5,500
856	16070312F7	Hammer Piston	1	6,380	품절
880	1607000FP7	Electronics Module	1	66,660
884	1602025097	Auxiliary Handle	1	33,110
893	1615430002	Grease Tube	1	36,630	품절
895	1615430015	Grease Tube	1	30,140
898	16070312F9	Wear and Tear Part Set	1	16,390	품절
