보쉬 GDR10.8V-EC 분해도 (3601JE00B0)

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK
제품이미지
1

7 베어링 슬리브

266898-7

1,100

총 44개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기

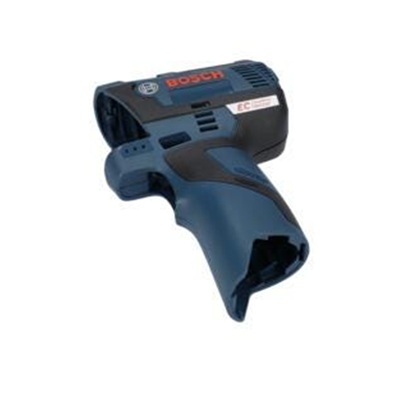

1 2609101235 Housing 1 12,430

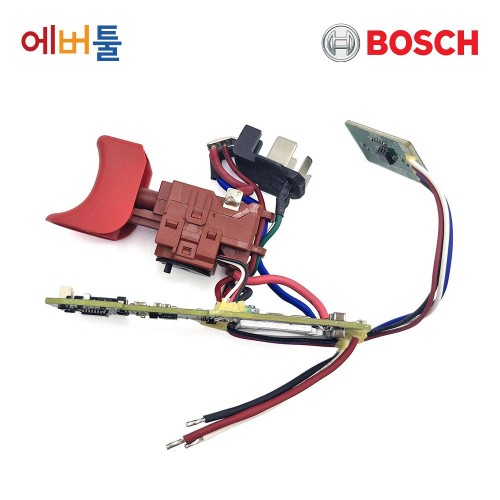

4 1607233581 Electronics Module 1 73,480
5 2609101236 Adjusting lever 1 1,430
6 2609101237 Button 1 1,210
41 2609134168 Sticker 1 1,980

품절
42 2609134169 Sticker 1 1,980

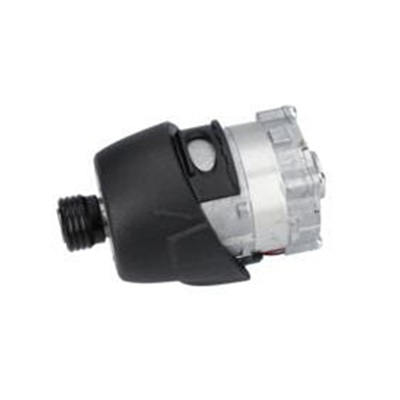

45 2609199631 Gear Box 1 73,480
45/10 2609101305 Lens 1 1,210
45/11 2609101306 Cover 1 1,430
45/12 2609125143 Module Pcb 1 4,840

품절
45/13 2609170218 Rubber Pad 1 1,210
45/14 2609170259 O-Ring 1 1,210
45/15 2609170260 Damping rubber 1 1,210
45/20 2609111529 Coupling Half 1 8,800

품절
45/21 2609110336 Clip 1 1,210
45/22 2609110318 Sleeve 1 2,530
45/23 2609110329 Retaining ring 1 1,210
45/24 2609110330 Compression Spring 1 1,210
45/25 2609111665 Steel ball 2 1,210
45/30 2609111788 Washer 1 1,430
45/31 2609111531 Striker 1 11,220

품절
45/32 2609111666 Washer 1 1,210
45/33 2609110513 Steel ball 26 1,210
45/34 2609111667 Thrust Washer 1 1,210

품절
45/35 2609170220 Foam Plastics Blank 1 1,210
45/36 2609111668 Contact strap 1 2,200
45/37 2609111906 Steel ball 2 1,210

품절
45/38 2609111530 Jack Shaft 1 12,430
45/39 2609111738 Pin 6 1,210

품절
45/40 2609170221 Seal 1 1,210
45/41 2609111673 Washer 1 1,210
45/42 2609170243 O-Ring 1 1,210
45/50 2609111669 Pin 2 1,210
45/51 2609111670 Planet Gear 2 11,220
45/801 2609199784 Gear Housing 1 8,800
45/802 2609199785 Flange Housing 2 9,900
45/890 1600A002NE Grease Tube 1 21,450
101 2609110883 Screw 9 1,650
102 2609110537 Clip 1 1,430
105 2609101394 Color clip 1 1,430

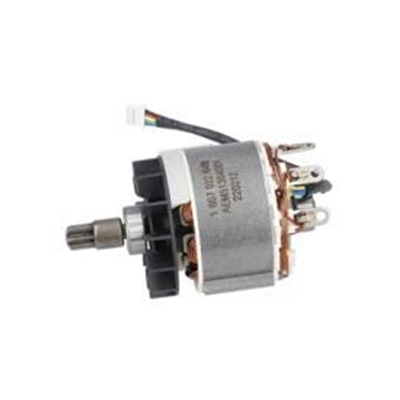

802 2609199661 Brushless DC motor 1 33,110
851 1607A350C7 Battery Pack 1 49,720

품절
851 1617S01Z8W Battery Pack 1 40,480

품절
855 2609199986 Clip 1 2,860

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
