보쉬 GBR18V-15S 분해도 (3601G762B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 46개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1607000G9A	Motor Housing	1	21,450	품절

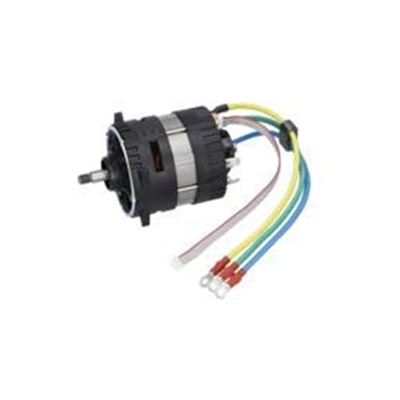

2	1607022661	DC motor	1	91,850
3	1600A024C4	Contact Plate	1	6,930
4	1600A016JC	Switch Unit	1	12,430
7	1600A016U4	Cover Ring	1	1,430
9	1607000G9C	Manufacturer's nameplate SP	1	21,450	품절
18	1600A016PW	Switch Handle	1	1,210
19	160461203M	Compression Spring	1	1,210
20	1600A016PX	Switch Slide	1	1,210
35	1600136013	Shim	1	1,980
35	1600136014	Shim	1	1,980
35	1600136015	Shim	1	1,980
35	1600136020	Shim	1	2,530
45	1603300016	Hex Nut	1	1,430
47	1609280477	Compression Spring	1	1,430
49	1607000G9B	Thread-forming tap. Screw	4	11,220	품절
50	1603435071	Thread-forming tap. Screw	4	1,210
53	2603490024	Torx Oval-Head Screw	4	1,430
55	160343003T	Screw	5	1,210
70	3600150038	Cover Disc	1	1,650	품절
90	16072335S9	Electronic Module	1	24,200	품절
202	1607000G93	Locking Piece	1	11,220	품절
203	1607000G94	Tension bolt	1	16,390	품절
204	1607000G95	Cylinder Head Screw	1	21,450	품절
206	1607000G96	Handle	1	21,450	품절
207	1607000G97	Compression Spring	1	18,480	품절
208	1607000G98	Axle Bolt	1	14,190	품절
209	1607000G99	Tensioning Lever	1	11,220	품절

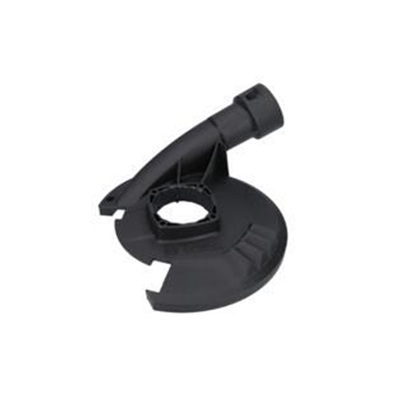

210	3605510063	Suction Hood	1	30,140
211	3605500219	Swivel Element	1	12,430
212	1607000G9D	Knob SP	1	9,900	품절
213	3604611042	Compression Spring	1	1,430
214	3600190040	Metal Ring	1	9,900
321/41	1600200029	Plain bearing	1	2,860
321104	1600210044	O-Ring	1	1,210

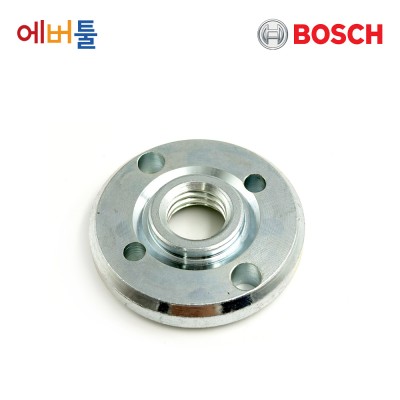

650/2	1603345043	Round Nut	1	5,500

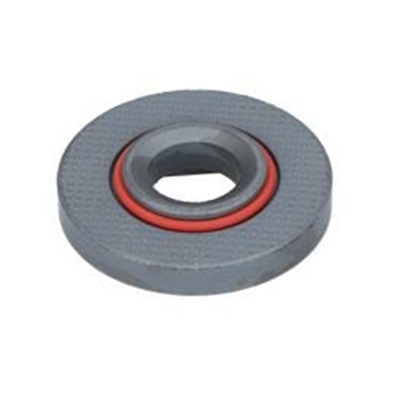

650/5	2605703014	Clamping Flange	1	4,840
651	3608600014	Diamond Cup Wheel	1	26,840	품절
808	160111AB9Z	Nameplate	1	24,200	품절
821	1607000G91	Gear Housing	1	21,450	품절
828/04	3600210124	O-Ring	1	2,200

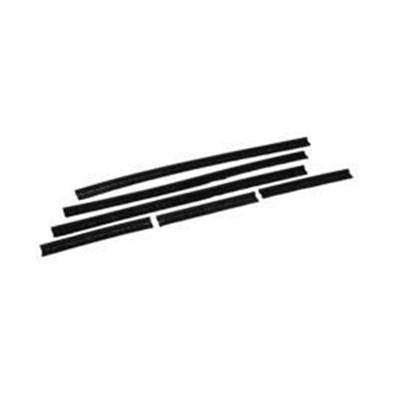

829	3607031875	Strip brush	1	40,480
840	1607000V41	Push-Button	1	2,860
851	1607000DK4	Electronic Module	1	102,190
866	1607000G92	Handle	1	24,200	품절

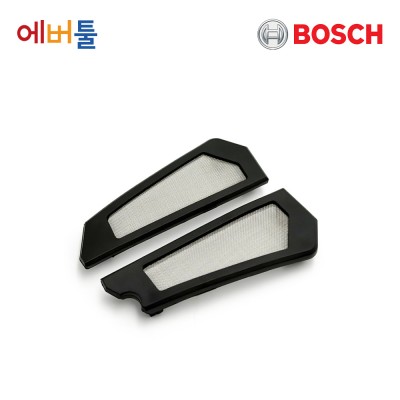

884	1607000CA9	Filter Unit	1	6,930
