보쉬 GGS18V-10SLC 분해도 (3601BB40B0)

제품이미지
ZOOM OUT ZOOM IN EXTERNAL LINK

7 베어링 슬리브

266898-7

1,100

37

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0
이미지 항목번호 부품번호 부품명 소요량 판매가 장바구니 담기

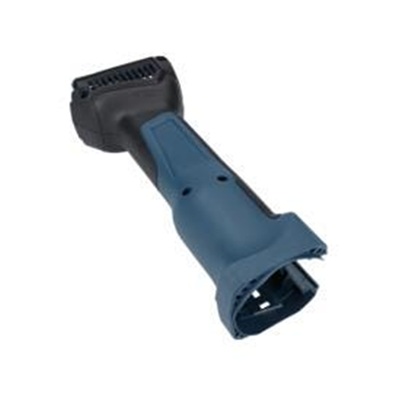

1 16051082DU Motor Housing 1 16,390
6 1600591065 Air-Deflector Ring 1 1,980
9 160111C3F9 Manufacturer's nameplate 1 1,980

품절

12 1600A00RK2 Ferrite 1 1,650
17 1600100P12 Cover 1 1,430
18 1600A00P2P Switch Handle 1 1,650
20 1600A00P14 Adjusting Slide 1 1,430
42 16072335LX Speed governor 1 21,450
43 1600A00P1B Cover 1 1,210
44 1600A00M53 Cover Panel 1 1,210
45 16055002BV Cover 1 1,650

품절

46 1609280477 Compression Spring 1 1,430

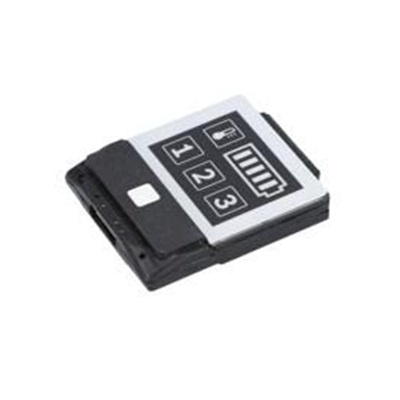

47 1607503438 Electronics Module 1 9,900

품절

50 1603435071 Thread-forming tap. Screw 4 1,210
53 2603490025 Torx Oval-Head Screw 4 1,210
55 1600A00P18 Reverse-Transfer Lever 1 1,210
90 3607030474 Clamping Unit 1 16,390
180 160111C39Z Reference Plate 1 1,980

품절

182 160111C12V Sticker 1 1,210
300/60 3605106124 Spindle Housing 1 14,190
300/63 1600206025 Rubber Ring 1 1,650
300/64 1610210101 O-Ring 1 2,200
300/68 2600210019 O-Ring 1 1,430
300/74 3600905156 Groove ball bearing 1 8,030
300/75 3600905157 Groove ball bearing 1 8,030
300/76 3605500194 Protective Sleeve 1 8,030
300/80 3603523072 Grinding Spindle 1 16,390

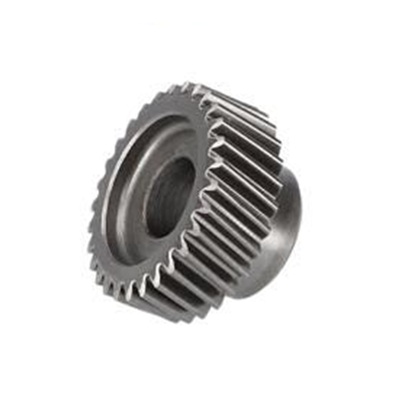

300/93 3606312005 Cylindrical Gear 1 40,480
300/94 1603300016 Hex Nut 1 1,430
300/95 3600328043 Flange 1 18,480
654 3607950024 Single-Head Eng. Wrench 2 5,500
808 160111A7JV Nameplate 1 3,080

품절

861 1607000E0A Spindle Housing 1 33,110
870 1607000E0B Intermediate Flange 1 49,720
880 1607000E0C Grinding Spindle 1 49,720
884 1607000CA9 Filter Unit 1 6,930
890 3603313006 Round Nut 1 6,380

품절

목록에 없는 부품은 단종되었거나 제조사에서 공급하지 않는 부품입니다.
