보쉬 GGS8SH 분해도 (3601B14300)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 45개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

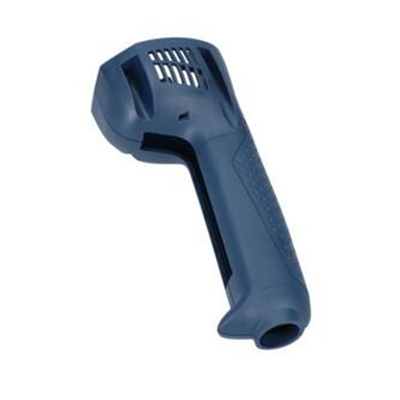

1	3605108092	Motor Housing	1	21,450
3	1619P13611	Armature	1	33,110
6	1600703023	Grommet	1	1,980
9	3601110600	Manufacturer's nameplate	2	1,980	품절
16	1603344005	Threaded Ring	1	21,450	품절
17	1900900352	Groove ball bearing	1	21,450	품절
18	3605806084	Spindle Bearing	1	133,870	품절
19	3603160000	Grinding Spindle	1	60,610
21	1600206029	Rubber Ring	1	1,980
23	1600210031	O-Ring	1	1,210
24	1600221003	Intermediate Ring	1	1,980
27/1	2603490022	Screw	2	1,210
28	3603301010	Fast Locking Flange	1	117,370
31	1600502011	Intermediate Ring	1	1,980	품절
33	2916600009	Retaining ring	1	1,210
35	3605132079	Handle	1	36,630
36	3606320015	Cylindrical Gear	1	54,670
37	1600300090	Intermediate Ring	1	2,530
38	3600905131	Groove ball bearing	1	6,930
40	1900023006	Woodruff Key	1	1,980
41	3603435057	Torx Oval-Head Screw	4	1,430	품절
43	1604613006	Compression Spring	2	1,430	품절
47	2910021118	Socket head cap screw	2	1,210	품절
48	1604652006	Spiral Spring	2	1,430	품절
50	2914201527	Torx Oval-Head Screw	4	1,650	품절
52	2914201506	Oval-Head Screw	3	1,210	품절
53	1607000FF6	Intermediate Bearing	1	49,720	품절
54	3601025003	Wire Guide	2	1,430	품절
55	1600502019	Air-Deflector Ring	1	2,530	품절
68	1601006011	Sealing Plate	1	1,980	품절
90	1601030022	Tab Washer	2	1,430
150	3600707022	Shrinkable Tube	4	2,530	품절
152	1604477001	Blade terminal	1	1,430
153	3604438034	Connecting Cable	2	4,840
650/2	3603101005	Holding Pin	1	3,080
650/3	1907950007	Offset Screwdriver	1	3,080
650/4	3603345014	Round Nut	1	44,880	품절
653	3605510030	Protective Cover	1	21,450	품절
653/5	2910141244	Hex Socket Head Cap Screw M8x25-8.8	1	1,430	품절
802	3607031864	Field	1	82,610
805	1607000391	Power supply cord	1	12,430
810	3607014012	Carbon-Brush Set	1	18,480
820	3604441011	Cartridge bearing	1	24,200
826	3605500060	Sealing cap	2	1,430
839	3604336012	Brush Holder	2	3,740
