보쉬 GSH388X 분해도 (0611388940)

제품이미지

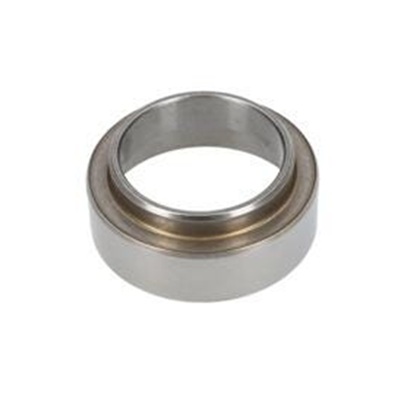

7 베어링 슬리브

266898-7

1,100

총 77개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P10299	Motor Housing	1	16,830
2	1619P01908	Field	1	27,610
6	1610703053	Grommet	1	1,980	품절
7	1601302018	Fastening Clamp	1	1,430

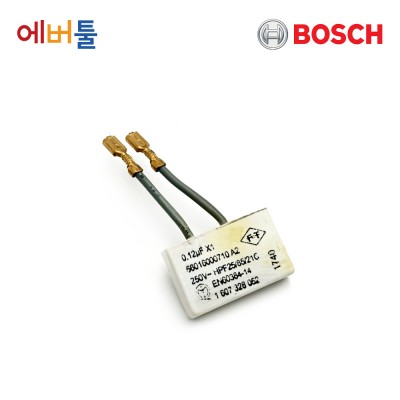

12	1607328052	Suppression Filter	1	2,970

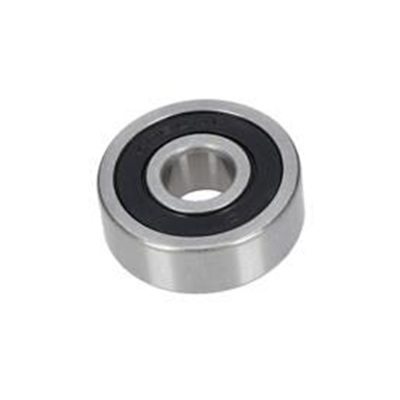

13	1610900026	Groove ball bearing	1	8,250
14	1610905041	Groove ball bearing	1	7,150	품절

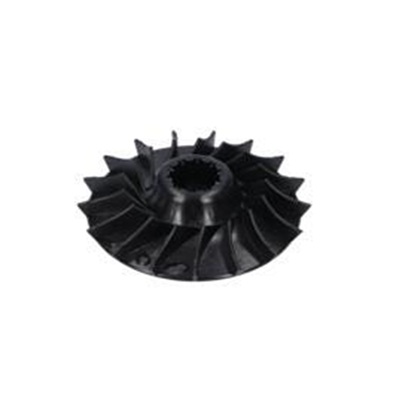

15	1616610085	Fan	1	2,310	품절
16	1610499055	Ratchet Sleeve	1	4,950

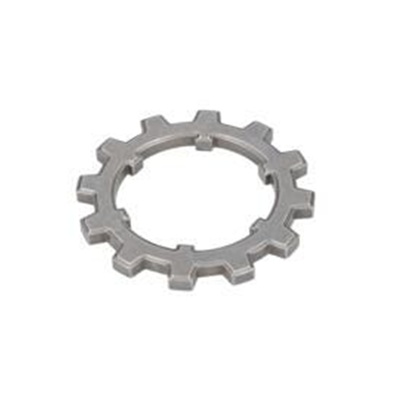

17	1610241000	Catch Disk	1	2,640

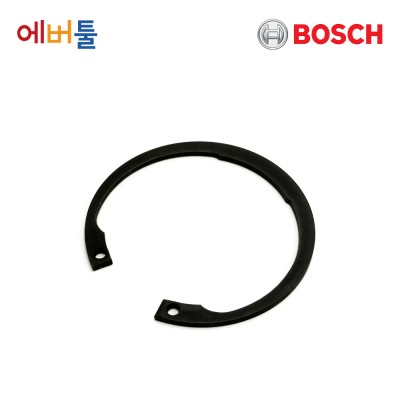

18	1614601030	Retaining ring	1	1,980
21	1610508043	Protective Cap	1	5,610
22	1610591032	Protection Sleeve	1	19,030
25	1903230016	Ball	3	2,640
27	1600591032	Air-Deflector Ring	1	2,310	품절
28	1614621000	Compression Spring	1	2,310
31	1610103022	Supporting Disc	1	4,950
34	1610516013	Flange	1	1,430	품절

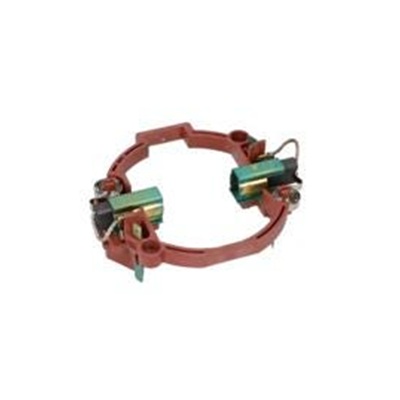

42	1614336041	Brush Holder	1	22,000
43	1615500303	Fan Cover	1	6,490
53	1610102054	Support Disc	1	2,640
57	1618710079	Striker	1	21,450	품절
69	1610099004	Retaining Bracket	1	1,980	품절
75	1619P10300	Handle	1	16,830
81	1615132079	Handle Cover	1	7,150

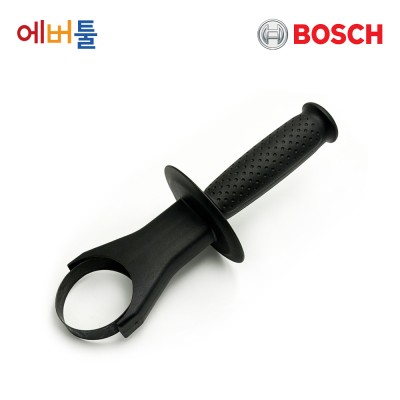

84	160202507H	Auxiliary Handle	1	7,150
86	1613490002	T-Head Bolt	1	2,970
87	1611316019	Clamping Band	1	2,970

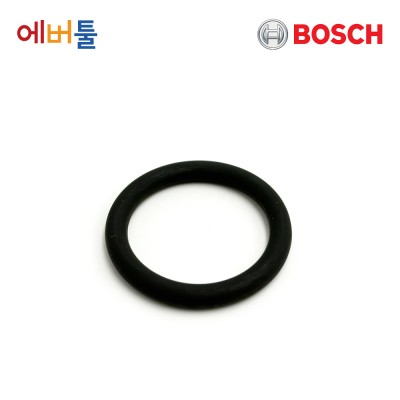

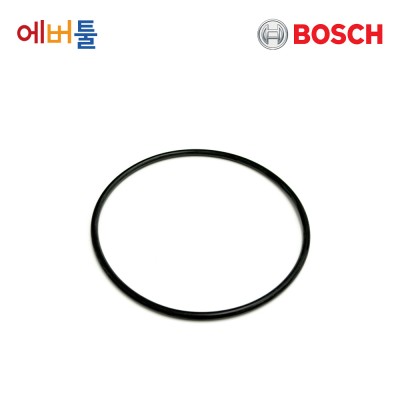

95	1610210173	O-Ring	1	1,650
104	1610210095	O-Ring	1	1,980
111	1610290064	Bushing	1	1,430	품절
112	1613300008	Hex Nut	1	1,980
113	1613435009	Tapping Screw	2	1,430	품절
116	1610311017	Inner Ring	1	4,070
121	1610328018	Bushing	1	10,230	품절
126	2910211019	Tapping Screw	1	1,210

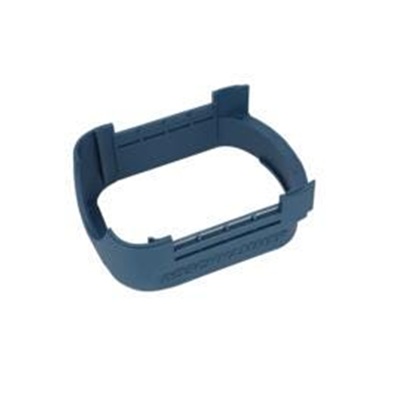

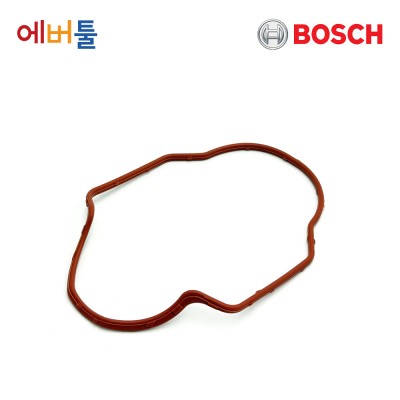

138	1611015050	Sealing Frame	1	6,490

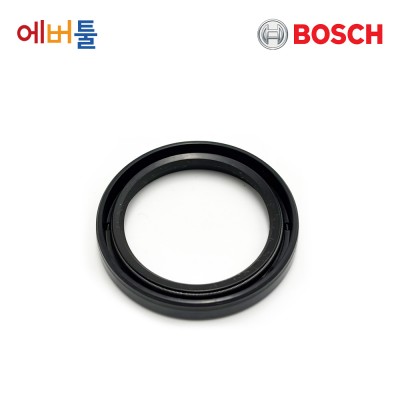

141	1610290066	Rotary shaft lip seal	1	6,490
142	1610290061	Rotary shaft lip seal	1	3,850	품절

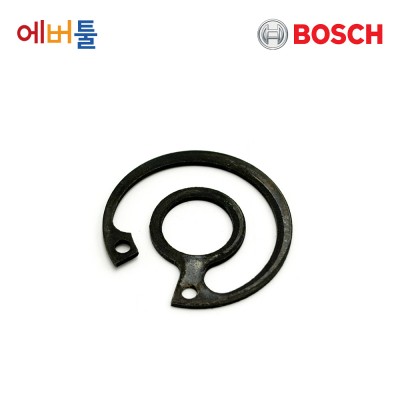

143	2916540017	Retaining ring	1	1,430
145	1610119012	Spring retaining ring	1	1,980
150	1614601041	Retaining ring	1	1,210	품절
154	2916660024	Spring retaining ring	1	3,190	품절
160	1610210172	Damping Ring	1	4,070	품절
162	1610210091	O-Ring	1	2,640

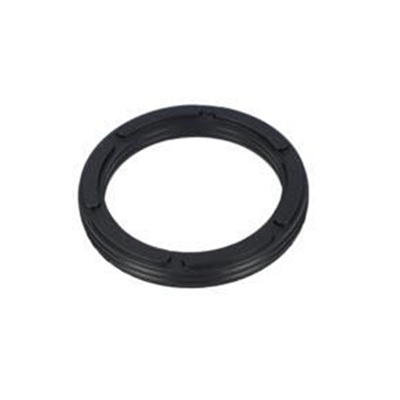

163	1610290065	Seal Ring	1	5,610
164	1610210144	O-Ring	1	3,190
165	1610210153	O-Ring	1	4,950
167	1610290062	Rotary shaft lip seal	1	2,640
171	1613435014	Torx Oval-Head Screw	4	1,650
172	1613435013	Torx Oval-Head Screw	4	1,650	품절
174	1613435012	Torx Oval-Head Screw	4	1,650	품절
175	2912401018	Tapping Screw	2	1,210	품절
177	1603435051	Tapping Screw	2	1,650	품절
178	1604412069	Connecting Cable	1	4,950	품절
661	1615430010	Grease Tube	1	3,850
803	1619P04545	Armature	1	104,830
804	1617200110	Switch	1	22,000
808	160111A3H5	Nameplate	1	1,980	품절

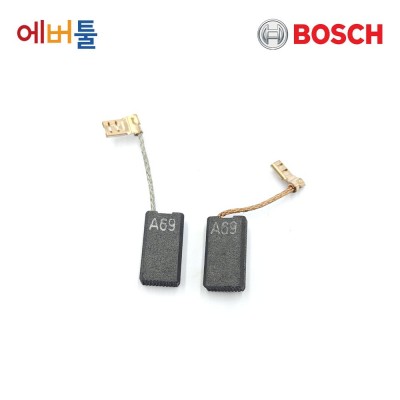

811	1617014138	Carbon-Brush Set	1	10,230
817	1614652004	Spiral Spring	2	4,950
818	2910011088	Socket head cap screw	2	1,210	품절
821	1617000835	Bushing	1	16,830
835	1617000859	Hammer Pipe	1	156,090	품절
838	1615190088	Covering hood	1	10,230	품절
841	1617000452	Striker Pin	1	33,990
854	1617000442	Stop Disc	1	30,910
856	1617000836	Hammer Piston	1	22,000
872	1600A01BG3	Eccentric	1	33,990
874	1617000422	Holding-Down-Appliance	1	9,020
884	1607000F30	Auxiliary Handle	1	22,000
886	1617000459	Auxiliary Handle	1	9,020
890	1609244B42	Mounting Sleeve	1	133,870	품절
892	1609244B43	Bow	1	133,870
895	1615430019	Oil Reservoir	1	51,040
897	1617000445	Wear and Tear Part Set	1	41,580	품절
898	1615437512	Oil Reservoir	1	9,020
