보쉬 GBH18V-LI 분해도 (3611J04300)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 55개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

3	1610499067	Centering Sleeve	1	6,930

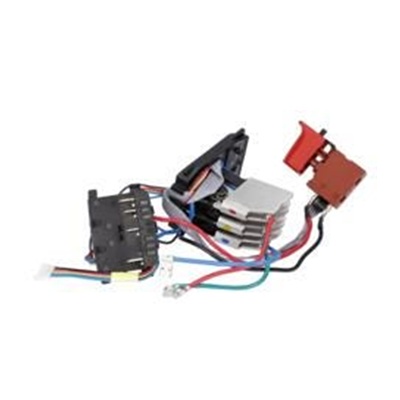

4	1607233376	Electronics Module	1	73,480
5	1609280477	Compression Spring	1	1,430
16	1610102637	Supporting Disc	1	1,430	품절
17	1611015062	Sealing Frame	1	3,080
18	1610290116	Seal Ring	1	2,860	품절
21	1617000667	Hammer Pipe	1	54,670
21/23	1616317084	Cylindrical Gear	1	12,430
21/31	1614601053	Retaining ring	1	1,210
21/34	1610508051	Rubber Bushing	1	2,860
21/37	1610551008	Holding Plate	1	1,430	품절
21/40	1613100019	Straight Pin	2	1,430
21/41	1610102072	Ratchet Disc	1	3,740
21/46	1614630003	Compression Spring	1	1,650
21/47	1610905039	Groove ball bearing	1	3,740
21/48	1614601054	Retaining ring	1	1,430
21/50	1600A00FL3	Thrust Ring	1	2,200	품절
21/60	1610190054	Support Disc	1	1,430	품절
24	1607000D10	Jack Shaft	1	54,670
32	1612026114	Switch Button	1	1,210	품절
43	1610499080	Protection Sleeve	1	1,650	품절
44	1610508052	Protective Cap	1	1,430
51	1613231014	Shift Plate	1	3,080
52	1614690005	Coiled Spring	1	1,430
53	1619P00828	Pressure Disc	1	1,210
54	1613100033	Guide Rod	1	1,430
59	1610102045	Friction Washer	1	1,210
70	1903230013	Ball	1	1,650
71	1613435036	Torx Oval-Head Screw	15	1,210
72	2603490017	Torx Oval-Head Screw	4	1,650
83	2603100056	Damping rubber	1	1,430
84	1613231029	Switch Slide SCHALTSCHIEBER	1	1,430
87	1614601077	Spring retaining ring	1	1,430
90	1600A00071	Lens	1	1,430	품절
120	160202508X	Auxiliary Handle	1	12,430	품절
120120	160202507H	Auxiliary Handle	1	6,930
120124	1611316021	Clamping Band	1	2,200
120125	1613490002	T-Head Bolt	1	2,860
120802	1617000475	Support clamp	1	6,380
326/26	1618700083	Hammer Piston	1	6,380
326/29	1613100034	Piston Pin	1	2,200
326/38	1610100016	Guide Disc	2	1,430
326/56	1610210186	O-Ring	1	1,650
333321	1610210185	O-Ring	1	1,210	품절
651	1613001009	Depth-Gauge	1	2,530

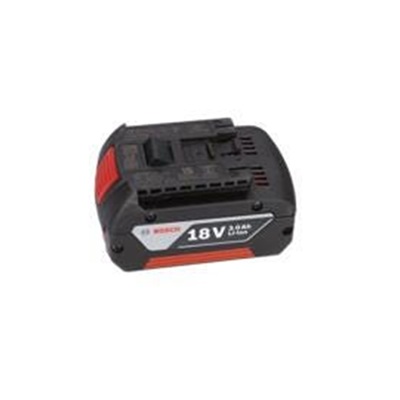

653	1607A350B2	Battery Pack	2	66,660
653	1617S020T1	Battery Pack	2	60,610	품절
802	16170006BG	DC motor	1	102,190
808	160111A3H9	Nameplate	1	1,980

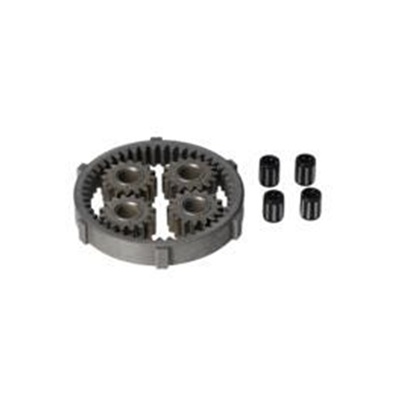

812	1617000665	Planetary Gear Train	1	11,220
820	16170006BH	Intermediate Flange	1	26,840
827	1617000669	Striker	1	12,430
828	1613124084	Striker Pin	1	2,860
844	16170006D3	Protection Sleeve	1	6,930
891	1609280478	Contact retainer	1	8,030
