보쉬 GBH18V-34CF 분해도 (3611J14080)

제품이미지

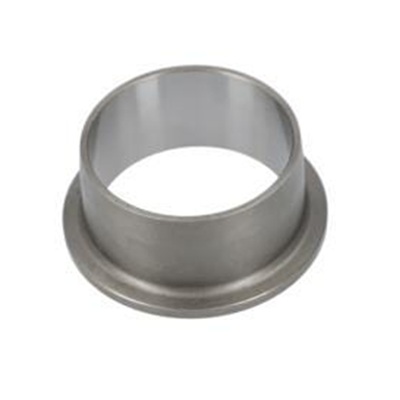

7 베어링 슬리브

266898-7

1,100

총 86개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

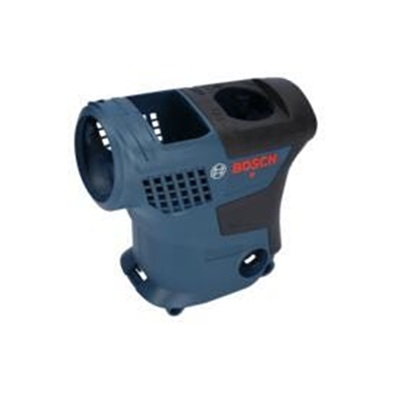

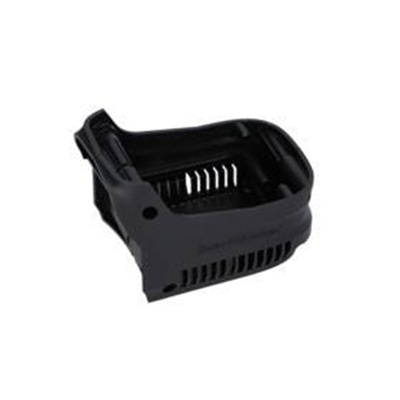

1	16058065LW	Housing Section	1	14,190
4/3	1607503565	Ribbon cable	1	2,200
4/4	2607202360	Switch	1	5,500
4/5	1600A024AU	Ferrite	1	2,860
4/15	1607503566	Ribbon cable	1	1,980
8	160111A3H5	Nameplate	1	1,980	품절
9	160111C325	Manufacturer's nameplate	1	1,980	품절
10	160111C328	Reference Plate	1	1,430	품절
11	160111C322	Sticker	1	1,210
14	16072335EP	Electronic Module	1	24,200
16	1607503567	Ribbon cable	1	1,980
18	16072335FP	Electronics Module	1	3,080
19	16072335EH	Electronics Module	1	6,380
21	1610508047	Protective Cap	1	1,650
24	1600A00DJ5	Collar Sleeve	1	3,960	품절
27	1600A01A7R	Backup ring	1	2,860
29	160461201L	Compression Spring	1	1,430	품절
35/35	1600A00DH3	Hammer Pipe	1	82,610
35/37	1600A0030R	Control Bushing	1	4,840
35/41	1600A002Z0	Striker Pin	1	26,840
354116	1600A009VC	Shaft Seal	1	2,200
35/44	160461200N	Compression Spring	1	1,210
35/52	1600A01SR3	Retaining snap ring	1	2,530	품절
35/53	1600A0030F	Stop Bushing	1	6,380
35/54	1600A01S20	Spacer Tube	1	2,530	품절
35/57	1600A01B3F	Striker	1	9,900
35/106	1600A0030W	Supporting Disc	1	3,080
35/115	160312304B	Driving Pin	4	1,430
35/122	1600A00305	Stop Disc	1	1,430
35/155	160015002Y	Spring retaining ring	1	1,430
35/156	160021005V	Retaining ring	1	1,210
35/160	160021005S	Damping Ring	1	1,980
35/161	1600A0030L	Damping Ring	1	4,840
47	1600A0048K	Gear Sleeve	1	2,860
48	1600A019TP	Clutch Sleeve	1	2,200

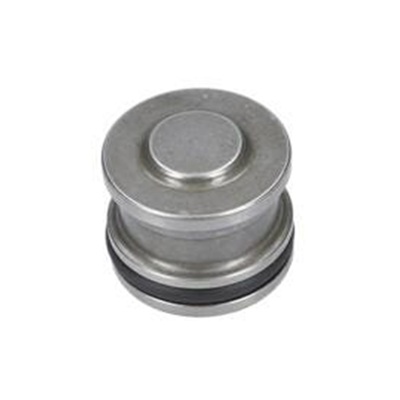

56	1600A01B3D	Hammer Piston	1	12,430	품절
56/162	1600210096	O-Ring	1	2,530
60	1600A0033N	Coupling	1	60,610

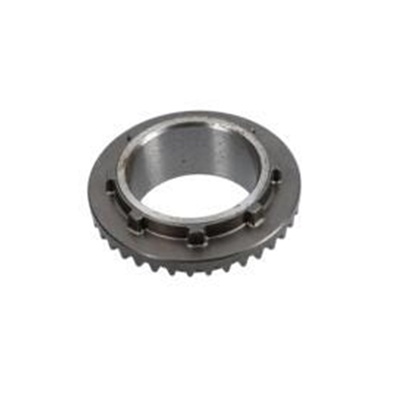

64	1600A0039T	Crown Gear	1	18,480
71/59	1600A01B36	Bearing Pedestal	1	11,220
715959	1600A0100Y	Bearing Pedestal	1	6,930	품절
715911	1900905162	Groove ball bearing	1	12,430
715911	2916660013	Retaining clip	1	1,650

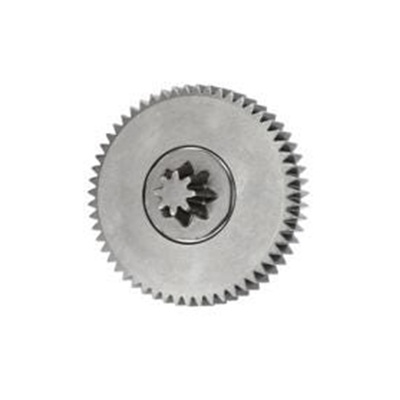

71/71	1600A011GY	Eccentric Cog Wheel	1	8,030
71/72	1600A0100X	Eccentric Shaft	1	8,800	품절
73/45	1600A019XJ	Support Plate	1	1,430
73/46	160343508V	Thread-forming tap. Screw	1	1,210
73/49	1600A003YK	Control Fork	1	1,650
73/50	160465101F	Coiled Spring	1	1,210
73/76	1600A014A7	Shift Curve	1	1,210
73/77	160202610B	Clamp Handle	1	2,530
73/78	1614611024	Compression Spring	1	1,210
73/79	1903230007	Ball	1	1,430	품절
73/159	1610210198	O-Ring	1	1,210
91	1600A016CZ	Electronics Module	1	6,380	품절
92	1600A013WF	Electronics Module	1	26,840
93	16055002GJ	Cover	1	1,650
102	1600A0048F	Shim ring	1	1,430
102	1600A0048G	Shim ring	1	1,430
102	1600A0048H	Shim ring	1	1,430
121	1600A01B3G	Plain bearing	1	9,900

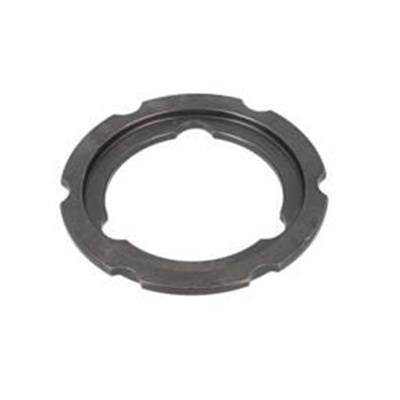

123	1600A00307	Support Disc	1	3,960
125	2603490023	Torx Oval-Head Screw	16	1,210
138	1600A004DH	Sealing Frame	1	1,650
147	1600A00DH2	Guide Sleeve	1	2,860
153	160015002C	Retaining ring	1	1,210	품절
154	160015002X	Spring retaining ring	1	1,430
167	1600A00308	Shaft Seal	1	3,740
168	1610283047	Rotary shaft lip seal	1	8,030
173	1603435091	Torx Oval-Head Screw	8	1,210
175	1600A01N0N	Torx socket button screw	2	1,210
176	160343003T	Screw	9	1,210

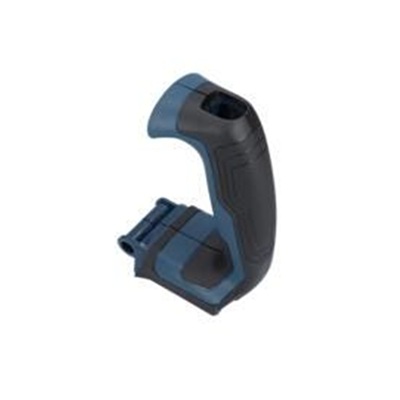

189	160513218X	Handle	1	11,220
211	16051082HP	Cover Plate	1	6,380	품절
240240	160202509C	Auxiliary Handle	1	3,080
240244	1600A01E9C	Clamping Band	1	3,960
325	161859712G	Tool Holding Fixture	1	36,630

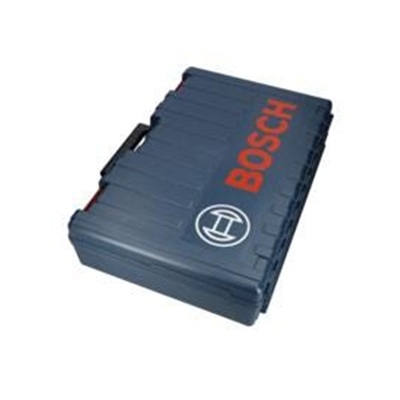

691	16054381G2	Carrying Case	1	24,200	품절

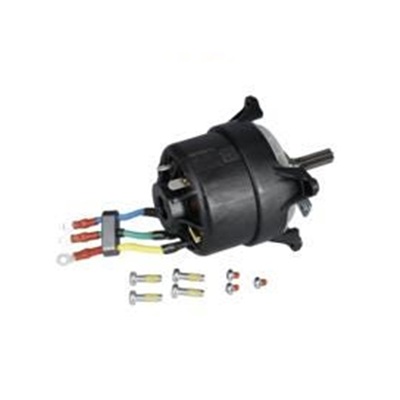

802	1607000DL7	DC motor	1	117,370

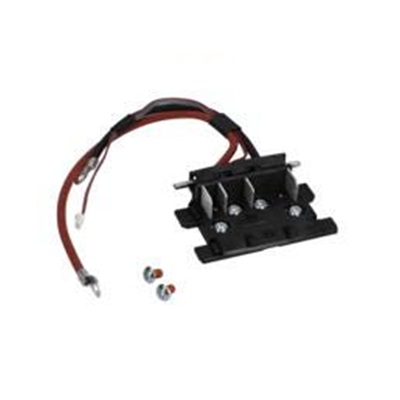

817	1607000DN0	Contact retainer	1	21,450
824	1607000E6B	Support clamp	1	3,740	품절
840	1607000DL9	Impact Mechanism Housing	1	91,850
840114	1600A01N8S	Needle-Roller Assembly	2	3,080
840151	1600210060	O-Ring	1	1,210
873	1600A01E0A	Housing Cover	1	24,200
8171	1607000DL8	Contact retainer	1	12,430
