보쉬 GBH18V-26D 분해도 (3611J16052)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 82개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

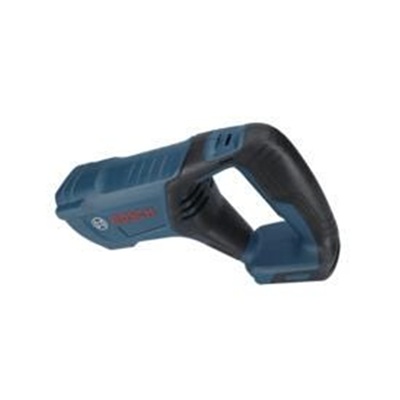

1	16051082HZ	Motor Housing	1	16,390

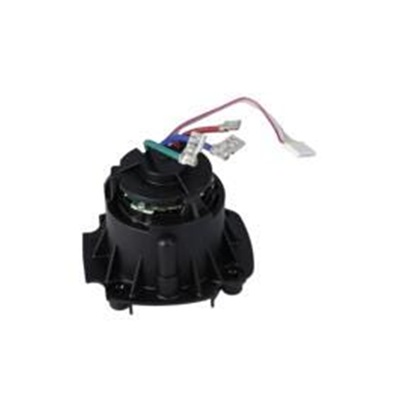

2	1600A01T3V	Stator	1	33,110
2/41	1600A016CC	Stator Casing	1	3,960
2/81	1603435086	Torx head	1	1,210

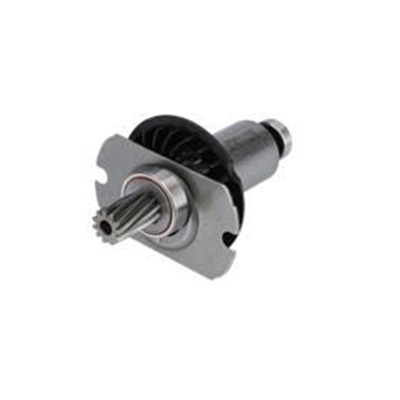

3	1600A015AA	Rotor	1	36,630
4	1600A029LE	Electronics Module	1	73,480
9	160111C2N0	Manufacturer's nameplate	1	1,980
10	160111C2N1	Manufacturer's nameplate	1	1,980
11	1611110X17	Reference Plate	1	2,530
17	1600A01U4C	Switch-Pawl	1	2,200	품절
24	16170006EJ	Toothed Shaft	1	18,480
24/61	1615820097	Switching Element	1	3,080
24/65	1610905016	Groove ball bearing	1	6,380
26	1600A00H7D	Hammer Piston	1	14,190
26/27	1600A00733	Striker	1	6,380
26/29	1613105020	Piston Pin	1	3,080	품절
26/56	1610210187	O-Ring	1	1,650
26/71	1610100016	Guide Disc	2	1,430
30	1600A00H7E	Drive bearing	1	14,190
31	1610913016	Needle-Roller Assembly	1	2,530
32	1612026037	Clamp Handle	1	6,380
32/46	1614690002	Driver Pin	1	1,430
32/49	1612026035	Switch Button	1	1,430
32/76	1610210046	O-Ring	1	1,650
32/83	1614611006	Compression Spring	1	2,530
36	1611016003	Holding Plate	1	1,650
55	1610290226	Seal Ring	1	2,530
57	1610210068	O-Ring	1	1,430
64/1	1610190060	Supporting Disc	1	1,650
66	1610202021	Plain bearing	1	1,980
76	1613435022	Thread-forming tap. Screw	4	1,430
77	2603490023	Torx Oval-Head Screw	8	1,210
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
80	160343000V	Torx Oval-Head Screw	4	1,210
84	1600A015UH	Switch Slide	1	1,430
100	1600A000LE	Lens	1	1,430
106	1614611022	Plain bearing	1	1,980
106105	1614611021	Compression Spring	1	1,430
120	160202509X	Auxiliary Handle	1	6,380
120120	160202509C	Auxiliary Handle	1	3,080
120124	1611316021	Clamping Band	1	2,200
120125	1613490002	T-Head Bolt	1	2,860
120802	1617000475	Support clamp	1	6,380
202	1600A028AU	Protection Sleeve	1	1,650
203	1610508047	Protective Cap	1	1,650
204	1614643003	Compression Spring	1	1,210
206	1903230013	Ball	1	1,650
207	1614601027	Retaining ring	1	1,210
208	1610101629	Retaining Washer	1	1,210
209	1610102025	Friction Washer	1	1,650
210	1610190011	Holding Plate	1	1,430	품절
211	160460102S	Retaining ring	1	1,210
321	1600A019EW	Ratchet Sleeve	1	66,660
321/22	1616312004	Cylindrical Gear	1	8,030
321/28	1613124081	Striker Pin	1	6,380
321/33	1610590014	Holding Jacket	1	1,650	품절
321/37	1613100019	Straight Pin	3	1,430
321/38	1600A008AG	Catch Disk	1	2,530
321/42	1610102073	Thrust Ring	1	3,080
321/46	1610390051	Guide Bushing	1	3,960
321/50	1614611020	Compression Spring	1	2,200
321/58	1610210178	O-Ring	1	1,430
321/59	1610283035	Rotary shaft lip seal	1	3,740
321/60	1610210176	O-Ring	1	1,210
321/72	1604601027	Retaining ring	1	1,210	품절
321/83	1604601028	Retaining ring	1	1,210
651	1613001009	Depth-Gauge	1	2,530

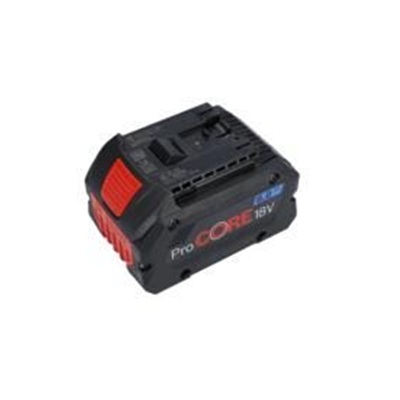

653	1607A350AS	Battery Pack	1	188,650
808	160111A91F	Nameplate	1	1,430	품절
820	1600A01AH5	Intermediate Flange	1	14,190
823	1607000DS2	Toothed Shaft	1	9,900	품절
828	1600A019F0	Striker Pin	1	26,840

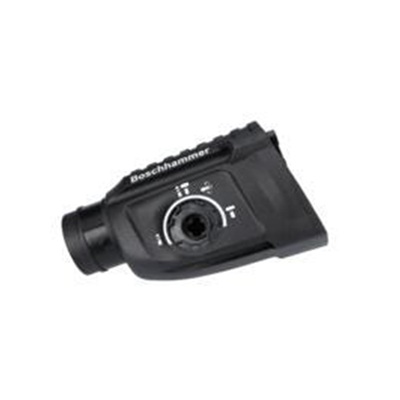

840	1607000C5N	Gear Housing	1	30,140
840/48	1611098008	Tab Washer	1	1,650
840/63	1610910063	Needle bearing	1	3,740
840/68	1610283036	Rotary shaft lip seal	1	4,840
840/78	2603490022	Screw	1	1,210
843	1617000582	Protection Sleeve	1	6,930
864	1617000A07	Supporting Disc	1	6,930
870/2	2603421207	Countersunk-Head Screw	1	1,430
871	1608571088	Chuck	1	21,450
872	2607950007	Chuck Wrench	1	3,960
