보쉬 GST85PBE 분해도 (3601E87640)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 94개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

5	2600108077	Felt Washer	1	1,430	품절
6	2600500002	Cupped Washer	1	1,430	품절
8	1619P00428	Spring retaining ring	1	1,210
9	2600400008	Receptacle	1	1,430
12	2600101616	Shim	1	2,200
15	1619P02581	Eccentric Cog Wheel	1	16,390
16	2600102653	Shim	1	1,430
17	2600100515	Shim	1	1,980
17	2600100516	Shim	1	1,650
18	2601923004	Fork Lever	1	2,200
19	2916080907	Locking washer	1	1,650	품절
20	2600102652	Shim	2	1,430
21	2600100628	Shim	2	1,430	품절
22	2601098003	Counterweight	1	5,500
23	2600309009	Spacer Sleeve	1	1,430
25	2600100575	Shim	2	1,650
25	2600100576	Shim	2	1,650	품절
25	2600100577	Shim	2	1,430
29	2600100568	Shim	2	1,430	품절
29	2600100569	Shim	1	1,430
29	2600100607	Shim	1	1,430
32	2602305042	Air Eliminator	1	1,430
34	2600590006	Ratchet Cap	2	1,430
36	1619P00444	Locking washer	1	1,210
37	2602026037	Rotary Knob	1	2,200
38	2600116006	Spring retaining ring	2	1,430
39	2601015050	Seal	1	1,650
41	2603410048	Thread-forming tap. Screw	2	1,430
42	2604613000	Compression Spring	2	1,430
43	1616B00224	Guide Bracket	1	9,900
44	1619P12765	Lifting Rod	1	11,220
46	1619P12767	Sliding Piece	1	6,380
47	2603421040	Countersunk-Head Screw	2	1,430
48	2600112031	Supporting Disc	1	1,430
49	2600290017	Seal Ring	1	1,430
50	2600101612	Shim	1	1,430
53	2603490011	Clamp Screw	1	3,960
60	1619P00106	Screw	6	1,210
62	2915011007	Hex Nut	2	1,210
64	2601030019	Profile Beading	1	1,980
65	2910141197	Hex Socket Head Cap Screw M6x16-8.8	1	1,210
68	1619P01380	Screw	4	1,210
69	2914551176	Microencapsulated Screw	2	1,210
85	2604610040	Compression Spring	1	1,430
90	2601322021	Safety Device	1	2,860
91	2910011128	Socket head cap screw	2	1,210
102	1619P01004	Field	1	14,190
103	1619P00869	Armature	1	36,630
103/6	2606610049	Fan	1	1,650

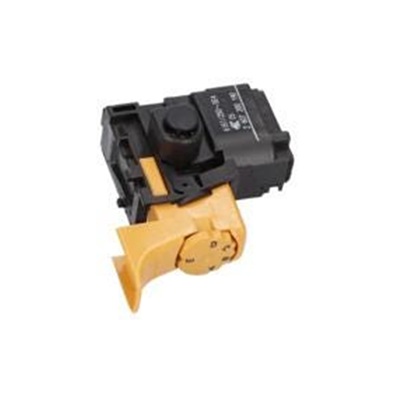

104	2607200190	Switch	1	44,880
106	2600703027	Grommet	1	1,430
107	2601035001	Cable Clip	1	1,430
113	1900905018	Ball Bearing	1	12,430
116	1600A003G4	Brush Holder	2	2,530
118	2603410001	Socket head cap screw	2	1,430
119	2610315386	Screw	2	1,430

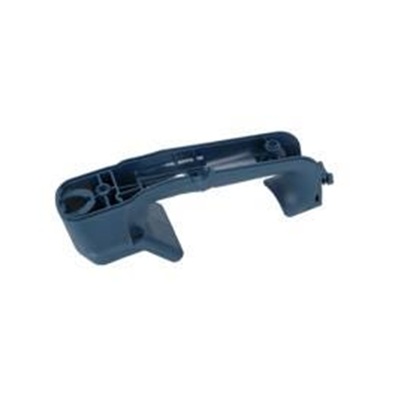

127	2602025060	Strap-Shaped Handle	1	8,030
128	2603410054	Thread-forming tap. Screw	2	1,980	품절
131	2610364015	Hexagon Socket Screw Key	1	2,530
132	2603320001	Square Nut	2	1,430
144	1614431010	Cable	1	2,530	품절
145	2604448034	Connecting Cable	1	1,430
150	2600101027	Shim washer	1	1,430	품절
151	2600150004	Shim	1	1,650
152	2603435015	Cross Recessed-Head Screw	4	1,650
154	2601328045	Cover Disc	1	1,650	품절
155	1619P00220	Torx Oval-Head Screw	4	1,210
156	2604652009	Spiral Spring	2	1,430
157	2600508038	Housing Cover	1	5,500
162	2606491011	Ratchet	1	1,980	품절
163	2600423006	Carrier Bracket	1	1,430	품절
164	1619P06265	O-Ring	1	1,210
165	2606491014	Coupling Half	1	3,740
166	2604617004	Compression Spring	1	1,650
167	1619P00446	Shim	2	1,210
168	2600421001	Guide Sleeve	1	1,430
171	2600301046	Sintered-Metal Bushing	1	2,530
172	2600301045	Bushing	1	2,200
801	2605808917	Gear Housing	1	54,670
802	1619P00775	Motor Housing	1	14,190
805	1607000385	Power supply cord	1	9,900
807	2600905039	Groove ball bearing	1	8,030
810	2604320912	Carbon-Brush Set	1	6,380
812	2607329129	Suppression Filter	1	6,930
813	2607001130	Needle-Roller Cage	1	3,740

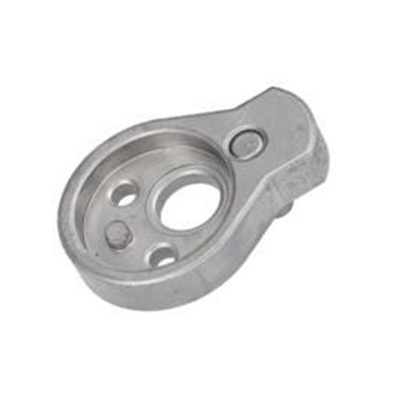

824	2601072901	Eccentric Disc	1	4,840
826	2602025901	Strap-Shaped Handle Strap-Shaped Handle	1	8,030
830	2600917900	Needle bearing	1	5,500
845	1619P06451	Clamping Saddle	1	1,430
851	2601015901	Sealing Plate	1	2,200	품절
854	1619P00777	Roller Lever	1	11,220
855	1619P01375	Roller Set	1	6,930
861	2605500900	Fan Cover	1	2,860
863	2601016903	Base Plate	1	12,430
