보쉬 GST25M 분해도 (3601E160B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 80개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P07202	Motor Housing	1	9,900	품절
2	1619P05382	Field	1	12,430	품절
3	1619P05282	Armature	1	30,140
4	1619P07688	Switch	1	11,220
5	1604460399	Power supply cord	1	6,380
6	1619P14642	Grommet	1	1,430
7	2601035001	Cable Clip	1	1,430
12	1619P08938	Suppression Filter	1	1,650	품절
13	1900905018	Ball Bearing	1	12,430
16	1600A003G4	Brush Holder	2	2,530
19	2603490022	Screw	14	1,210
21	2604652009	Spiral Spring	2	1,430
22	1619P00220	Torx Oval-Head Screw	4	1,210
23	1619P07541	Retaining snap ring	1	1,430	품절
24	1619P07190	Fork Lever	1	2,200	품절
26	1619P07542	Screw Cap	1	2,530
28	2604448034	Connecting Cable	2	1,430
29	2600101027	Shim washer	1	1,430	품절
30	2600150004	Shim	1	1,650
31	1619P07418	Speed governor	1	21,450
32	2600290060	Magnetic Disk	1	2,200	품절
33	2603435015	Cross Recessed-Head Screw	4	1,650
34	1619P07186	Cover Disc	1	1,430	품절
35	1619P00428	Spring retaining ring	1	1,210
36	2600590006	Ratchet Cap	2	1,430
37	1619P07193	Rotary Knob	1	2,860	품절
38	1619P07188	Rotary Knob	1	1,430
39	1619P08820	Connecting Cable	1	1,210	품절
40	1619P00444	Locking washer	1	1,210
41	2600100568	Shim	2	1,430	품절
42	1619P07205	Fan Cover	1	1,430
44	2910141197	Hex Socket Head Cap Screw M6x16-8.8	1	1,210
45	1619P07596	Shim	1	1,210
47	2916080907	Locking washer	1	1,650	품절
48	2915011007	Hex Nut	2	1,210
50	1619P07546	Thread-forming tap. Screw	4	1,210	품절
51	2600100515	Shim	2	1,980
53	1619P07650	Thread-forming tap. Screw	2	1,210	품절
54	1619P07191	Counterweight	1	9,900	품절
55	1619P08936	Covering hood	1	1,430	품절

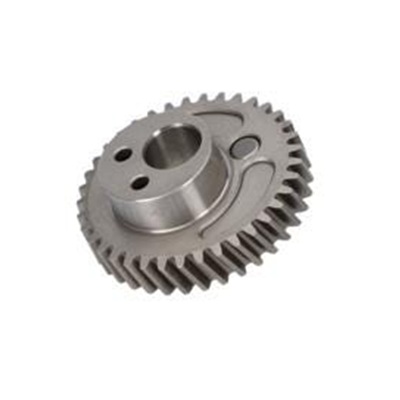

56	1619P07192	Eccentric Cog Wheel	1	14,190
57	2600913040	Needle-Roller Assembly	1	3,740
58	2600101047	Shim	1	1,430	품절
59	2916640905	Spring retaining ring	1	1,430
60	1619P08926	Ring	1	1,210
63	1619P07194	Seal	1	1,210
66	2603410048	Thread-forming tap. Screw	4	1,430
67	2604613000	Compression Spring	2	1,430
68	1616B00224	Guide Bracket	1	9,900
69	1619P12765	Lifting Rod	1	11,220
70	1619P06451	Clamping Saddle	1	1,430
71	1619P12767	Sliding Piece	1	6,380
72	2603421040	Countersunk-Head Screw	2	1,430
73	2600112031	Supporting Disc	1	1,430
74	2600290017	Seal Ring	1	1,430
75	2600101612	Shim	1	1,430
76	1619P07544	Fixing plate	1	1,210
77	1619P07545	Sealing Plate	1	1,210
79	1619P07318	Roller Lever	1	11,220	품절
83	2917530101	Straight Pin	1	2,200
87	2600423006	Carrier Bracket	1	1,430	품절
88	1619P06265	O-Ring	1	1,210
89	2606491011	Ratchet	1	1,980	품절
90	2606491014	Coupling Half	1	3,740
91	1619P00446	Shim	3	1,210
92	2604610040	Compression Spring	1	1,430
93	2604617004	Compression Spring	1	1,650
94	2600421001	Guide Sleeve	1	1,430
95	2603490011	Clamp Screw	1	3,960
96	1619P07199	Base Plate	1	8,030	품절
97	1619P07200	Set Of Handles	1	12,430	품절
98	1619P07196	Protective Cover	1	1,430	품절
651	2601016065	Splintering Protector	1	3,080
653	2610364015	Hexagon Socket Screw Key	1	2,530
810	2604320912	Carbon-Brush Set	1	6,380
843	1619P09136	Gear Housing	1	33,110
861	2600917900	Needle bearing	1	5,500
865	1619P09137	Gear Cover	1	24,200
881	1619P09138	Guide Roller Set	1	4,840	품절
899	1619P09139	Ratchet	1	2,200	품절
