보쉬 GWS7-100ET 분해도 (3601C885B3)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 48개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	1619P09415	Motor Housing	1	5,500
3	1604010BK7	Armature	1	18,480
3/40	1619P02801	Fan	1	1,430	품절
4	1607200179	On-Off Switch	1	6,930
6	2600703012	Grommet	1	2,200
7	1601302017	Fastening Clamp	1	1,210	품절
13	1619P00456	Ball Bearing	1	2,200
14	1619P00455	Ball Bearing	1	2,530
16	1619P02845	Brush Holder	2	2,200
16/21	1619P02809	Spiral Spring	2	1,210	품절
18	1604611031	Compression Spring	1	1,980
22	1619P02811	Adjusting Slide	1	1,430
23	1619P10838	Switch Button	1	1,430
24	1619P02828	Brush-Cover	2	1,430
25	1619P10072	Housing Cover	1	2,530
27	1600206025	Rubber Ring	1	1,650
28/3	2916660013	Retaining clip	1	1,650

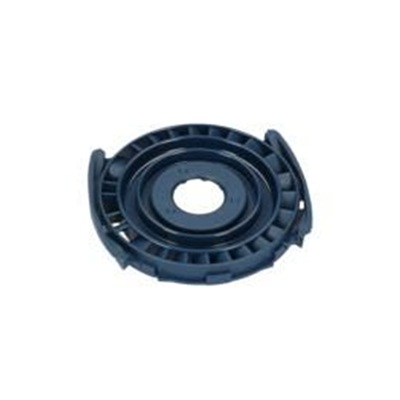

29	1619P02818	Air-Deflector Ring	1	1,430
30	1619P02819	Air Distributor	1	1,210
33	1619P02820	O-Ring	1	1,430
35	1619P02821	Shim	1	1,210
35	1619P02822	Shim	1	1,430
36	1619P00987	Washer	1	1,210
37	1600100033	Cover Disc	1	1,980
45	2915011007	Hex Nut	1	1,210
47	2609110052	Special Screw	1	1,210
48	1619P02849	Torx Oval-Head Screw	2	1,210	품절
49	1603435068	Thread-forming tap. Screw	4	1,430
50	1619P00105	Torx Oval-Head Screw	1	1,430	품절
55	1619P01066	Torx Oval-Head Screw	4	1,210
57	1619P02848	Torx Oval-Head Screw	2	1,430
80	1619P09390	Cover Disc	1	1,650
650/10	160202509T	Auxiliary Handle	1	2,530	품절
650/20	1619P09976	Round Nut With 2 Holes	1	1,650
650/30	2609110015	Pin-Type Face-Wrench	1	1,980
650/50	1605703113	Clamping-Flange	1	1,430

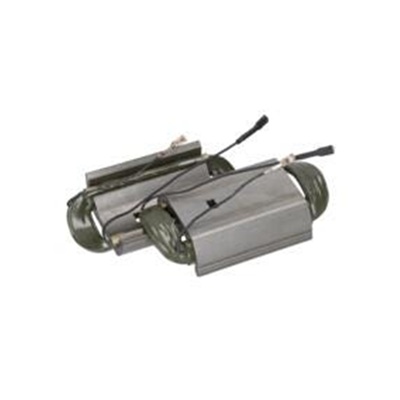

802	1619P07239	Field	1	14,190
810	1619P02870	Carbon-Brush Set	1	5,500
828	1619P07451	Bearing Flange	1	9,900
831	1619P07276	Gear Housing	1	12,430
838	1619P13518	Set Of Gears	1	9,900
840	1619P02873	Push-Button	1	1,650
841	1600910018	Needle bearing	1	3,080
851	1619P01321	Protective Cover	1	6,380
858	2910641081	Oval-Head Screw	1	1,210	품절
860	1619P07277	Speed governor	1	21,450
894	1615430020	Grease Tube	1	14,190
895	1605430003	Grease Tube	1	26,840
