보쉬 GWS22-230 분해도 (3601HC10B1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 57개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

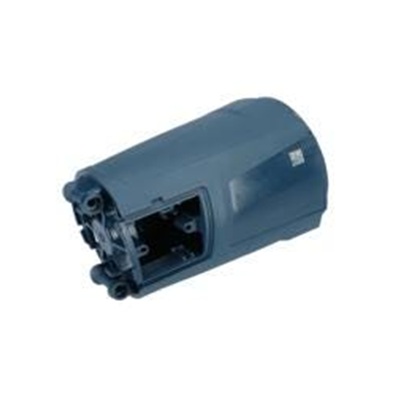

1	1619P15267	Motor Housing	1	11,220
2	1619P15000	Field	1	26,840
6	1619P14369	Grommet	1	1,430
7	1601302018	Fastening Clamp	1	1,430
13	1600905011	Groove ball bearing	1	3,740
14	1600905028	Groove ball bearing	1	6,930
24	1619P15272	Handle	1	8,030
28	1600210033	O-Ring	1	1,430
29	1600210045	O-Ring	1	1,430	품절
30	1619P15274	Air Distributor	1	2,200	품절
31	1619P17066	Air-Deflector Ring	1	1,980
32	1600290019	Retaining snap ring	1	1,430
33	1600290013	Rotary shaft lip seal	1	1,980
34	1600190020	Shim	1	1,430
34	1600190021	Shim	1	1,980
34	1600190022	Shim	1	1,430	품절
34	1600190037	Shim	1	1,210
34	1600190038	Shim	1	1,210	품절
34	1600190039	Shim	1	1,210	품절
34	1600190040	Shim	1	1,210
35	1600205034	Felt Washer	1	1,430
37	1600290036	Seal Ring	1	1,650
38	1600206020	Rubber Ring	1	1,430
39	1600206030	Rubber Ring	1	1,430
45	1603300019	Hex Nut	1	1,430
51	2600910001	Needle-Roller Bearing	1	2,860
53	1605190068	Socket Housing	1	1,210
60	1603435023	Thread-forming tap. Screw	3	1,650
61	2912401038	Tapping Screw	4	1,210
62	1603435060	Tapping Screw	2	1,430
63	1603410014	Pan head screw	2	1,430	품절
64	1603435042	Plastic-Cutting Screw	4	1,430	품절
65	2912401020	Tapping Screw	4	1,210
66	2910211019	Tapping Screw	1	1,210
68	1601006011	Sealing Plate	1	1,980	품절
69	2916650905	Spring retaining ring	1	1,210
651	1619P15668	Protective Cover	1	11,220
803	1619P15748	Armature	1	40,480
804	1619P14968	Switch	1	9,900
808	1619P16942	Nameplate	1	3,740	품절
810	1607014171	Carbon-Brush Set	1	9,900
816	1604336048	Brush Holder	2	3,960
821	1619P15750	Gear Housing	1	26,840

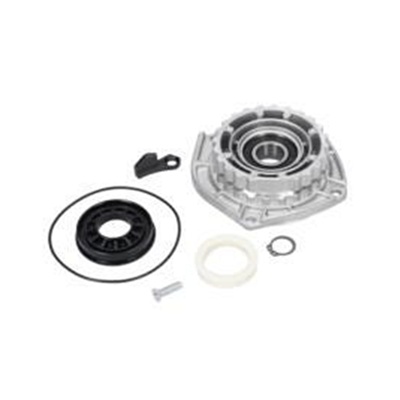

822	1619P15872	Bearing Flange	1	14,190
823	1619P15945	Sealing cap	1	2,200
825	1619P15297	Grinding Spindle	1	4,840
840	1619P15752	Push-Button	1	2,530
846	1607000342	Retaining Washer	1	2,530
882	1619P06597	Stopper	1	2,860
890	1600210039	O-Ring	1	1,650
891	16020250A1	Auxiliary Handle	1	9,900	품절
891/1	160202509Z	Auxiliary Handle	1	11,220
893	1605703117	Clamping-Flange	1	5,500
894	1603345043	Round Nut	1	5,500
896	1600A016PP	Fast Locking Flange	1	33,110
897	1605430003	Grease Tube	1	26,840
898	1615430020	Grease Tube	1	14,190
