보쉬 GWS17-125SINOX 분해도 (3601GD05B1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 62개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

1	16051082K7	Motor Housing	1	4,840
6	1600703043	Grommet	1	1,980
7	1601302017	Fastening Clamp	1	1,210	품절
9	160111C468	Manufacturer's nameplate	1	1,980	품절
13	2600905032	Ball Bearing	1	3,080
14	1600905032	Groove ball bearing	1	3,740
24	16055002G5	Cover	1	1,430
25	16055002HH	Housing Cover	1	2,530
27	1600206025	Rubber Ring	1	1,650

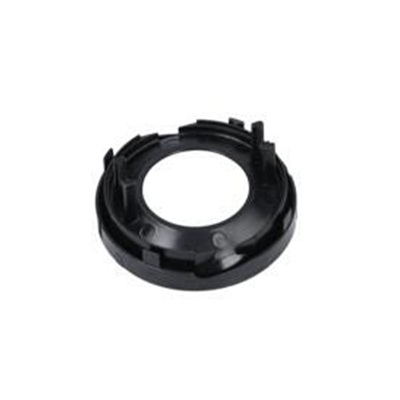

29	1600591070	Air-Deflector Ring	1	1,430

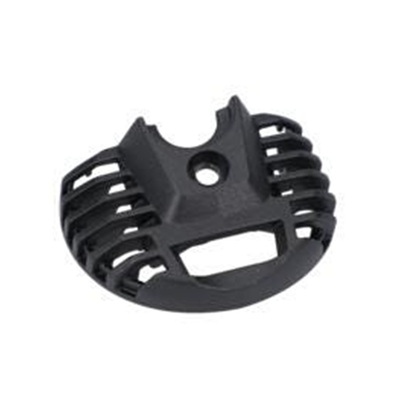

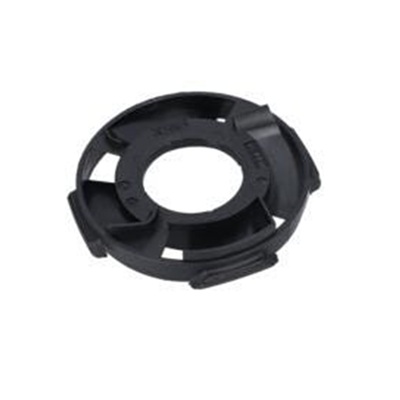

30	160059105N	Air Distributor	1	1,650
33	1600210035	O-Ring	1	1,430
35	1600136013	Shim	1	1,980
35	1600136014	Shim	1	1,980
35	1600136015	Shim	1	1,980
35	1600136020	Shim	1	2,530
37	1600290016	Rotary shaft lip seal	1	1,980	품절
40	1600119011	Retaining clip	1	1,650
41	1600200029	Plain bearing	1	2,860
45	1619P17544	Hex Nut	1	1,210
49	160343508X	Thread-forming tap. Screw	4	1,210
50	2914201527	Torx Oval-Head Screw	1	1,650	품절
53	1619P01066	Torx Oval-Head Screw	3	1,210
54	1603414026	Torx Oval-Head Screw	1	1,210
55	2603490023	Torx Oval-Head Screw	3	1,210
180	160111C45X	Sticker	1	1,210	품절
301/17	1604652021	Spiral Spring	2	1,210
301/18	1600A016PW	Switch Handle	1	1,210
301/19	1619PS2146	Compression Spring	1	1,980	품절
301/20	1600A01P8K	Adjusting Slide	1	1,210
301/48	1613435034	Lens Head Screw	2	1,210
302104	1600210044	O-Ring	1	1,210
325	1607000EK6	Insulating Plate	1	1,210	품절
343	1607000742	Catch Lever	1	4,840
343/44	1604611042	Compression Spring	1	1,430
650/1	16020250A0	Auxiliary Handle	1	6,930	품절
650/2	1603345043	Round Nut	1	5,500
650/3	1607950052	N-Type Face-Wrench	1	2,530	품절
650/5	2605703014	Clamping Flange	1	4,840
650/52	1600210039	O-Ring	1	1,650

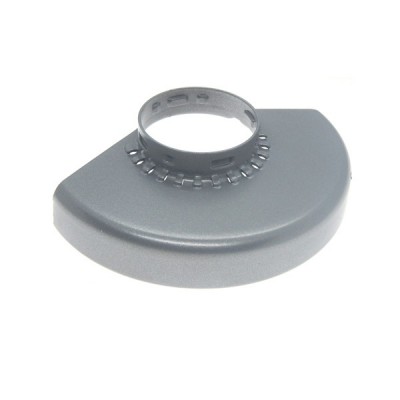

651	1600A025XR	Protective Cover	1	6,380
652	1600A02059	Protective Cover	1	8,030
652	1600A021MH	Protective Cover	1	6,380
802	1607000F0K	Field	1	44,880
803	1607000EJ6	Armature assembly	1	44,880
805	1607000392	Power supply cord	1	14,190
810	1607000EJ7	Carbon-Brush Set	1	6,380
813	1607000V38	Groove ball bearing	1	4,840
816	1607000EJ9	Brush Holder	2	1,430	품절
818	1607000EK5	Pan head screw	1	1,210	품절
821	1607000EK0	Gear Housing	1	12,430
821	1607000EK1	Gear Housing	1	16,390	품절

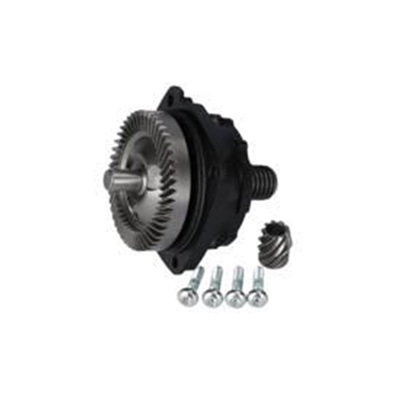

828	1607000D64	Bearing Flange	1	36,630
828/4	3600210109	O-Ring	1	1,650
835	160661017B	Fan	1	1,430
840	1607000V41	Push-Button	1	2,860
851	1607000F52	Speed governor	1	30,140
884	1600A021FX	Filter	1	3,080
891	1619P16111	Auxiliary Handle	1	2,200
892	1615430017	Grease Tube	1	24,200	품절
893	1615430020	Grease Tube	1	14,190

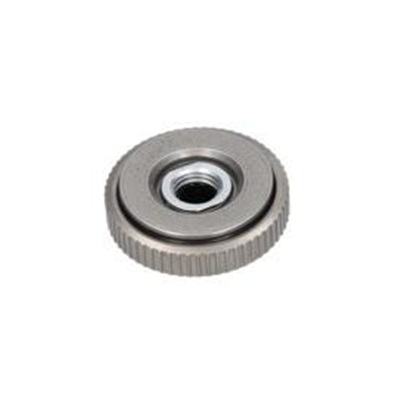

896	1600A016PP	Fast Locking Flange	1	33,110
