보쉬 GBH4-32DFR 분해도 (3611C321B1)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 108개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

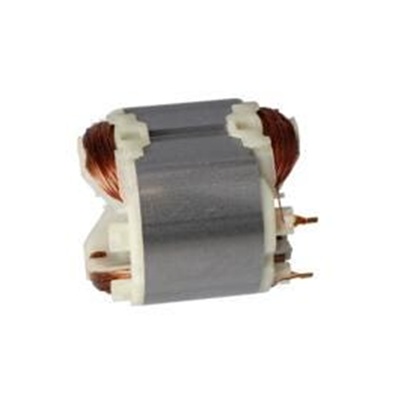

2	1619P08340	Field	1	24,860
4/4	1617200127	Switch	1	22,000
4/6	1600703034	Grommet	1	1,980
4/178	1614412055	Connecting Cable	1	2,310	품절
4/179	1614412056	Connecting Cable	1	2,310	품절
7	1601302017	Fastening Clamp	1	1,210	품절
13	2600905032	Ball Bearing	1	3,190
14	1610905036	Groove ball bearing	1	4,070	품절
15	1616610100	Fan	1	2,640	품절

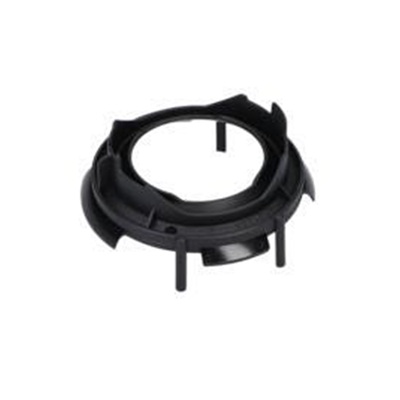

27	1610591043	Air-Deflector Ring	1	2,640	품절
34	1611322004	Fixing Plate	1	2,310	품절
36	1615104049	Housing Section	1	22,000
41	1613124088	Striker Pin	1	22,000	품절
42	1614336072	Brush Holder	1	22,000	품절

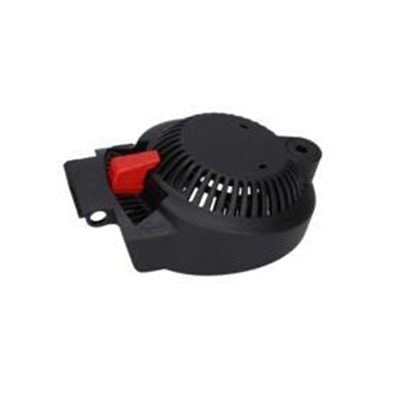

43	1615500384	Fan Cover	1	6,490
434	1613490007	Clamp Screw	1	2,310	품절
44	1614611025	Rocker Foot	1	2,310	품절
47	1616328049	Gear Sleeve	1	9,020

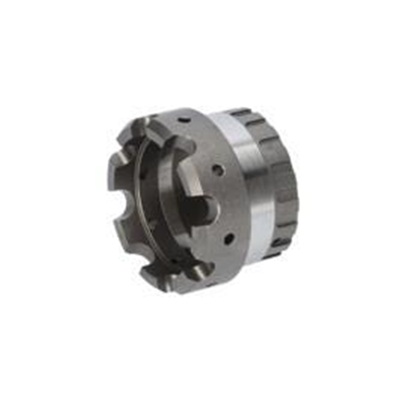

48	1610290085	Clutch Sleeve	1	14,630	품절

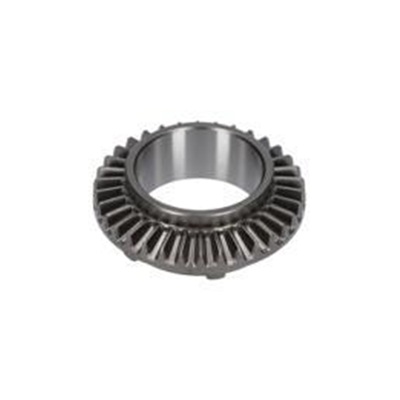

51	1616333044	Crown Gear	1	19,030
52	1614601061	Spring retaining ring	2	1,980	품절

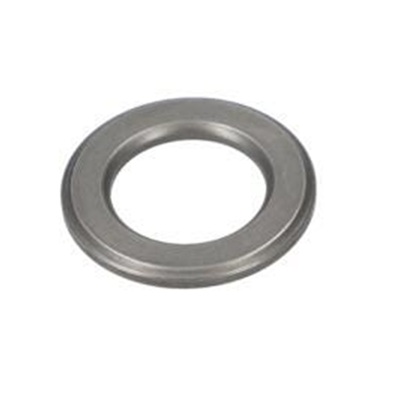

53	1610102634	Supporting Disc	1	1,980	품절
54	1610101020	Stop Disc	2	2,970	품절
55	1612099001	Rocker Arm	2	1,980	품절

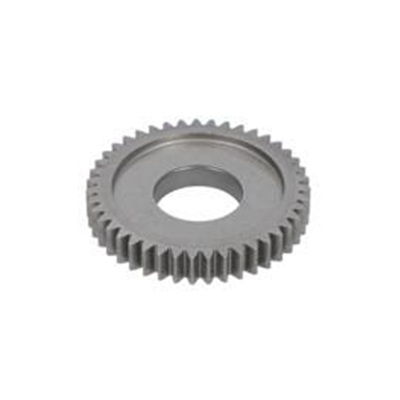

60	1616317076	Cylindrical Gear	1	9,020	품절
61	1616333046	Pinion	1	16,830	품절
62	1610026002	Damping rubber	1	1,650	품절

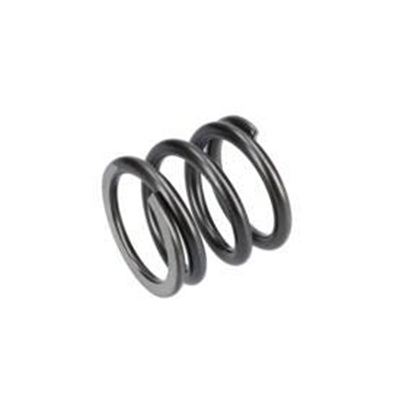

63	1614611026	Compression Spring	1	4,070	품절
64	1616409024	Clutch Ring	1	11,550	품절
65	1610301007	Plain bearing	1	3,190	품절
66	1616455006	Eccentric	1	24,860
67	1616232006	Leaf Spring	1	1,650	품절
68	1610913021	Needle-Roller Assembly	3	1,980	품절
70	1612001041	Connecting Rod	1	10,230	품절
72	1616317077	Eccentric Cog Wheel	1	24,860
74	1614336075	Support Plate	1	1,430	품절
80/80	1615133033	Handle	1	7,150
80/193	1612026126	Switch-Pawl	1	1,980	품절

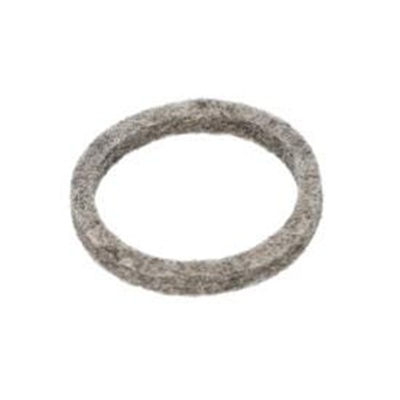

82	1610205010	Felt Seal	1	1,210	품절

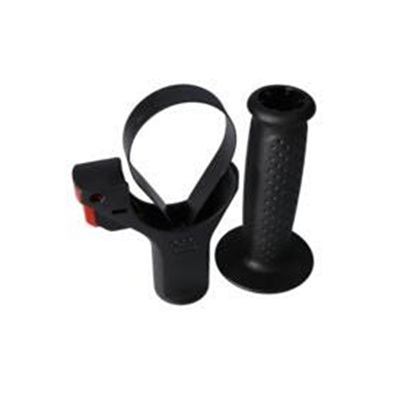

84	160202507H	Auxiliary Handle	1	7,150
85	1618040087	Support clamp	1	4,950	품절
86	1613490002	T-Head Bolt	1	2,970
87	1611316019	Clamping Band	1	2,970
96	1614601060	Retaining ring	1	1,430	품절
97	1610314005	Sealing Sleeve	1	1,980	품절

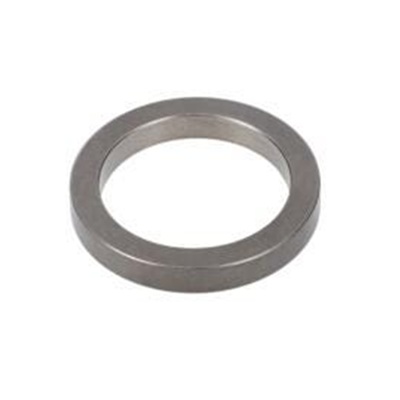

98	1610211019	Spacer Sleeve	1	1,980
99	1610101626	Supporting Disc	1	1,430	품절
102	1610102079	Shim	2	1,650	품절
102	1610102080	Shim	2	1,210
102	1610102081	Shim	2	1,650
103	1610200027	Plain bearing	1	2,640	품절
104	1610210196	O-Ring	1	1,430	품절
111	1600502023	Intermediate Ring	1	1,650
112	1610190038	Sealing washer	1	1,210	품절
113	1613435038	Lens Head Screw	2	1,210
118	1616455007	Clutch Sleeve	1	27,610	품절
119	1903230013	Ball	8	1,650
121	1610200028	Plain bearing	1	4,950
126	2603490023	Torx Oval-Head Screw	11	1,210
127	1610422021	Bushing	1	3,190	품절
138	1611015058	Sealing Frame	1	2,970
141	1600A0089A	Rotary shaft lip seal	1	4,070
142	1610205012	Felt Washer	1	1,430
143	2916540015	Retaining ring	1	1,430
144	1610241001	Collar	1	1,980
145	1614611023	Compression Spring	1	1,430	품절
146	1610200029	Backup ring	1	4,070	품절
147	1610390056	Guide Sleeve	1	1,980
154	1614601062	Spring retaining ring	1	1,650
161	1610290092	Damping Ring	1	2,970	품절
163	1600A009VC	Shaft Seal	1	2,310
165	1610210199	O-Ring	2	1,650
171	2916080911	Locking washer	1	1,650	품절
172	160343508E	Thread-forming tap. Screw	4	1,210	품절
174	1613490014	Hread-forming tap. Screw	4	1,430
176	2912738178	Socket head cap screw	2	1,210	품절
188	1610209008	Grip-Spring Tensioning E	1	2,640	품절
189	1610209009	Clamping Piece	1	2,310	품절
192	1614611016	Compression Spring	2	1,210
194	1610099008	Screw Plate	1	1,650	품절
195	1610099009	Clamping Piece	1	1,980	품절
198	1612099000	Switch Slide	1	2,640
199	1610284002	Bellows	1	3,850
200	1610284001	Bellows	1	3,850	품절
325	1617000895	Tool Holding Fixture Tool Holding	1	33,990
325203	1610508047	Protective Cap	1	1,650
656217	2603421229	Countersunk-Head Screw	1	1,430
661	1615430010	Grease Tube	1	3,850
688	1613001008	Depth-Gauge	1	5,610	품절

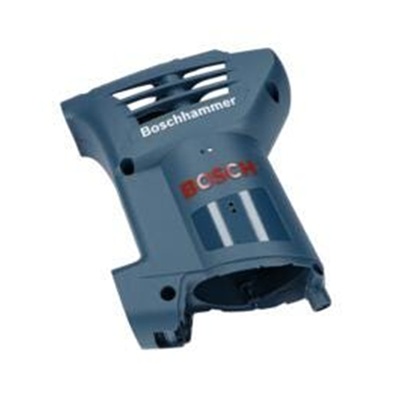

801	1615108150	Motor Housing	1	12,760	품절

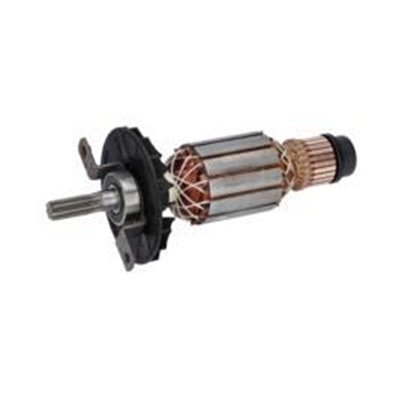

803	1614010252	Armature With Fan	1	62,150
805	1607000392	Power supply cord	1	14,630
808	160111A3H5	Nameplate	1	1,980	품절
810	1614321079	Carbon-Brush Set	1	11,550
818	2603410001	Socket head cap screw	2	1,430
824	1613123013	Eccentric Shaft	1	12,760	품절

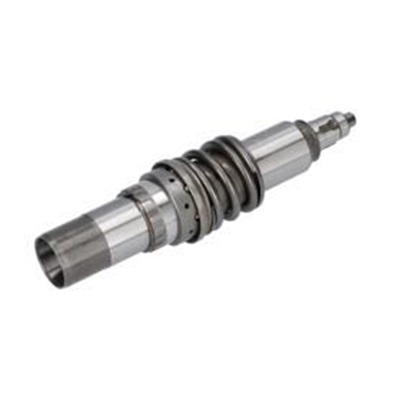

835	1615806229	Hammer Pipe	1	75,350	품절
840	1615190168	Impact Mechanism Housing	1	51,040	품절
849	1611329030	Control Fork	1	6,490	품절

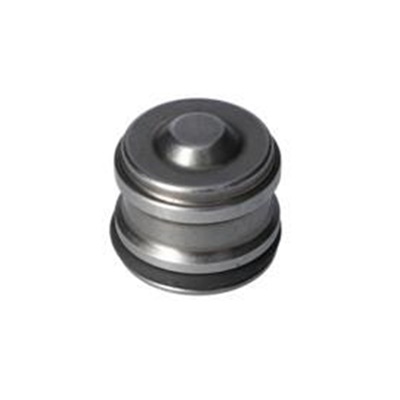

856	1618700093	Hammer Piston	1	10,230
857	1618710094	Striker Striker	1	12,760
861	1616333048	Pinion Pinion	1	16,830
873	1615500411	Housing Cover	1	22,000	품절

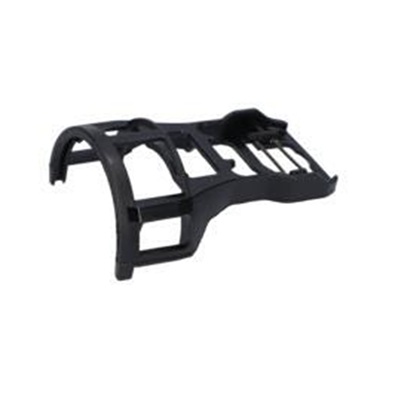

882	16170006AE	Handle Cover	1	8,250	품절
884	1612025079	Auxiliary Handle	1	11,550	품절
891	1615806230	Hammer Pipe	1	120,340	품절
897	1610314006	Sealing Sleeve	1	9,020
899	1617000897	Wear and Tear Part Set	1	27,610	품절
