보쉬 GBH3-28DRE 분해도 (3611B3A0B0)

제품이미지

7 베어링 슬리브

266898-7

1,100

총 103개

이미지 또는 부품명 클릭시 상세정보 조회

0 / 0

이미지	항목번호	부품번호	부품명	소요량	판매가	장바구니 담기

2	2604220549	Field	1	27,610
3/13	1610905032	Groove ball bearing	1	3,190

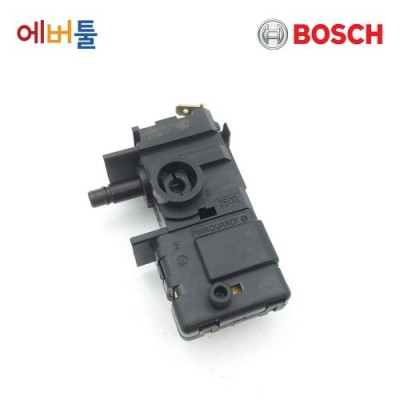

4/4	1617200127	Switch	1	22,000
4/6	1600703034	Grommet	1	1,980

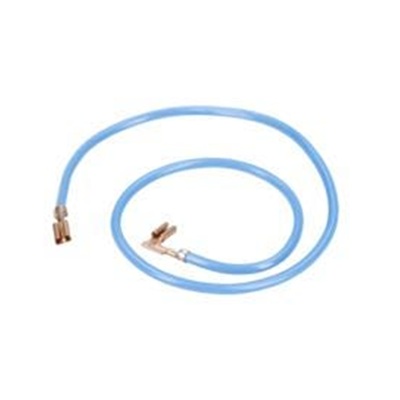

4/101	1614490015	Connecting Cable	1	2,310	품절
4/102	1614490016	Connecting Cable	1	2,310
7	1601302017	Fastening Clamp	1	1,210	품절
14	1610905044	Groove ball bearing	1	5,610

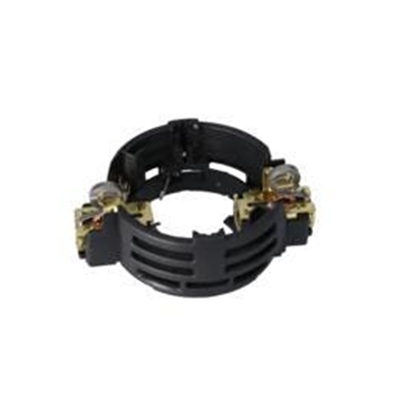

16	1614336064	Brush Plate	1	14,630
17	1614465011	Suppression Filter	2	4,070
19	1611329024	Switch Contact	2	1,430
22	1616312004	Cylindrical Gear	1	8,250
26	16170006A5	Hammer Piston	1	30,910
26/27	1610311019	Striker	1	14,630
26/29	1600A01TD0	Piston Pin	1	2,970
26/56	1610210121	O-Ring	1	1,980
26/71	1610100016	Guide Disc	2	1,430
28	1613124098	Striker Pin	1	14,630
32	1612026151	Clamp Handle	1	10,230
32/20	1614690009	Driver Pin	1	2,640
32/30	1612026035	Switch Button	1	1,430
32/40	1610210046	O-Ring	1	1,650
32/50	1614611006	Compression Spring	1	2,640
33	1610590020	Holding Jacket	1	4,070
37	1613100019	Straight Pin	3	1,430
38	1600A008AG	Catch Disk	1	2,640
39	1615808102	Gear Cover	1	9,020	품절
42	1610102084	Thrust Ring	1	5,610
45	1610591046	Air-Deflector Ring	1	1,430
46	1610390068	Guide Bushing	1	11,550
47	1610283047	Rotary shaft lip seal	1	8,250
48	1610290102	Bearing Ring	1	4,070
48/1	1610210208	O-Ring	1	1,430
49	1615700044	End Shield	1	1,650
50	1614615008	Compression Spring	1	3,850
52/18	1610290098	Clutch Sleeve	1	2,970
52/52	1615108154	Cover	1	6,490
53	1610210245	O-Ring	1	2,310
54	1600502023	Intermediate Ring	1	1,650
55	1610210206	Seal Ring	1	3,850
58	1610210105	O-Ring	2	2,970
59	1600A009VC	Shaft Seal	1	2,310
60	1610210209	O-Ring	1	1,430
63/63	1610910063	Needle bearing	1	3,850
63/64	1610390069	Bushing	1	1,650	품절
66	1610202021	Plain bearing	1	1,980
68	1610283036	Rotary shaft lip seal	1	4,950
72	1604601027	Retaining ring	1	1,210	품절
74	1613435037	Thread-forming tap. Screw	4	1,210
75	2603490023	Torx Oval-Head Screw	9	1,210
76	2603490027	Torx Oval-Head Screw	4	1,210
77	1613490017	Thread-forming tap. Screw	4	1,980
78/1	1610102086	Shim	1	1,650
78/1	1610102087	Shim	1	1,650
79	1613435023	Thread-forming tap. Screw	2	1,210	품절
80	1613435038	Lens Head Screw	2	1,210
81/80	1615133033	Handle	1	7,150
81/193	1612026126	Switch-Pawl	1	1,980	품절
82	16170006AE	Handle Cover	1	8,250	품절
83/83	1614690008	Leaf Spring	1	3,190
83/194	1610099013	Screw Plate	1	1,650
85	1615500404	Cover	1	2,310	품절
86	1614601034	Retaining ring	1	1,650
87	1604601028	Retaining ring	1	1,210
100	1610026003	Damping rubber	1	1,430	품절
113	1616325002	Switching Panel	1	8,250

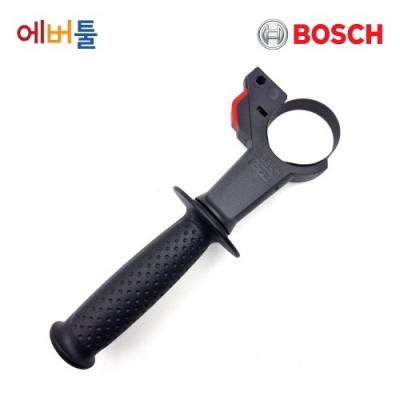

120	160202508Y	Auxiliary Handle	1	16,830
120120	160202507H	Auxiliary Handle	1	7,150
120124	1611316021	Clamping Band	1	2,310
120125	1613490001	T-Head Bolt	1	5,610
120802	1617000685	Support clamp	1	3,190	품절
130	1616333049	Gear Sleeve	1	12,760
135	1614601067	Retaining ring	1	1,430
199/43	1612099002	Rocker Arm	2	1,980
199/44	1614611025	Rocker Foot	1	2,310	품절
199188	1610209008	Grip-Spring Tensioning E	1	2,640	품절
199199	1610284002	Bellows	1	3,850
200	1610284007	Bellows	1	3,850
203	1610508047	Protective Cap	1	1,650
206	1613230003	Ball	1	1,430
207	1614601027	Retaining ring	1	1,210
208	1610101629	Retaining Washer	1	1,210
209	1610102089	Friction Washer	1	2,310
661	1615430010	Grease Tube	1	3,850
688	1613001009	Depth-Gauge	1	2,640
801	1617000689	Motor Housing	1	41,580

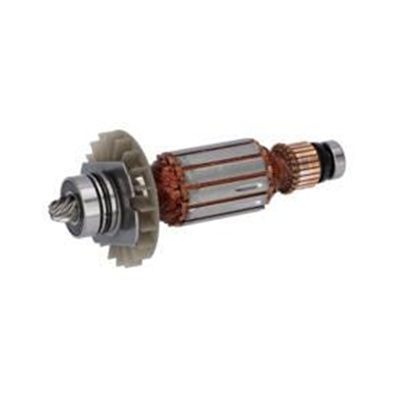

803	1617000690	Armature	1	75,350
805	1607000392	Power supply cord	1	14,630
808	160111A3H5	Nameplate	1	1,980	품절
811	1617000525	Carbon-Brush Set	1	7,150
818	2603410001	Socket head cap screw	2	1,430
820	1617000691	Intermediate Flange	1	30,910	품절
821	1617000692	Tool Holding Fixture	1	66,660	품절
821/1	1617000693	Tool Holding Fixture	1	82,610	품절
824	1617000A38	Jack Shaft	1	56,100
825	1617000695	Tool Holding Fixture	1	11,550
826136	1610205014	Felt Disc	1	1,210	품절
828	1617000697	Striker Pin	1	33,990
830	1617000698	Gear Sleeve	1	24,860

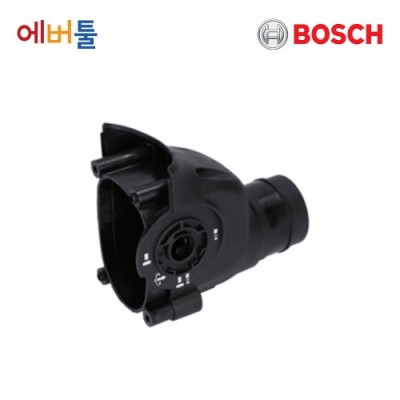

840	1617000699	Impact Mechanism Housing	1	22,000
870/2	2603421207	Countersunk-Head Screw	1	1,430
871	1608571069	Chuck	1	19,030
872	2607950007	Chuck Wrench	1	4,070
